Product Description

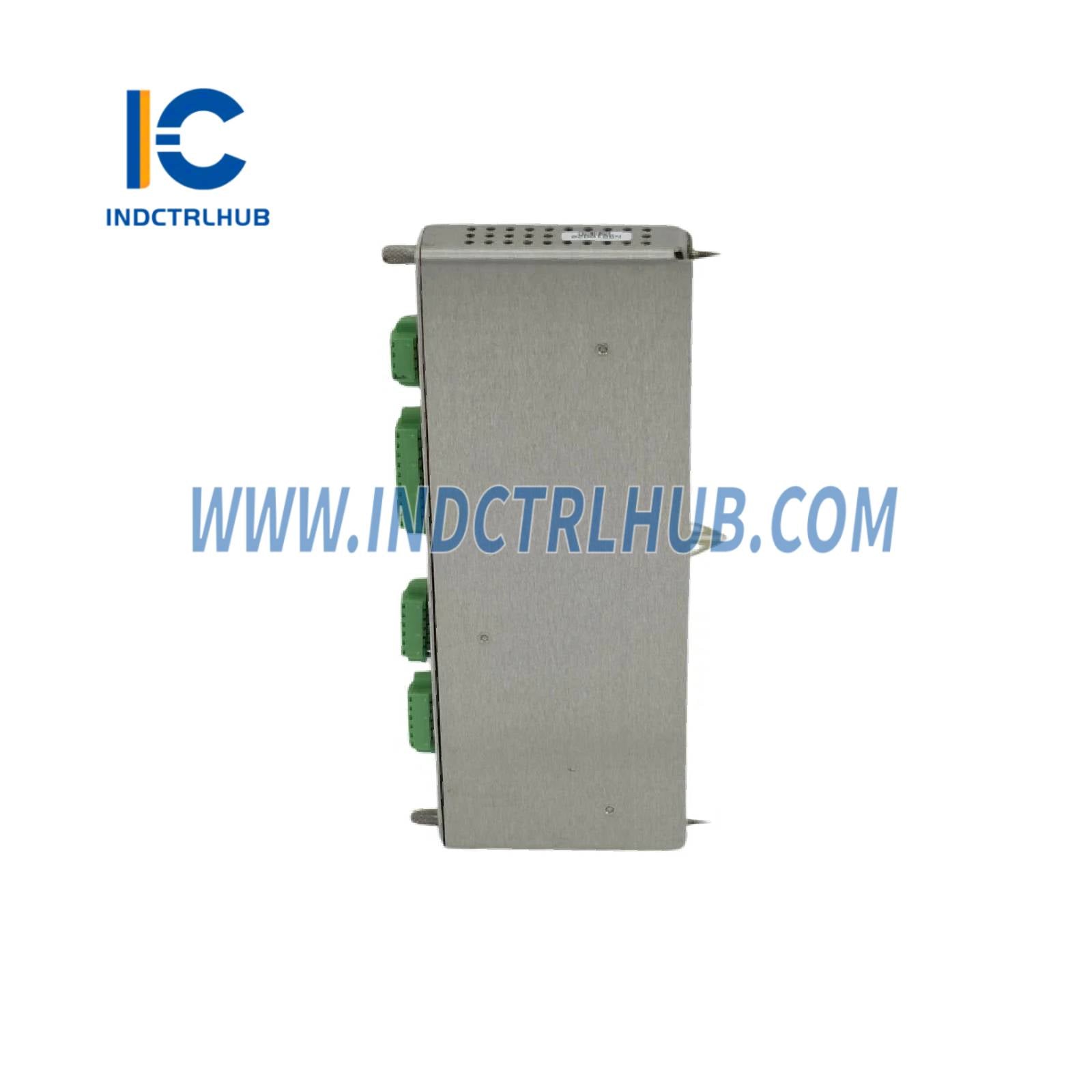

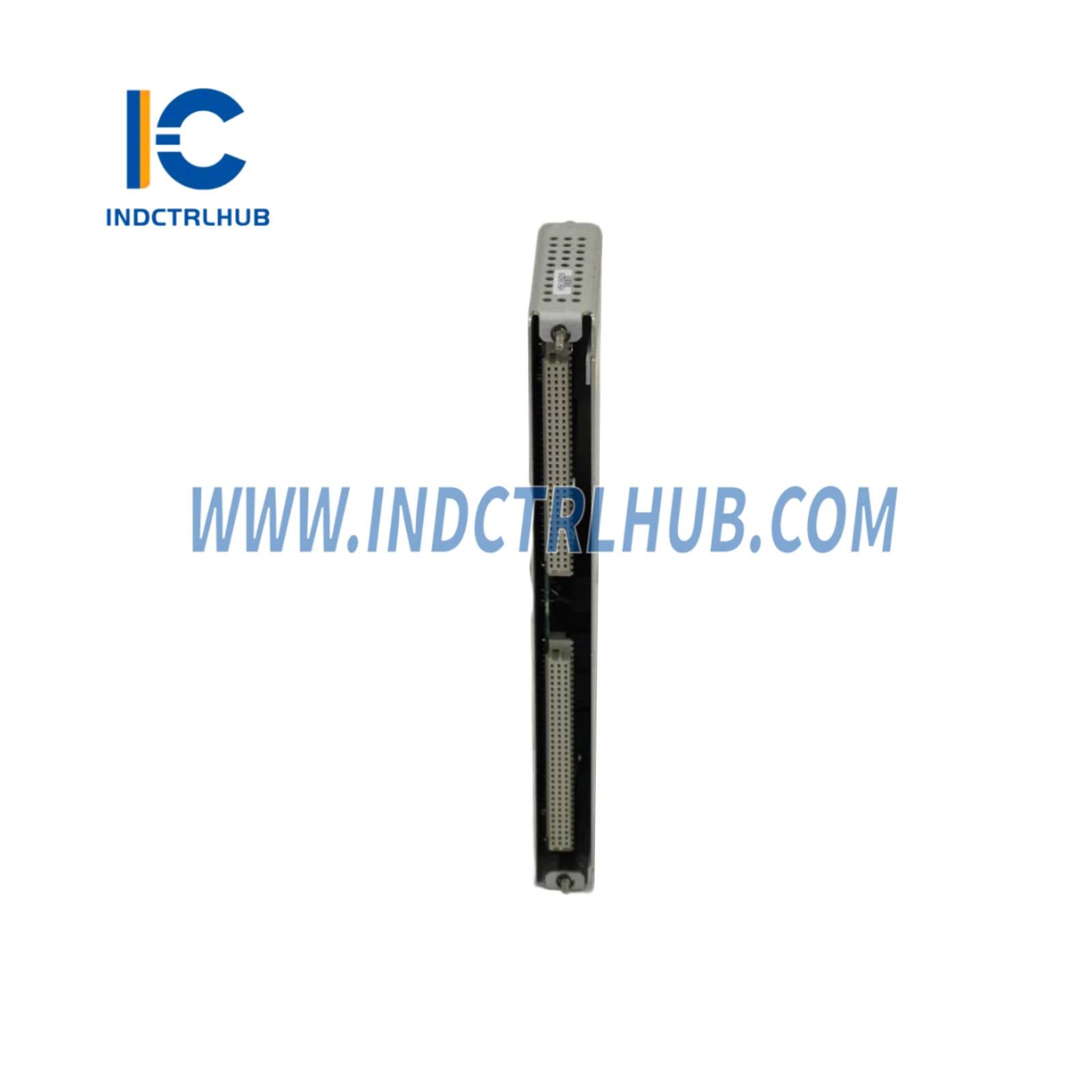

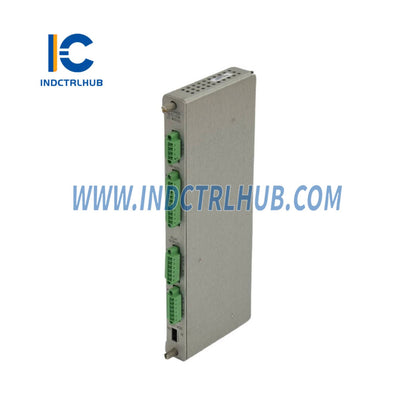

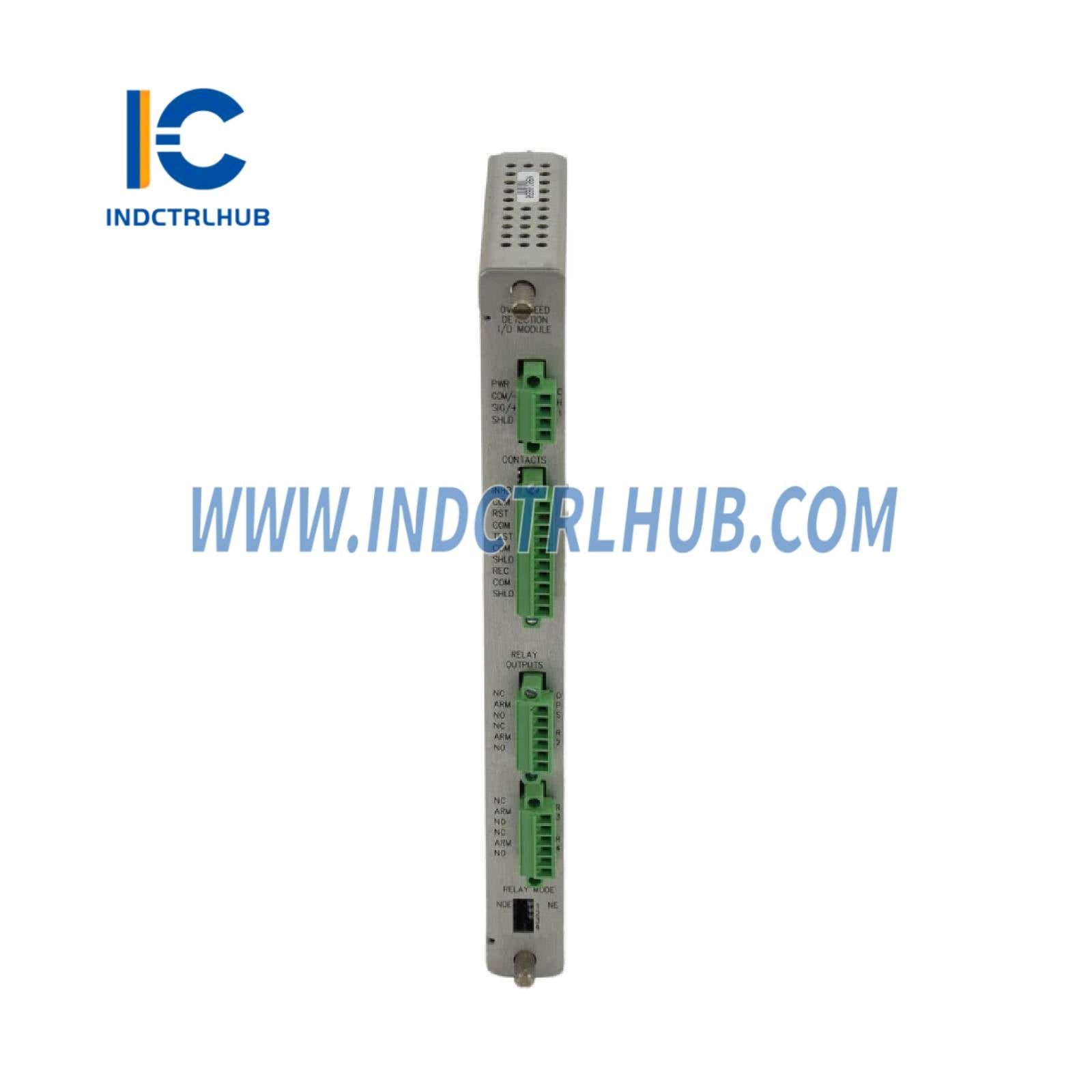

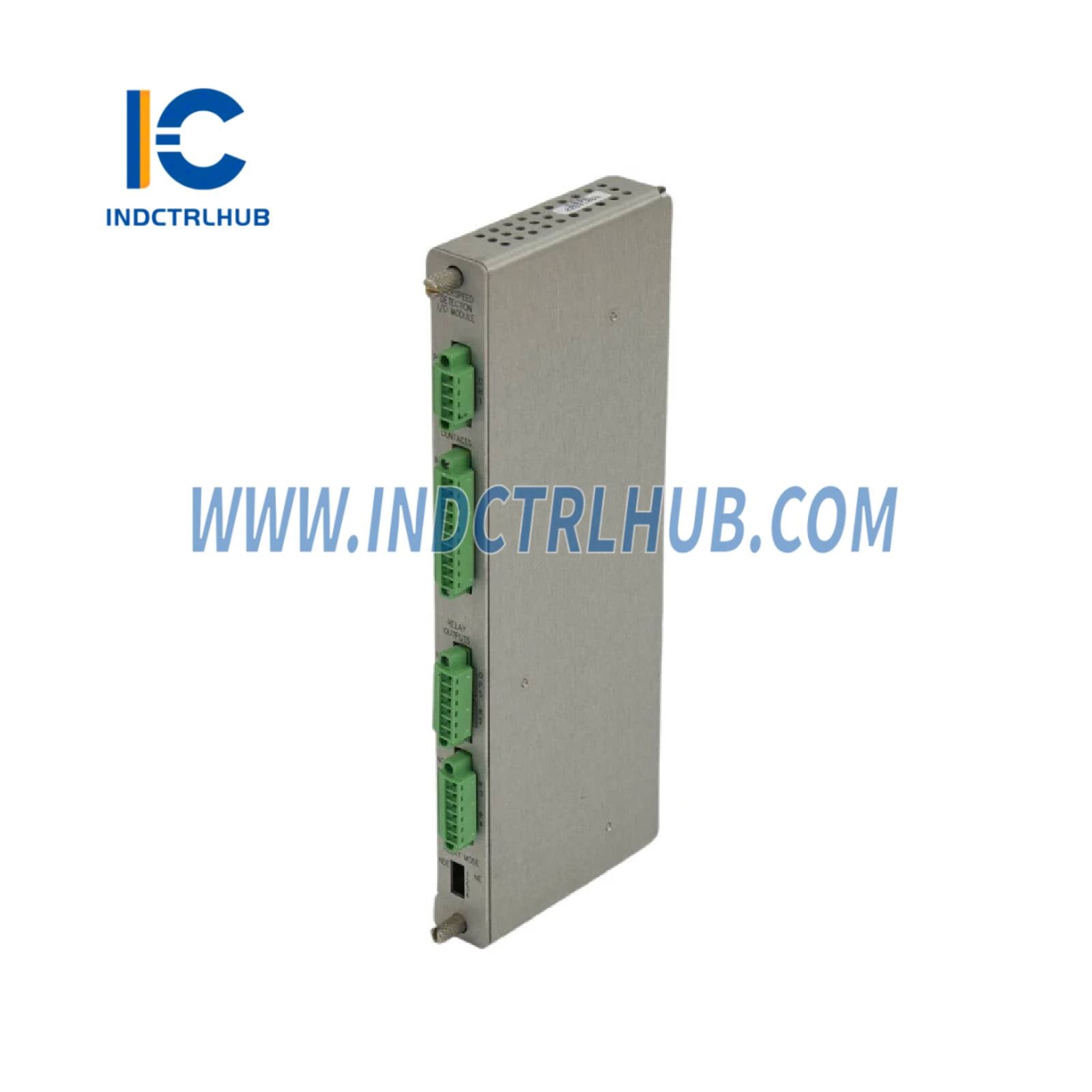

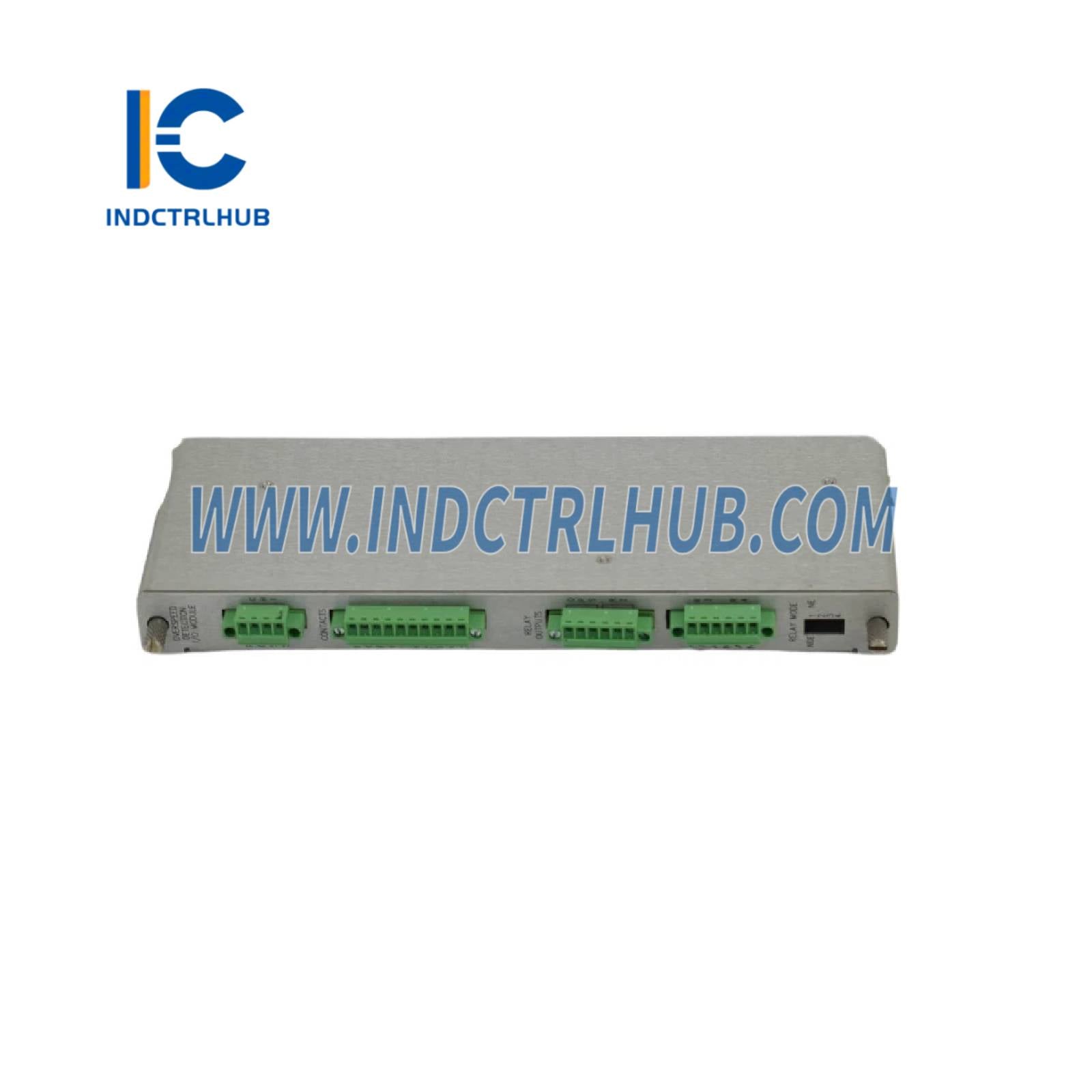

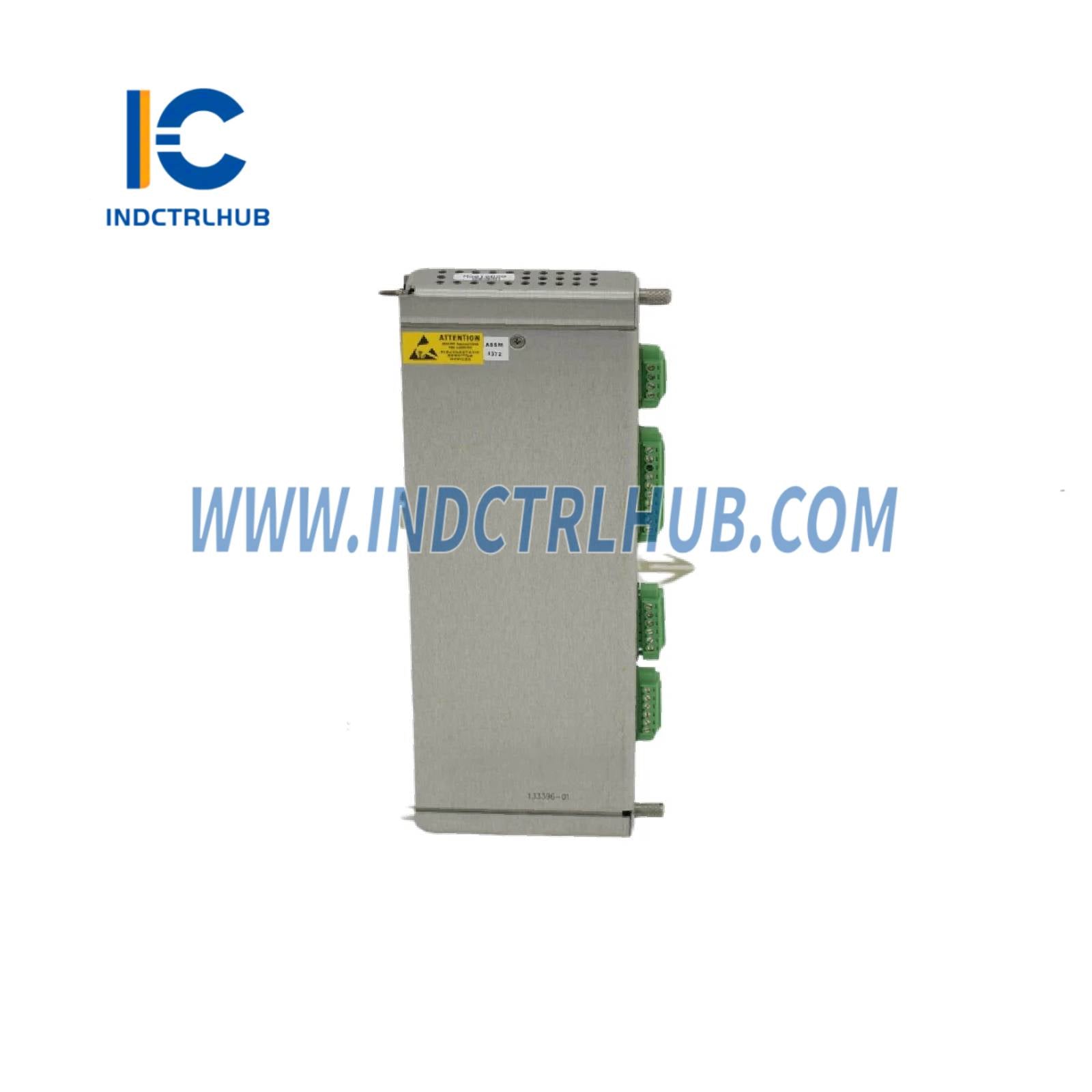

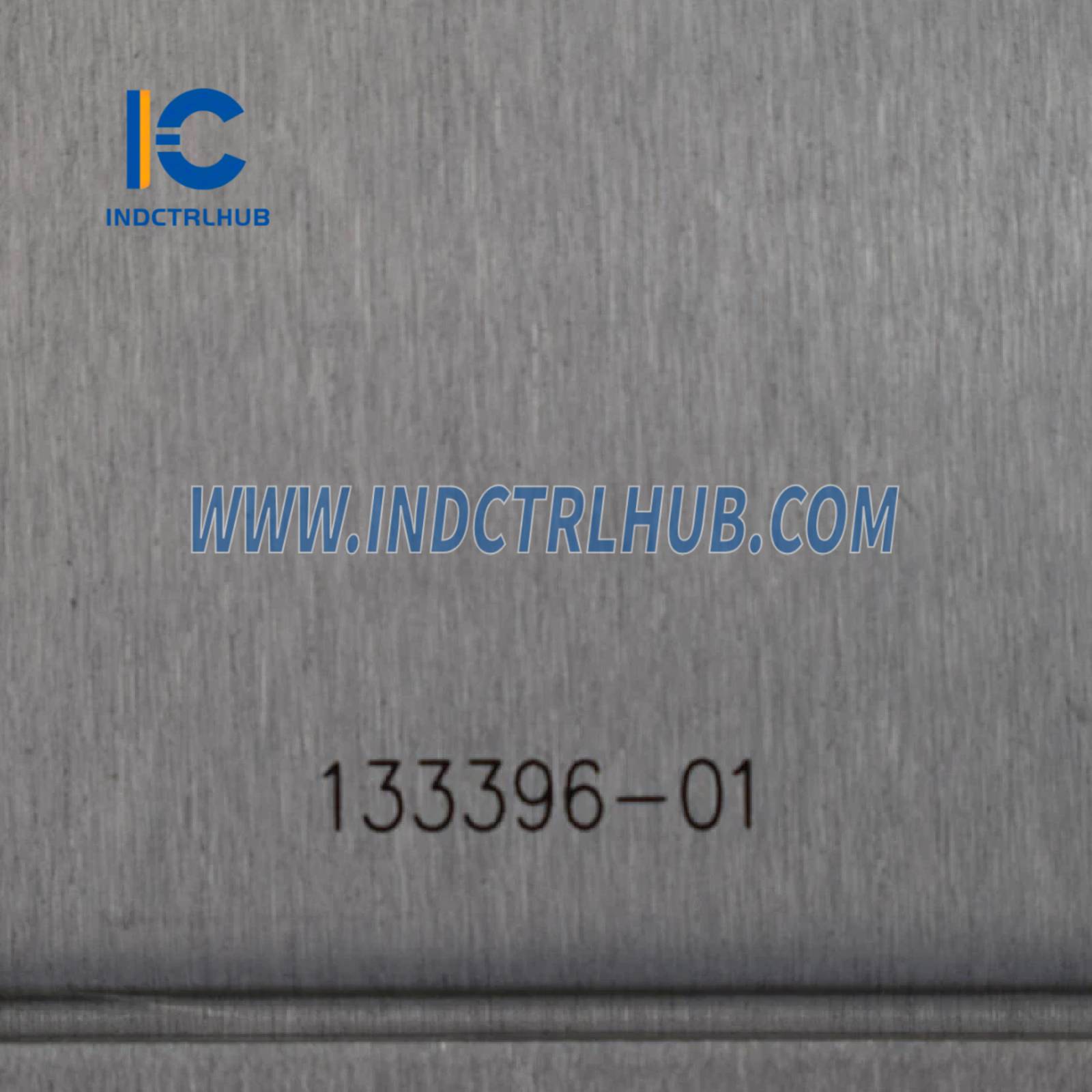

Bently Nevada 133396-01 Overspeed Detection I/O Module
Product Overview
- The Bently Nevada 133396-01 is an Overspeed Detection I/O Module designed for use with the Bently Nevada 3500 Series Machinery Protection System, specifically for critical overspeed protection in rotating machinery such as turbines, compressors, and generators in power generation, oil and gas, and industrial applications. Part of the 3500/53 Overspeed Detection System, this module interfaces with proximity probes or magnetic pickups to monitor shaft rotational speed and initiate shutdowns when overspeed conditions are detected, preventing catastrophic equipment failure.
Technical Specifications
| Specification | Details |
|---|---|
| Manufacturer | Bently Nevada |
| Series | 3500 Series |

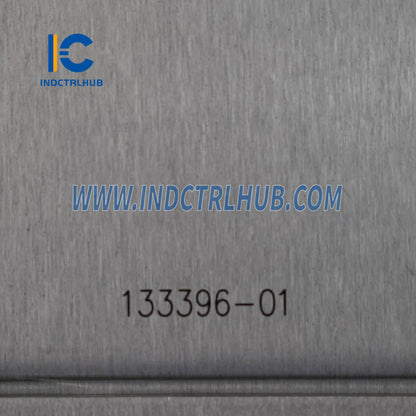

| Model/Part Number | 133396-01 |
| Model Type | Overspeed Detection I/O Module (for 3500/53 Overspeed Detection System) |
| Function | Interfaces with speed sensors to monitor rotational speed and provide relay outputs for overspeed protection |
| Processor | Not applicable (signal processing handled by 3500/53 module) |
| Memory | Not applicable (configuration stored in 3500/53 module) |
| Display | None (status via LEDs; configuration via 3500 rack interface or software) |
| Inputs | 1 speed input (compatible with proximity probes or magnetic pickups, 1–50 kHz) Supports Prox/Velomitor sensors or magnetic pickups (2-wire or 3-wire) |
| Outputs | 2 relay outputs (dry contact, up to 5 A at 250 VAC/24 VDC, for trip and alarm) 1 buffered transducer output (for external monitoring) |
| Communication Interfaces | Interfaces with 3500/53 module via 3500 rack backplane No direct external communication (data access via 3500/01 software or System 1) |
| Protection Functions | Overspeed detection, alarm, and trip (configured via 3500/53 module) |
| Trip Accuracy | ±0.1% of setpoint speed (when paired with 3500/53 module) |
| Response Time | <20 ms (from overspeed detection to relay activation) |
| Redundancy | Non-redundant (redundancy achieved with multiple 3500/53 modules in TMR configuration) |
| Diagnostics | Sensor fault detection, signal validation, status LEDs (OK, TX/RX, Alarm, Trip) |
| Compatibility | Bently Nevada 3500/53 Overspeed Detection Module, 3500 Series rack, proximity probes (e.g., 3300 XL), magnetic pickups; integrates with Bently Nevada System 1 software and SCADA via 3500/22M TDI |
| Power Supply | Powered via 3500 rack backplane (18–32 VDC, typically 24 VDC) |
| Power Consumption | Approx. 5–7 W |
| Environmental Specifications | Operating Temperature: -30°C to +65°C (-22°F to +149°F) Storage Temperature: -40°C to +85°C (-40°F to +185°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant Shock: IEC 60068-2-27 compliant |
| Enclosure | IP20 (installed in 3500 Series rack) |
| Dimensions | Approx. 241 mm (H) x 24.4 mm (W) x 242 mm (D) |
| Weight | Approx. 0.8–1 kg |
| Mounting | Plugs into 3500 Series rack (slot-specific, adjacent to 3500/53 module) |
| Certifications | CE, CSA, ATEX/IECEx Zone 2 (when installed in approved rack), SIL 2/3 capable (configuration-dependent), marine certifications (e.g., DNV, ABS) |
