Product Description
📘
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Bently Nevada (a Baker Hughes business) |
|
Series |
3500 Series |
|
Model/Part Number |

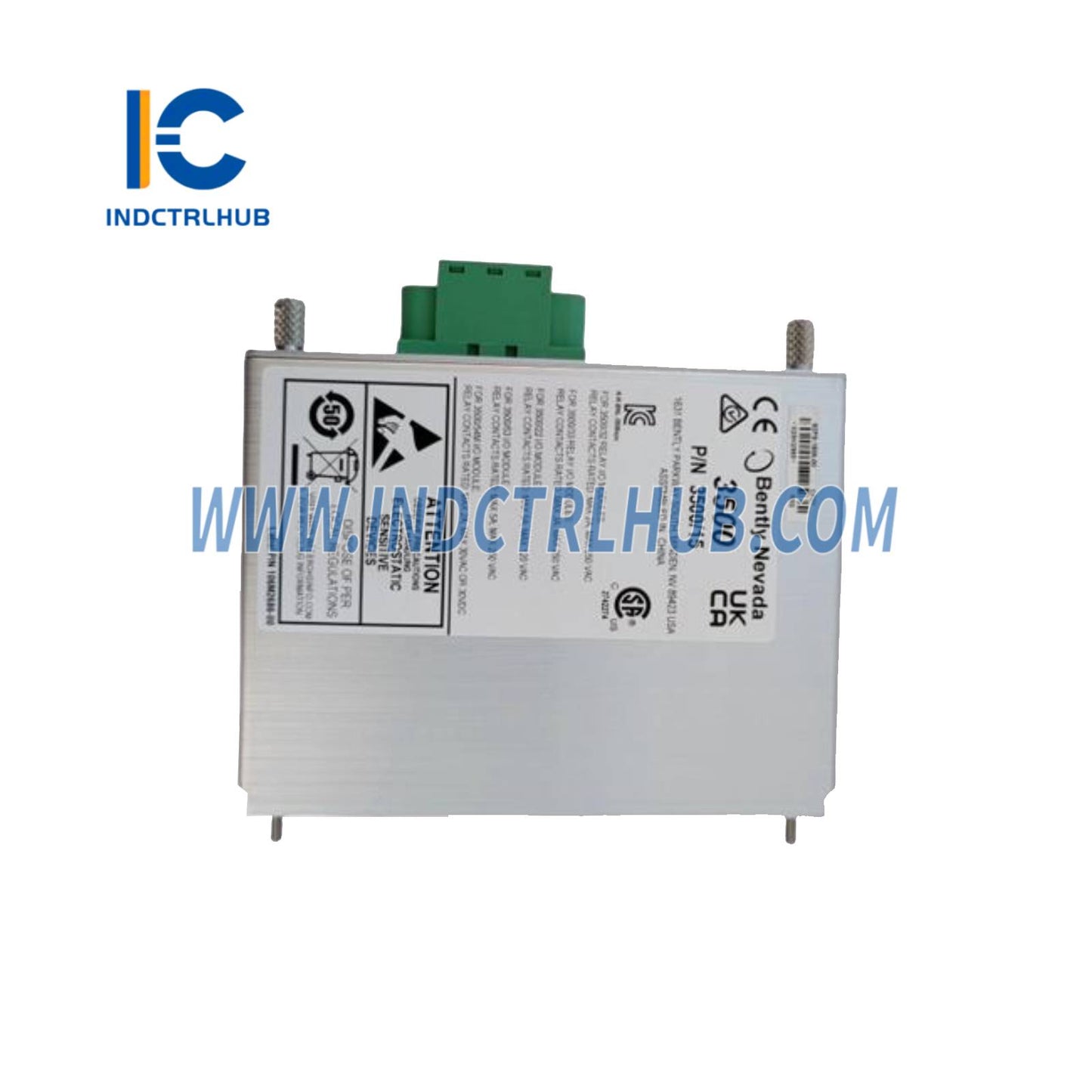

114M5335-01 |
|
Model Type |
Low Voltage DC Power Input Module (PIM) |
|
Description |
Provides DC input interface for Low Voltage DC Power Supply in 3500 racks. Used in critical machinery monitoring systems such as turbines, compressors, and pumps. |
🔧
Technical Specifications – 114M5335-01 (Low Voltage DC PIM)
|
Category |
Specification |
|---|---|
|
Model Type |
Low Voltage DC Power Input Module (PIM) |
|
Input Voltage |
20 to 30 VDC |
|
Input Current |
Max 11.0 A |
|
Frequency |
Not applicable (DC input) |
|
Protection |
Over-voltage: Fuse opens on PIM; under-voltage: no damage |
|
Outputs |
Supplies DC power to 3500 rack via connected power supply |
|
LED Indicator |
“Supply OK” LED on front panel |
|
Power Supply Module Dimensions |
120.7 × 50.8 × 251.5 mm (4.75 × 2.0 × 9.9 in) |
|
PIM Dimensions |
120.7 × 25.4 × 114.3 mm (4.75 × 1.0 × 4.5 in) |
|
Power Supply Weight |
1.39 kg (3.06 lb) |
|
PIM Weight |
0.34 kg (0.75 lb) |
|
Rack Requirement |
Two half-height slots (left side of 3500 rack) |
|
Redundancy |
Supports redundant power supply configuration |
|
Operating Temperature |
–30°C to +65°C (–22°F to +150°F) |
|
Storage Temperature |
–40°C to +85°C (–40°F to +185°F) |
|
Humidity |
Up to 95%, non-condensing |
|
Minimum Load |
No minimum rack load required |
