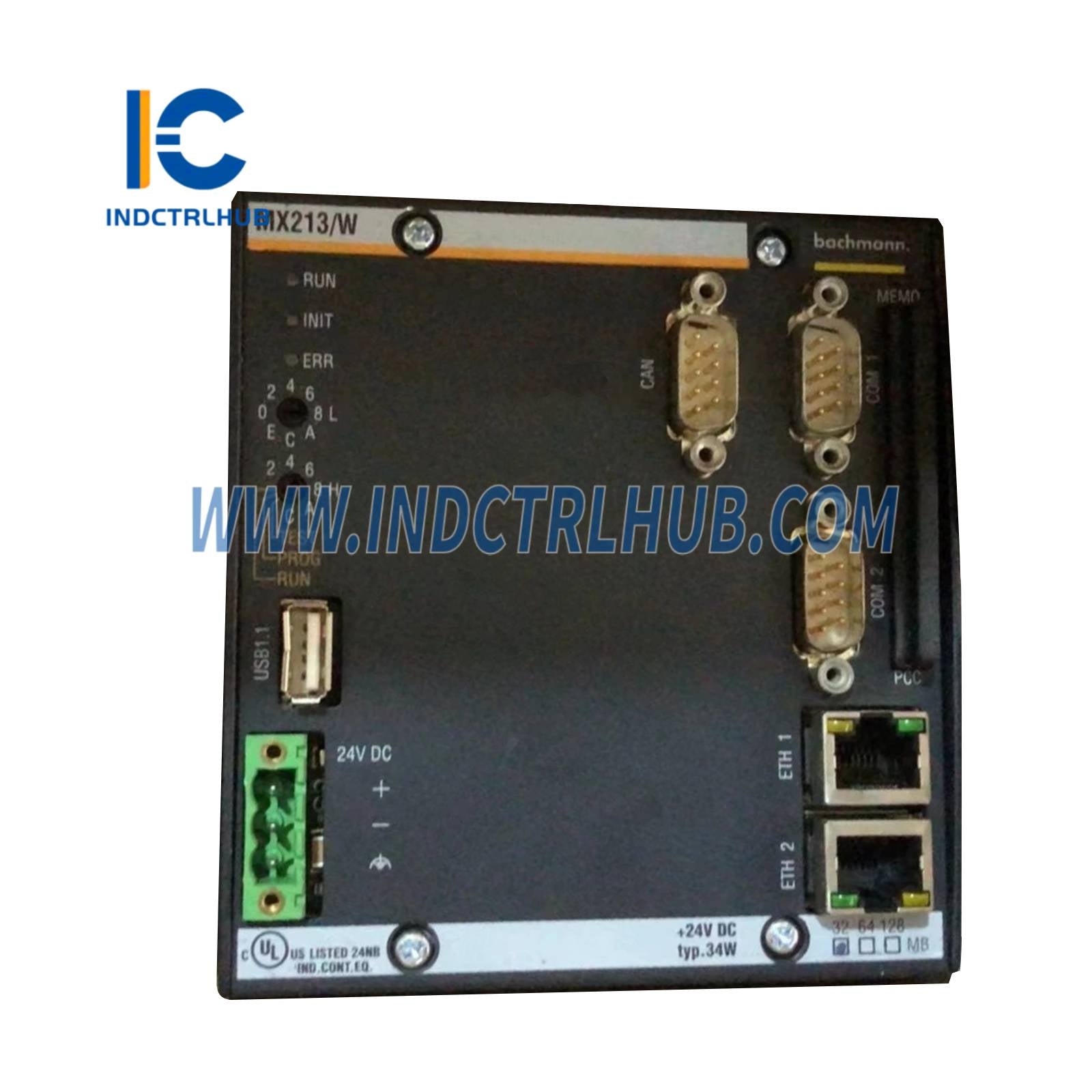

Bachmann MX213/W Compact industrial processor modules
Bachmann MX213/W Compact industrial processor modules
Manufacturer: Bachmann
Product No.: MX213/W
Condition:1000 in stock
Product Type: Compact industrial processor modules
Product Origin: Austria
Payment: T/T, Western Union
Weight: 660g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
_
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
BACHMANN |
|
Series |
MX200 Series (Compact) |
|
Model/Part Numbers |
See __rdering Information_ below |
|
Description |
Compact industrial processor modules with integrated power supply, communication interfaces, and real-time multitasking. Ideal for machine control, motion control, communication tasks, and condition monitoring in harsh environments. |
_
_
Model Type
|
Model |
Clock Frequency |
CF Slot |
ColdClimate Option |
|---|---|---|---|
|
MX207 |
266 MHz |
No |
No |
|
MX213 |
266 MHz |
Yes |
Optional |
|
MX220 |
433 MHz |
Yes |
Optional |
_
_
Technical Specifications
_
Processor and Memory
|
Specification |
MX207 / MX213 / MX220 |
|---|---|
|
Architecture |
x86 / AMD LX |
|
Processor Type |
Industrial Low Voltage |
|
Cores / Hyper-Threading |
1 / No |
|
Multitasking |
Yes, with priority control |
|
Working Memory |
256 MB |
|
Retain Memory (NVRAM) |
512 kB |
|
Internal Flash Memory |
64 MB (13 MB used for system software) |
|
CompactFlash (Removable) |
Supported (2 GB or 4 GB depending on model) |
|
PC Card Slot (Front) |
Yes (varies by model revision) |
_
Interfaces
|
Interface Type |
MX207 |
MX213 & MX220 |
|---|---|---|
|
Ethernet |
1x 10/100 Base-Tx |
2x 10/100 Base-Tx |
|
Serial |
_ |
1x RS-232, 1x RS232/422/485 |
|
USB |
1x USB 2.0 (Type-A) |
1x USB 2.0 (Type-A) |
|
CAN |
1x CAN/CANopen |
1x CAN/CANopen |
|
I/O Subsystem |
Bachmann M200 backplane |
|
|
Status Indicators |
CPU (RUN/INIT/ERR), Ethernet status LEDs |
_
Power Supply
|
Parameter |
MX207 |
MX213 / MX220 |
|---|---|---|
|
Supply Voltage |
24 V DC (18 _ 34 V) |
24 V DC (18 _ 34 V) |
|
Nominal Power (no I/O) |
8 W |
9.5 W |
|
Nominal Power (with I/O) |
33.6 W |
Not specified |
|
I/O Power Output |
18.25 W |
16.75 W |
|
Max Current for I/O |
+5V/2800mA, ±15V/250mA |
+5V/2800mA, ±15V/250mA |
|
Reverse Polarity Protection |
Yes |
Yes |
|
Galvanic Isolation |
Yes |
Yes |
_
Environmental Limits
|
Parameter |
Standard / ColdClimate Version |
|---|---|
|
Operating Temperature |
-30 °C to +60 °C (fanless) |
|
Storage Temperature |
-40 °C to +85 °C |
|
Humidity (Operation) |
5% to 95%, with/without condensation |
|
Altitude |
2000 m (up to 4500 m with derating) |
|
Degree of Protection |
IP20 |
|
Pollution Degree |
2 |
|
Vibration Resistance |
IEC 60068-2-6 compliant |
_
_
Dimensions & Physical
|
Parameter |
Value |
|---|---|
|
Slots |
2 module widths |
|
Dimensions |
110 mm _ 119 mm _ 61 mm |
|
Weight |
~660 g (MX207), ~675 g (MX213/220) |
_
_
Monitoring & Diagnostics
_
-
Processor temperature and load
-
Runtime behavior, cycle monitoring, watchdog
-
Network load monitoring
-
Memory protection per partition
-
Power supply supervision with interrupt signal
_
_
Programming
|
Field |
Details |
|---|---|
|
Languages Supported |
IEC 61131-3, C/C++, MATLAB®/Simulink® (optional) |
|
Multitasking |
Yes, with priority control |
|
Function Modules |
Motion Control, CNC, Adaptive Control, etc. |
|
Software Compatibility |
Generic build target for all MX200 models |
|
System Software Required |
MxCCore V3.80+, recommended: V4.30+ |
_
_
Certifications
_
-
Product Safety: CE, UKCA, cULus
-
Maritime Approvals: ABS, BV, DNV, KR, LR, NK, RINA
_
_
Ordering Information
|
Model |
Part Number |
Description |
|---|---|---|
|
MX207 |
00031492-00 |
266 MHz, 1x Eth100, 1x CAN, RS232/422/485, USB, I/O-supply 18 W |
|
MX213 |
00031491-00 |
266 MHz, 2x Eth100, RS232, RS232/422/485, CF-Slot, I/O-supply 17 W |
|
MX213 CC |
00031494-00 |
MX213, ColdClimate version |
|
MX213 CF 2GB |
00031491-02 |
MX213 with 2 GB CF card |
|
MX213 CC CF 2GB |
00031494-02 |
MX213 CF 2GB, ColdClimate version |
|
MX213 CF 4GB |
00031491-03 |
MX213 with 4 GB CF card |
|
MX213 CC CF 4GB |
00031494-03 |
MX213 CF 4GB, ColdClimate version |
|
MX220 |
00031490-00 |
433 MHz, 2x Eth100, RS232, RS232/422/485, CF-Slot, I/O-supply 17 W |
|
MX220 CC |
00031493-00 |
MX220, ColdClimate version |
|
MX220 CF 2GB |
00031490-02 |
MX220 with 2 GB CF card |
|
MX220 CC CF 2GB |
00031493-02 |
MX220 CF 2GB, ColdClimate version |
|
MX220 CF 4GB |
00031490-03 |
MX220 with 4 GB CF card |
|
MX220 CC CF 4GB |
00031493-03 |
MX220 CF 4GB, ColdClimate version |
_
_
Product Description
_
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
BACHMANN |
|
Series |
MX200 Series (Compact) |
|
Model/Part Numbers |
See __rdering Information_ below |
|
Description |
Compact industrial processor modules with integrated power supply, communication interfaces, and real-time multitasking. Ideal for machine control, motion control, communication tasks, and condition monitoring in harsh environments. |
_
_
Model Type
|
Model |
Clock Frequency |
CF Slot |
ColdClimate Option |
|---|---|---|---|
|
MX207 |
266 MHz |
No |
No |
|
MX213 |
266 MHz |
Yes |
Optional |
|
MX220 |
433 MHz |
Yes |
Optional |
_
_
Technical Specifications
_
Processor and Memory
|
Specification |
MX207 / MX213 / MX220 |
|---|---|
|
Architecture |
x86 / AMD LX |
|
Processor Type |
Industrial Low Voltage |
|
Cores / Hyper-Threading |
1 / No |
|
Multitasking |
Yes, with priority control |
|
Working Memory |
256 MB |
|
Retain Memory (NVRAM) |
512 kB |
|
Internal Flash Memory |
64 MB (13 MB used for system software) |
|
CompactFlash (Removable) |
Supported (2 GB or 4 GB depending on model) |
|
PC Card Slot (Front) |
Yes (varies by model revision) |
_
Interfaces
|
Interface Type |
MX207 |
MX213 & MX220 |
|---|---|---|
|
Ethernet |
1x 10/100 Base-Tx |
2x 10/100 Base-Tx |
|
Serial |
_ |
1x RS-232, 1x RS232/422/485 |
|
USB |
1x USB 2.0 (Type-A) |
1x USB 2.0 (Type-A) |
|
CAN |
1x CAN/CANopen |
1x CAN/CANopen |
|
I/O Subsystem |
Bachmann M200 backplane |
|
|
Status Indicators |
CPU (RUN/INIT/ERR), Ethernet status LEDs |
_
Power Supply
|
Parameter |
MX207 |
MX213 / MX220 |
|---|---|---|
|
Supply Voltage |
24 V DC (18 _ 34 V) |
24 V DC (18 _ 34 V) |
|
Nominal Power (no I/O) |
8 W |
9.5 W |
|
Nominal Power (with I/O) |
33.6 W |
Not specified |
|
I/O Power Output |
18.25 W |
16.75 W |
|
Max Current for I/O |
+5V/2800mA, ±15V/250mA |
+5V/2800mA, ±15V/250mA |
|
Reverse Polarity Protection |
Yes |
Yes |
|
Galvanic Isolation |
Yes |
Yes |
_
Environmental Limits
|
Parameter |
Standard / ColdClimate Version |
|---|---|
|
Operating Temperature |
-30 °C to +60 °C (fanless) |
|
Storage Temperature |
-40 °C to +85 °C |
|
Humidity (Operation) |
5% to 95%, with/without condensation |
|
Altitude |
2000 m (up to 4500 m with derating) |
|
Degree of Protection |
IP20 |
|
Pollution Degree |
2 |
|
Vibration Resistance |
IEC 60068-2-6 compliant |
_
_
Dimensions & Physical
|
Parameter |
Value |
|---|---|
|
Slots |
2 module widths |
|
Dimensions |
110 mm _ 119 mm _ 61 mm |
|
Weight |
~660 g (MX207), ~675 g (MX213/220) |
_
_
Monitoring & Diagnostics
_
-
Processor temperature and load
-
Runtime behavior, cycle monitoring, watchdog
-
Network load monitoring
-
Memory protection per partition
-
Power supply supervision with interrupt signal
_
_
Programming
|
Field |
Details |
|---|---|
|
Languages Supported |
IEC 61131-3, C/C++, MATLAB®/Simulink® (optional) |
|
Multitasking |
Yes, with priority control |
|
Function Modules |
Motion Control, CNC, Adaptive Control, etc. |
|
Software Compatibility |
Generic build target for all MX200 models |
|
System Software Required |
MxCCore V3.80+, recommended: V4.30+ |
_
_
Certifications
_
-
Product Safety: CE, UKCA, cULus
-
Maritime Approvals: ABS, BV, DNV, KR, LR, NK, RINA
_
_
Ordering Information
|
Model |
Part Number |
Description |
|---|---|---|
|
MX207 |
00031492-00 |
266 MHz, 1x Eth100, 1x CAN, RS232/422/485, USB, I/O-supply 18 W |
|
MX213 |
00031491-00 |
266 MHz, 2x Eth100, RS232, RS232/422/485, CF-Slot, I/O-supply 17 W |
|
MX213 CC |
00031494-00 |
MX213, ColdClimate version |
|
MX213 CF 2GB |
00031491-02 |
MX213 with 2 GB CF card |
|
MX213 CC CF 2GB |
00031494-02 |
MX213 CF 2GB, ColdClimate version |
|
MX213 CF 4GB |
00031491-03 |
MX213 with 4 GB CF card |
|
MX213 CC CF 4GB |
00031494-03 |
MX213 CF 4GB, ColdClimate version |
|
MX220 |
00031490-00 |
433 MHz, 2x Eth100, RS232, RS232/422/485, CF-Slot, I/O-supply 17 W |
|
MX220 CC |
00031493-00 |
MX220, ColdClimate version |
|
MX220 CF 2GB |
00031490-02 |
MX220 with 2 GB CF card |
|
MX220 CC CF 2GB |
00031493-02 |
MX220 CF 2GB, ColdClimate version |
|
MX220 CF 4GB |
00031490-03 |
MX220 with 4 GB CF card |
|
MX220 CC CF 4GB |
00031493-03 |
MX220 CF 4GB, ColdClimate version |
