Product Description
General Information
|
Manufacturer |
Model/Part Number |
Series |
|---|---|---|
|
BACHMANN |
MPC265-64 |
MPC200 Series |
Description

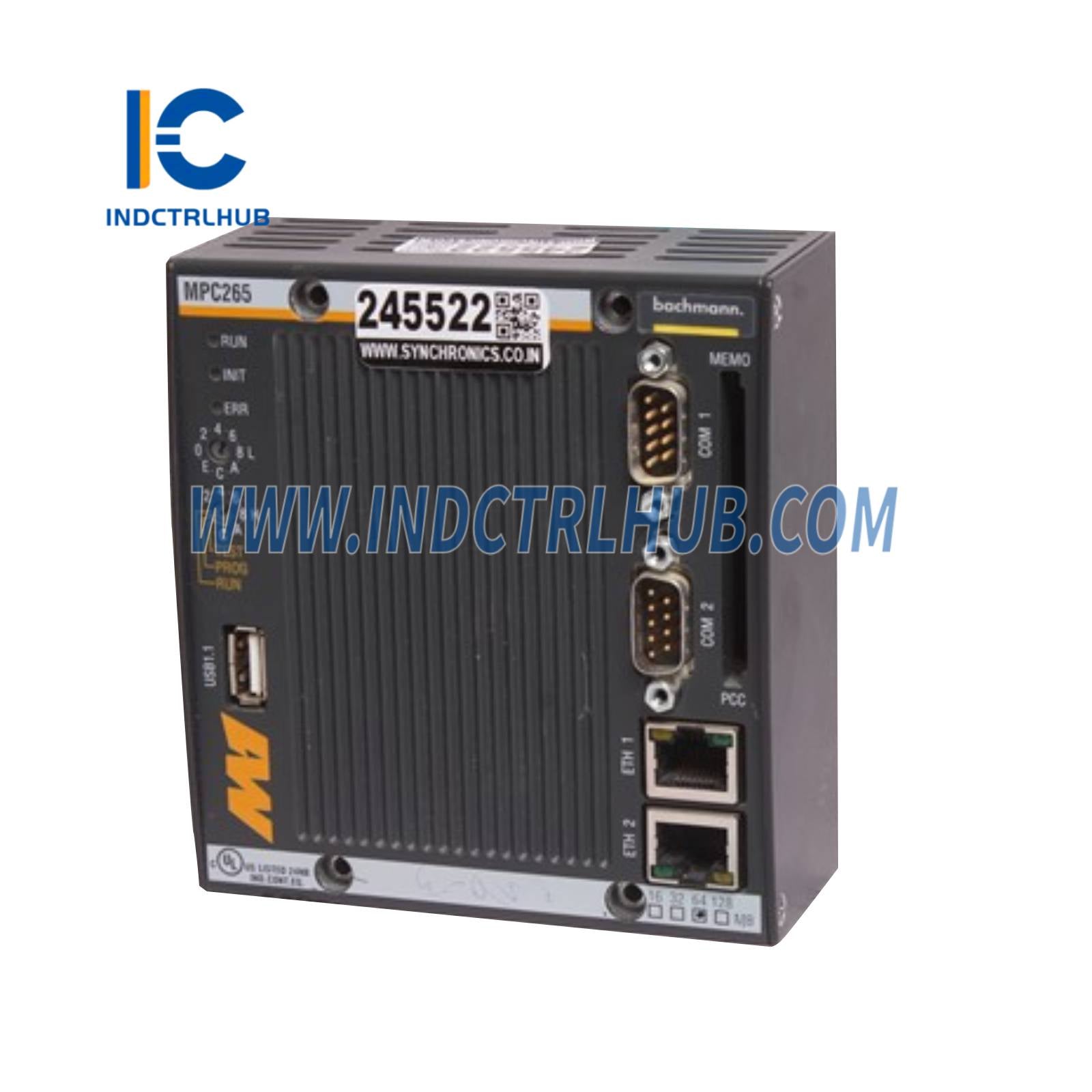

The MPC265-64 is a processor module from the MC200 series, designed for high-performance, demanding automation tasks within BACHMANN’s M1 control system. It leverages embedded Intel® Atom™/Celeron® architecture for efficient processing, complex communication, and fast signal handling. Key features include:
-
Fanless operation from -30°C to +60°C
-
Integrated process image controller for fast I/O access
-
Real-time and deterministic performance
-
Ideal for applications such as process control, signal processing, and protocol handling
-
Compact and rugged design with long service life
Specifications
Processor & Memory
|
CPU |
650 MHz Celeron (embedded) |
|---|---|
|
DRAM (Working Memory) |
128 MB DDR |
|
Internal Program Memory |
8 MB Flash (4 MB for system software) |
|
Non-Volatile Data Memory |
512 kB battery-backed SRAM (nvRAM-0) + 64 kB non-battery nvRAM-1 |
|
Mass Storage |
CFast card (internal) & CF slot |
|
Program Card |
PCC201/64 (64 MB FLASH) |
Interfaces
|
Ethernet |
2 × 10/100 Base-TX Ethernet (IEEE 1588 supported) |
|---|---|
|
Serial Ports |
1 × RS232 + 1 × RS232/422/485 |
|
USB |
1 × USB 1.1 Host |
|
Process Image Controller |
Integrated, with fast single access for µs-range |
Power & Energy
|
Power Supply |
5 V ±15 V via backplane |
|---|---|
|
External Power Supply |
Required |
|
Watchdog |
Yes |
|
Synchronizing Pulse |
For Ethernet, CAN, and SERCOS |
Environmental Limits
|
Operating Temperature |
-30 °C to +60 °C (fanless, ColdClimate) |
|---|---|
|
Storage Temperature |
-40 °C to +85 °C |
|
Humidity (Operation) |
5 % to 95 %, with condensation |
|
Humidity (Storage) |
5 % to 95 %, with condensation |
|
Installation Altitude |
Up to 2000 m standard, with derating to 4500 m |
Physical Specifications
|
Dimensions (W × H × D) |
Approx. size depends on module casing |
|---|---|
|
Weight |
~500 g |
|
Form Factor |
Modular slot-based, for M1 backplane |
System Requirements
|
Backplane |
BS2xx, BS2xx/S, BS2xx/E |
|---|---|
|
Power Module |
NT255 |
|
Operating System |
McOS (VxWorks 7) |
|
Development Toolchain |
ToolChain V4.30 or higher |
Ordering Information
|
Model |
Description |
|---|---|
|
MPC265-64 |
CPU module Celeron (650 MHz); 512 kB SRAM; 64 kB nvRAM; 8 MB Flash; 2× Eth; 2× Serial; 1× USB1.1; CFast + PCC201 slot; ColdClimate |
