Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
Bachmann |
|
Model/Part Number |
DIO264-C-A60 (Order No.: 00009205-00) |
|
Series |
DIOxx-C (CAN Slave Digital I/O Modules) |
Model Type
|
Model |
Type |
|---|---|
|
DIO264-C |
Stand-alone CAN slave digital input/output module |
Description

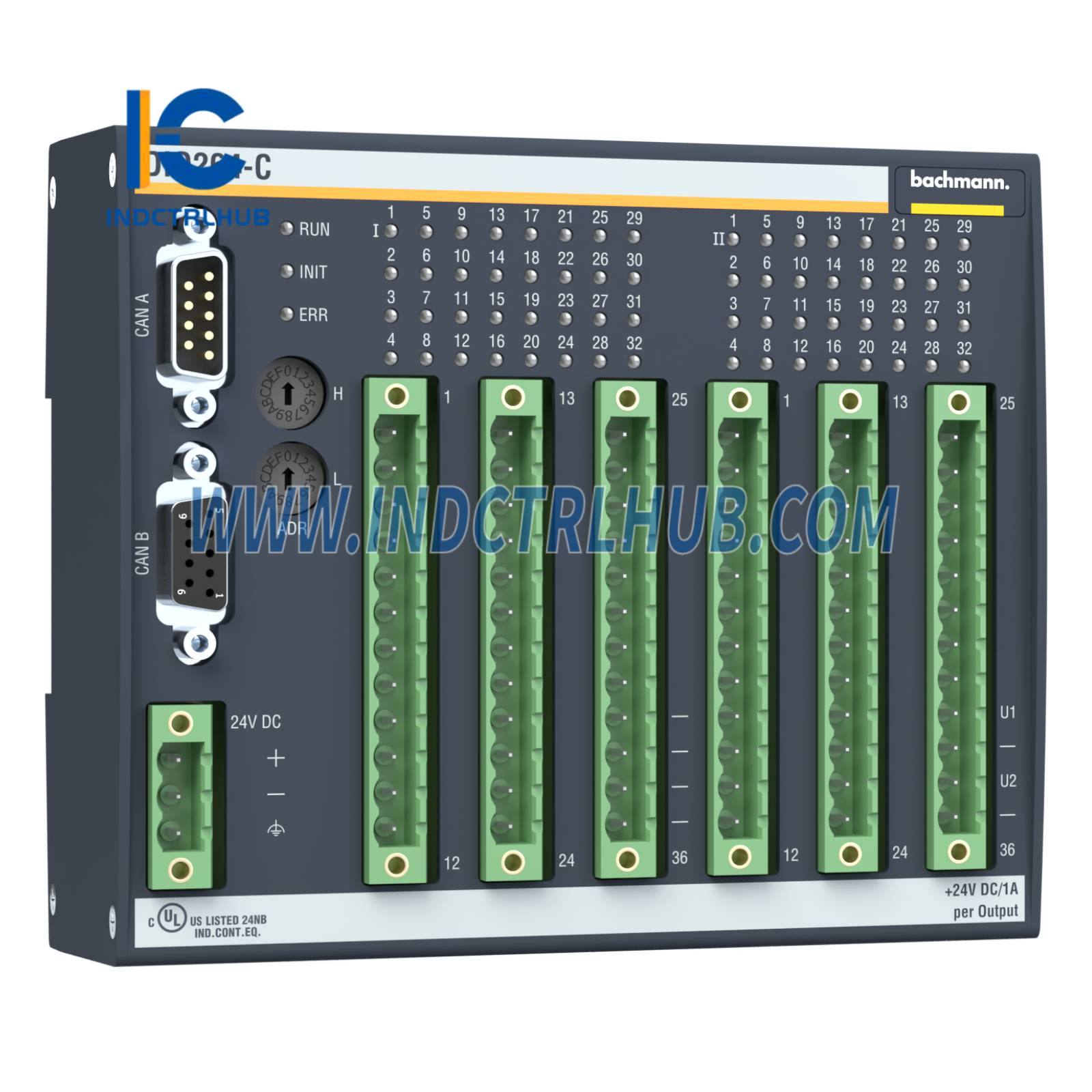

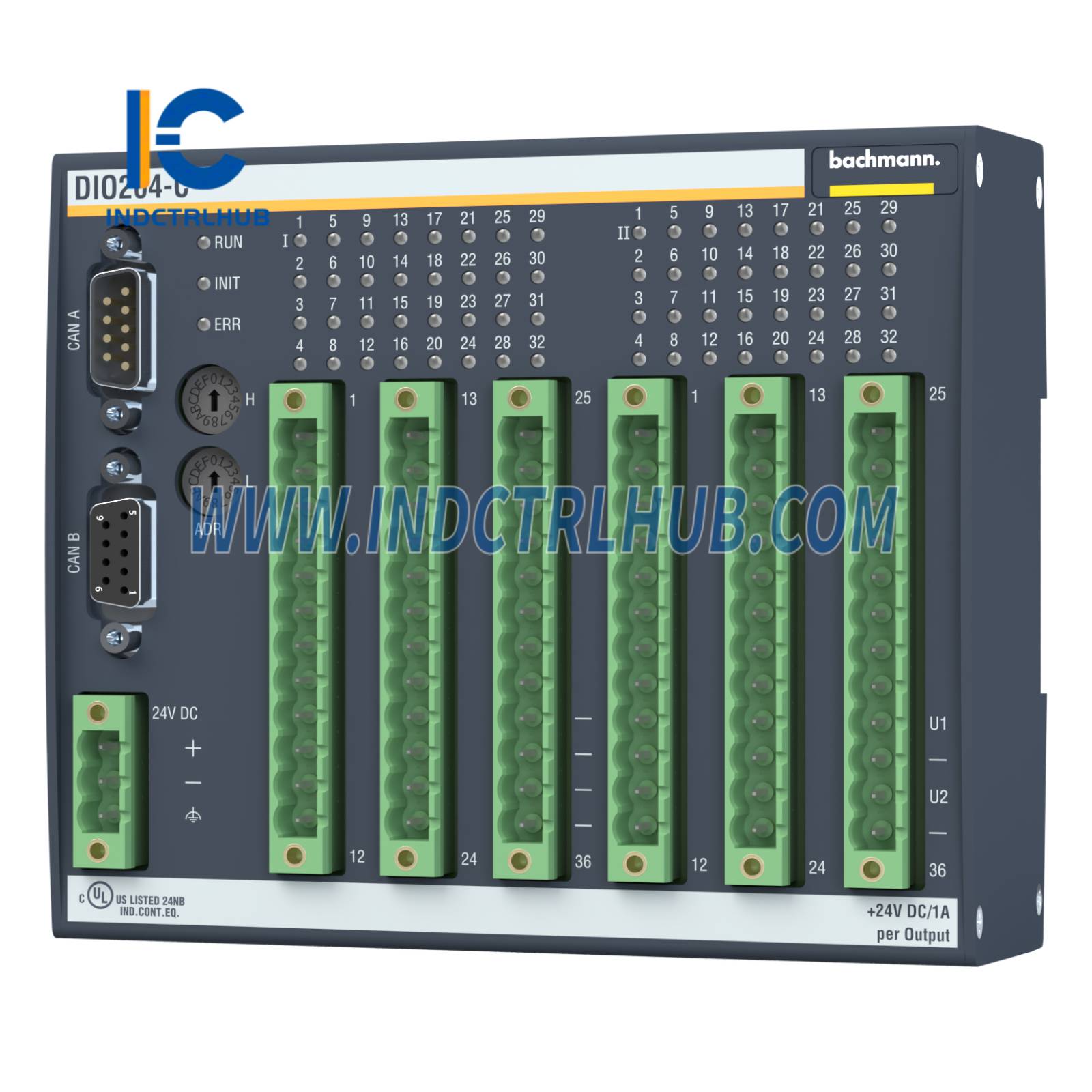

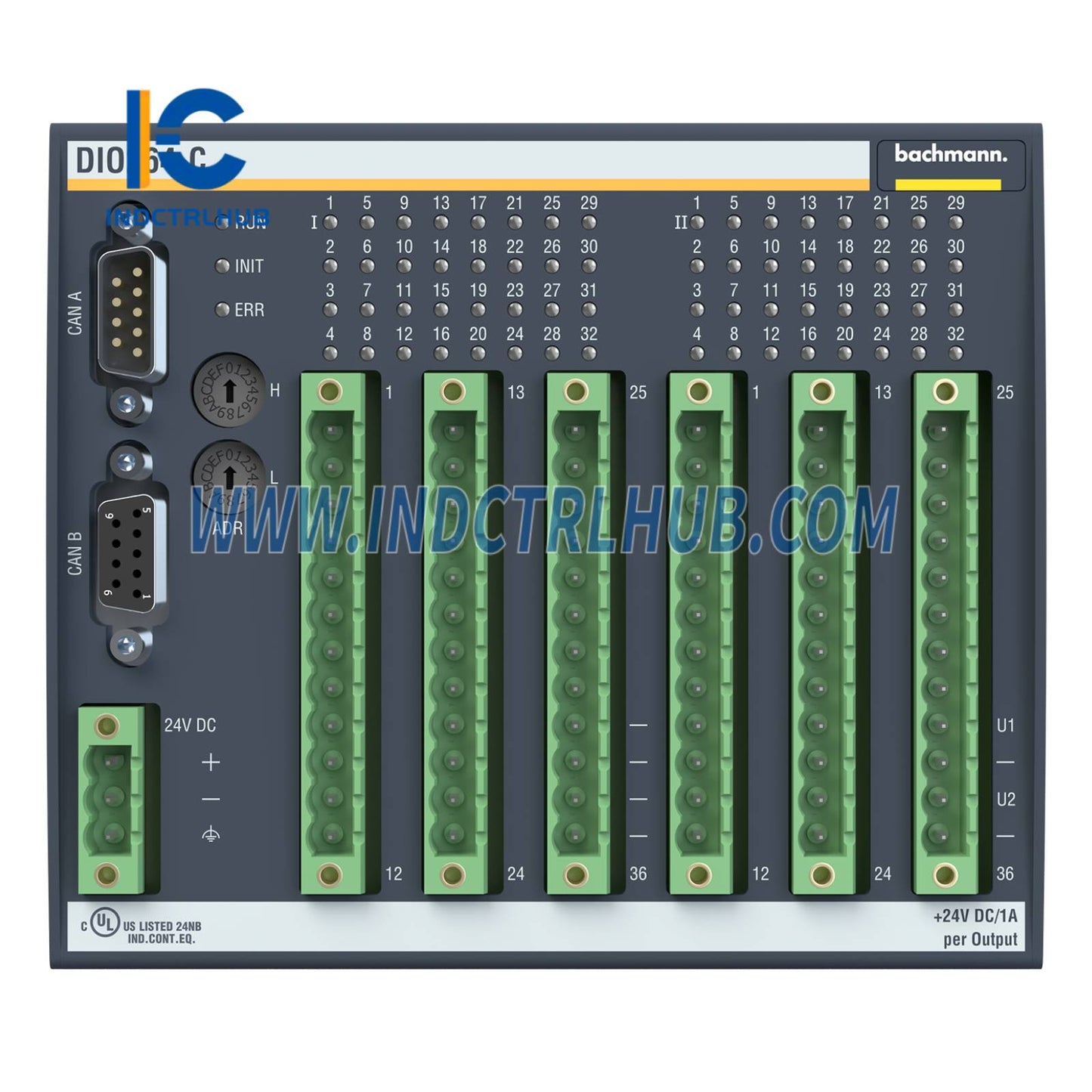

The Bachmann DIO264-C is a standalone, compact CAN slave digital input/output module designed for automation systems. It features 64 digital I/O channels, split into 32 digital inputs and 32 configurable digital I/Os, supporting CANopen communication. It allows for field wiring without a backplane and is mountable on EN 50022 DIN rails.
Functional Specifications
Digital Inputs
|
Parameter |
Value |
|---|---|
|
Input Channels |
Up to 64 (combined I/O) |
|
Input Delay |
< 3.5 ms |
|
Internal Resistance |
6 kΩ |
|
Status Indication |
Green LED |
Digital Outputs
|
Parameter |
Value |
|---|---|
|
Output Channels |
Up to 32 |
|
Nominal Output Current |
1 A per channel |
|
Output Current (Sum per block) |
Max. 12 A |
|
Switching Frequency |
Max. 500 Hz |
|
Short-circuit Protection |
Yes |
|
Isolated Output Blocks |
Two (1–16 and 17–32) |
|
Status Indication |
Green LED |
Communication Interface
|
Parameter |
Value |
|---|---|
|
Protocol |
CAN / CANopen (DS301, DS401) |
|
Transfer Rate |
10 kbit/s to 1 Mbit/s |
|
Connection |
2 × 9-pin D-sub (loop-through) |
|
Module ID |
1 to 254 (settable via rotary switch) |
|
Galvanic Isolation |
500 V |
|
Terminating Resistor |
123 Ω (external) |
|
Status LEDs |
RUN, INIT, ERROR |
Power Requirements
|
Parameter |
Value |
|---|---|
|
Supply Voltage |
18 V DC to 34 V DC |
|
Current Consumption |
Typ. 100 mA at 24 V (without I/O load) |
|
Reverse Polarity Protection |
Yes |
Environmental Specifications
|
Condition |
Range |
|---|---|
|
Operating Temperature |
-30 °C to +60 °C |
|
Storage Temperature |
-40 °C to +85 °C |
|
Relative Humidity (Operation) |
5% to 95% (non-condensing) |
|
Relative Humidity (Storage) |
5% to 95% (with condensation) |
|
Pollution Degree |
2 (IEC 60664-1) |
Certifications
|
Category |
Certifications |
|---|---|
|
General |
CE, UKCA, cULus |
|
Marine |
ABS, BV, DNV, KR, LR, NK, RINA |
Ordering Information
|
Part Type |
Part Number |
Description |
|---|---|---|
|
DIO264-C |
00009205-00 |
CAN Slave – digital input/output module; 32× DI; 32× DIO; 24 V/1 A; 2 groups; 2× D-sub 9; up to 1 Mbit/s; isolated |
Accessories
|
Accessory |
Part Number |
Description |
|---|---|---|
|
KZ-DIO264-C B+C |
00012014-50 |
Terminal set Phoenix cage clamp with labeling strips and keying elements |
|
K-CAN/0.5 m |
00008684-03 |
CAN cable, 0.5 m, male to female |
|
K-CAN/1.0 m |
00008684-08 |
CAN cable, 1.0 m, male to female |
|
K-CAN/2.0 m |
00008684-04 |
CAN cable, 2.0 m, male to female |
|
K-CAN/5.0 m |
00008684-06 |
CAN cable, 5.0 m, male to female |
|
S-CAN/1B |
00009383-00 |
CAN terminating resistor connector (female) |
|
S-CAN/1S |
00011036-00 |
CAN terminator resistor for DIOxx-C, TCO2xx-C, DA3284-C, female-female CAN cable |
