Product Description
General Information
|
Manufacturer |
BACHMANN |
|---|---|
|
Model/Part Number |
DIO216/4 (Part No. 00010892-00) |
|
Series |
DIO216/x |
Description

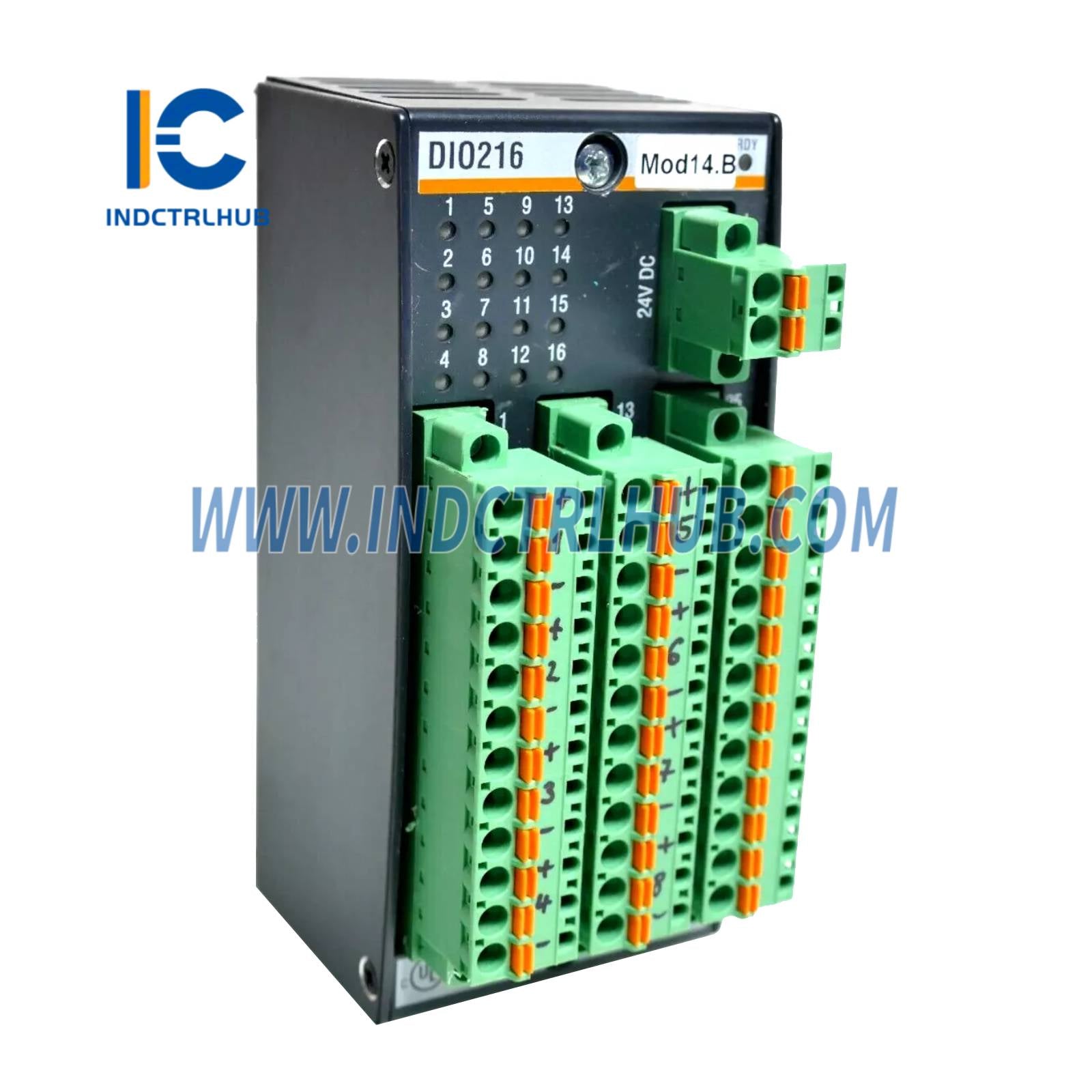

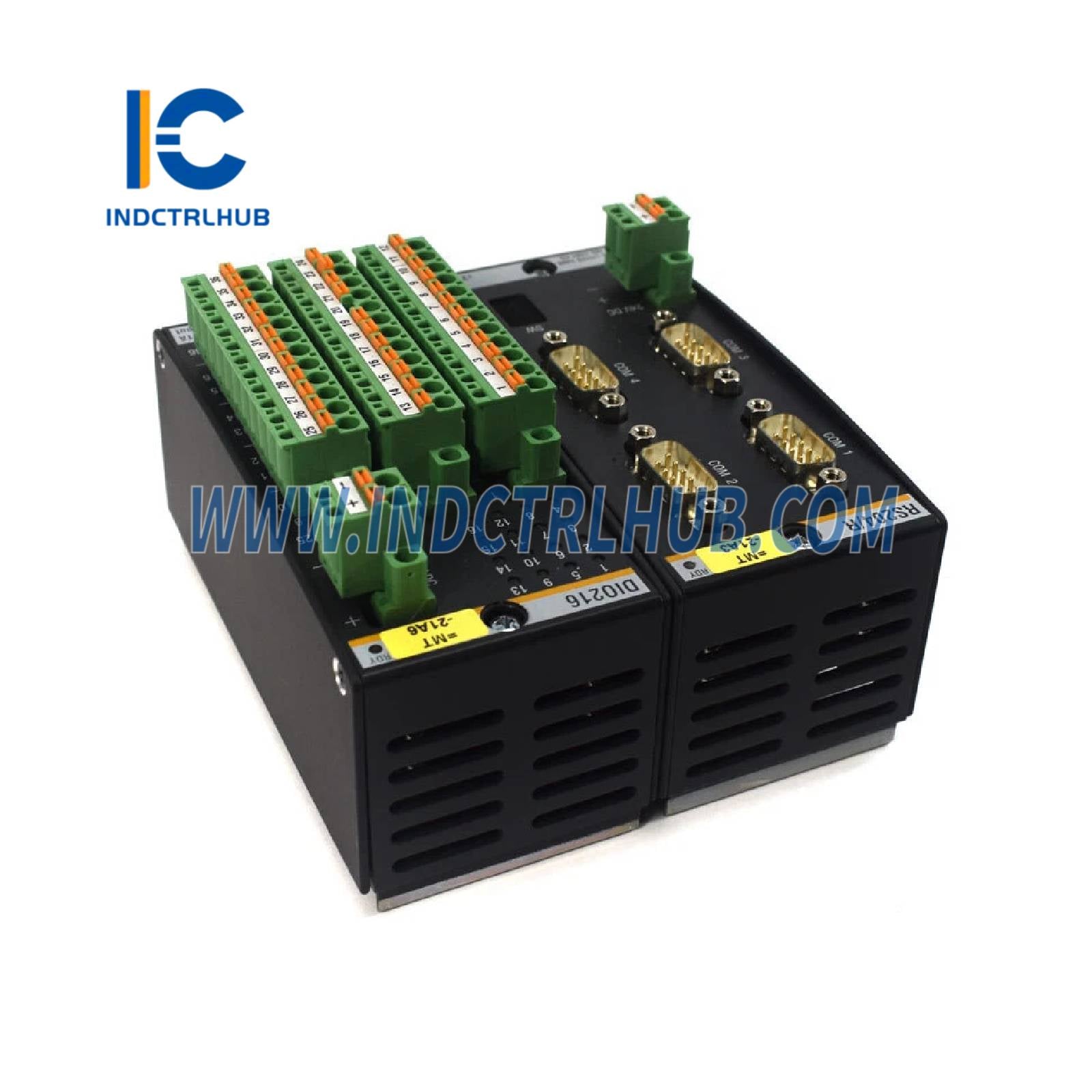

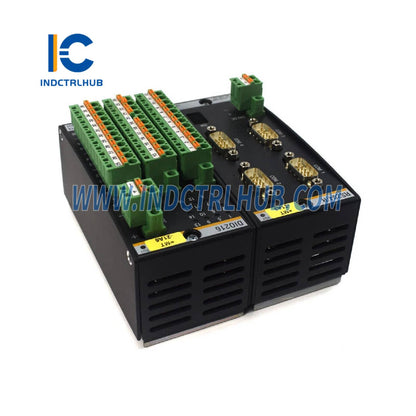

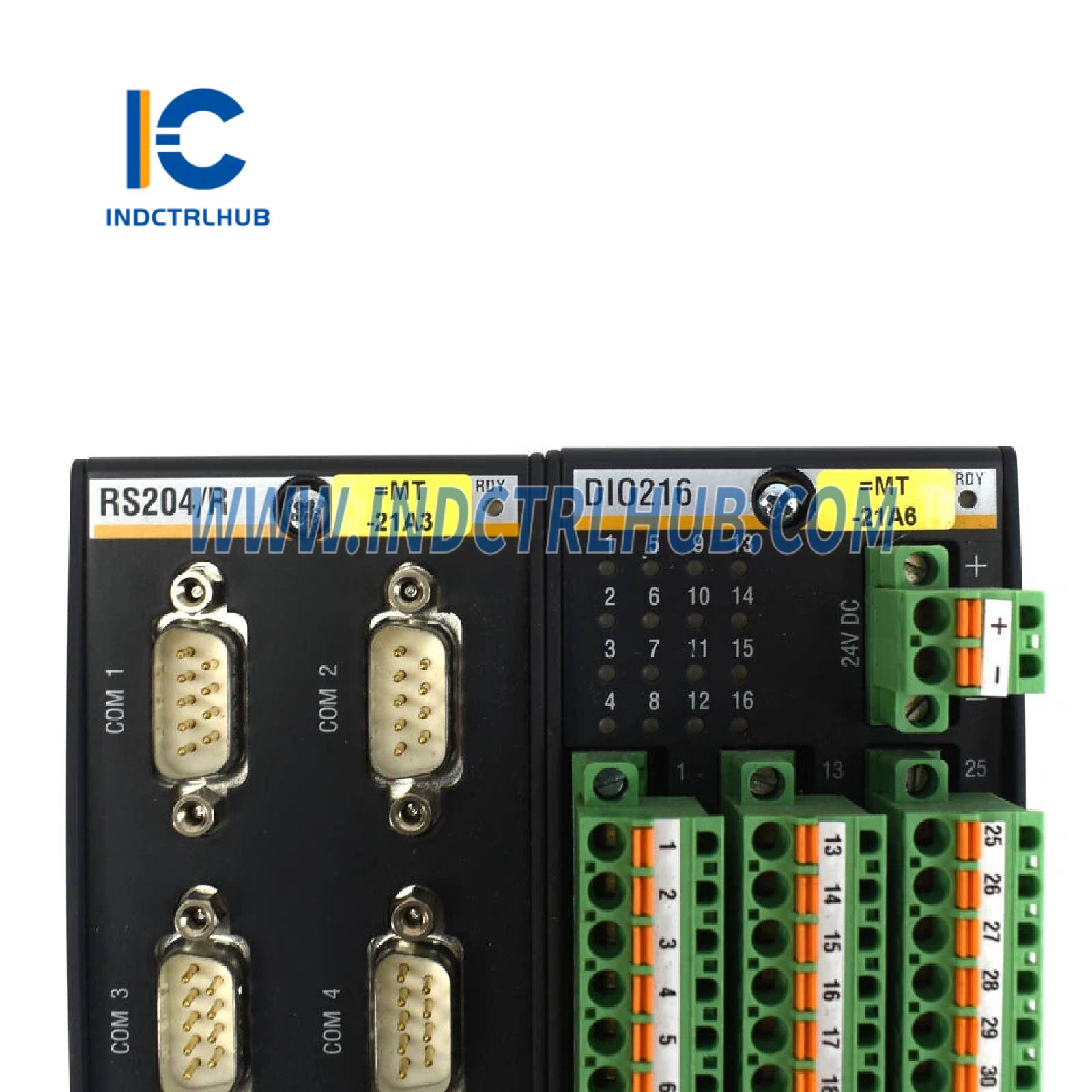

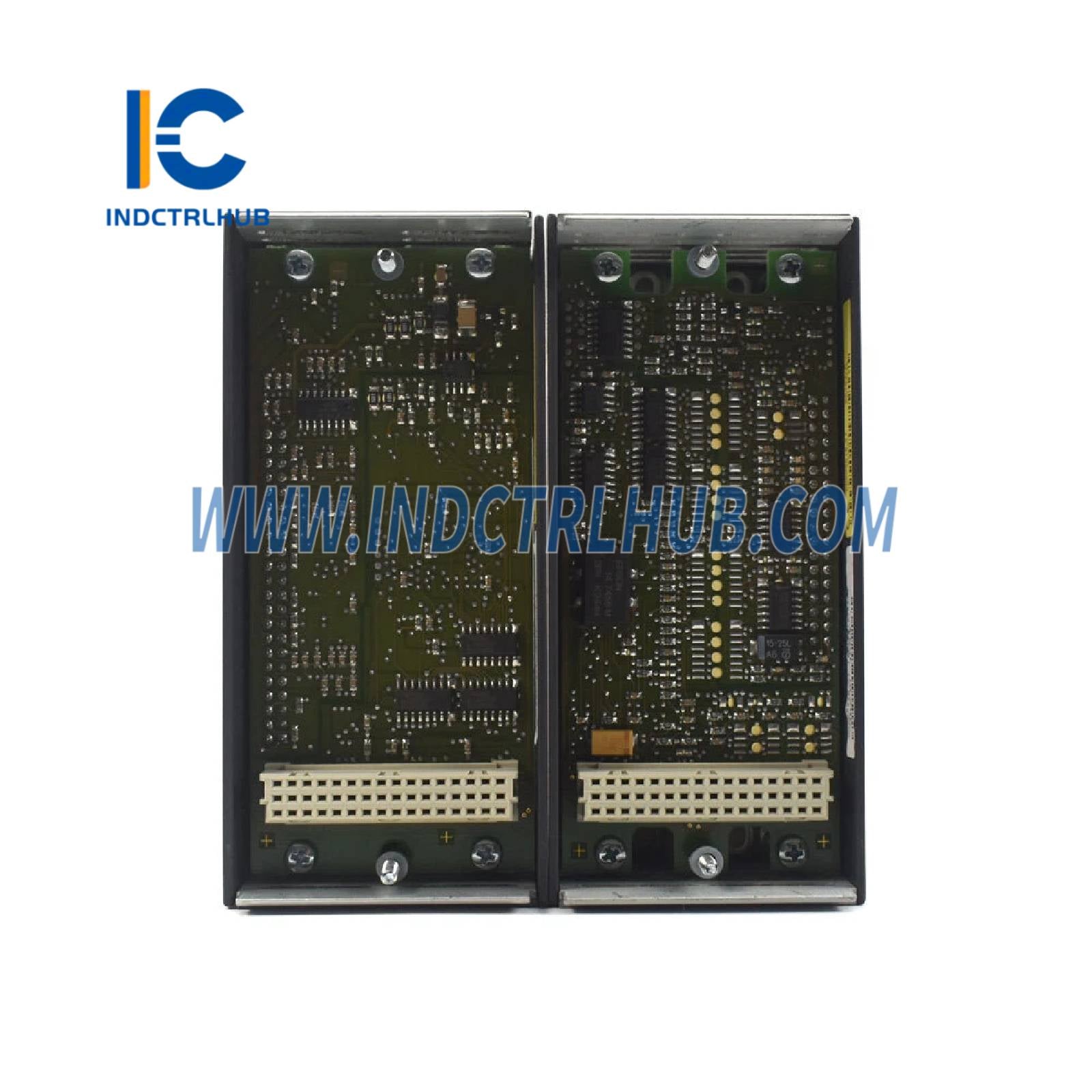

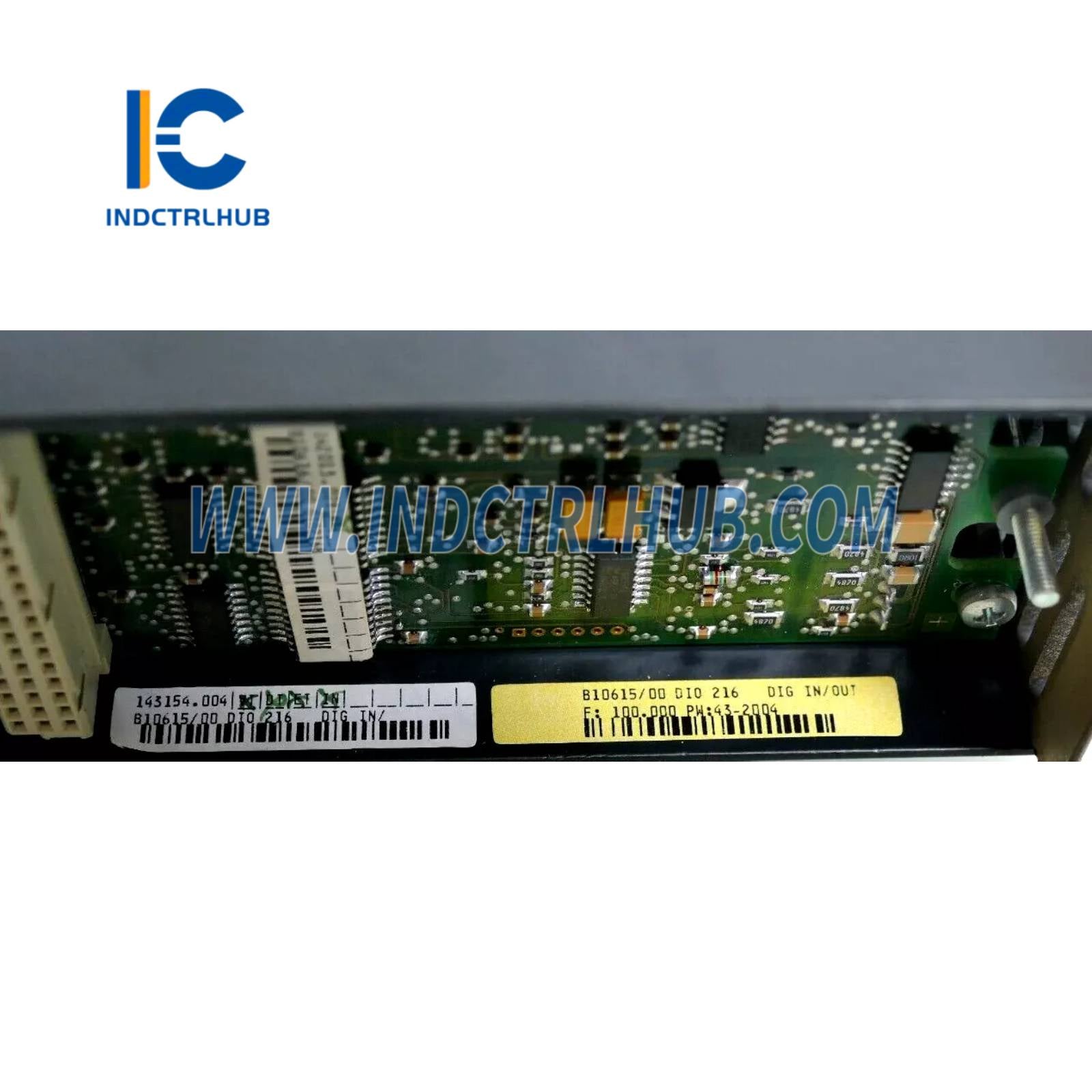

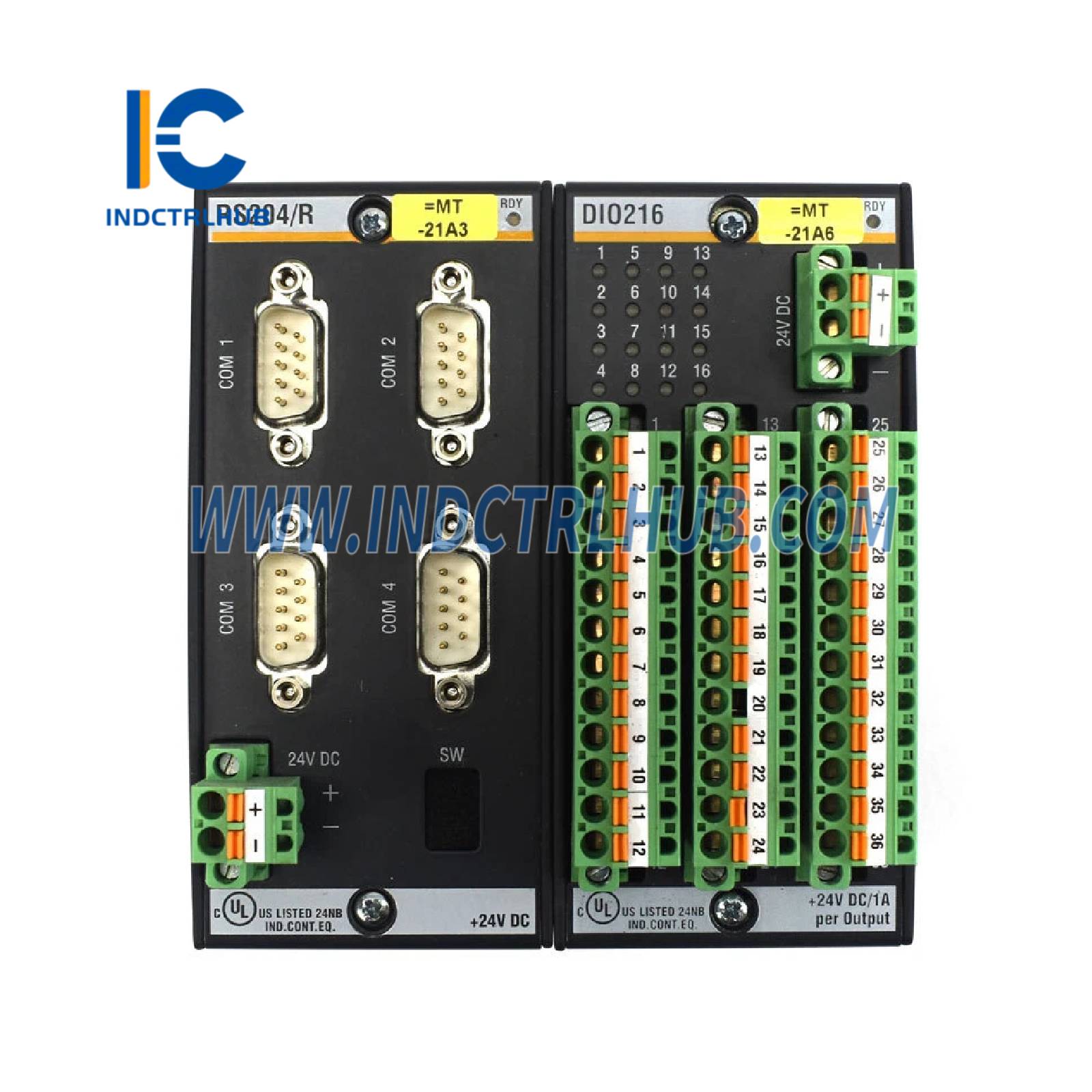

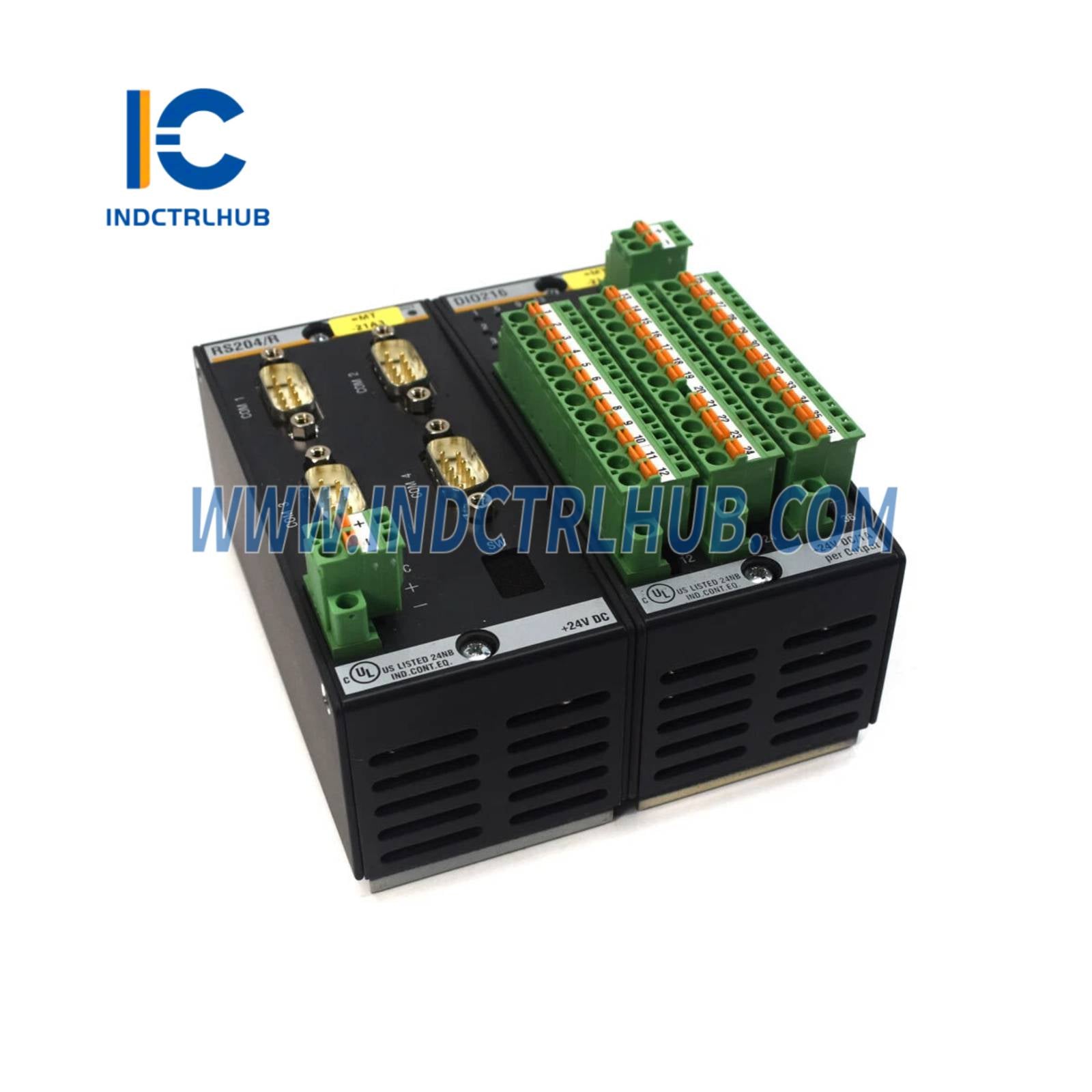

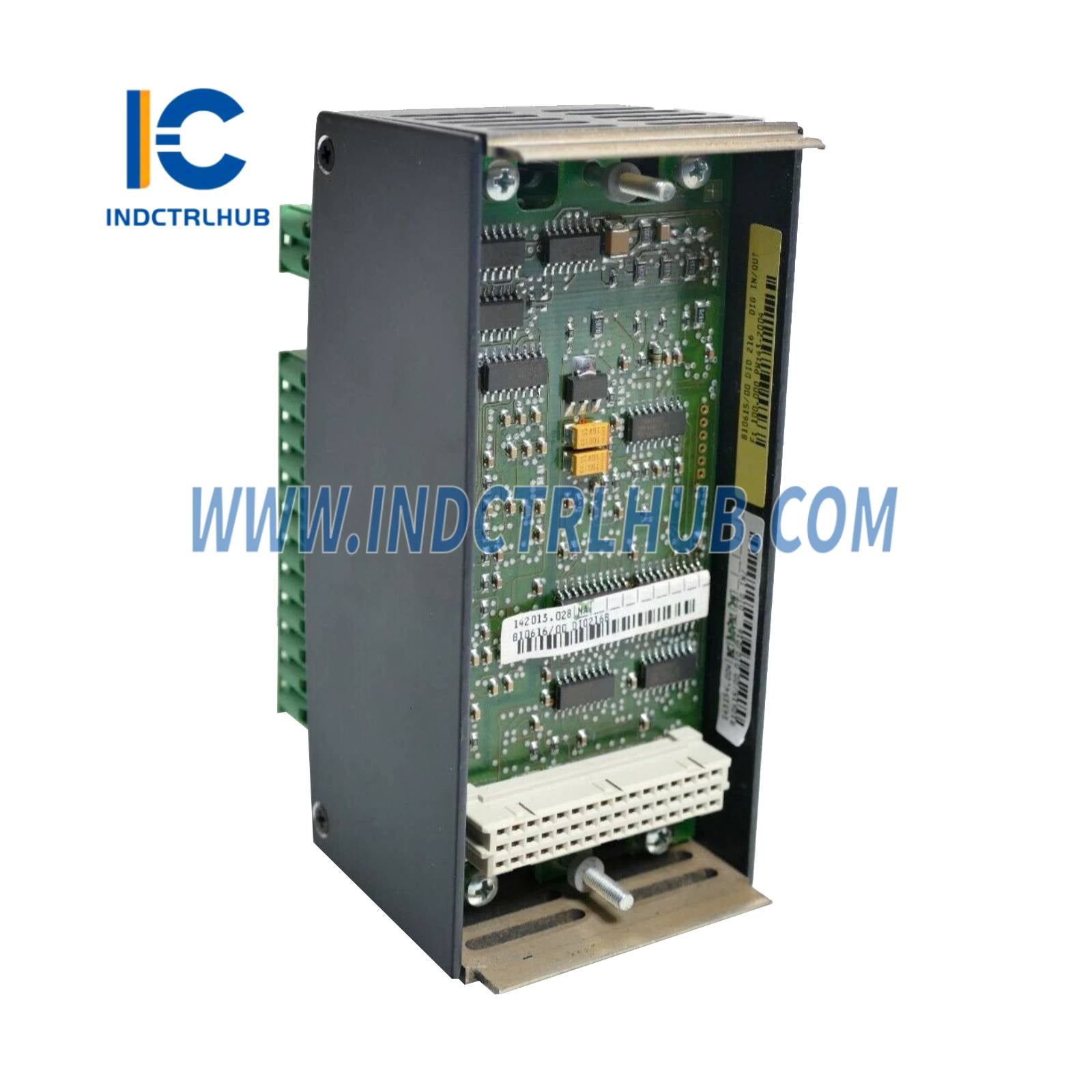

The DIO216/4 is a digital input/output module that provides 16 configurable digital I/O channels. It supports interfacing with digital actuators (e.g., relays, valves) and digital signal sources (e.g., sensors, switches). It is designed for space-saving applications and includes built-in LED status indicators, reverse polarity protection, and galvanic isolation.
Technical Specifications
Inputs
|
Parameter |
Specification |
|---|---|
|
Number of Inputs |
Max. 16 |
|
Input Voltage Range (High) |
15 V DC to 34 V DC |
|
Input Voltage Range (Low) |
0 V DC to 5 V DC |
|
Input Filter (typical) |
600 µs |
|
Internal Resistance |
6.8 kΩ |
|
Interrupt Inputs |
1 |
|
Status Indication |
Green LED |
Outputs
|
Parameter |
Specification |
|---|---|
|
Number of Outputs |
Max. 16 |
|
Output Voltage Range |
18 V DC to 34 V DC |
|
Output Current (per channel) |
Max. 1 A |
|
Total Output Current |
Max. 16 A |
|
Switching Frequency (max.) |
1 kHz (ohmic/inductive) |
|
Status Indication |
Green LED |
Electrical & Isolation
|
Feature |
Specification |
|---|---|
|
Reverse Polarity Protection |
Yes |
|
Galvanic Isolation (system) |
500 V |
Environmental Limits
|
Parameter |
Standard |
ColdClimate (CC) |
|---|---|---|
|
Operating Temperature |
-30 °C to +60 °C |
Same |
|
Relative Humidity (Operation) |
5% to 95% noncondensing |
5% to 95% with condensation |
|
Storage Temperature |
-40 °C to +85 °C |
Same |
|
Relative Humidity (Storage) |
5% to 95% noncondensing |
5% to 95% with condensation |
|
Pollution Degree (IEC 60664-1) |
2 |
2 |
Approvals/Certificates
|
Standard Certifications |
Marine Approvals |
|---|---|
|
CE, UKCA, cULus |
ABS, BV, DNV, KR, LR, NK, RINA |
Ordering Information
|
Part Type |
Part Number |
Description |
|---|---|---|
|
DIO216/4 |
00010892-00 |
Digital I/O module; 16x DIO; 24 V / 1 A; 600 µs filter; 4 groups; 1 interrupt channel; 50 µs delay; 3-wire; isolated |
|
DIO216/4 CC |
00016141-00 |
Same as DIO216/4, ColdClimate version |
Accessories
|
Part Type |
Part Number |
Description |
|---|---|---|
|
KZ-DIO216/4 B+C |
00011975-50 |
Terminal set Phoenix cage clamp (3× KZ 51/12, 1× KZ 51/02) with labeling strips and keying elements |
