Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
BACHMANN |
|
Model/Part Number |
BS213 |
|
Series |
BS200 |
|
Description |

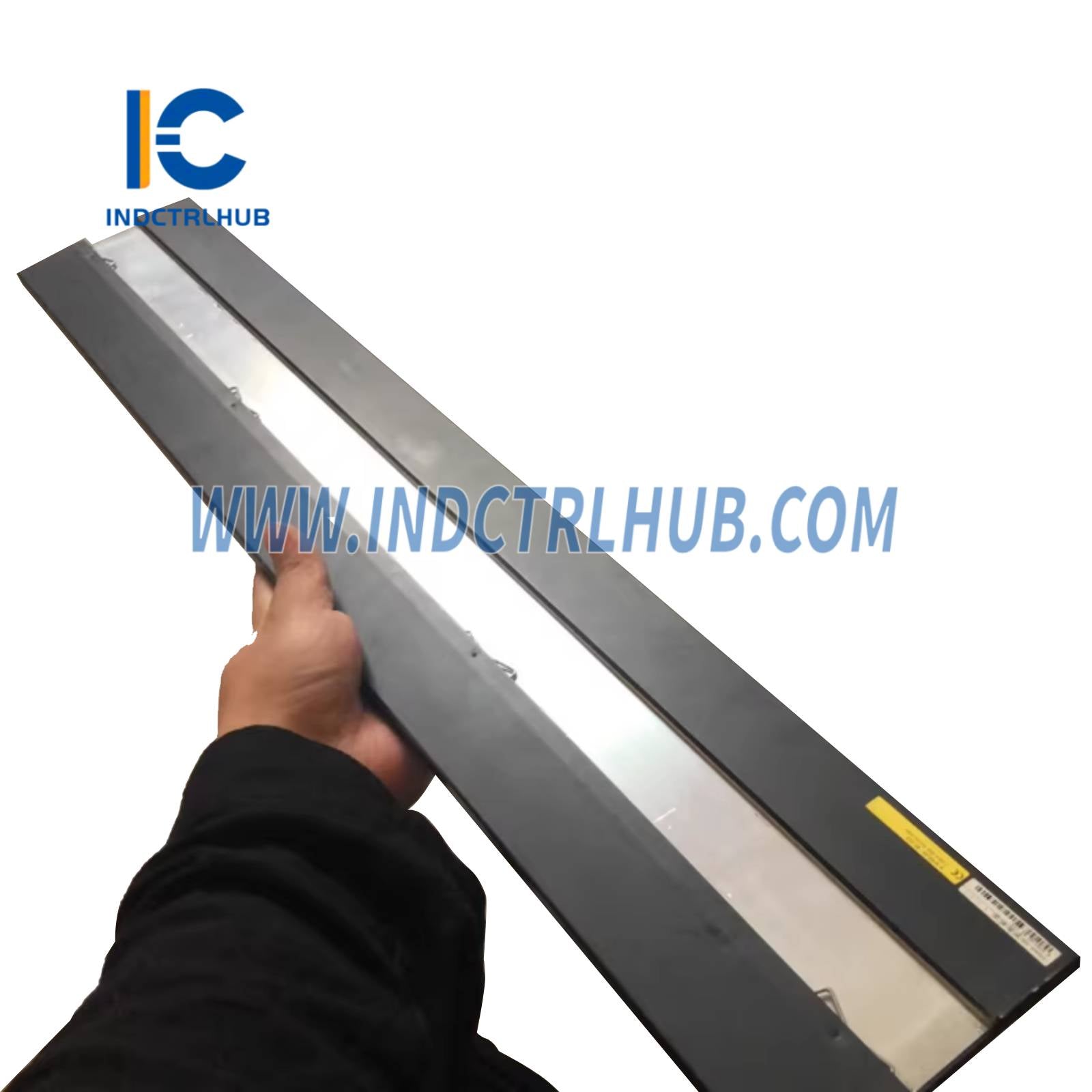

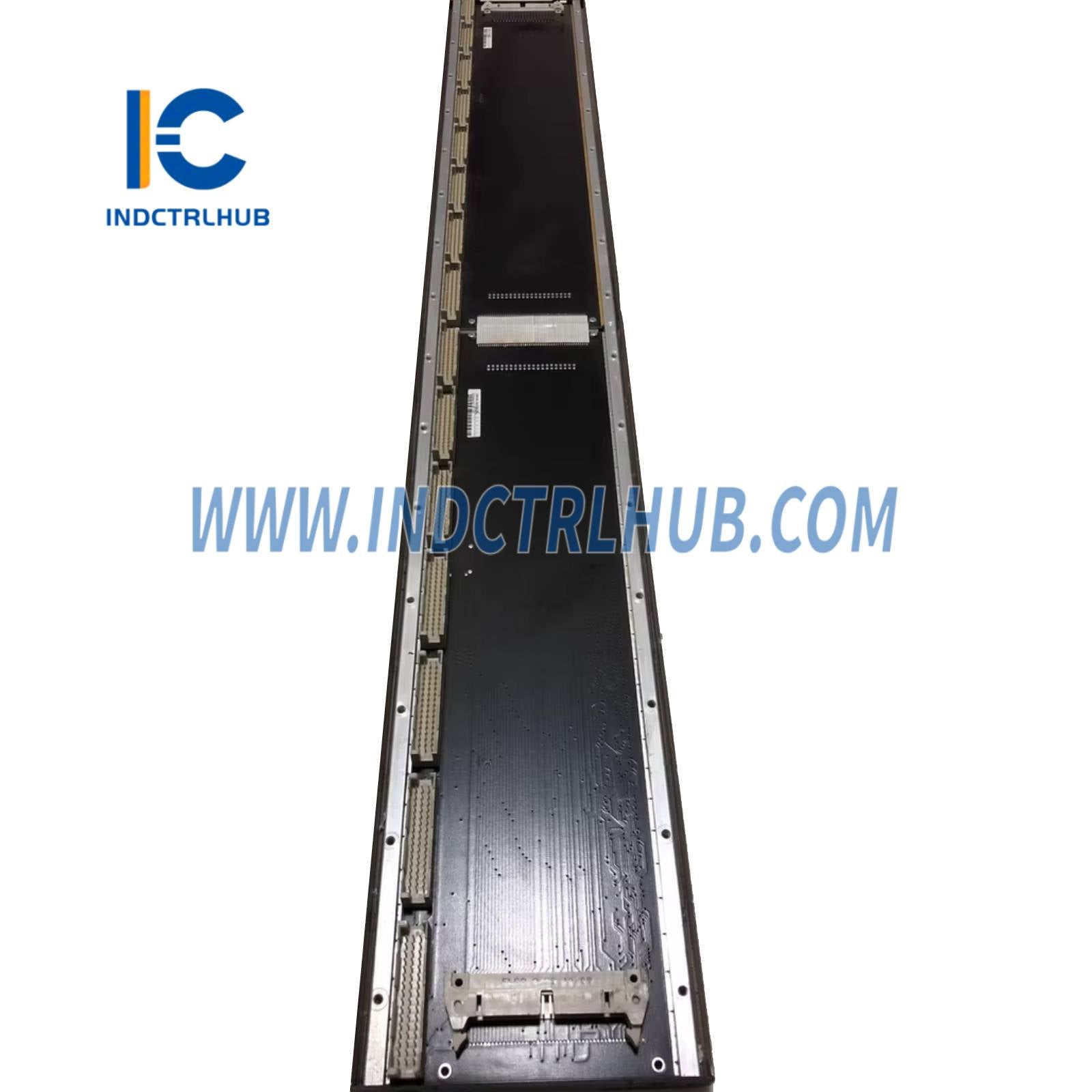

Backplane with 13 module slots |
|
Function |
Provides mechanical and electrical connection for M200 control system modules (PSU, CPU, I/O) |
Features
-
13 module slots
-
Seamlessly connectable and extendable
-
Stable mechanical structure and compact design
-
Vibration-proof module fixing
-
DIN rail mountable (EN 60715 compliant)
Technical Specifications
|
Specification |
Value |
|---|---|
|
Number of Module Slots |
13 |
|
Width |
715 mm (55 mm × 13 slots) |
|
Depth |
23 mm (including connector) |
|
Height |
119 mm |
Environmental Conditions
|
Condition |
Value |
|---|---|
|
Operating Temperature |
-30 °C to +60 °C |
|
Operating Temp. (vertical) |
-30 °C to +55 °C |
|
Relative Humidity (operation) |
5 % to 95 % non-condensing |
|
Storage Temperature |
-40 °C to +85 °C |
|
Relative Humidity (storage) |
5 % to 95 % non-condensing |
Certifications and Approvals
|
Standard Type |
Certificates |
|---|---|
|
General |
CE, UKCA, cULus |
|
Marine |
ABS, BV, DNV, KR, LR, NK, RINA |
Ordering Information
|
Part Type |
Part Number |
Description |
|---|---|---|
|

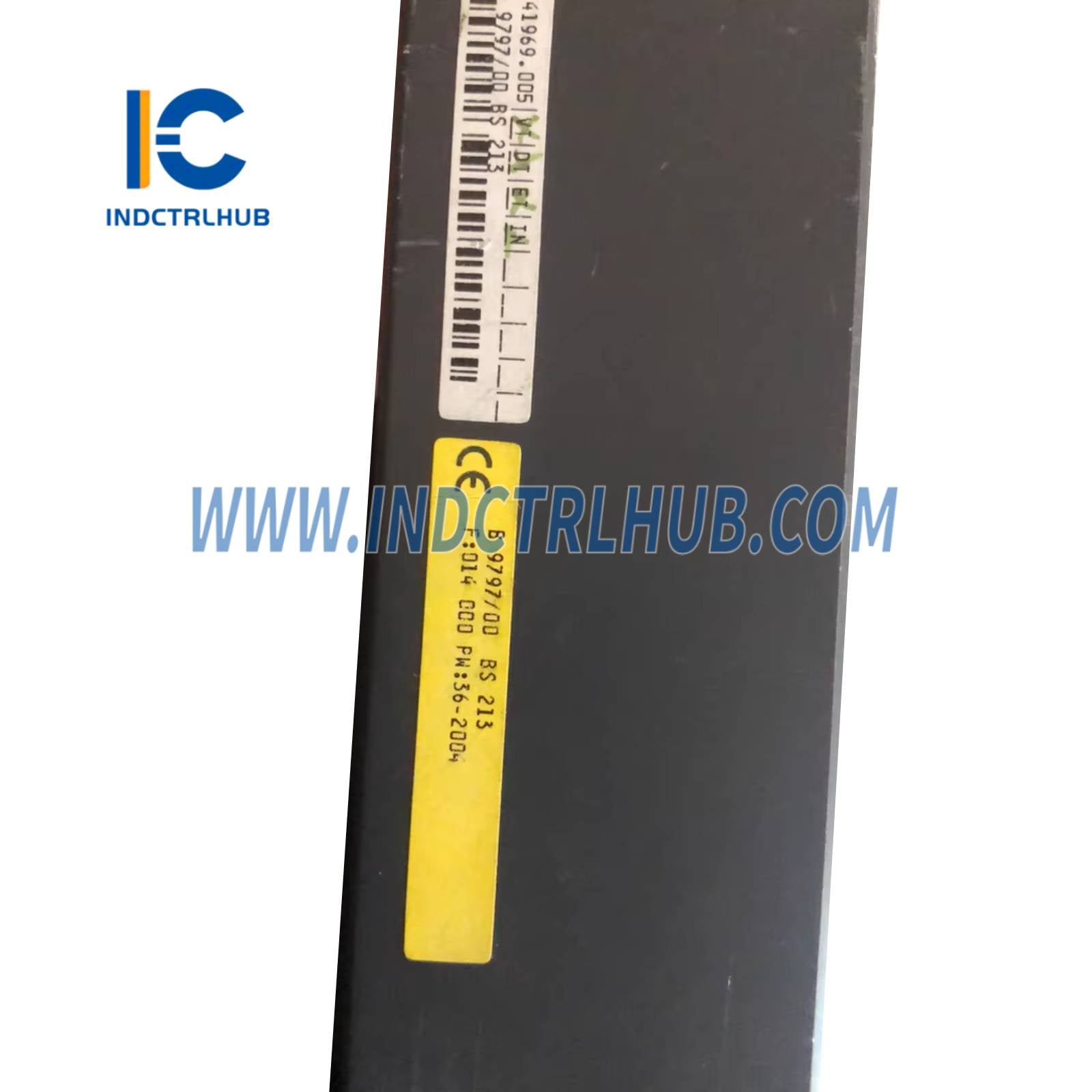

BS213 |
00009797-00 |
Backplane with 13 module slots |
|
K-BS240 |
00010519-00 |
Backplane expansion cable (40-pole) |
