Product Description

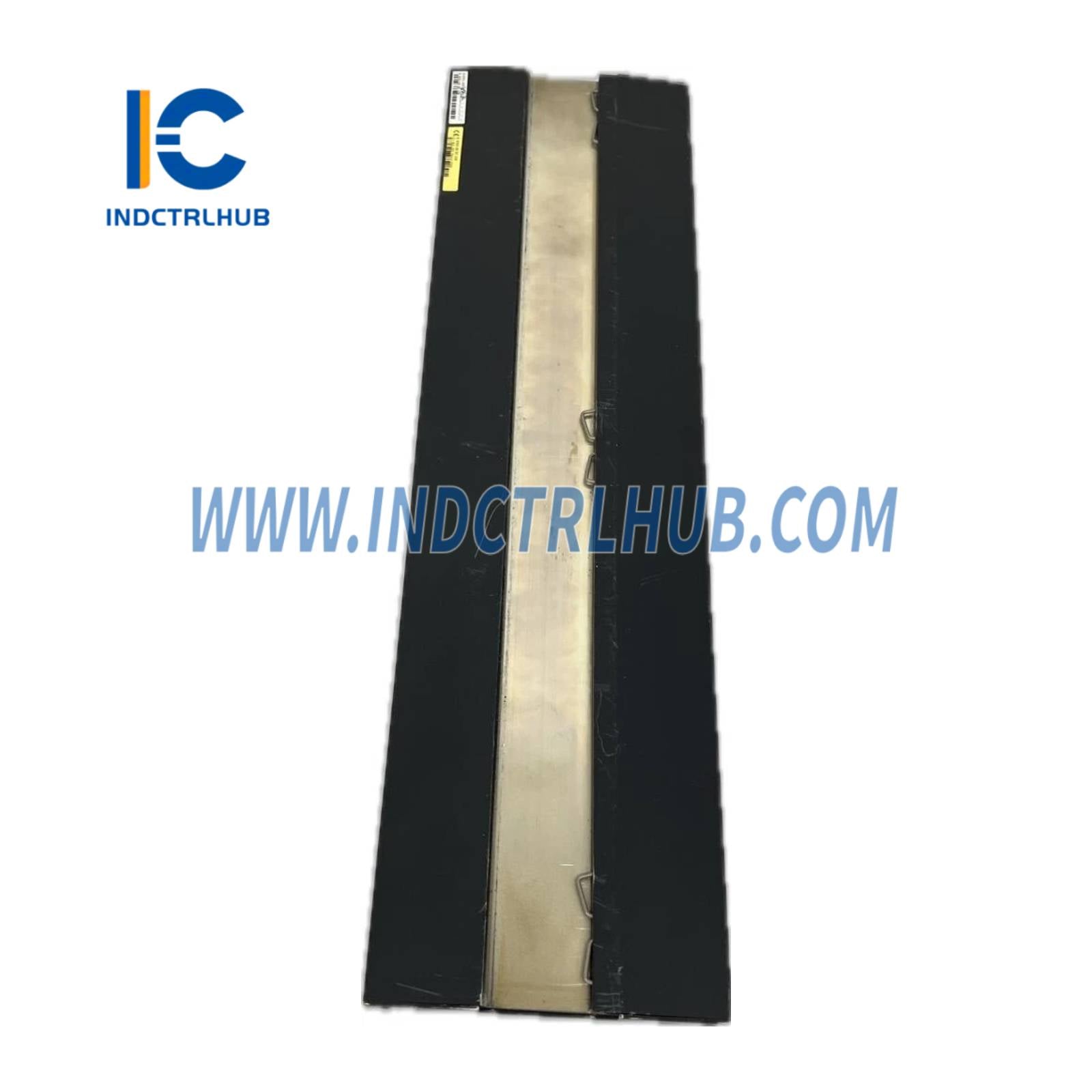

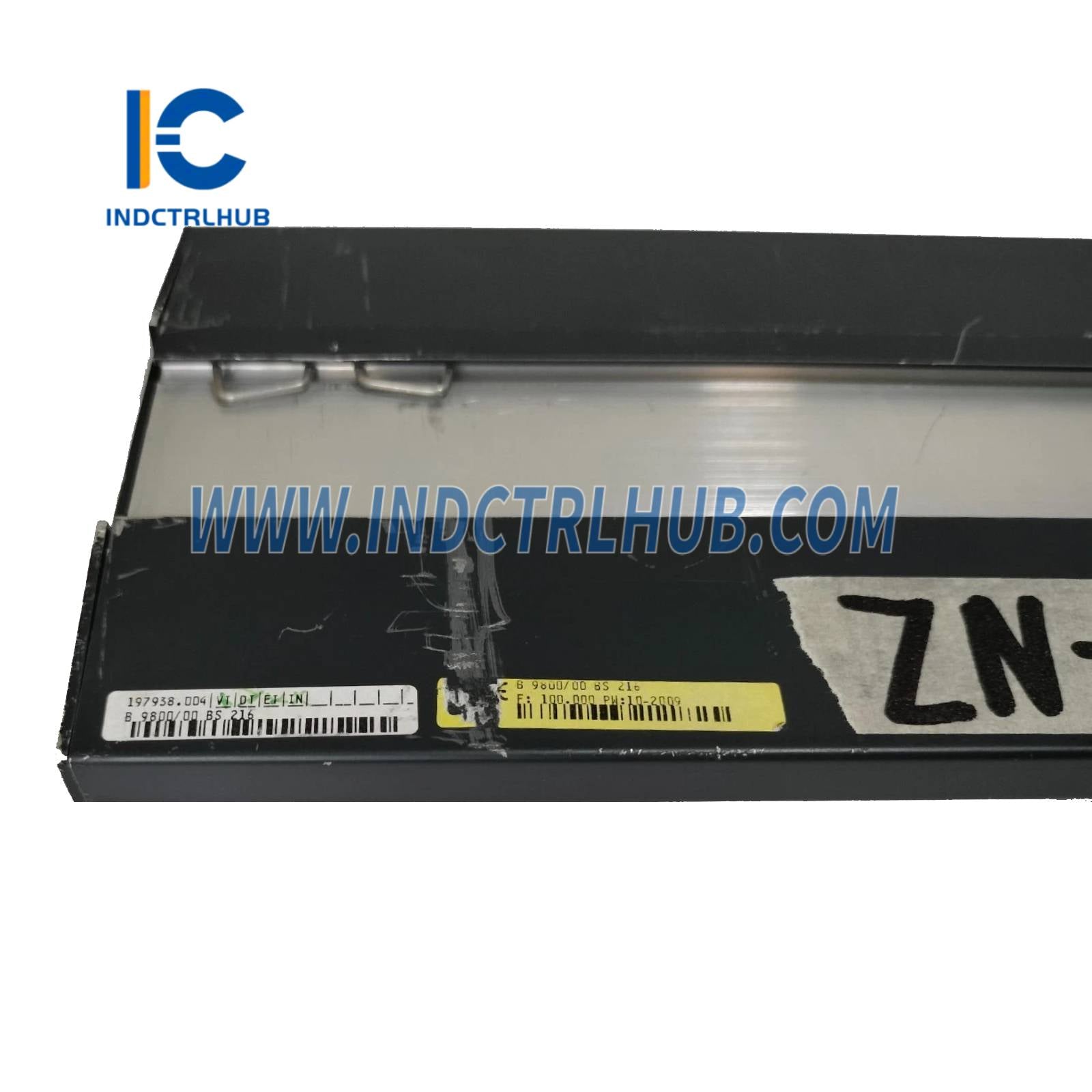

Bachmann BS208 Backplane Module
Product Overview
- The Bachmann BS208 is a Backplane Module designed by Bachmann electronic GmbH for use in their M1 automation system. This module serves as a modular baseplate or backplane, providing mechanical mounting and electrical connectivity for various M1 system modules, such as CPUs, I/O modules, and communication modules. It is used in industrial automation applications, including manufacturing, energy, process control, and renewable energy systems (e.g., wind turbines), to facilitate scalable and reliable system integration. The BS208 offers a higher slot capacity than the BS203, BS204, BS205, BS206, and BS207, supporting larger and more complex system configurations.
Technical Specifications
- The BS208 has the following specifications
| Specification | Details |
|---|---|
| Model/Part Number | BS208 |
| Manufacturer | Bachmann electronic GmbH |
| Description | Backplane Module |
| Series | Bachmann M1 Automation System |
| Function | Provides mechanical mounting and electrical connectivity for M1 system modules |

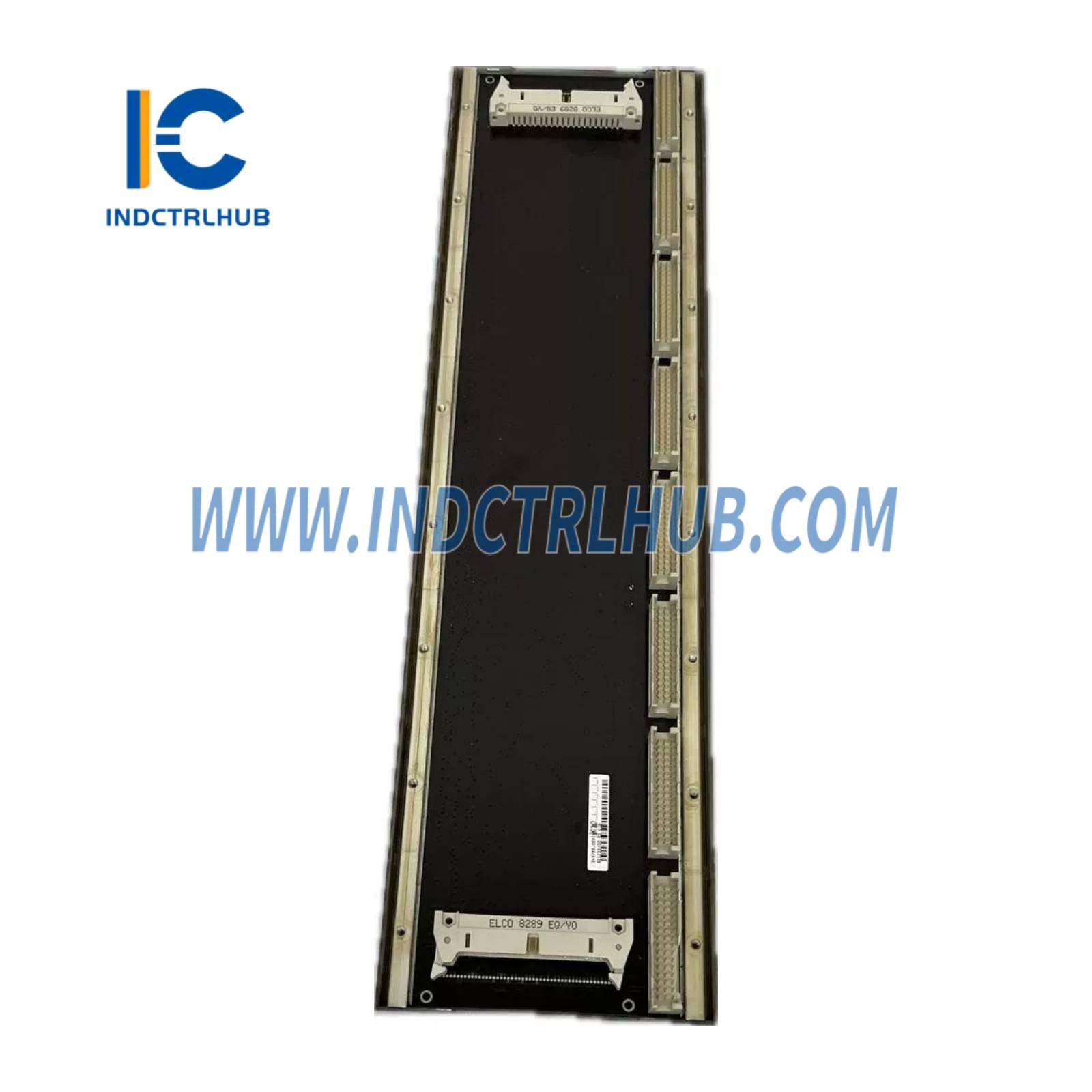

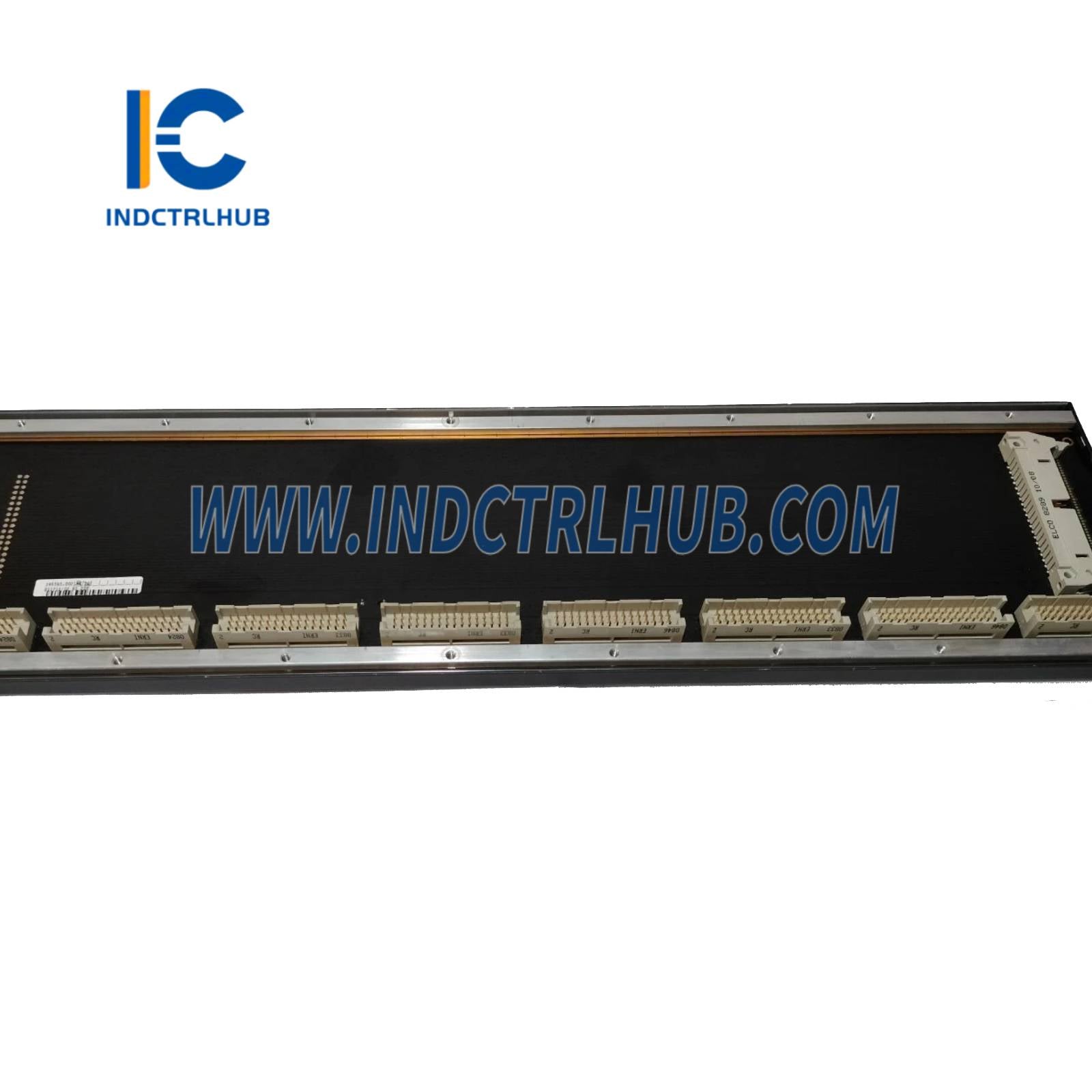

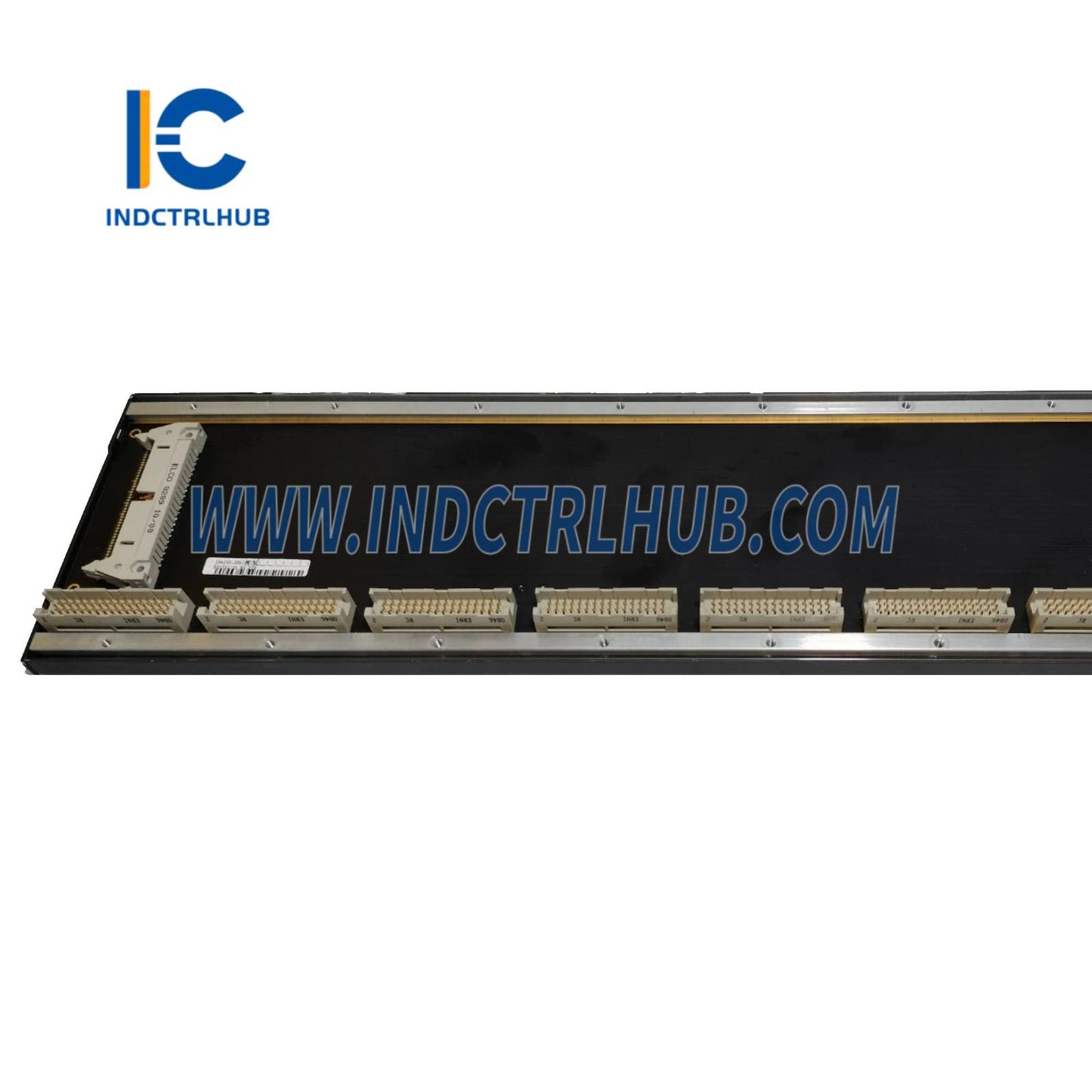

| Slots | 8 slots for M1 modules (e.g., CPU, I/O, communication modules) |
| Bus System | Proprietary M1 backplane bus for power and data communication |
| Power Supply Input | 24 VDC nominal (18–36 VDC range) |
| Power Distribution | Distributes 24 VDC to connected modules via backplane |
| Current Capacity | Up to 10 A |

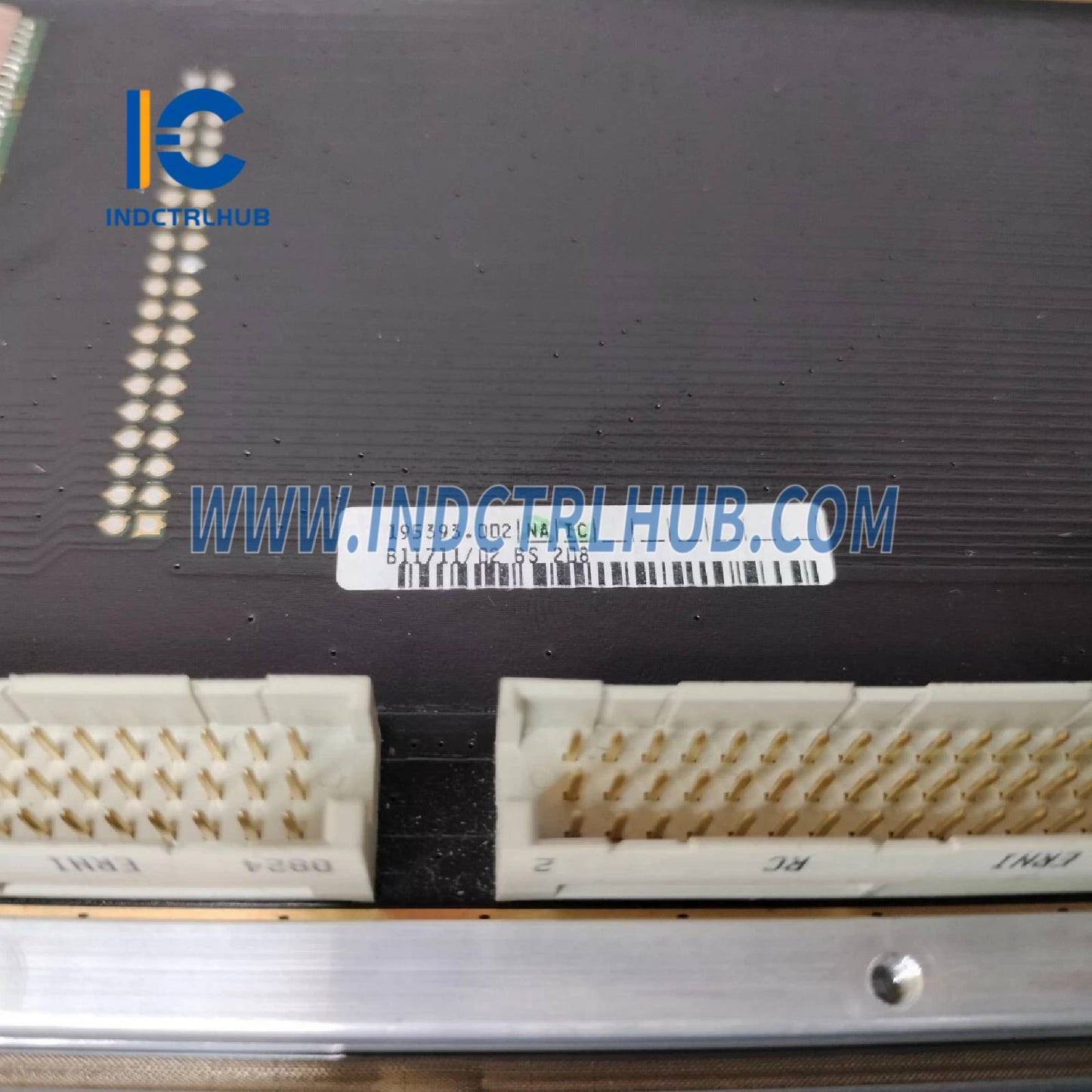

| Connectors | Standard M1 module connectors for plug-in modules; terminal blocks for power input |
| Communication | Facilitates high-speed data exchange between modules via M1 bus |
| Environmental Specifications | Operating Temperature: -30°C to +60°C Storage Temperature: -40°C to +85°C Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant Shock: IEC 60068-2-27 compliant |
| Dimensions | Approx. 120 mm (H) x 400 mm (W) x 50 mm (D) (varies by configuration) |
| Weight | Approx. 1.0–2.0 kg (without modules) |
| Mounting | DIN rail or panel mounting |
| Certifications | CE, UL, DNV GL (suitable for industrial and marine applications) |
