Product Description
General Information
|
Field |
Details |
|---|---|
|
Manufacturer |
BACHMANN |
|
Model/Part Number |
BS206-CC (00015950-00) |
|
Series |
BS200 CC |
|
Description |

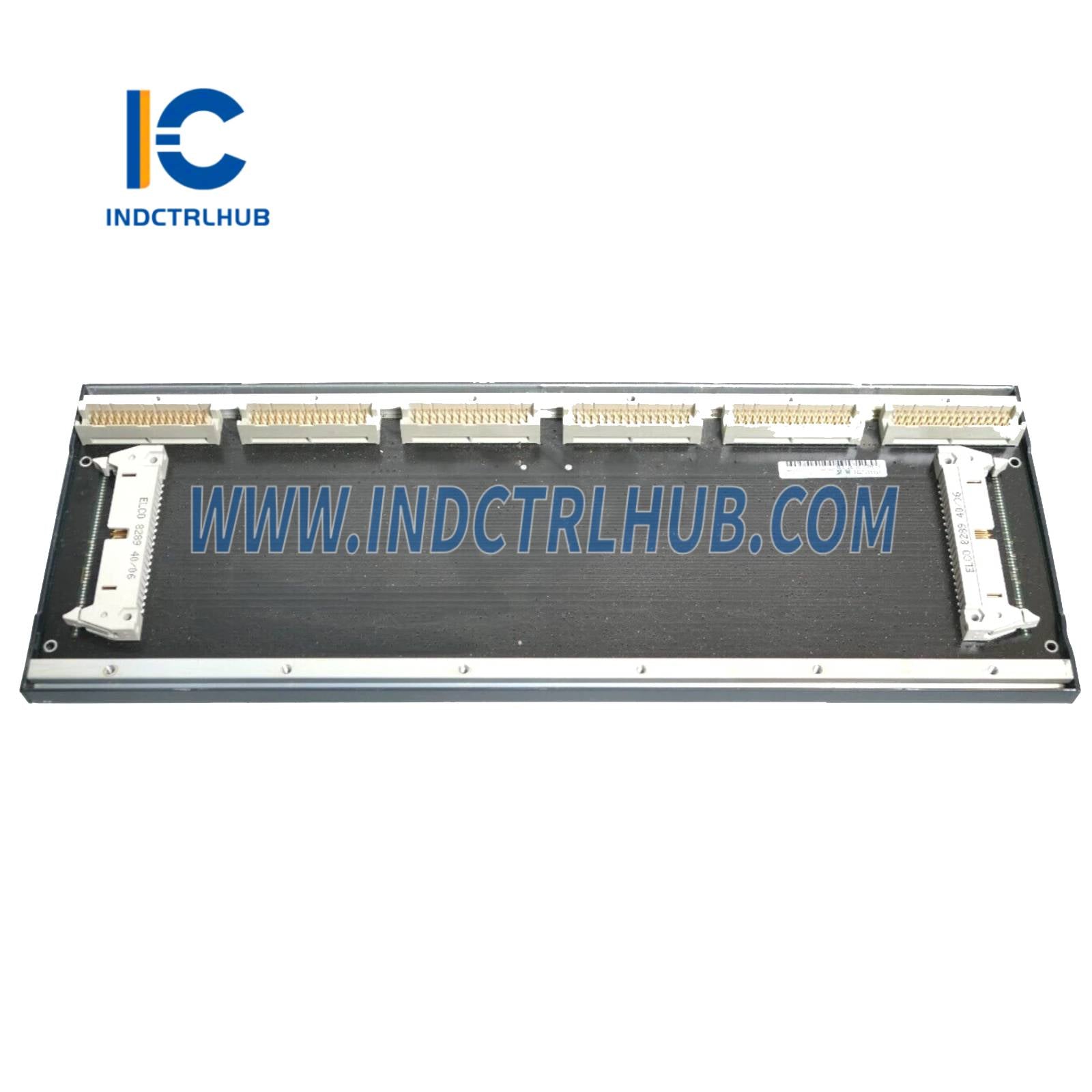

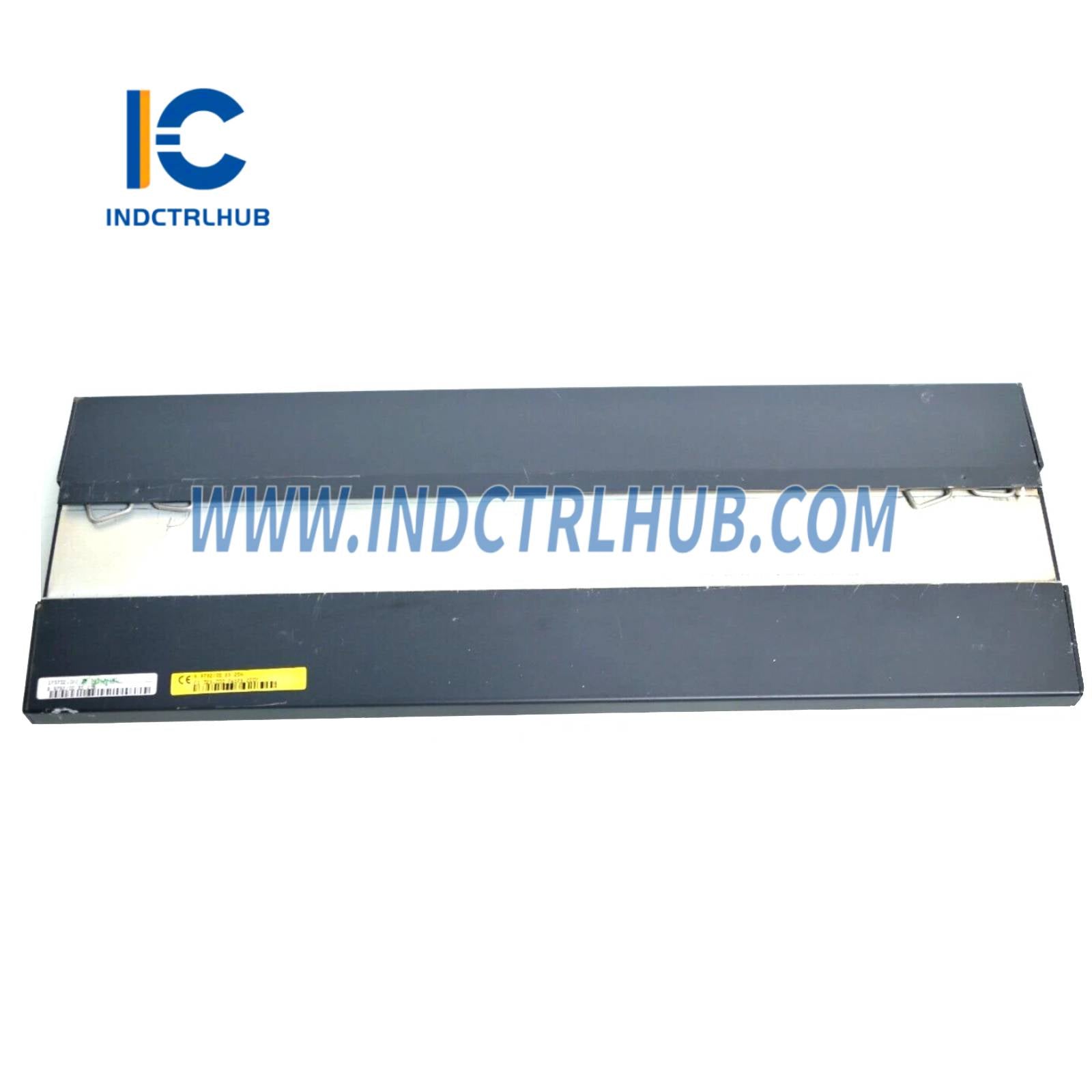

Backplane with 6 module slots; ColdClimate |
|
Function |
Interconnects M200 controller hardware modules (e.g., PSU, processor, I/O) both mechanically and electrically |
Features
-
6 module slots (BS206 = 6 slots)
-
ColdClimate design: protected against temporary condensation
-
Seamless connectability/expandability
-
Stable and compact design with vibration-proof module fixing
-
DIN rail mountable (EN 60715 compliant)
Technical Specifications
|
Specification |
Value |
|---|---|
|
Number of Module Slots |
6 |
|
Width |
330 mm (55 mm × 6 slots) |
|
Depth |
23 mm (including connector) |
|
Height |
119 mm |
Environmental Conditions
|
Condition |
Value |
|---|---|
|
Design |
ColdClimate |
|
Operating Temperature |
-30 °C to +60 °C |
|
Operating Temp. (vertical mount) |
-30 °C to +55 °C |
|
Relative Humidity (operation) |
5 % to 95 % with condensation |
|
Storage Temperature |
-40 °C to +85 °C |
|
Relative Humidity (storage) |
5 % to 95 % with condensation |
Certifications and Approvals
|
Standard Type |
Certificates |
|---|---|
|
General |
CE, UKCA, cULus |
|
Marine |
ABS, BV, DNV, KR, LR, NK, RINA |
