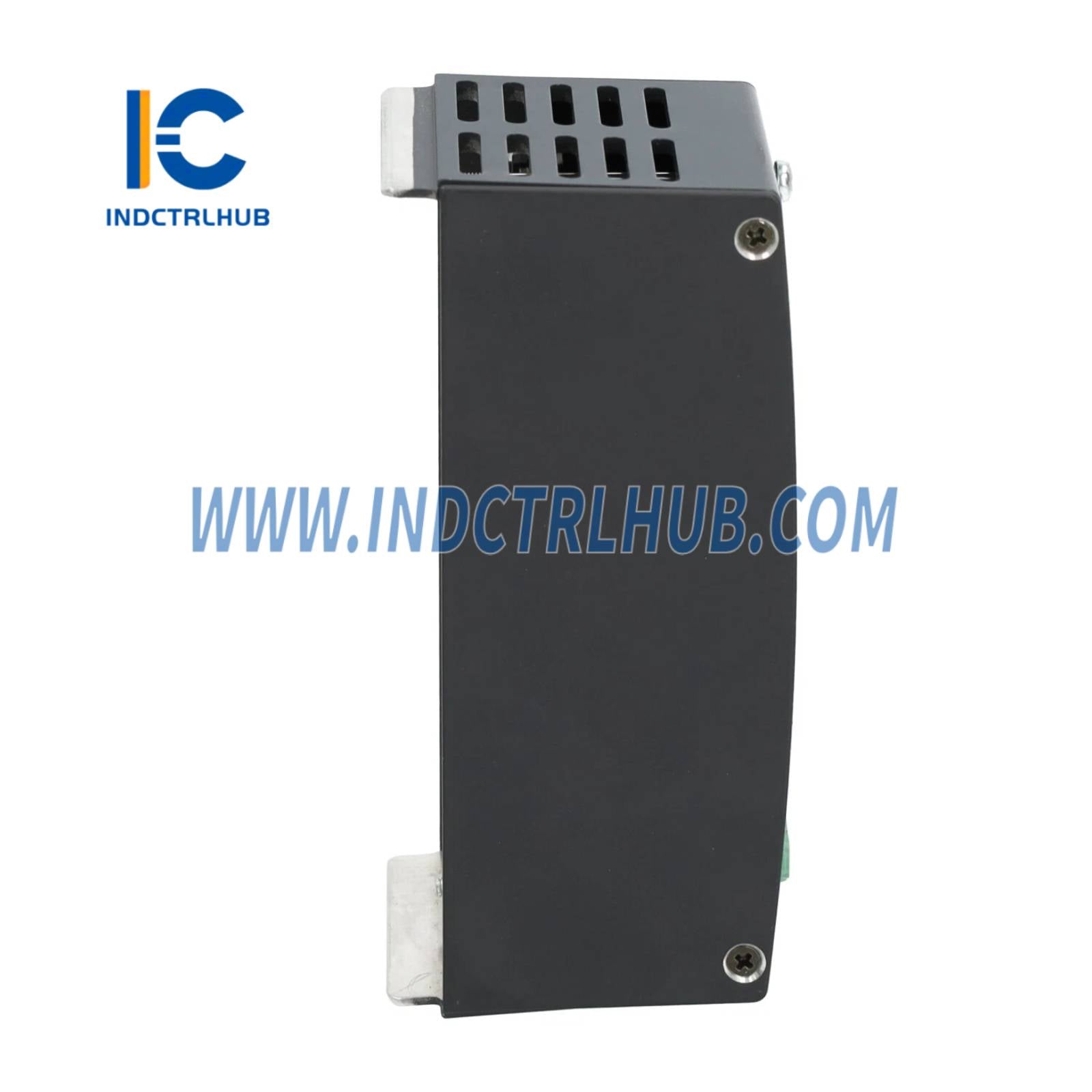

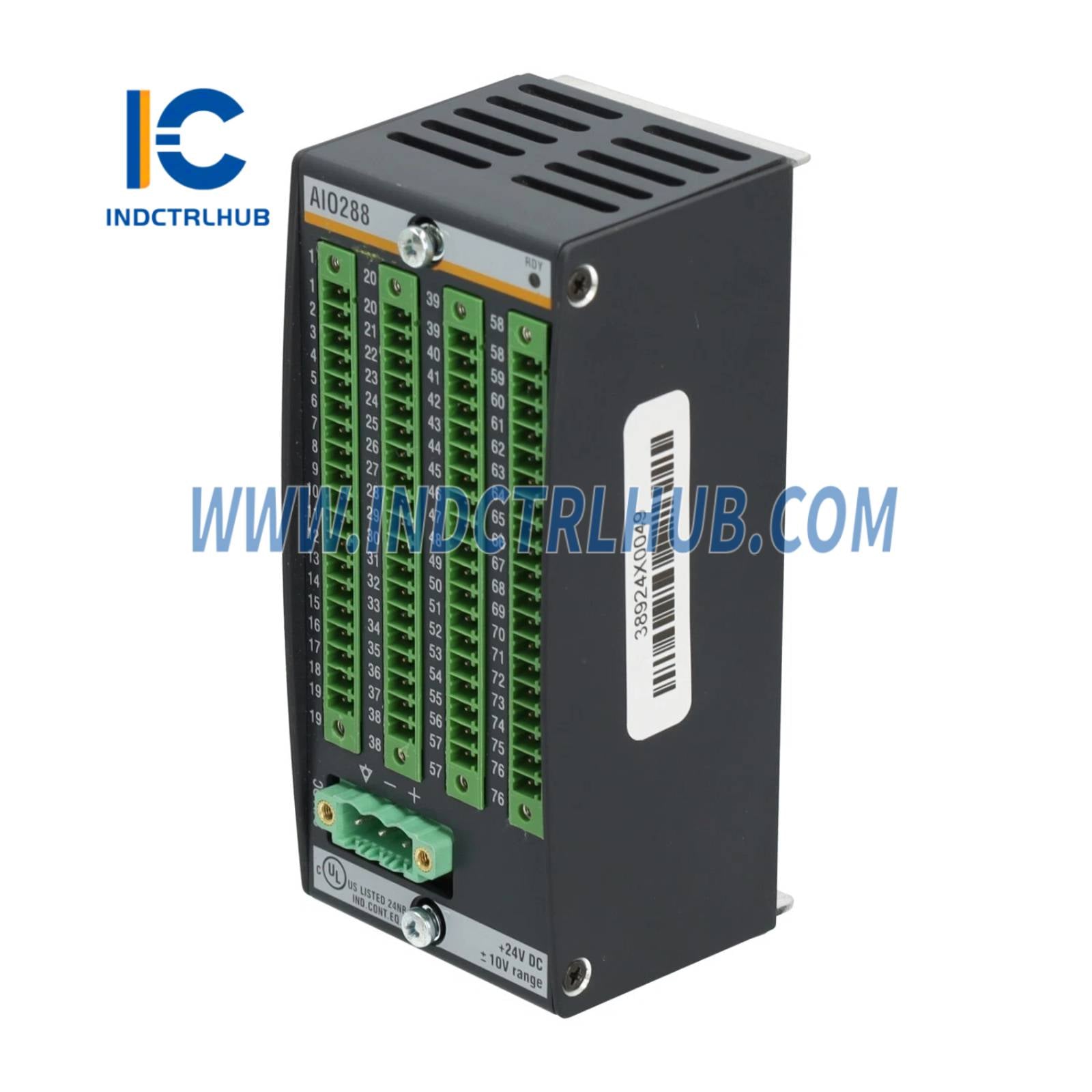

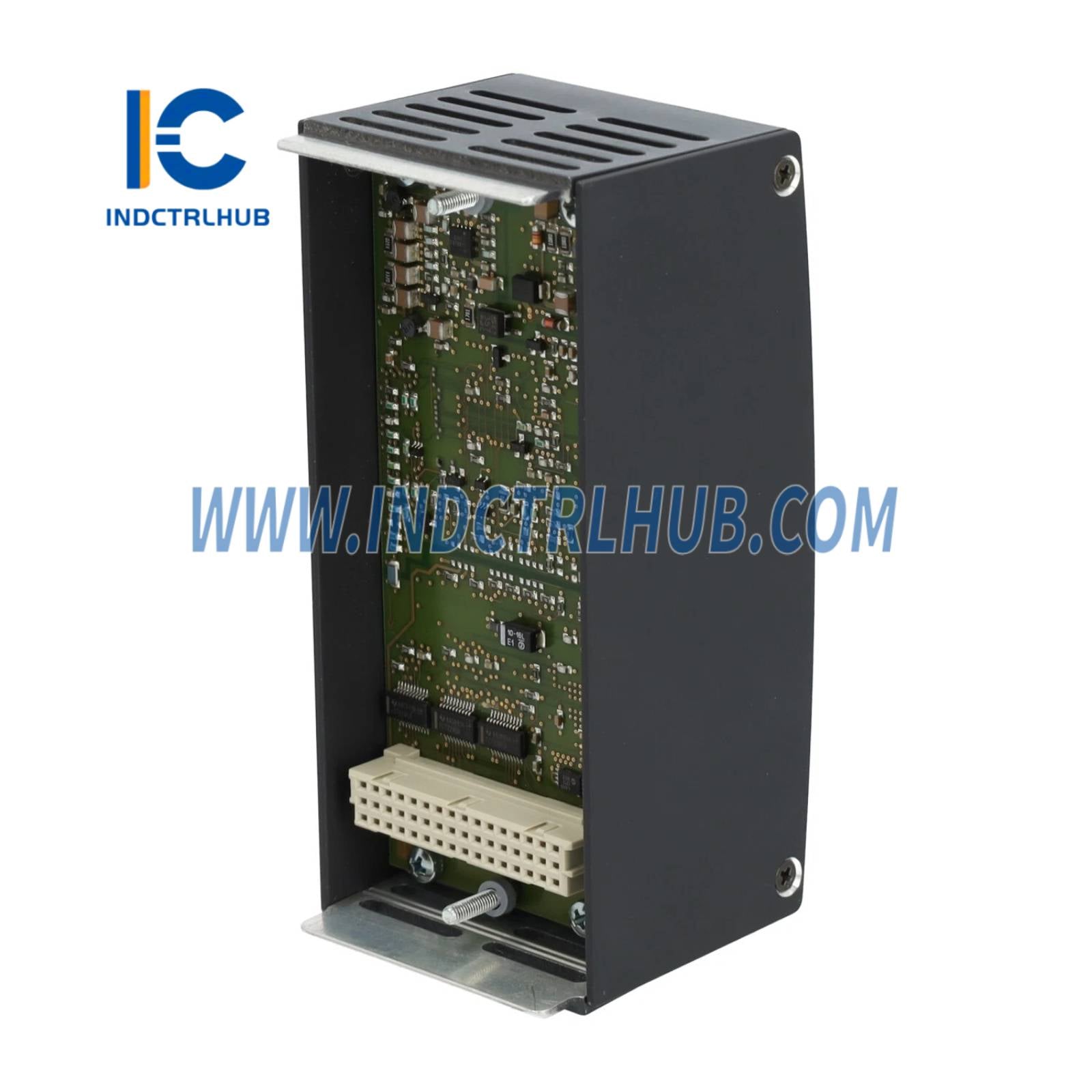

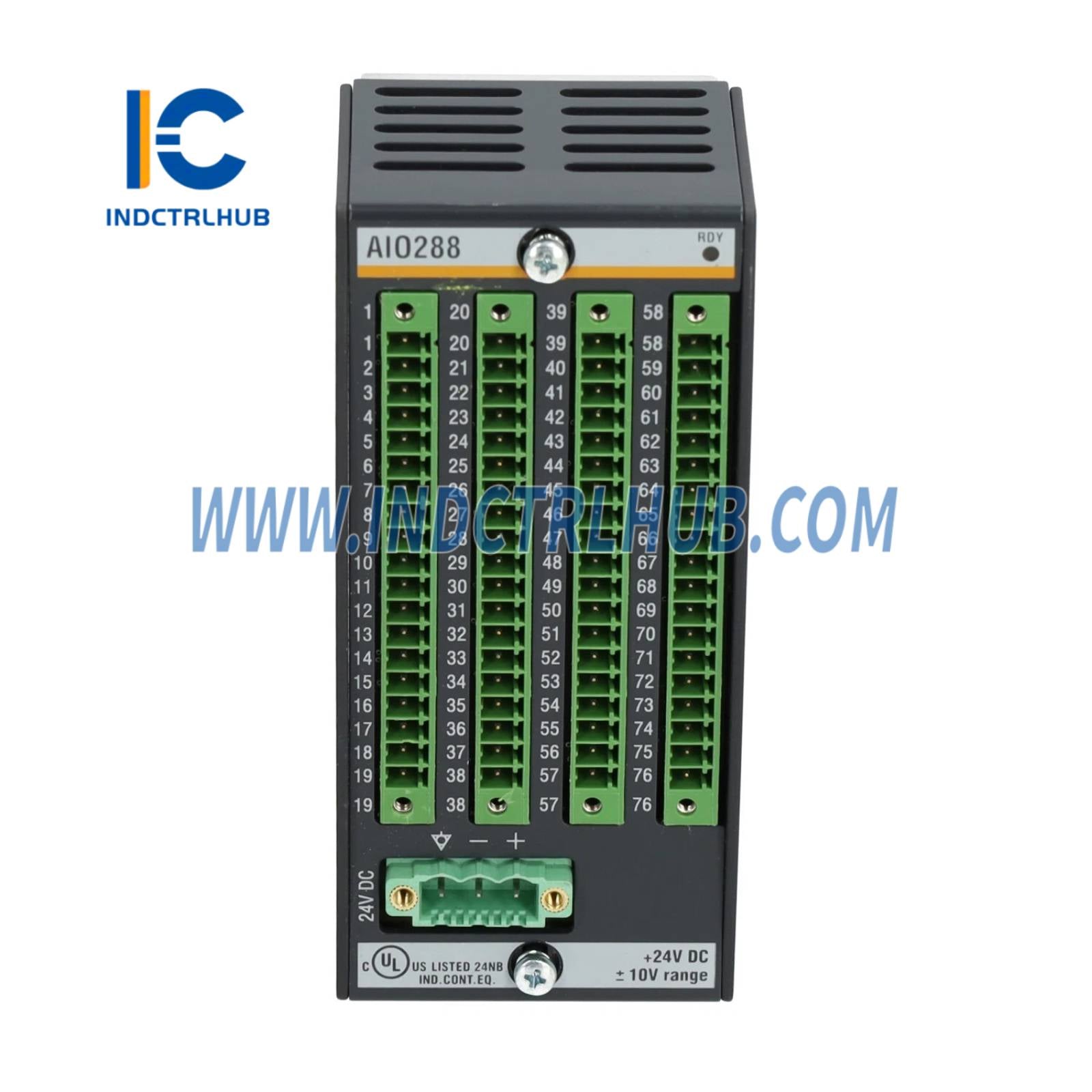

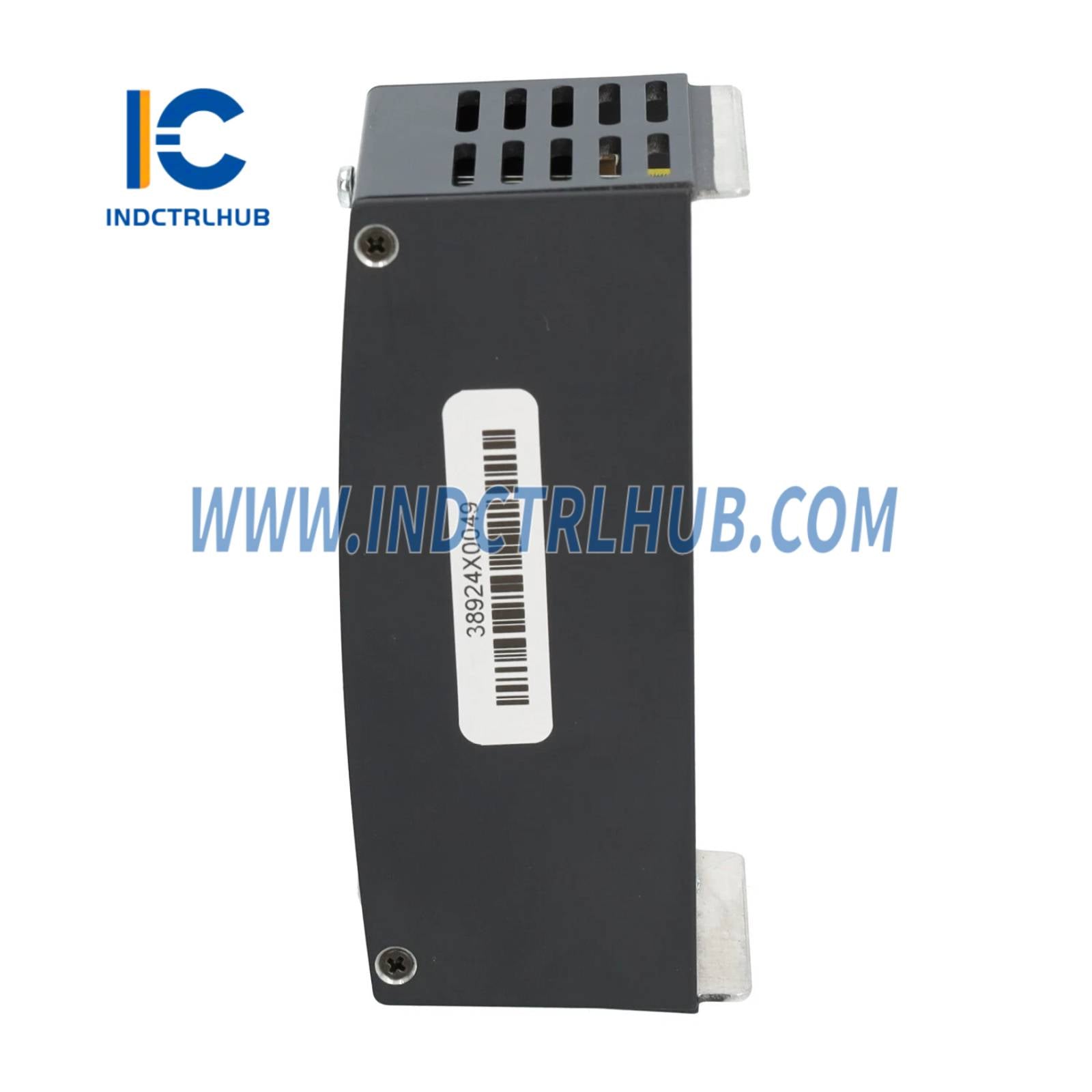

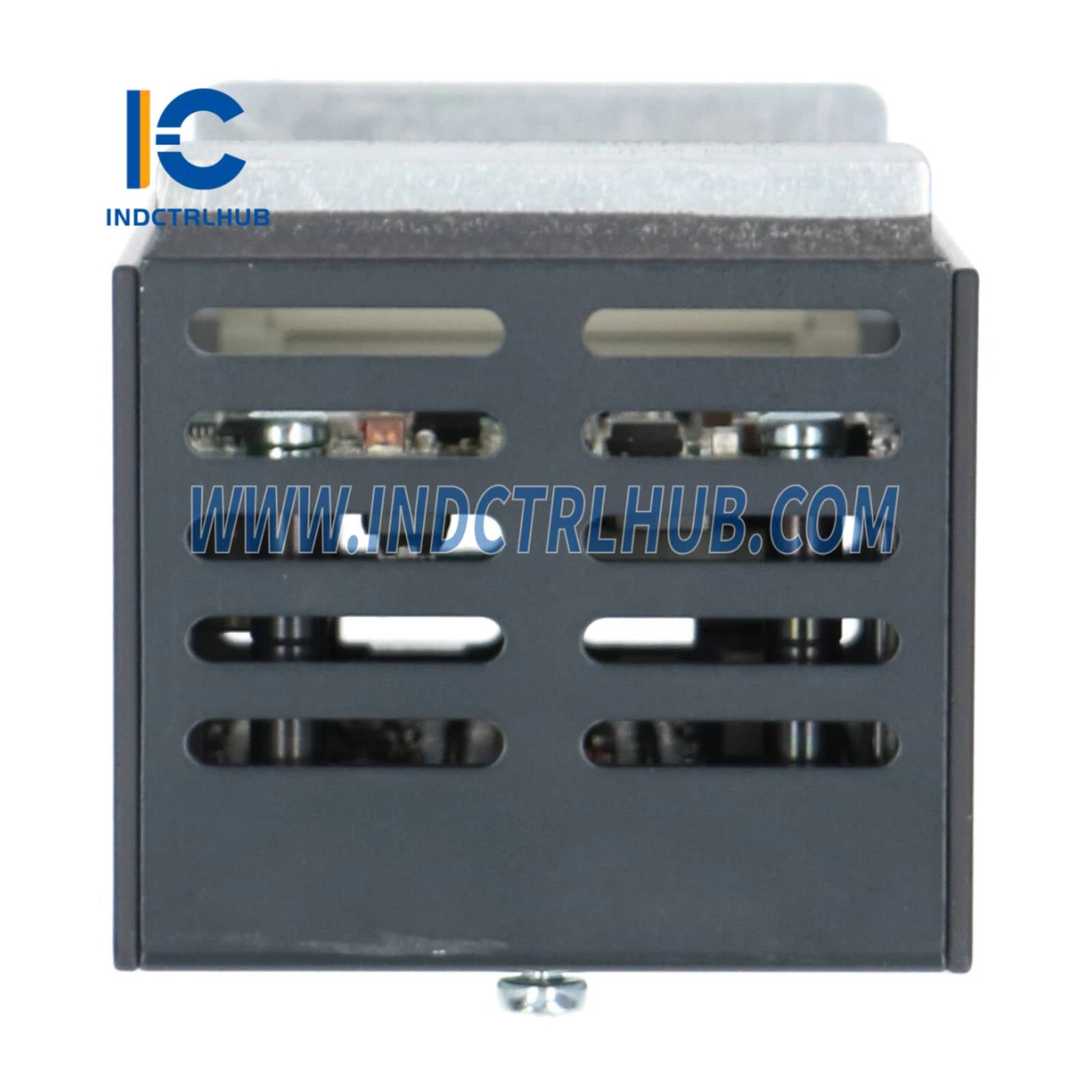

Bachmann AIO288/3 Analog Input/Output Module

Manufacturer

BACHMANN

Model/Part Number

AIO288/3

Description

Analog Input/Output Module with 8 AI and 8 AO channels

Channels

8

Input Types

Voltage (±1 V, ±10 V), Current (0–20 mA), Temperature (Pt100/Pt1000)

Input Impedance

> 100 kΩ (voltage), 243 Ω (current)

Resolution

14-bit

Accuracy @ 25 °C

±0.05 % (voltage), ±0.1 % (current), ±0.1 % of range (temperature)

Common-Mode Voltage

Max. ±1 V

Common-Mode Rejection

> 60 dB

Sampling Time

200 µs

Cutoff Frequency (-3 dB)

1.5 kHz

Max Input Current

35 mA (destruction limit)

Pt100/Pt1000 Support

Max. 4 sensors; 2-wire or 4-wire

Temperature Range

-100 °C to +500 °C

Temperature LSB

0.1 K

Channels

8

Output Voltage

±10 V

Resolution

14-bit

Accuracy @ 25 °C

Max. ±0.025 % of range

Settling Time

Max. 400 µs

Common-Mode Voltage

Max. ±1 V

Common-Mode Rejection

> 60 dB

Refresh Cycle Time

200 µs

Channels

Max. 4

Output Voltage Range

±10 V

Max Load

40 mA

Voltage Error @ 25 °C

Max. ±100 mV

Overload Detection

Yes

External Supply Voltage

18 V DC to 34 V DC

Galvanic Isolation

500 V (system isolation)

Input Voltage Monitoring

Supported

Operating Temperature

-30 °C to +60 °C

Storage Temperature

-40 °C to +85 °C

Relative Humidity (Operation)

5 % to 95 % (with/without condensation)

Relative Humidity (Storage)

5 % to 95 % with condensation

Pollution Degree

2 (IEC 60664-1)

General

CE, UKCA, cULus

Marine

ABS, BV, DNV, KR, LR, NK, RINA
