Product Description

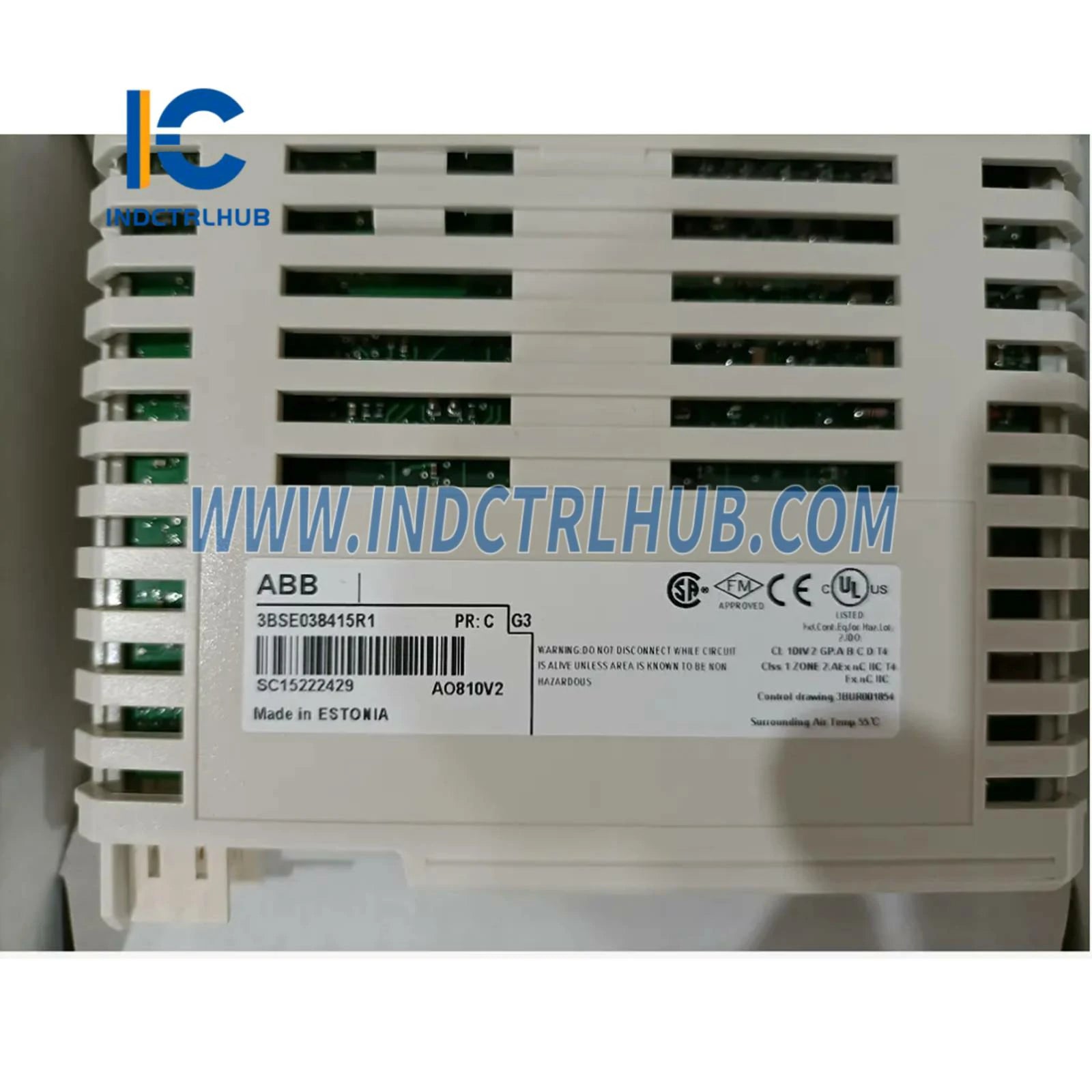

Product Details
| Parameter | Details |
|---|---|
| Manufacturer | ABB |
| Model/Part Number | AO810V2 |
| Description | Analog Output Module |

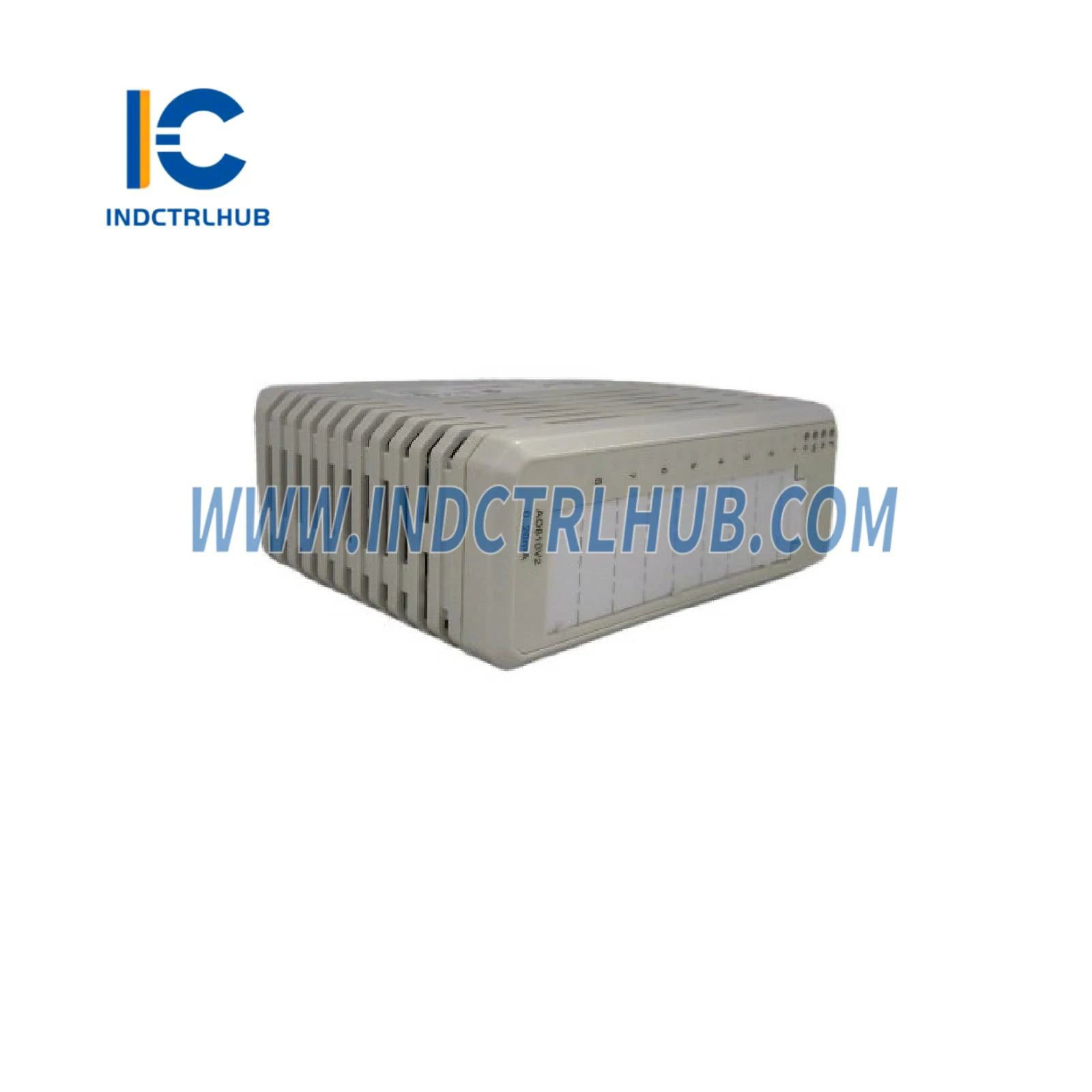

Product Overview
| Parameter | Details |
|---|---|
| Part Number | AO810V2 |
| Product Name | AO810V2 Analog Output Module |
| Application | Analog signal output in distributed control systems for industrial process control and automation |
| Compatibility | Integrates with ABB System 800xA, S800 I/O systems, and ModuleBus communication |
| Function | Provides 8-channel analog output processing for 4-20 mA signals with high accuracy and isolation |
Functional Specifications
| Parameter | Details |
|---|---|
| Output Channels | 8 isolated channels |
| Output Type | 4-20 mA current loop |
| Resolution | 16-bit D/A conversion |
| Accuracy | ±0.15% of span typical |
| Isolation | Channel-to-channel and channel-to-bus isolation (250 V RMS) |
| Load Resistance | Up to 750 Ω maximum |
| Power Supply | 24 V DC via ModuleBus |
| Power Consumption | 5 W maximum |
| Operating Temperature Range | -25°C to +70°C |
| Mounting | DIN rail mount, compatible with S800 I/O system |
| Dimensions | 119 mm x 45 mm x 102 mm (H x W x D) |
| Weight | 0.3 kg |
| Protection Rating | IP20 |
| Standards Compliance | IEC 61131-2, CE, UL, CSA |
