Product Description
Product Details

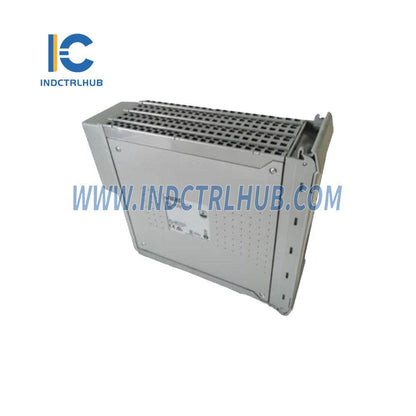

- Manufacturer: ICS TRIPLEX
- Model/Part Number: T8111
- Description: Trusted TMR Processor
Specifications
| Item | Description |
|---|---|
| Backplane (IMB) Supply | 20 Vdc to 32 Vdc |
| Field Supply | N/A |
| Power Dissipation | 30 W |
| Module Location | T8100 Processor Slot |
| Isolation | |
| Module Supply, Module to Diagnostic Serial Port | 50 V Basic (Continuous) |
| Type tested at | 1411 Vdc for 60 s |
| Module to: Rear Serial Ports, IRIG Ports & Relay Ports | 50 V Reinforced (Continuous) |
| Type tested at | 2436 Vdc for 60 s |
| Between: Rear Serial Ports, IRIG Ports & Relay Ports | 50 V Reinforced (Continuous) |
| Type tested at | 2436 Vdc for 60 s |
| Fusing | Not User Serviceable |
| Ports | |
| Rear Serial Ports | 3 RS-422/485 |
| Diagnostics Serial Port | 1 RS-232 |
| IRIG-B Ports | 1 IRIG-B002, 1 IRIG-B122 |
| Fault Relay | 0.5 A @ 24 Vdc |
| Fail Relay | 0.5 A @ 24 Vdc |
| Baud Rates | 9600 baud to 115200 baud |
| Communications Protocols | Modbus RTU (via Rear Serial Ports, see 3.1.8) |
| Real Time Clock | Clock retention time with module powered off: 8 hours |
| Retained Variable Storage | 4 KB total (1 byte per Boolean, 4 bytes per Analogue, 5 bytes per Timer) |
| Maximum Application Size | 960 KB |
| SOE Buffer | 1000 events |
| Operating Temperature | 0 °C to 60 °C (+32 °F to +140 °F) |
| Storage Temperature | -25 °C to 70 °C (-13 °F to +158 °F) |
| Relative Humidity | 10% – 95%, non-condensing |
| Environmental Specifications | Refer to Document 552517 |
Dimensions
| Item | Description |
|---|---|
| Height | 266 mm (10.5 in) |
| Width | 93 mm (3.6 in) |
| Depth | 303 mm (12.0 in) |
| Weight | 1.89 kg (4.17 lb) |
