Product Description
Product Overview

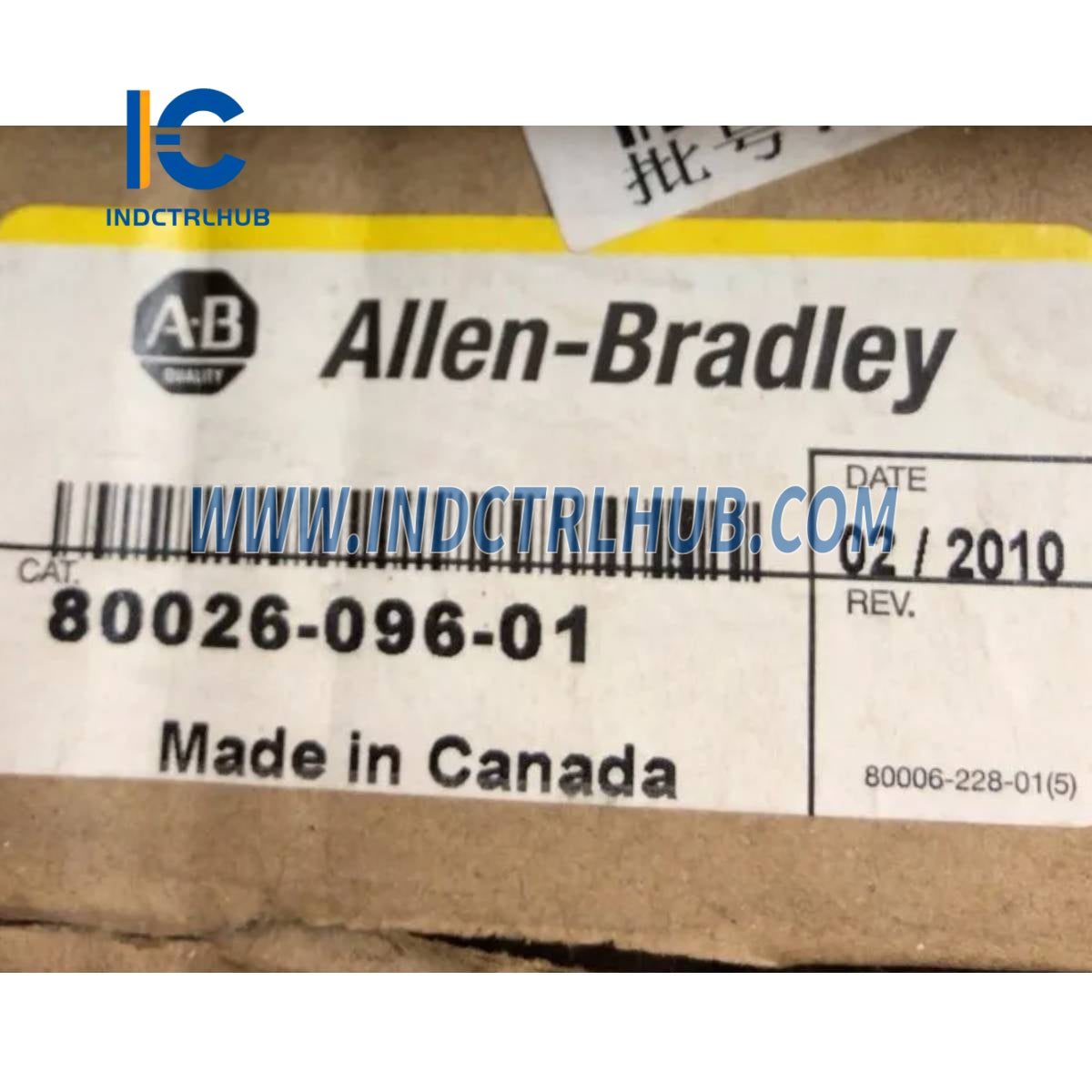

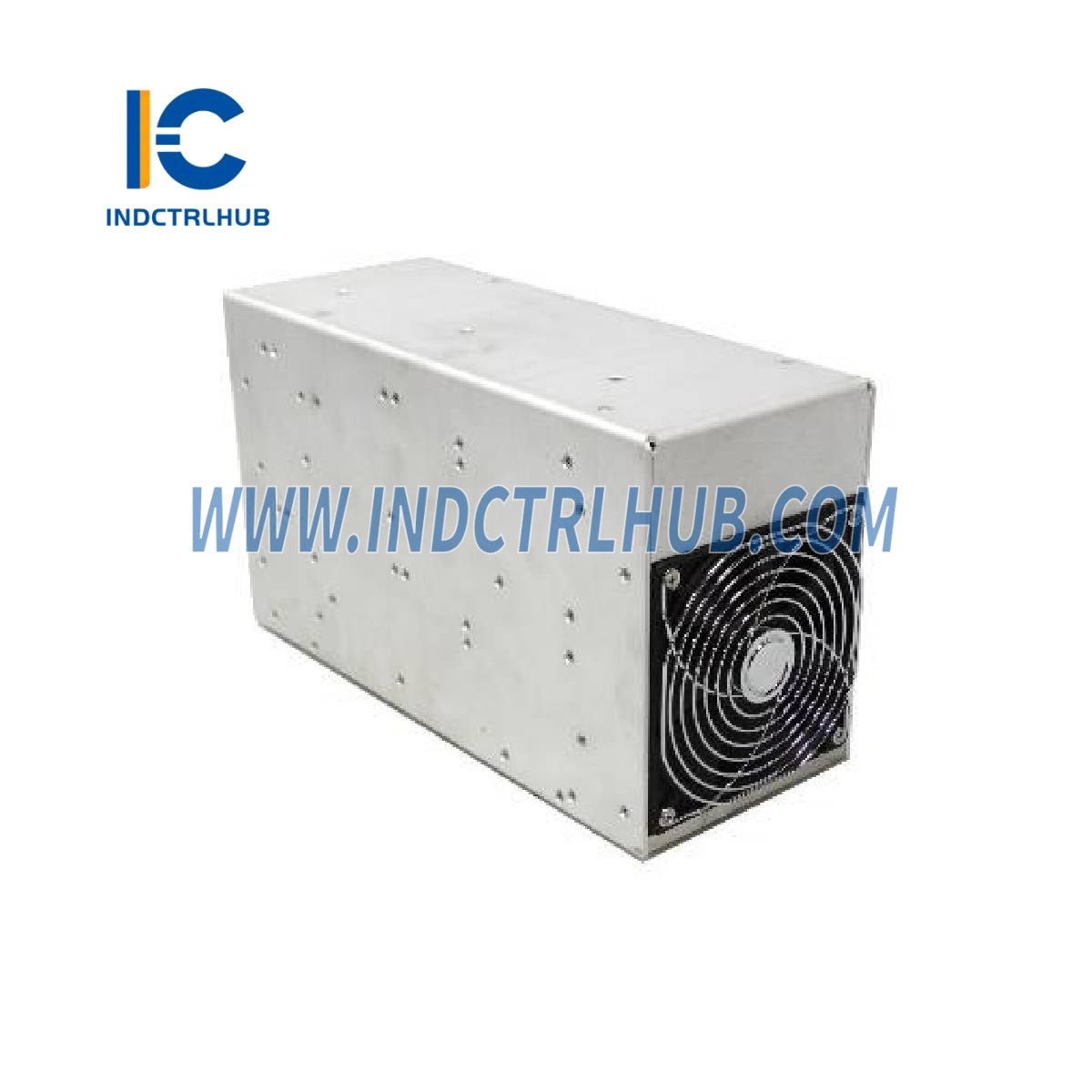

The Allen-Bradley 80026-096-01 is a DC/DC Converter Power Supply designed for industrial automation applications, likely used in conjunction with Rockwell Automation systems such as PLCs or drives. Manufactured by Allen-Bradley (a Rockwell Automation brand), this module converts a DC input voltage to a regulated DC output, providing a stable power source for control system components. It is typically deployed in environments requiring compact, reliable power solutions, such as manufacturing, process control, and industrial machinery. Known for its robust construction and efficiency, it is a specialized component often associated with a 50W power rating based on available data for similar models.
Technical Specifications
The 80026-096-01 has the following specifications based on supplier data and inferred characteristics from similar Allen-Bradley power supplies:
| Item | Specification |
|---|---|
| Model/Part Number | 80026-096-01 |
| Manufacturer | Allen-Bradley (Rockwell Automation) |
| Description | DC/DC Converter Power Supply |
| Series | Industrial Power Supplies |
| Input Voltage | 12-24 V DC (assumed range based on similar models) |
| Output Voltage | 12 V DC or 24 V DC (assumed, model-specific) |
| Output Power | 50 W (based on supplier data) |
| Output Current | 2 A (calculated for 24 V output at 50 W) |
| Operating Temperature | -20°C to 60°C (-4°F to 140°F, |
| Weight | Approximately 0.5 kg (1.1 lbs, estimated) |
Additional Details
The 80026-096-01 includes the following additional information based on its standard use and supplier documentation:
| Category | Details |
|---|---|
| Function | Converts DC input to regulated DC output for industrial devices |
| Mounting | DIN rail or panel mountable |
| Connectivity | Terminal blocks for input/output wiring |
| Features | Compact design, overvoltage/overcurrent protection, high efficiency |
| Certifications | Designed for industrial standards (e.g., UL, CE |
