Product Description
General Information
|
Attribute |
Details |
|---|---|
|
Manufacturer |
Allen-Bradley |
|
Model Number |

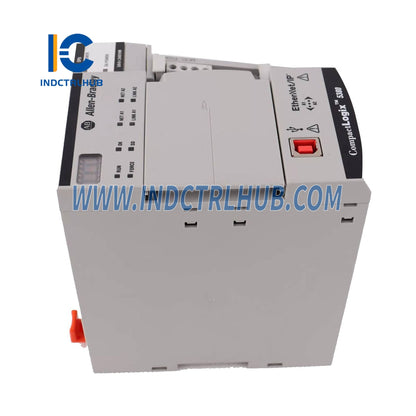

5069-L340ERM |
|
Series |
CompactLogix 5380 |
|
Description |

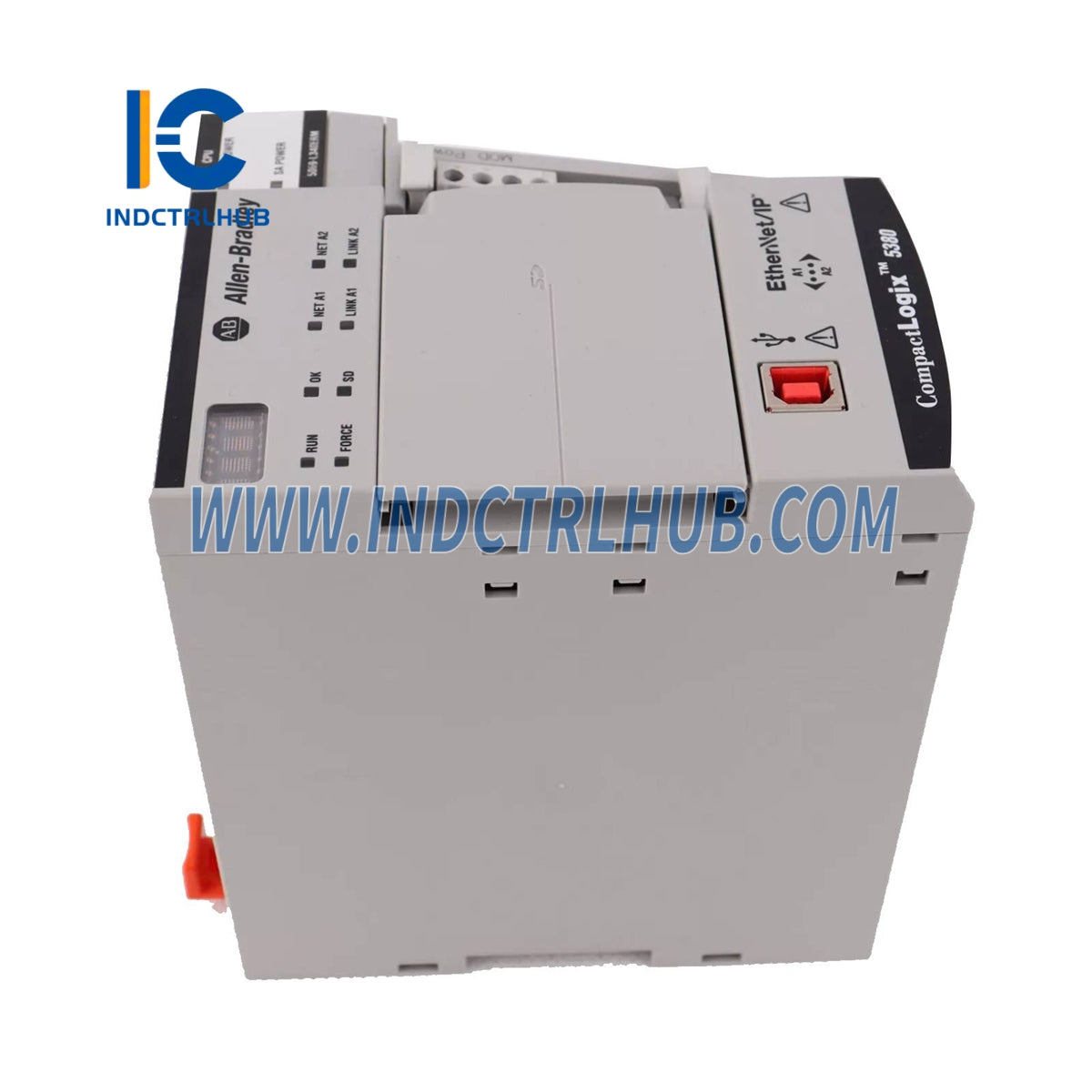

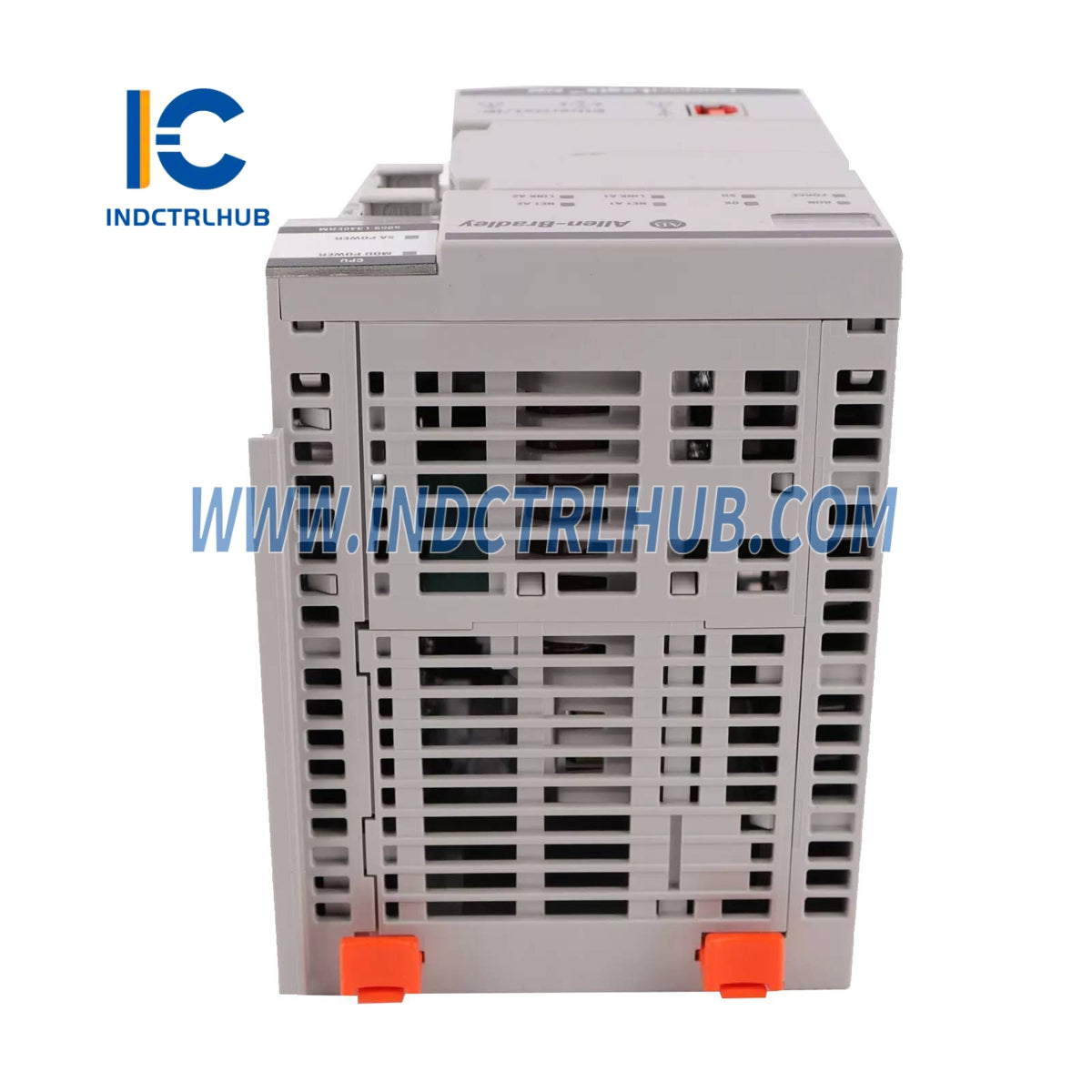

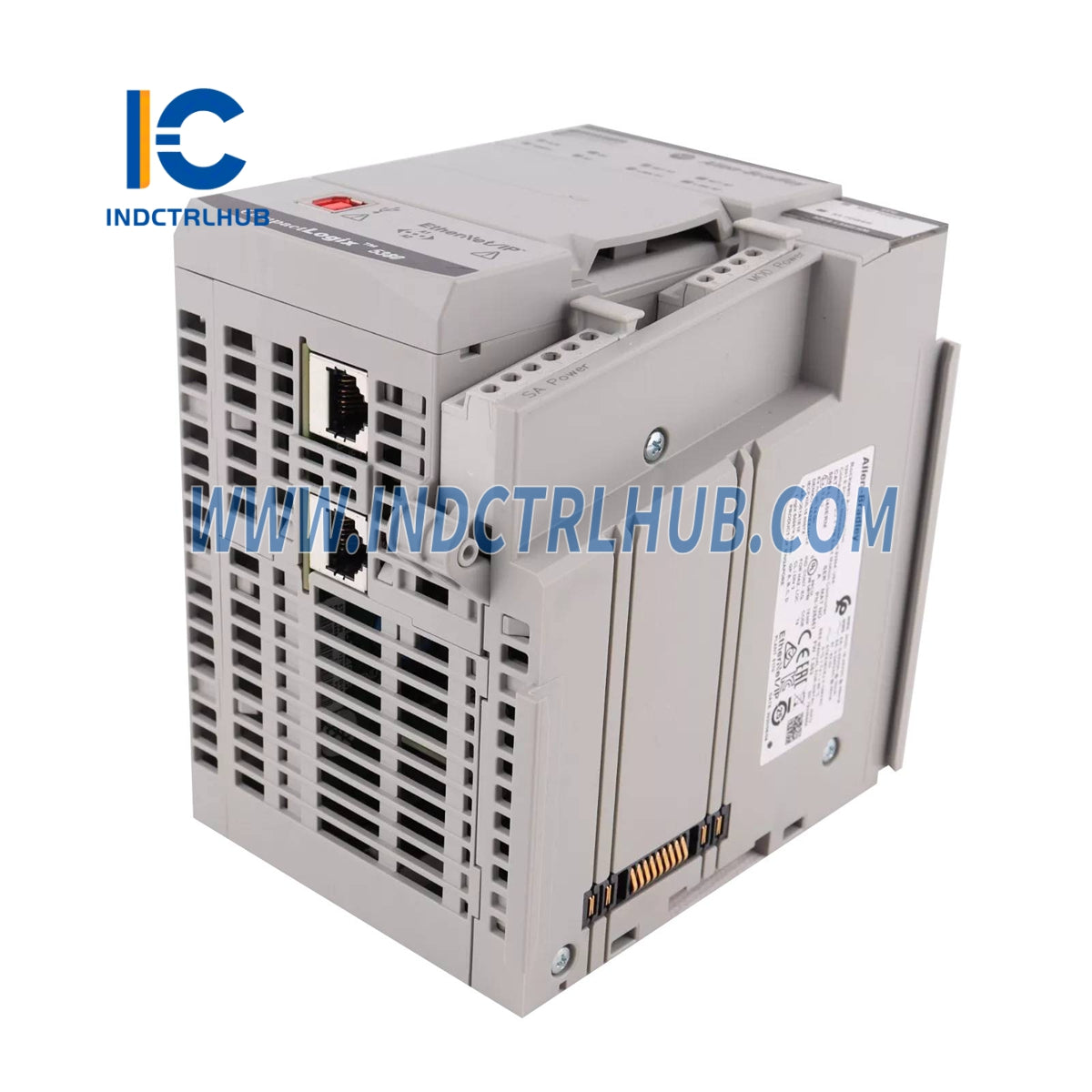

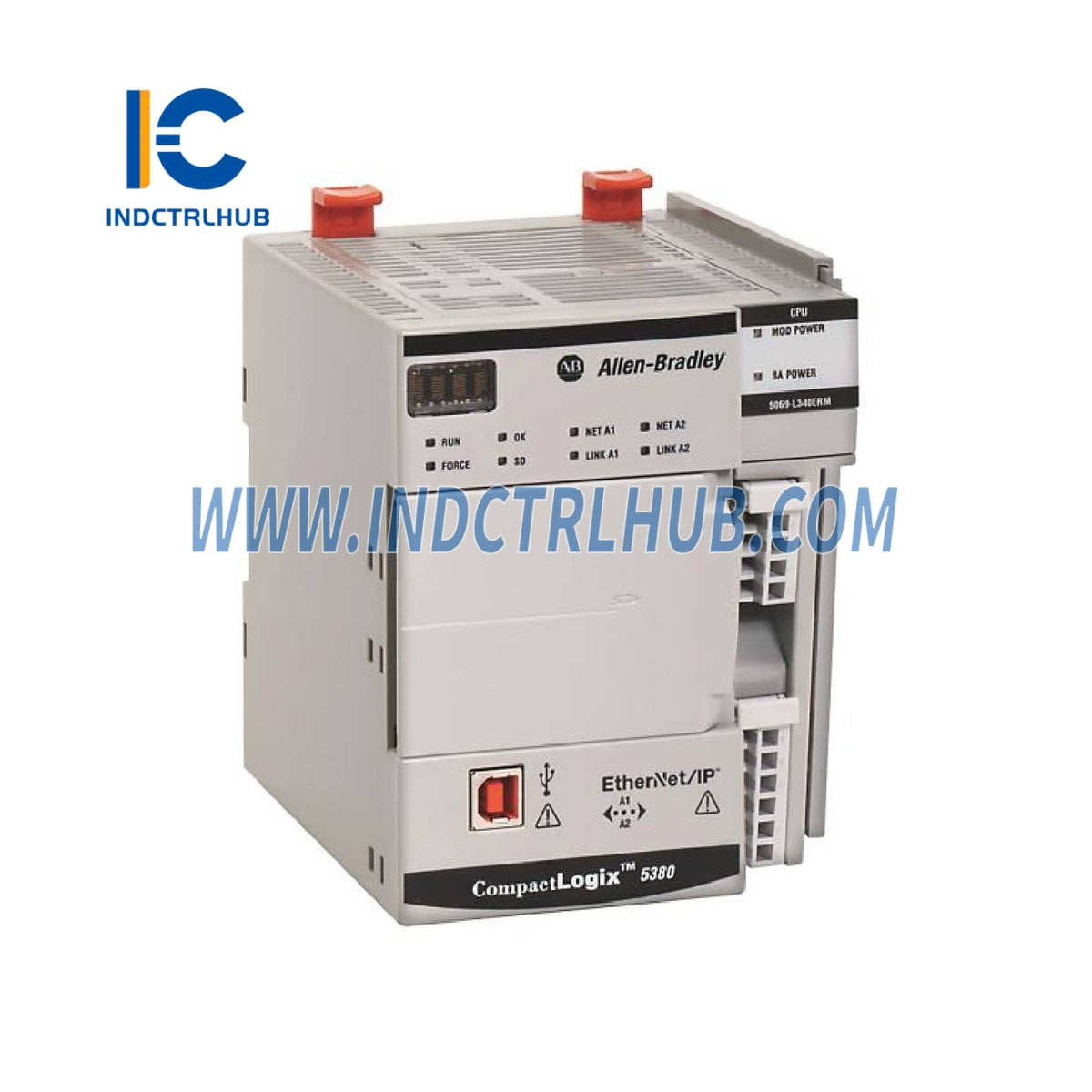

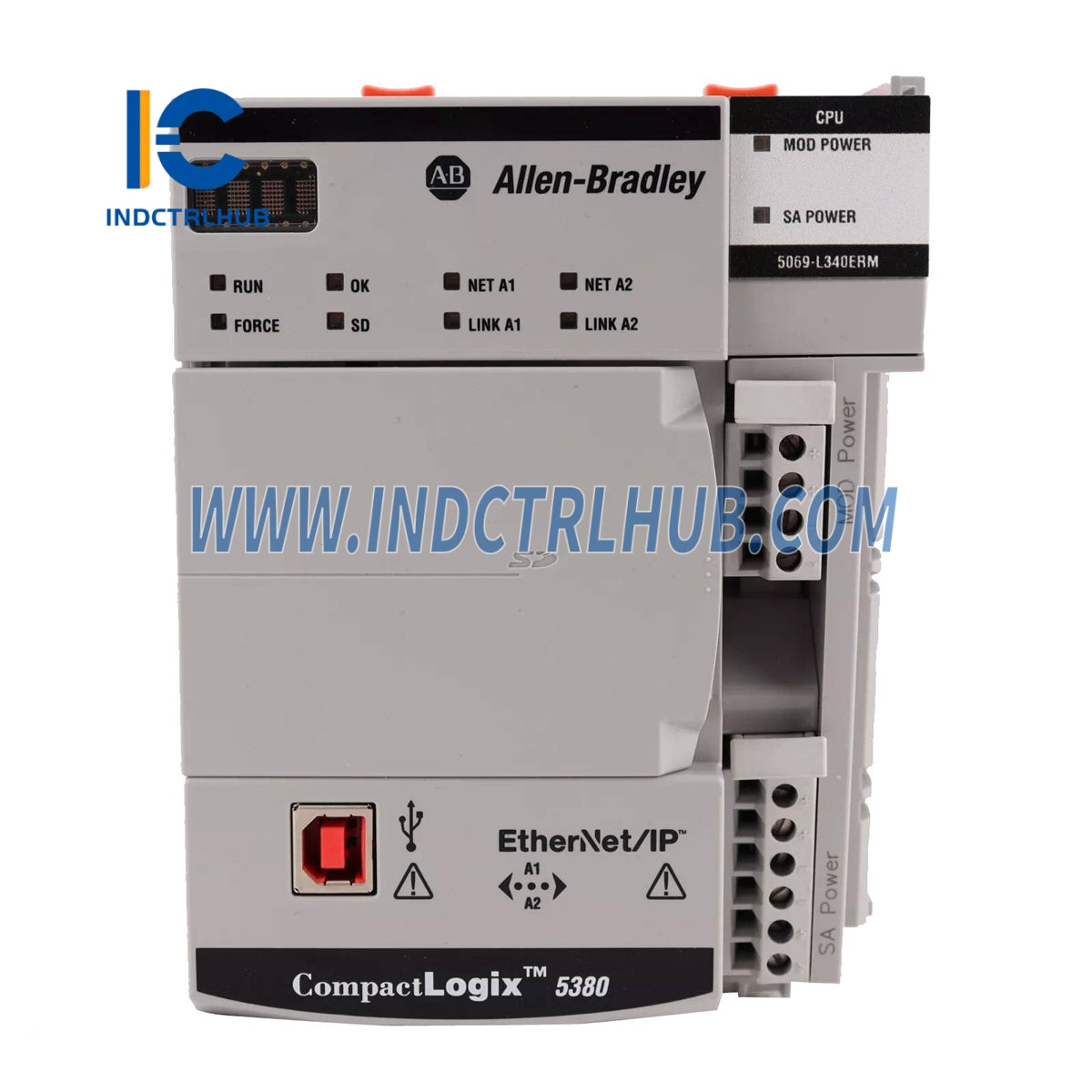

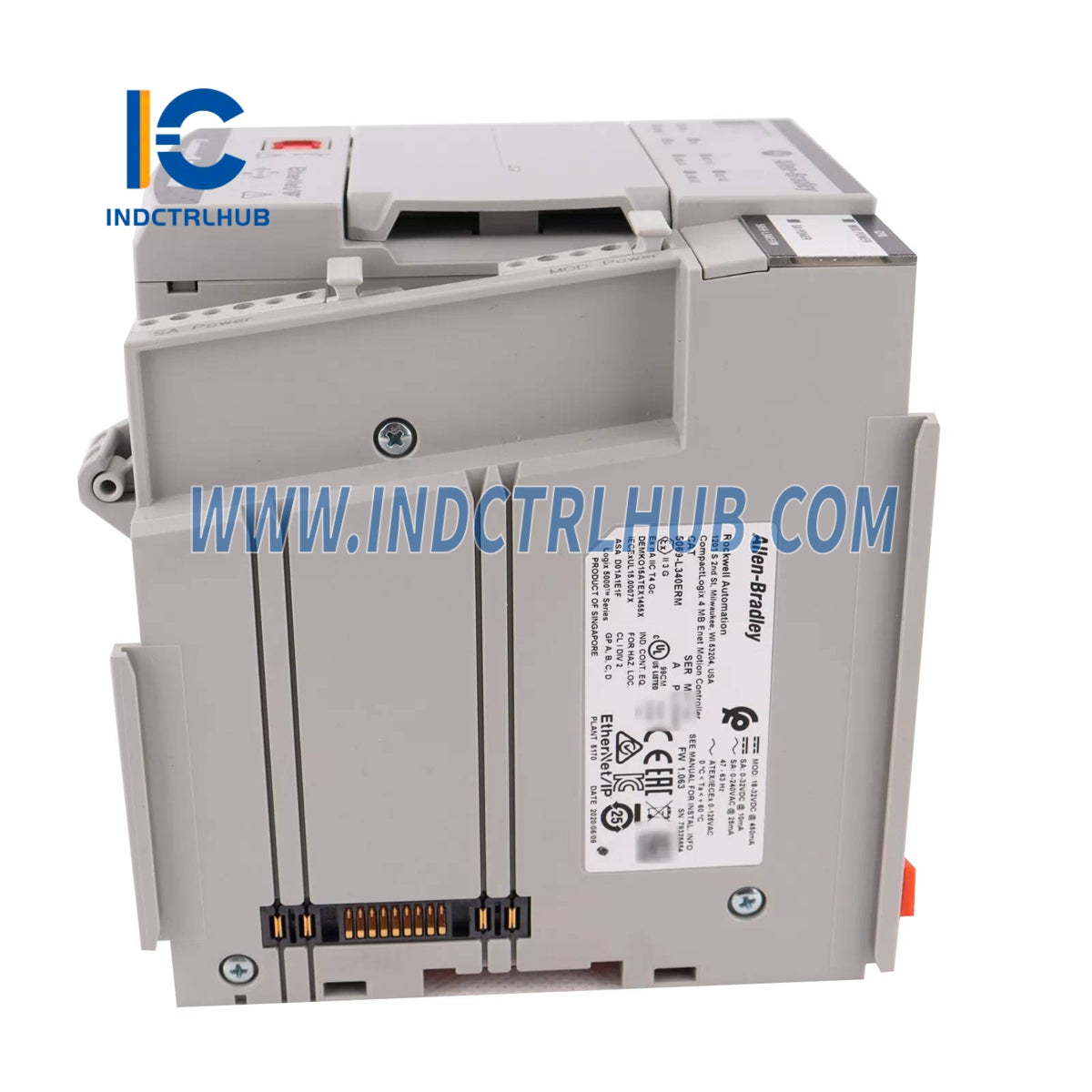

5069-L340ERM is a high-performance CompactLogix 5380 controller with enhanced memory and motion capabilities, suitable for high-speed, demanding applications. |
Technical Specifications
|
Attribute |
Specification |
|---|---|
|
User Memory |
4 MB |
|
Nonvolatile Memory Options |
1784-SD1 (1 GB), SD2 (2 GB, default), SDHC8 (8 GB), SDHC32 (32 GB), CMSDCD4 (4 GB) |
|
Max Local I/O Modules |
31 |
|

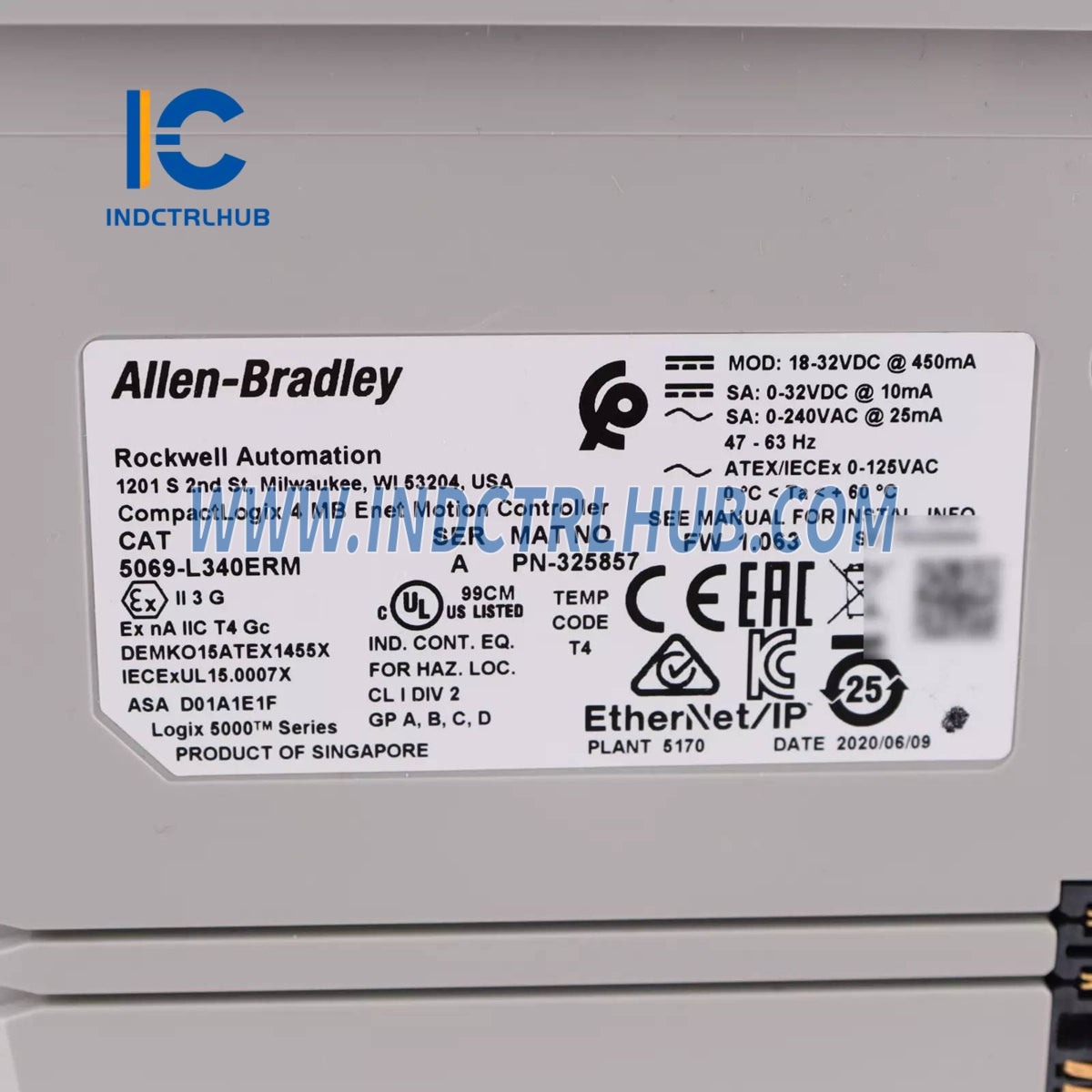

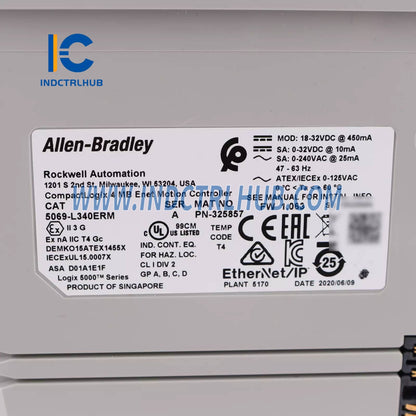

Power Supply - MOD Power |
18–32V DC, Max 450 mA, Inrush 850 mA for 125 ms |
|
MOD Power Passthrough |
9.55 A @ 18–32V DC (Max current: 10 A) |
|
SA Power Voltage Range |
0–32V DC / 0–240V AC (47–63 Hz), EX: 125V AC max |
|
SA Power Current Max |
10 mA (DC), 25 mA (AC), Passthrough up to 9.975 A |
|
Max Power Dissipation |
8.5 W |
|
Max Thermal Dissipation |
29 BTU/hr |
|
Isolation Voltage |
Up to 300V depending on interfaces (USB, Ethernet, etc.) |
|
Weight |
Approx. 0.768 kg (1.693 lb) |
|
Dimensions (HxWxD) |
143.97 x 98.10 x 136.81 mm (5.67 x 3.86 x 5.39 in.) |
|
Mounting |
DIN rail (horizontal only), EN50022 35x7.5 mm compatible |
|
Removable Terminal Blocks |
5069-RTB kits (screw or spring type) |
|
Wire Size Compatibility |
0.5–1.5 mm² (22–16 AWG), 105°C rated copper wire |
|
Insulation Stripping Length |
12 mm (screw), 10 mm (spring) |
|
Wire Category |
USB: Cat 3, Power: Cat 1, Ethernet: Cat 2 |
|
Enclosure |
Open-style |
|
Temperature Code (T-rating) |
T4 (North America, UKEX/ATEX, IECEx) |
