Product Description
Product Overview

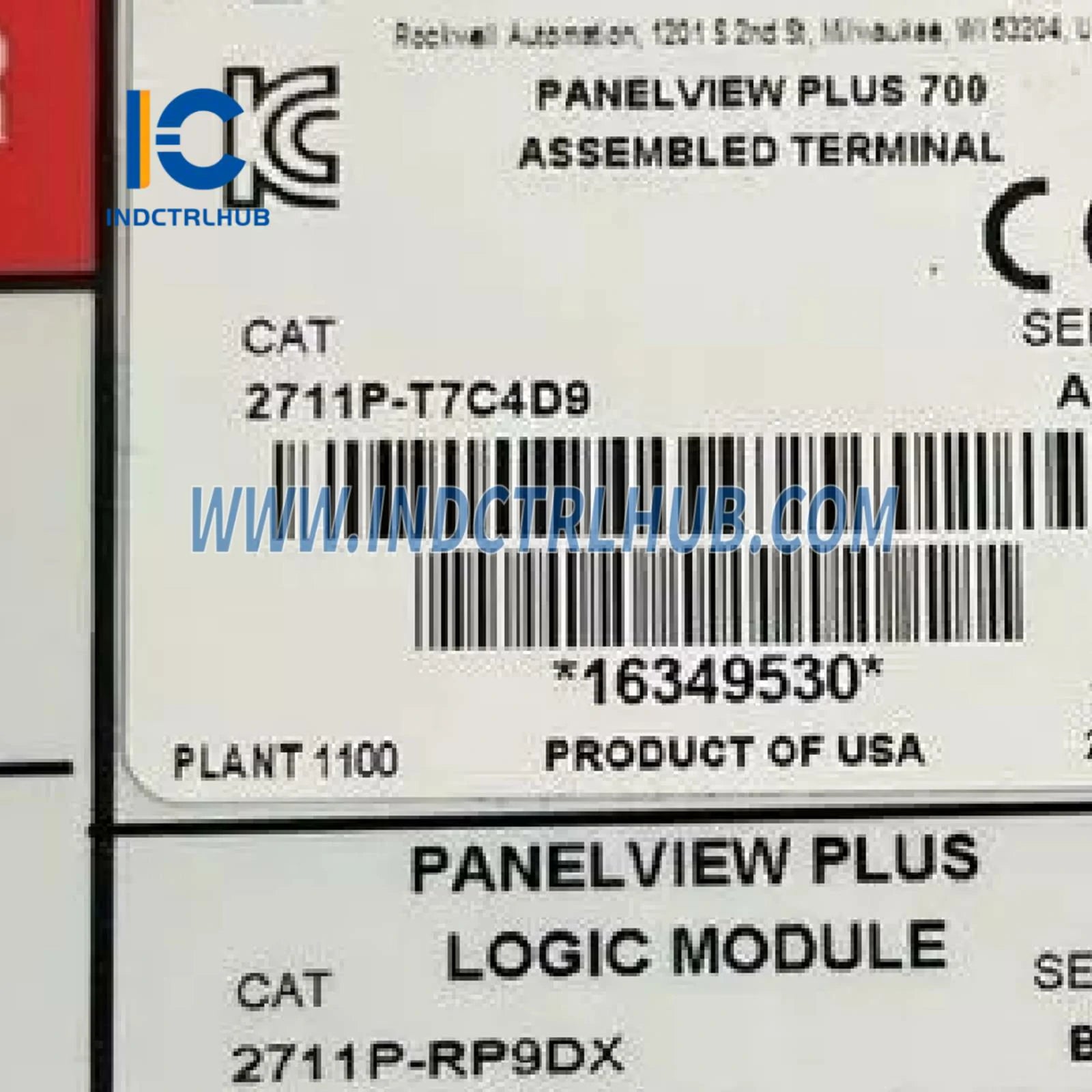

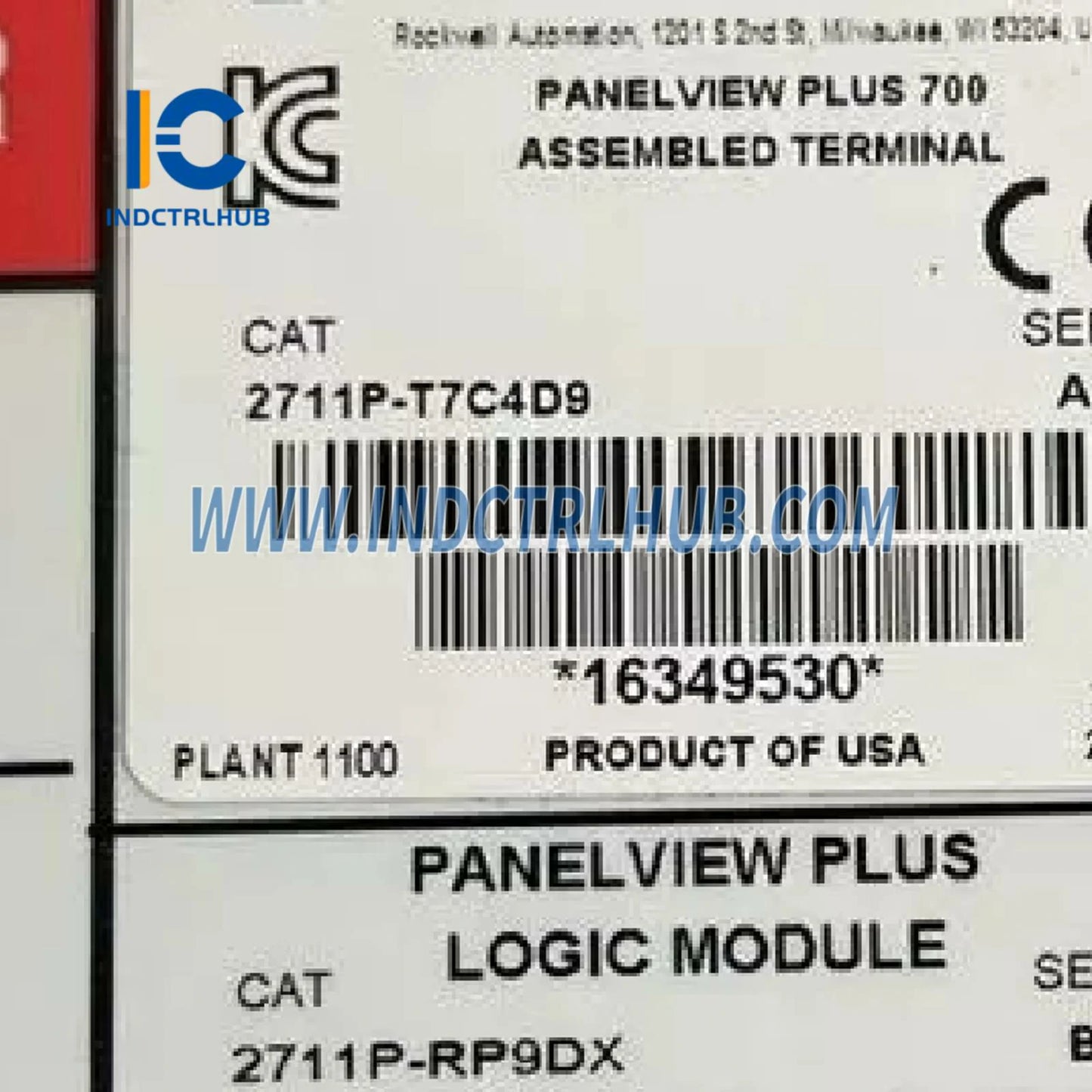

- Manufacturer: Allen-Bradley
- Model/Part Number: 2711P-T7C4D9
- Description: PanelView Plus 6 Terminal, offering a 6.5-inch Color TFT Touch Display with resistive touch technology, and integrated communication capabilities including Ethernet, RS-232, and USB.
Key Technical Specifications
Electrical Specifications
| Attribute | Details |
|---|---|
| Number of HW-interfaces (Ethernet) | 1 |
| Number of HW-interfaces (RS-232) | 1 |
| Number of HW-interfaces (RS-422) | 0 |
| Number of HW-interfaces (RS-485) | 0 |
| Number of HW-interfaces (USB) | 2 |
| Voltage Type of Supply Voltage | DC |
| Supply Voltage | 18...32V DC (24V nominal) |
| Power Consumption | Max: 70 W (2.9 A @ 24V DC), Typical: 39 W (1.6 A @ 24V DC) |
| Touch Technology | 8-wire Analog Resistive |
| Resolution | 640 x 480, 18-bit Color Graphics |
| Luminance | 300 cd/m² (Nits) |
| Backlight | CCFL, 50,000 hours minimum at 25 °C (77 °F), Field replaceable |
| Memory | 512 MB RAM, 512 MB Nonvolatile Flash, approx. 79 MB free user memory |
| Keypad Function Keys | 22 function keys (F1-F10 and K1-K12) |
| Real-Time Clock | Battery-backed, accuracy ±2 minutes per month, 4-year battery life at 25°C |
| USB Ports | 2 USB host ports for connecting peripherals (mouse, keyboard, printer, USB flash drives) |
| Secure Digital (SD) Card Slot | Hot-swappable SD cards for transferring files, upgrading firmware, logging data |
| Software | FactoryTalk View Machine Edition (version 6.0 or later), FactoryTalk ViewPoint (version 1.2 or later) |
| Operating System | Windows CE 6.0 with or without extended features and file viewers |
| Supporting Protocols | Ethernet/IP, TCP/IP, Data Highway, ControlNet (optional) |
Display Specifications
| Attribute | Details |
|---|---|
| Display Type | Color TFT (Thin-Film Transistor) |
| Display Size | 6.5 in. |
| Display Area | 132 x 99 mm (5.2 x 3.9 in.) |
| Pixels (Horizontal x Vertical) | 640 x 480 |
| Process Value Representation | Yes |
| Process Default Value Input | Yes |
| With Recipes | Yes |
| Message System | Yes |
| With Message Indication | Yes |
Mechanical Specifications
| Attribute | Details |
|---|---|
| Dimensions (HxWxD) | Touch: 179 x 246 x 55 mm |
| Cutout Dimensions | Touch: 154 x 220 mm (6.08 x 8.67 in) |
| Weight | Approx. 1.7 kg (3.7 lb) |
| Built-In Depth | 55 mm |
| Front Dimensions (HxW) | 179 x 246 mm |
| Wall Mounting | Yes |
| Rail Mounting | No |
| Degree of Protection (IP) | IP65 (Front Side) |
| Degree of Protection (NEMA) | NEMA 4X, 12, 13 (Indoor use only) |
Environmental Specifications
| Attribute | Details |
|---|---|
| Operating Temperature | 0 °C to 55 °C (32 °F to 131 °F) |
| Non-Operating Temperature | -25 °C to 70 °C (-13 °F to 158 °F) |
| Vibration | 10...57 Hz, 0.012 peak-to-peak displacement, 57...500 Hz, 2 G peak acceleration |
| Shock (Operating) | 15 G @ 11 ms |
| Shock (Non-operating) | 30 G @ 11 ms |
| Humidity | 5...95% non-condensing |
| Altitude (Operating) | Up to 2000 m (6562 ft) |
| Heat Dissipation | 240 btu/hr |
