Product Description
Product Overview

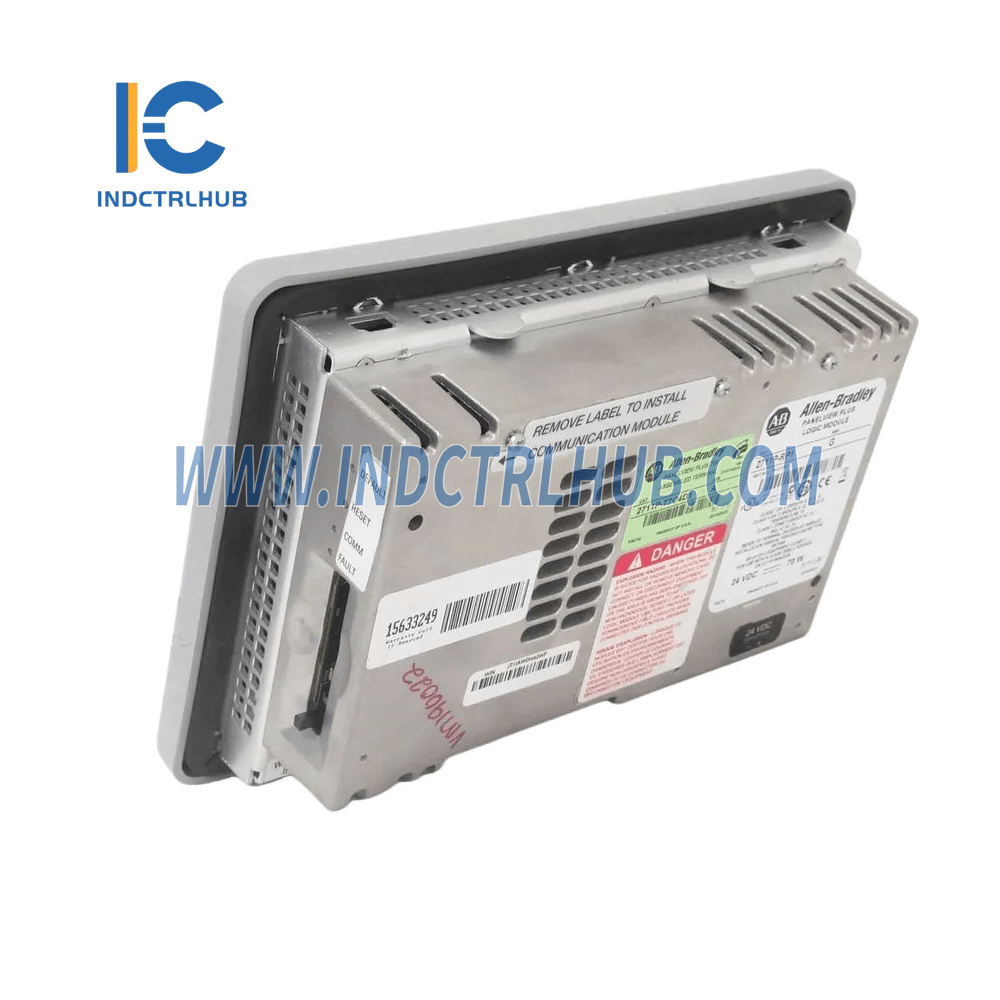

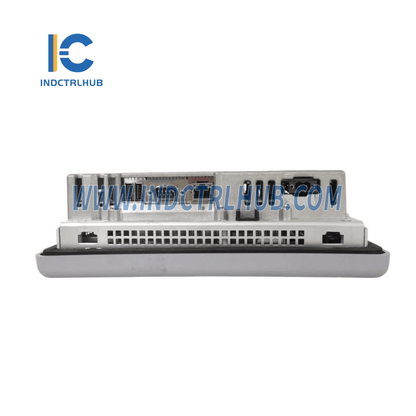

- Manufacturer: Allen-Bradley
- Model/Part Number: 2711P-T7C4D1
- Description: PanelView Plus 6 Terminal 700 Color Display, with Touch Screen, Standard Communication, and DC Power Input. Featuring Windows CE 6.0.
Technical Specifications - PanelView Plus 6 Terminals
| Attribute | 700 Color |
|---|---|
| Model Numbers | 2711P-T7C4Dx, 2711P-K7C4Dx, 2711P-B7C4Dx |
| Operator Input | Keypad, Touch, or Key/Touch |
| Display Type | Color Active-Matrix TFT |
| Display Size | 6.5 in. |
| Display Area (WxH) | 132 x 99 mm (5.2 x 3.9 in.) |
| Resolution | 640 x 480, 18-bit Color Graphics |
| Luminance | 300 cd/m² (Nits) |
| Backlight | 50,000 hours life, field replaceable |
| Touch Screen | 8-wire Analog Resistive |
| Actuation | 1 million presses; Operating Force: 10-110g |
| Keypad Description | Stainless-steel membrane, Numeric, Navigation, Function keys |
| Keypad Function Keys | 22 function keys |
| Battery (Real-Time Clock) | Battery-backed clock, accuracy ±2 minutes per month, Battery life: 4 years minimum |
| Memory | 512 MB Nonvolatile Flash, 512 MB RAM |
| External Storage | SD Card, USB Flash Drives (2.0) |
| Operating System | Windows CE 6.0 |
| Software | FactoryTalk View Machine Edition, version 6.0 or later |
| Communication Ports | Ethernet (10/100 Mbps), RS-232, USB (2) |
| Input Voltage (DC) | 18-32V DC (24V nominal) |
| Power Consumption (DC) | Max: 70 W (2.9 A), Typical: 39 W (1.6 A) |
| Input Voltage (AC) | 85-264V AC, 47-63 Hz |
| Power Consumption (AC) | Max: 160 VA, Typical: 65 VA |
| Weight | Touch: 1.7 kg (3.7 lb) |
| Dimensions (HxWxD) | Touch: 179 x 246 x 55 mm |
| Cutout Dimensions (HxWxD) | Touch: 154 x 220 mm |
Accessories
- Network Media: Male RJ45 to RJ45 Patchcord, Unshielded Twisted Pair, Teal TPE Cable, 1.9 m
