Product Description
Product Overview
- Manufacturer: Allen-Bradley
- Model/Part Number: 2711P-K7C4D8

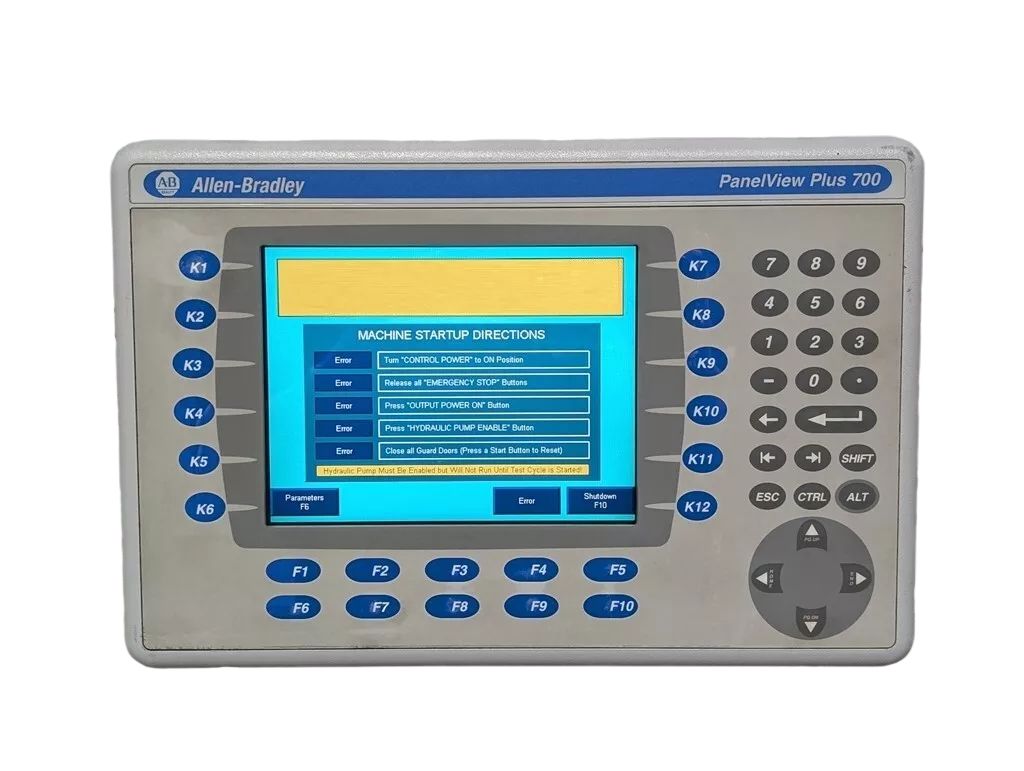

- Description: PanelView Plus 6 Series 700 Color Display
Technical Specifications
Display and Input
| Attribute | Details |
|---|---|
| Display Type | Color Active-Matrix TFT |
| Display Size | 7 inches |
| Resolution | 640 x 480, 18-bit color graphics |
| Display Area (W x H) | 132 x 99 mm (5.2 x 3.9 in.) |
| Brightness | 300 cd/m² (Nits) |
| Backlight | CCFL, 50,000 hours minimum at 25 °C (77 °F), field replaceable |
| Touch Screen | 8-wire analog resistive, rated for 1 million presses, operating force: 10…110 g |
Memory and Storage
| Attribute | Details |
|---|---|
| Memory | 512 MB RAM, 512 MB non-volatile memory (approx. 79 MB free user memory) |
| External Storage | Supports hot-swappable SD cards (Cat. No. 1784-SDx and 1784-SDHCx) and USB flash drives |
| Operating System | Windows CE 6.0 (with or without extended features and Microsoft Office file viewers) |
Software
| Attribute | Details |
|---|---|
| Control Software | FactoryTalk View Machine Edition software, version 6.0 or later |
| Remote Access Software | FactoryTalk ViewPoint software, version 1.2 or later |
Electrical Specifications
| Attribute | Details |
|---|---|
| DC Input Voltage | 18…32V DC (nominal 24V DC) |
| DC Power Consumption | Max 70 W (2.9 A @ 24V DC), typical 39 W (1.6 A @ 24V DC) |
| AC Input Voltage | 100…240V AC, 50…60 Hz |
| AC Power Consumption | Max 160 VA, typical 65 VA |
Interfaces and Communication
| Attribute | Details |
|---|---|
| Communication Ports | Ethernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232, 2 USB host ports |
| Network Interface | Supports Ethernet, DH+/DH-485, or ControlNet communication modules (scheduled or unscheduled) |
Physical Dimensions
| Attribute | Keypad Type | Touch Type |
|---|---|---|
| Weight (approx.) | 1.8 kg (4.1 lb) | 1.7 kg (3.7 lb) |
| Dimensions (H x W x D) | 193 x 290 x 55 mm | 179 x 246 x 55 mm |
| Cutout Dimensions (H x W) | 167 x 264 mm | 154 x 220 mm |
Environmental Conditions
| Attribute | Details |
|---|---|
| Operating Temperature | 0…55°C (32…131°F) |
| Storage Temperature | -25…70°C (-13…158°F) |
| Relative Humidity | 5–95% non-condensing |
Additional Details
- Model: PVP6 Standard Edition
- Monitor Size: 7-inch TFT Display
- Input Type: Keypad
- Communication: Standard Communication - Ethernet & RS-232
- Power: DC Input
- Operating System: Windows CE 6.0
