Product Description
Product Overview:
- Manufacturer: Allen-Bradley

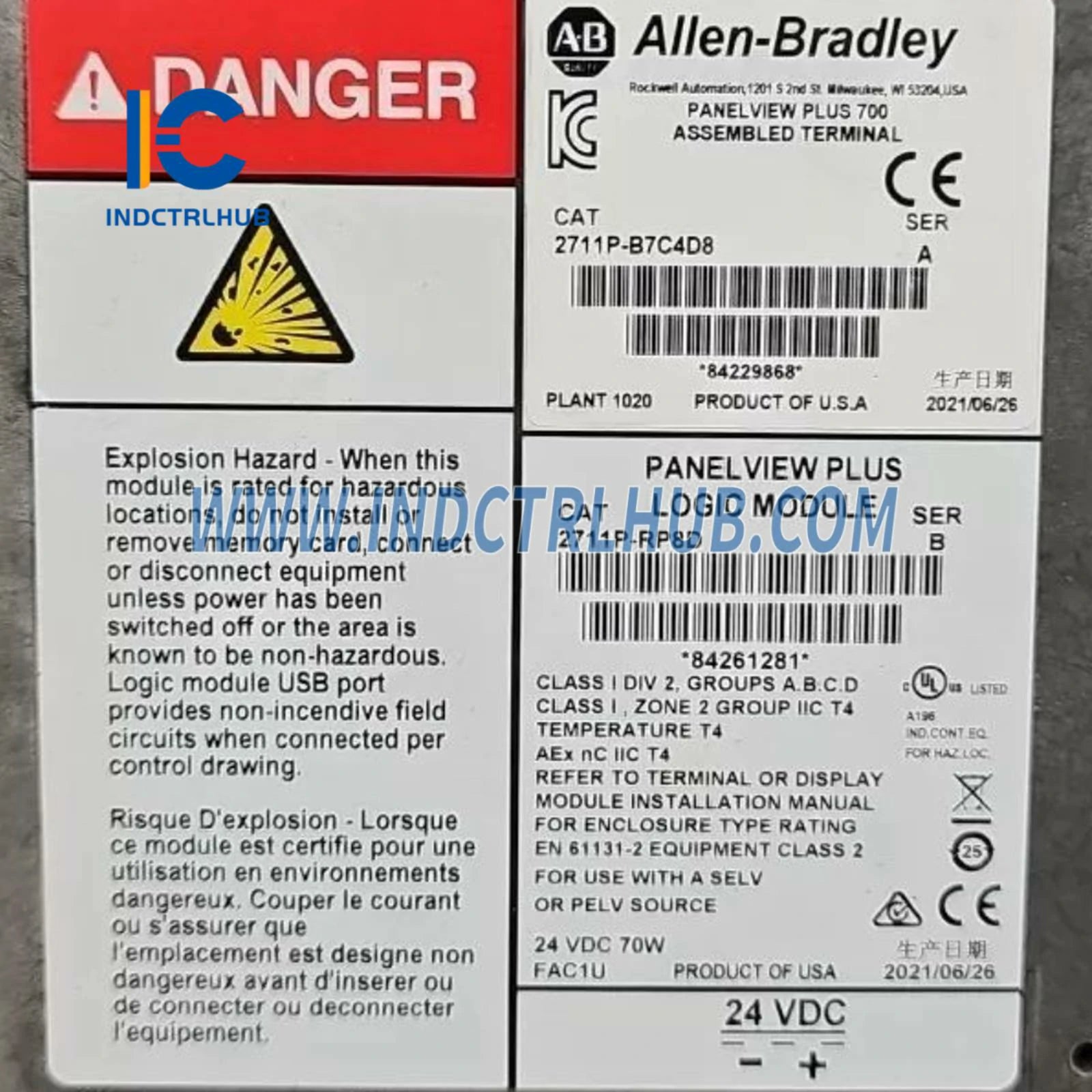

- Model/Part Number: 2711P-B7C4D8
- Description: PanelView Plus Terminal
- Model Family: PanelView Plus 6 (400-1500 Terminals)
- Display Size: 7-inch TFT
- Display Type: Color (TFT)
- Input Type: Keypad/Touch
- Communication: Ethernet & RS-232 (Standard)
- Power: DC Input (18-32V DC, 24V DC nominal)
- Operating System: Windows CE 6.0
Key Features:
- Monitor Size: 7-inch TFT Display
- Display Resolution: 640 x 480, 18-bit color graphics
- Touch Screen: 8-wire analog resistive (1 million presses, operating force 10-110 g)
- Keypad: Stainless steel membrane (1 million presses, operating force 340 g)
- Memory: 512 MB non-volatile flash, 512 MB RAM
- External Storage: SD card slot (supports hot-swappable SD cards)
- USB Ports: 2 USB host ports, 1 USB device port
- Communication Ports: Ethernet (10/100 Mbps, Auto-MDI/MDI-X), RS-232
- Power Consumption: 70 W max (2.9 A at 24V DC)
Additional Specifications:
| Attribute | Specification |
|---|---|
| Display Size | 7 inches |
| Resolution | 640 x 480 (18-bit color) |
| Luminance | 300 cd/m² |
| Backlight Life | 50,000 hours minimum, field replaceable |
| Memory | 512 MB flash, 512 MB RAM |
| Operating System | Windows CE 6.0 |
| Power Supply | 18...32V DC (24V DC nominal) |
| Input Voltage (AC) | 85...264V AC, 47...63 Hz |
| Power Consumption (AC) | 160 VA max |
| Weight (approx.) | 1.7 kg (3.7 lb) for Touch, 1.8 kg (4.1 lb) for Keypad |
| Dimensions (HxWxD) | 179 x 246 x 55 mm (Touch) / 193 x 290 x 55 mm (Keypad) |
| Cutout Dimensions (HxWxD) | 154 x 220 mm (Touch) / 167 x 264 mm (Keypad) |
