Product Description
Product Overview:
Manufacturer: Allen-Bradley

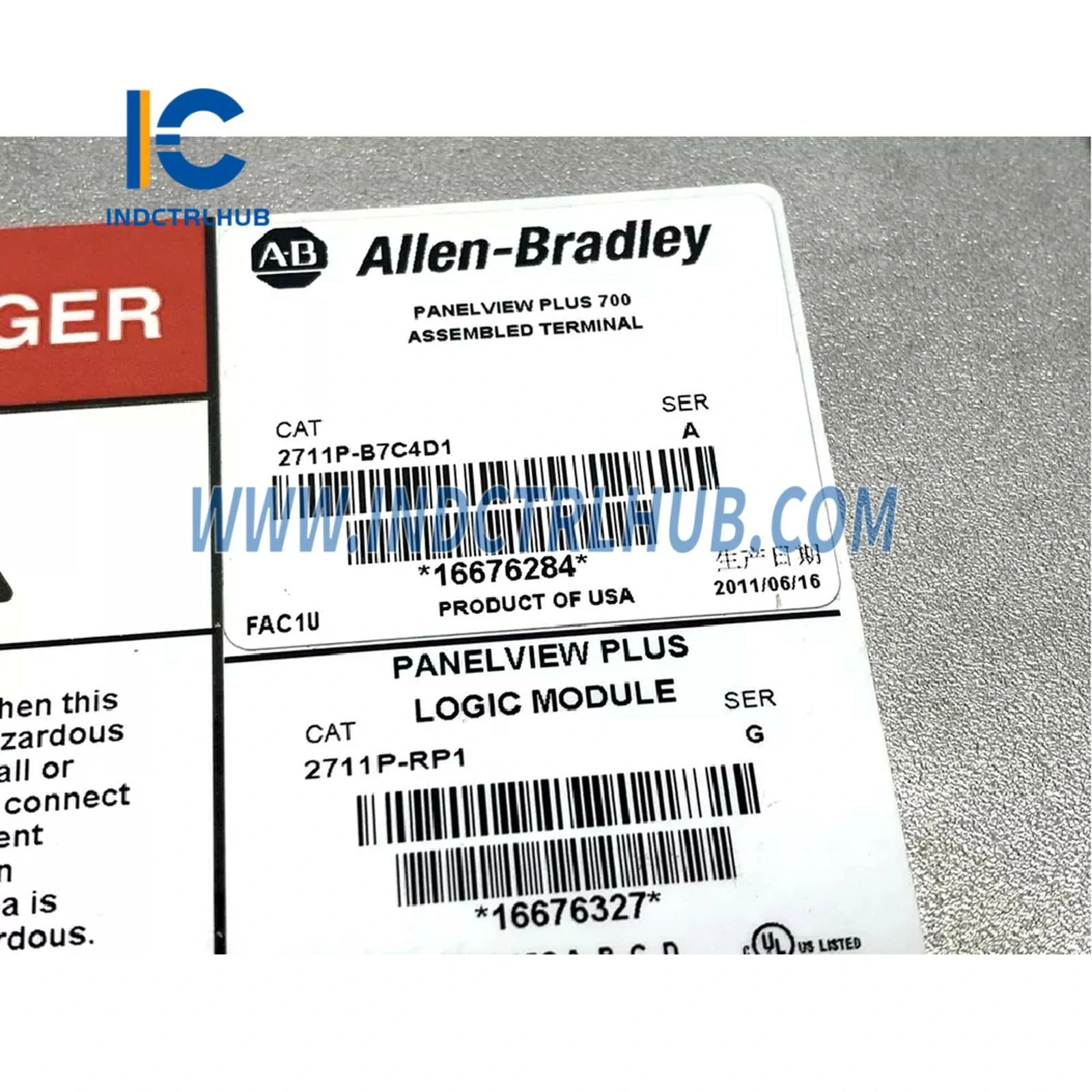

Model/Part Number: 2711P-B7C4D1
Description: PanelView Plus Terminal (700 Model)
- Series: PanelView Plus 6
- Display: 7-inch TFT color display
- Input Type: Keypad/Touch
- Power: DC Input
- Operating System: Windows CE 6.0
- Communication: Ethernet, RS-232
- Standard Features: Keypad, Touch screen, Color TFT display, Windows CE OS
Technical Specifications
| Attribute | Details |
|---|---|
| Display Type | Color active-matrix TFT |
| Display Size | 7-inch |
| Display Area (WxH) | 132 x 99 mm (5.2 x 3.9 in.) |
| Resolution | 640 x 480, 18-bit color graphics |
| Luminance | 300 cd/m² (Nits) |
| Backlight | CCFL, 50,000 hours minimum life (field replaceable) |
| Touch Screen | 8-wire analog resistive, 1 million presses, operating force: 10...110 g |
| Keypad | Stainless-steel membrane, Numeric, navigation, and function keys, 1 million presses, operating force: 340 g |
| Keypad Function Keys | 22 function keys (F1...F10, K1...K12) |
| Real-time Clock | Battery-backed clock with ±2 minutes per month accuracy, battery life: 4 years minimum at 25°C (77°F) |
| Memory | 512 MB nonvolatile flash, 512 MB RAM |
| External Storage | SD card (1784-SDx) and USB flash drives (hot-swappable, USB 2.0) |
| Operating System | Windows CE 6.0 with or without extended features and file viewers |
| Software | FactoryTalk View Machine Edition, version 6.0 or later, FactoryTalk ViewPoint, version 1.2 or later |
| Communication Ports | Ethernet (10/100 Mbps), RS-232, 2 USB host ports, 1 USB device port |
| Network Interface | Optional DH+/DH-485, or ControlNet communication modules |
| Input Voltage | 18…32V DC (24V DC nominal) |
| Power Consumption (DC) | 70 W max (2.9 A at 24V DC), 39 W typical (1.6 A at 24V DC) |
| Power Supply (DC) | Recommended external power supply: Cat. No. 2711P-RSACDIN |
| Input Voltage (AC) | 85…264V AC, 47…63 Hz |
| Power Consumption (AC) | 160 VA max, 65 VA typical |
| Weight | Keypad: 1.8 kg (4.1 lb), Touch: 1.7 kg (3.7 lb) |
| Dimensions (HxWxD) | Keypad: 193 x 290 x 55 mm (7.58 x 11.40 x 2.18 in.) Touch: 179 x 246 x 55 mm (7.04 x 9.68 x 2.18 in.) |
| Cutout Dimensions (HxWxD) | Keypad: 167 x 264 mm (6.57 x 10.39 in.) Touch: 154 x 220 mm (6.08 x 8.67 in.) |
| Additional Notes | Weights and dimensions exclude communication module. Add 95 g (0.21 lb) for the communication module. |
