Product Description
Product Overview
- Manufacturer: Allen-Bradley

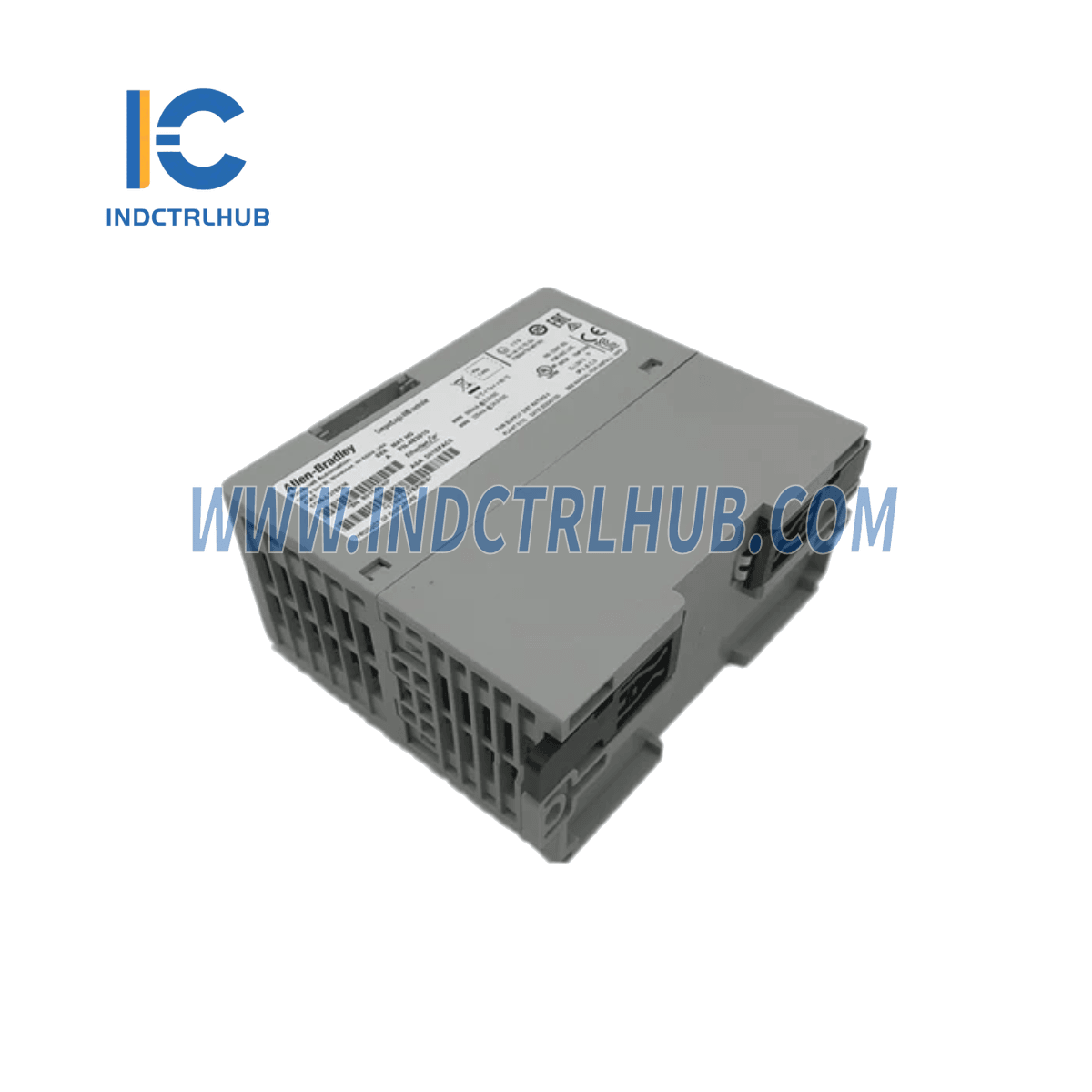

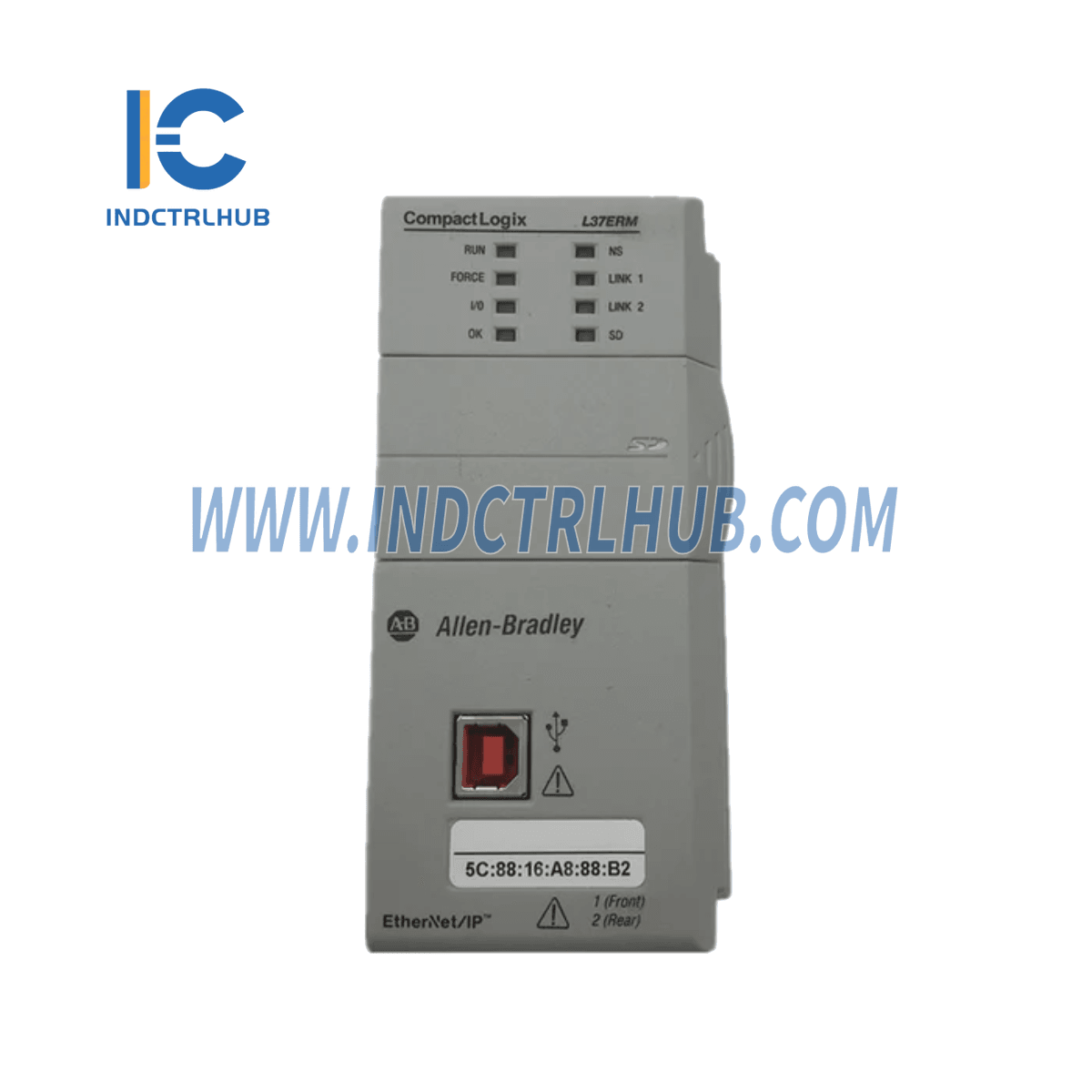

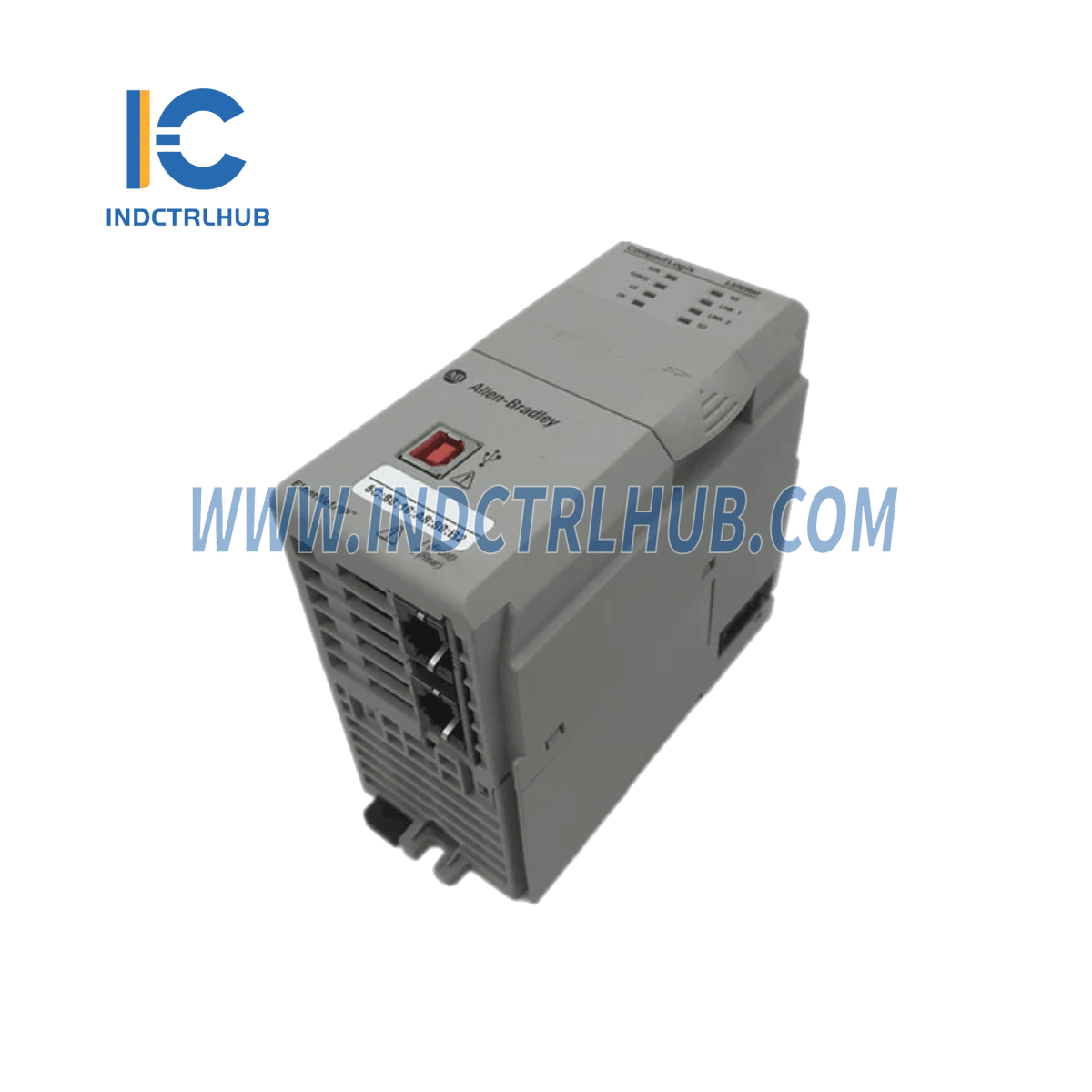

- Model/Part Number: 1769-L37ERM
- Type: CompactLogix 4MB Controller
-
Description:
- Dual Ethernet with DLR (Device Level Ring) capability
- 4MB memory
- 30 I/O expansion modules supported
- 64 Ethernet IP nodes
- 16-axis CIP (Common Industrial Protocol) motion with kinematics function
- Ships with a 1GB SD card (supports up to 2GB SD card)
Technical Specifications
Communication
- Ports: Ethernet, USB
-
Isolation Voltage:
- 30V (continuous), Basic Insulation
- USB to system, Ethernet to system, and Ethernet to Ethernet
- Type tested at 500V AC for 60s
Memory
- RAM: 4MB
Power & Electrical
-
Current Draw:
- @ 5V DC: 850 mA
- @ 24V DC: 700 mA
- Power Dissipation (Max): 6.5 W
Physical Specifications
- Depth: 105 mm
- Width: 89 mm (3.50 in)
- Weight: 0.31 kg (1.18 lb)
- Module Location: DIN rail or panel mount
- Panel-Mount Screw Torque: 1.1 - 1.8 N•m (10 - 16 lb•in)
-
Embedded Power Supply Compatibility:
- 1769-PA2, 1769-PB2, 1769-PA4, 1769-PB4
Features & Capabilities
- Supports 30 I/O expansion modules
- Supports 64 Ethernet IP nodes
- 16-axis CIP motion control with kinematics function
- Redundant Ethernet connections with DLR capability
- High-speed data processing and efficient memory management
- Compact size with panel or DIN rail mounting options
Applications
- Industrial automation and control systems
- Machine automation with CIP motion control
- Manufacturing and process control
- Robotics and motion control systems
- High-performance Ethernet/IP-based industrial networks
