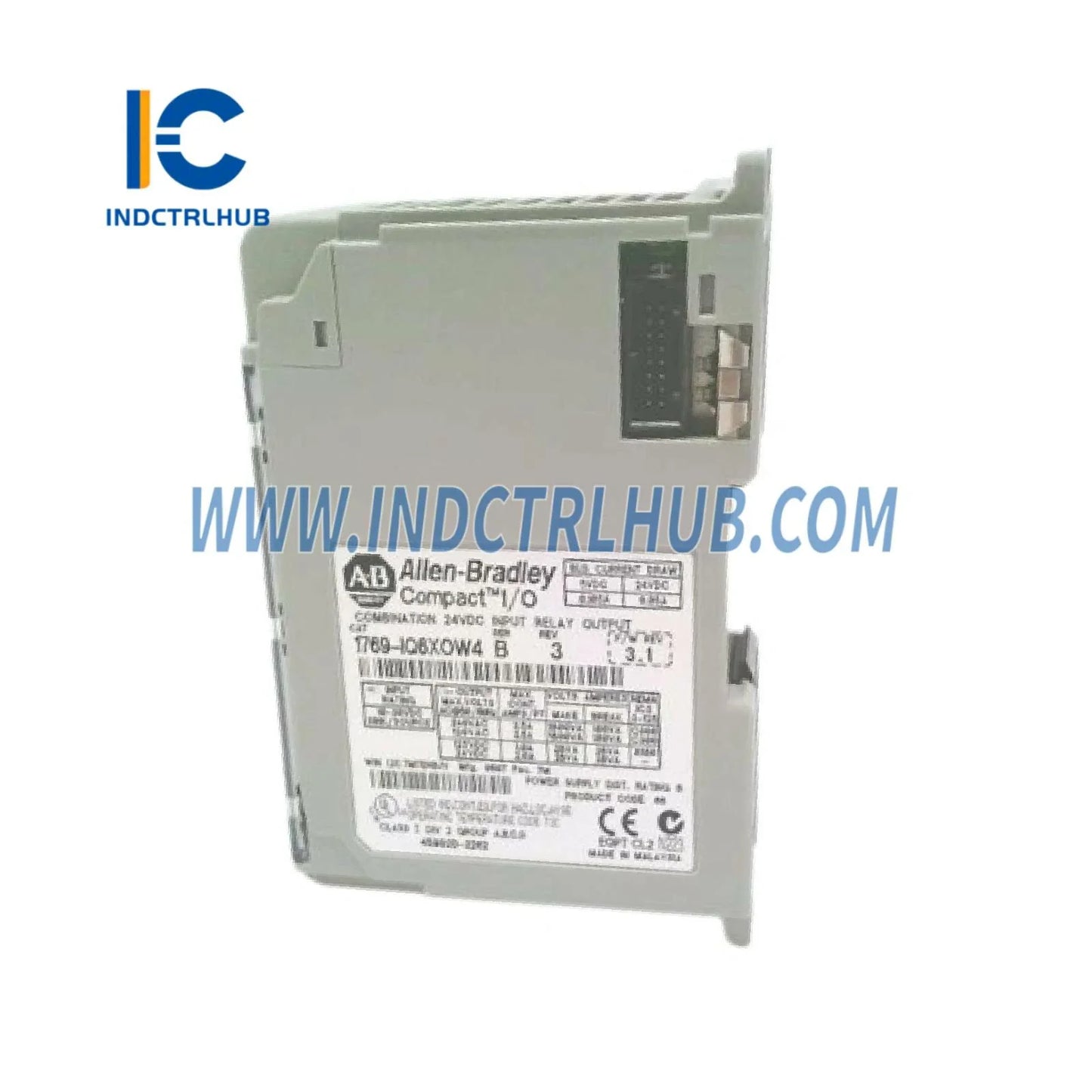

Allen-Bradley 1769-IQ6X0W4 CompactLogix 6-Point Input 4-Point Relay Output Module
Allen-Bradley 1769-IQ6X0W4 CompactLogix 6-Point Input 4-Point Relay Output Module
Manufacturer: Allen-Bradley
Product No.: 1769-IQ6X0W4
Condition:1000 in stock
Product Type: PLC I/O Modules
Product Origin: 1769IQ6X0W4
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
🔧 Allen-Bradley 1769-IQ6X0W4 Combination I/O Module Overview
The Allen-Bradley 1769-IQ6X0W4 is a high-performance CompactLogix combination module engineered to deliver versatile control capabilities in a single compact footprint. This intelligent module integrates 6 discrete input channels with 4 relay output points, providing flexible signal acquisition and switching control for industrial automation systems.
⚙️ Technical Specifications
- Input Channels: 6 discrete DC/AC input points with wide voltage compatibility
- Output Channels: 4 Form C relay outputs rated for 2A @ 250V AC/30V DC
- Isolation: 1500V AC optical isolation between field and logic circuits
- Response Time: Input ON delay ≤10ms, relay contact life >100,000 mechanical operations
- Power Consumption: 5V DC @ 150mA from backplane, 24V DC @ 50mA for field power
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Mounting: DIN-rail compatible, fits standard 1769 CompactLogix chassis
🏭 Industrial Applications
Process Control & Monitoring: Ideal for pump stations, valve control, and tank level management where mixed I/O types streamline wiring and reduce panel space.
Machine Automation: Perfect for packaging lines, conveyor systems, and assembly machines requiring both sensor inputs and actuator control in synchronized operations.
Building Management: Efficiently manages HVAC damper control, lighting circuits, and access control systems with consolidated I/O architecture.
💡 Solution Advantages
✅ Space Optimization: Combines input and relay output functions in one module, reducing chassis slot requirements by up to 50%
✅ Wiring Simplification: Integrated design minimizes field wiring complexity and installation time
✅ Diagnostic Intelligence: Built-in LED indicators provide real-time status for rapid troubleshooting
✅ Seamless Integration: Native compatibility with RSLogix 5000/Studio 5000 programming environment and ControlLogix networks
📦 What's Included
Each module ships with removable terminal blocks, installation instructions, and compliance documentation. Compatible with all 1769 CompactLogix and Compact I/O chassis configurations.
Enhance your control system efficiency with the proven reliability of Allen-Bradley CompactLogix technology—engineered for demanding industrial environments worldwide.
