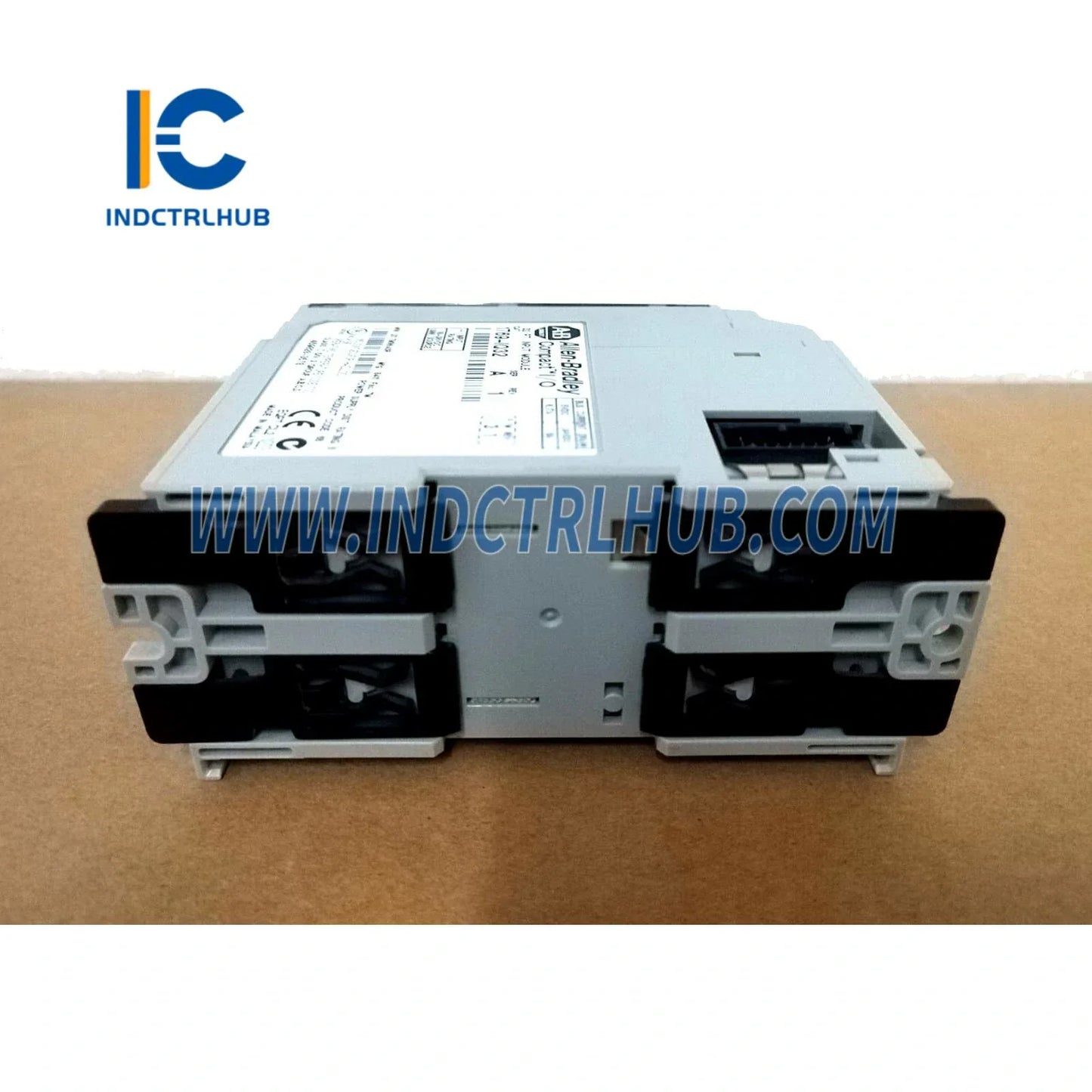

Allen-Bradley 1769-IQ32/A CompactLogix 32-Point 24VDC Input Module
Allen-Bradley 1769-IQ32/A CompactLogix 32-Point 24VDC Input Module
Manufacturer: Allen-Bradley
Product No.: 1769-IQ32/A
Condition:1000 in stock
Product Type: Industrial Control Modules
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
🔌 High-Density Digital Input Solution for CompactLogix Systems
The Allen-Bradley 1769-IQ32/A delivers reliable 32-point digital input capability for demanding industrial automation environments. Engineered for CompactLogix 1769 I/O platforms, this module provides flexible sink/source configuration to interface seamlessly with 24V DC field devices.
⚙️ Technical Specifications
- Input Points: 32 discrete channels
- Voltage Rating: 24V DC sink/source compatible
- Input Current: 7 mA typical per point
- On-State Voltage: 15-30V DC
- Off-State Voltage: 0-5V DC
- Response Time: 1-10 ms selectable filter
- Isolation: 1500V AC optical isolation
- Power Consumption: 150 mA @ 5V DC backplane
- Operating Temperature: 0 to 60°C (32 to 140°F)
🏭 Industrial Applications
Manufacturing Automation: Monitor limit switches, proximity sensors, and photoelectric devices across assembly lines with high-density I/O consolidation.
Process Control: Interface with field instruments, valve position indicators, and safety interlocks in chemical, pharmaceutical, and food processing facilities.
Material Handling: Track conveyor status, gate positions, and package detection sensors in distribution centers and logistics operations.
Machine Safety: Integrate emergency stop circuits, guard door monitors, and light curtain inputs for compliant safety system architectures.
✅ Key Advantages
✓ Space Efficiency: 32 inputs in a single-slot footprint reduce panel real estate requirements
✓ Diagnostic LEDs: Per-point status indicators accelerate troubleshooting and commissioning
✓ Hot-Swappable: Replace modules without powering down the entire chassis
✓ Removable Terminal Block: Pre-wire connections for faster maintenance turnaround
✓ Studio 5000 Integration: Seamless configuration within Logix Designer environment
🔧 System Integration
Compatible with 1769-L1x, L2x, and L3x CompactLogix controllers, this module slots directly into 1769 chassis (4, 8, 10, or 16-slot configurations). Pair with 1769-PA2 or PA4 power supplies for reliable backplane distribution. Supports ControlNet, DeviceNet, and EtherNet/IP communication protocols via appropriate adapter modules.
📦 What's Included
- 1769-IQ32/A input module
- Removable screw-terminal connector
- Installation instructions
- Wiring labels
Backed by Rockwell Automation's global support network and designed for 24/7 industrial operation.
