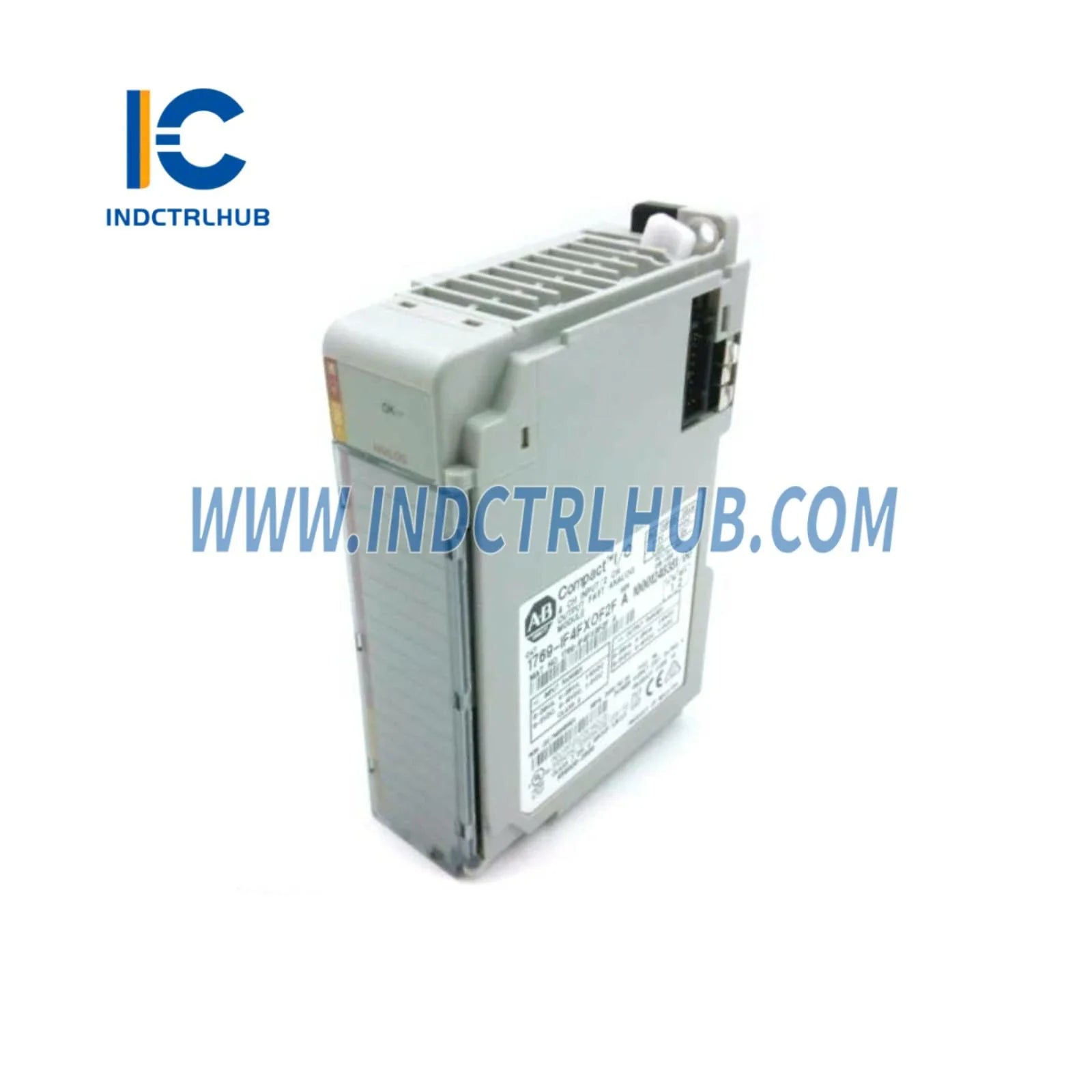

Allen-Bradley 1769-IF4XOF2F CompactLogix 6-Channel Analog I/O Module
Allen-Bradley 1769-IF4XOF2F CompactLogix 6-Channel Analog I/O Module
Manufacturer: Allen-Bradley
Product No.: 1769-IF4XOF2F
Condition:1000 in stock
Product Type: Analog I/O Modules
Product Origin: 1769-IF4XOF2F
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
🔧 High-Performance Analog I/O Solution for Industrial Automation
The Allen-Bradley 1769-IF4XOF2F CompactLogix analog I/O module delivers exceptional precision and versatility for demanding process control applications. This 6-channel fast analog module combines 4 configurable input channels with 2 flexible output channels, enabling seamless integration into your CompactLogix control architecture.
⚙️ Technical Specifications
- Input Channels: 4 differential analog inputs (±10V DC, 0-20mA, 4-20mA configurable)
- Output Channels: 2 analog outputs (±10V DC, 0-20mA, 4-20mA selectable)
- Resolution: 16-bit for superior measurement accuracy
- Update Time: Fast scan mode with 1ms per channel capability
- Isolation: Channel-to-channel and channel-to-backplane isolation for noise immunity
- Power Consumption: 1.5W typical from backplane
- Operating Temperature: 0°C to 60°C (32°F to 140°F)
- Certifications: UL, cUL, CE, C-Tick compliant
🏭 Application Scenarios
Process Control & Monitoring: Ideal for temperature, pressure, flow, and level measurement in chemical processing, water treatment, and HVAC systems where precise analog signal conditioning is critical.
Machine Automation: Perfect for packaging lines, material handling systems, and assembly operations requiring proportional valve control, servo positioning feedback, and variable speed drive integration.
Energy Management: Deploy in power generation facilities, oil & gas installations, and renewable energy systems for real-time monitoring of voltage, current, and power quality parameters.
💡 Smart Solutions & Benefits
✅ Flexible Configuration: Software-selectable input/output ranges eliminate the need for multiple module types, reducing spare parts inventory and simplifying maintenance.
✅ Enhanced Diagnostics: Built-in channel health monitoring and open-wire detection accelerate troubleshooting and minimize downtime in mission-critical applications.
✅ Seamless Integration: Native compatibility with Studio 5000 Logix Designer software enables rapid programming, online calibration, and real-time data trending without additional tools.
✅ Scalable Architecture: Hot-swappable design and compact footprint allow easy system expansion as your automation requirements evolve.
📦 What's Included
Each module ships factory-sealed with protective end caps and comprehensive documentation. Compatible with all 1769 CompactLogix chassis and controllers for plug-and-play deployment.
Backed by Allen-Bradley's industry-leading reliability and global technical support network.
