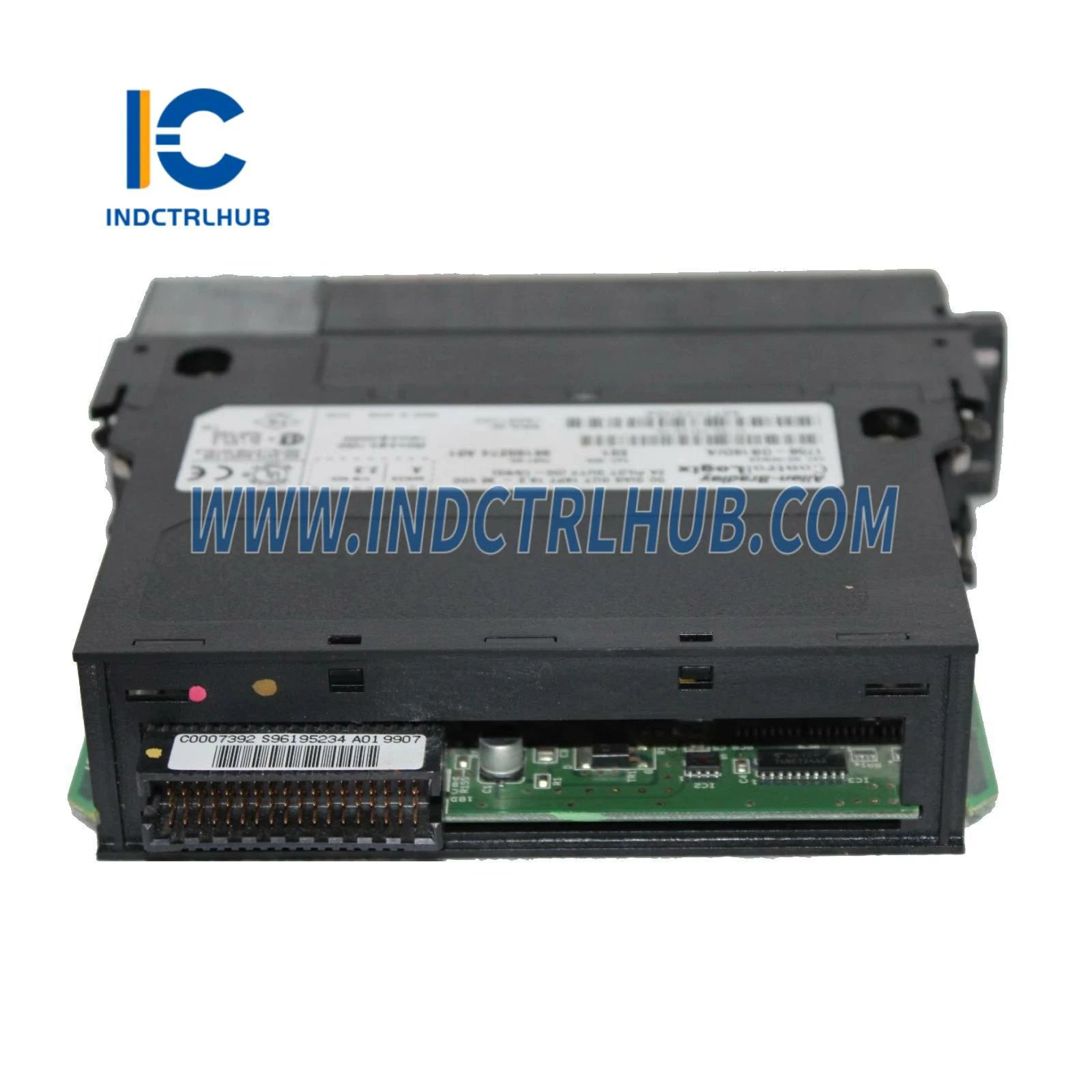

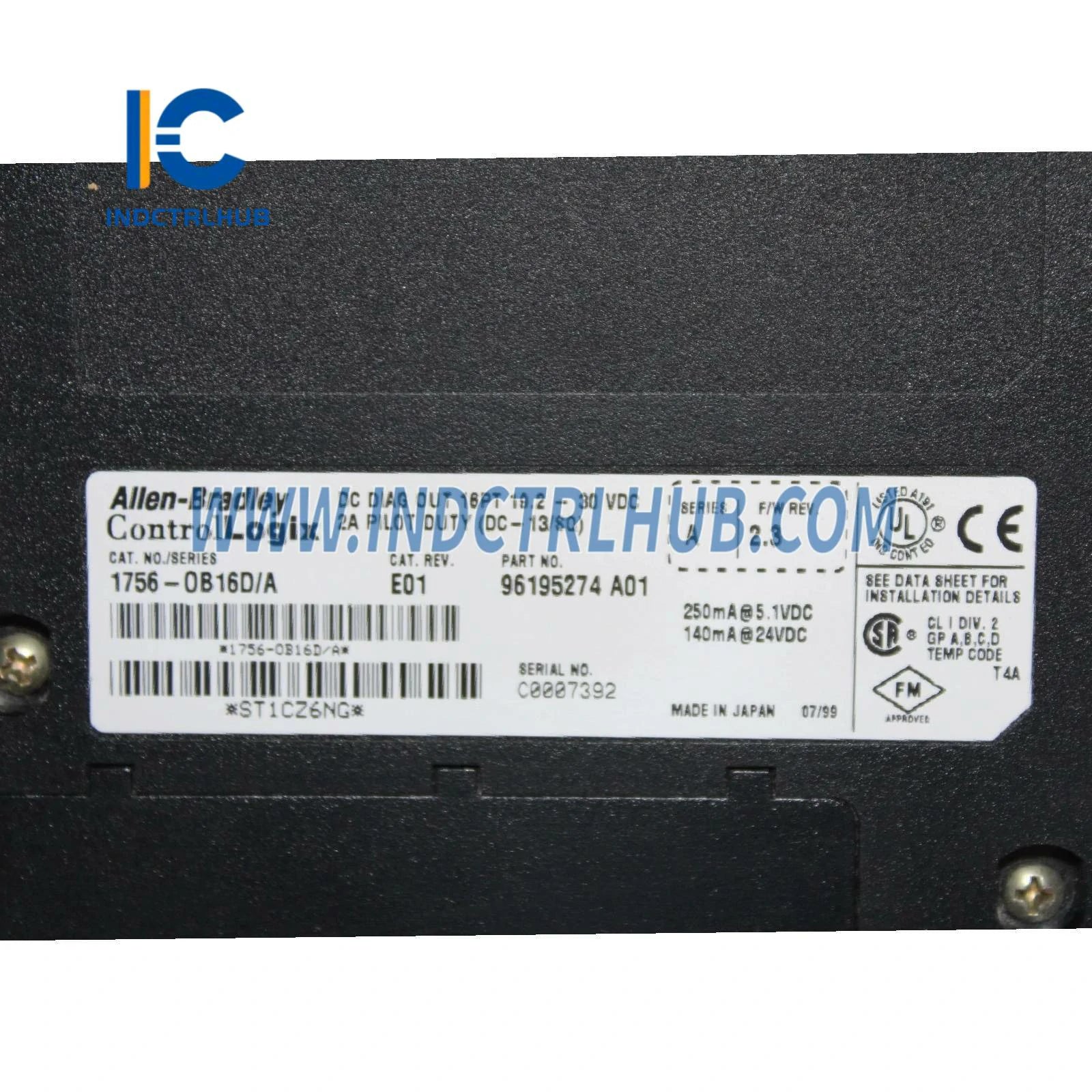

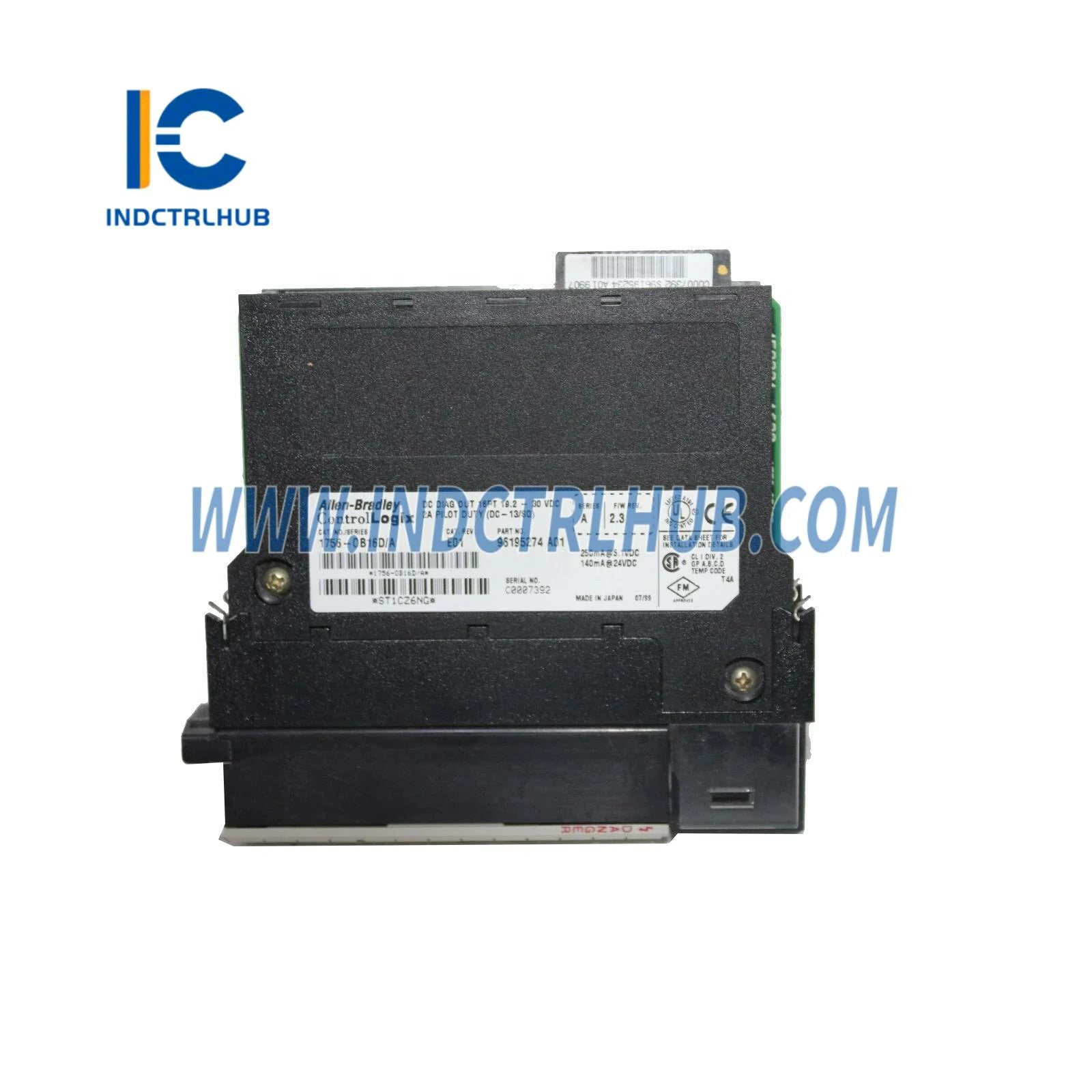

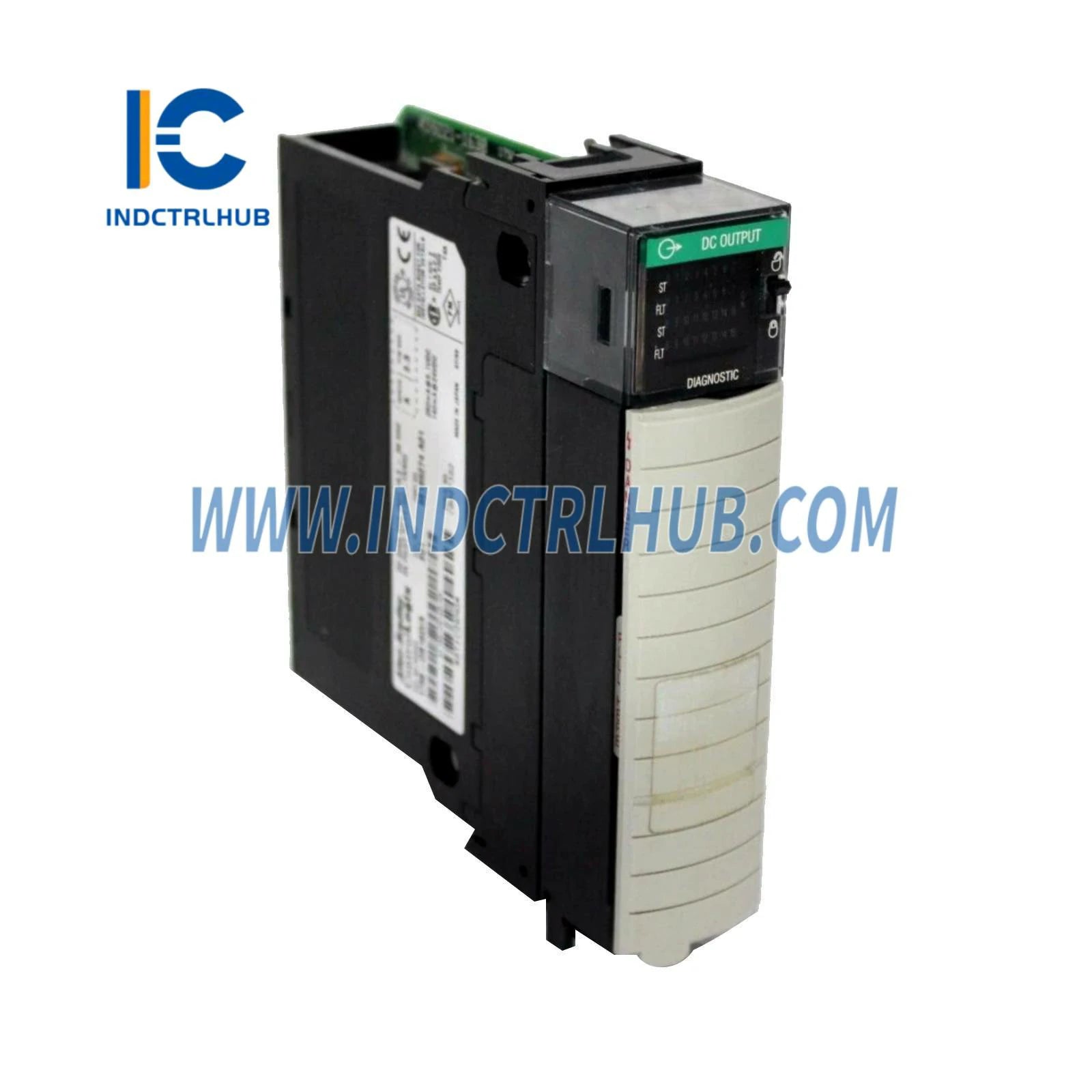

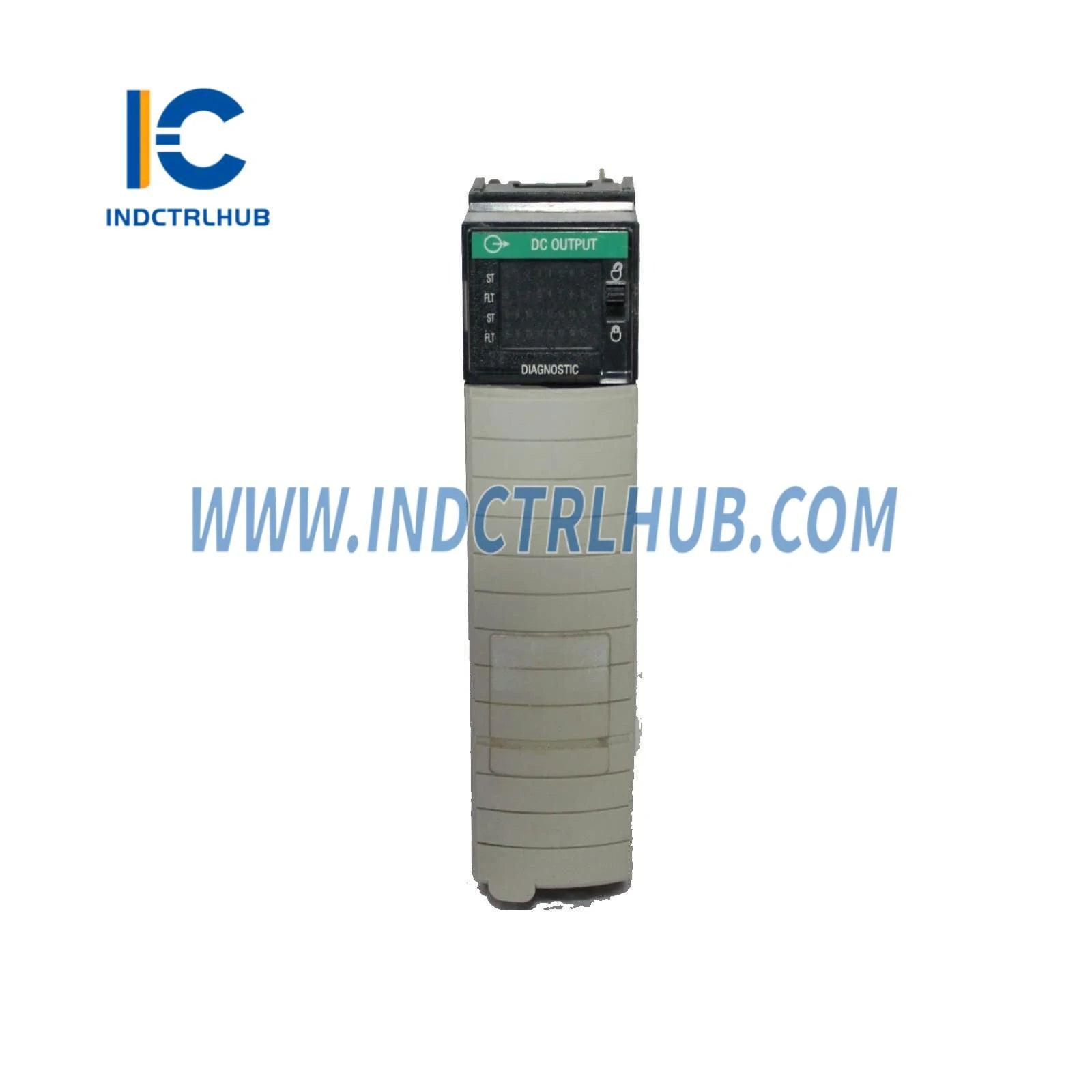

| Output Channels |
16 digital outputs |
| Output Voltage Range |
10–31.2 V DC |
| Nominal Output Voltage |
12/24 V DC |
| Output Current |
0.5 A per channel, 8 A total per module @ 60°C |
| On-State Voltage Drop |
1.2 V maximum |
| Off-State Leakage Current |
0.5 mA maximum per point |
| Signal Delay Time |
0.1 ms (off to on), 0.1 ms (on to off) |
| Surge Current |
2 A for 10 ms per point, non-repetitive |
| Power Dissipation |
5.5 W maximum |
| Backplane Current Load |
300 mA @ 5.1 V DC, 2 mA @ 24 V DC |
| Isolation |
250 V AC (between outputs and backplane), 1350 V AC (basic insulation test) |
| Terminal Connections |
36-pin removable terminal block (RTB) |
| Wire Size |
0.2–2.5 mm² (22–14 AWG) |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
5% to 95% (non-condensing) |
| Vibration Tolerance |
2 G @ 10–500 Hz |
| Shock Tolerance |
30 G (operating), 50 G (non-operating) |
| Dimensions |
145 mm x 35 mm x 140 mm (5.71 in x 1.38 in x 5.51 in) |
| Weight |
0.35 kg (0.77 lb) |
| Standards Compliance |
CE, UL, CSA (Class I, Div 2, Groups A, B, C, D), FM |
