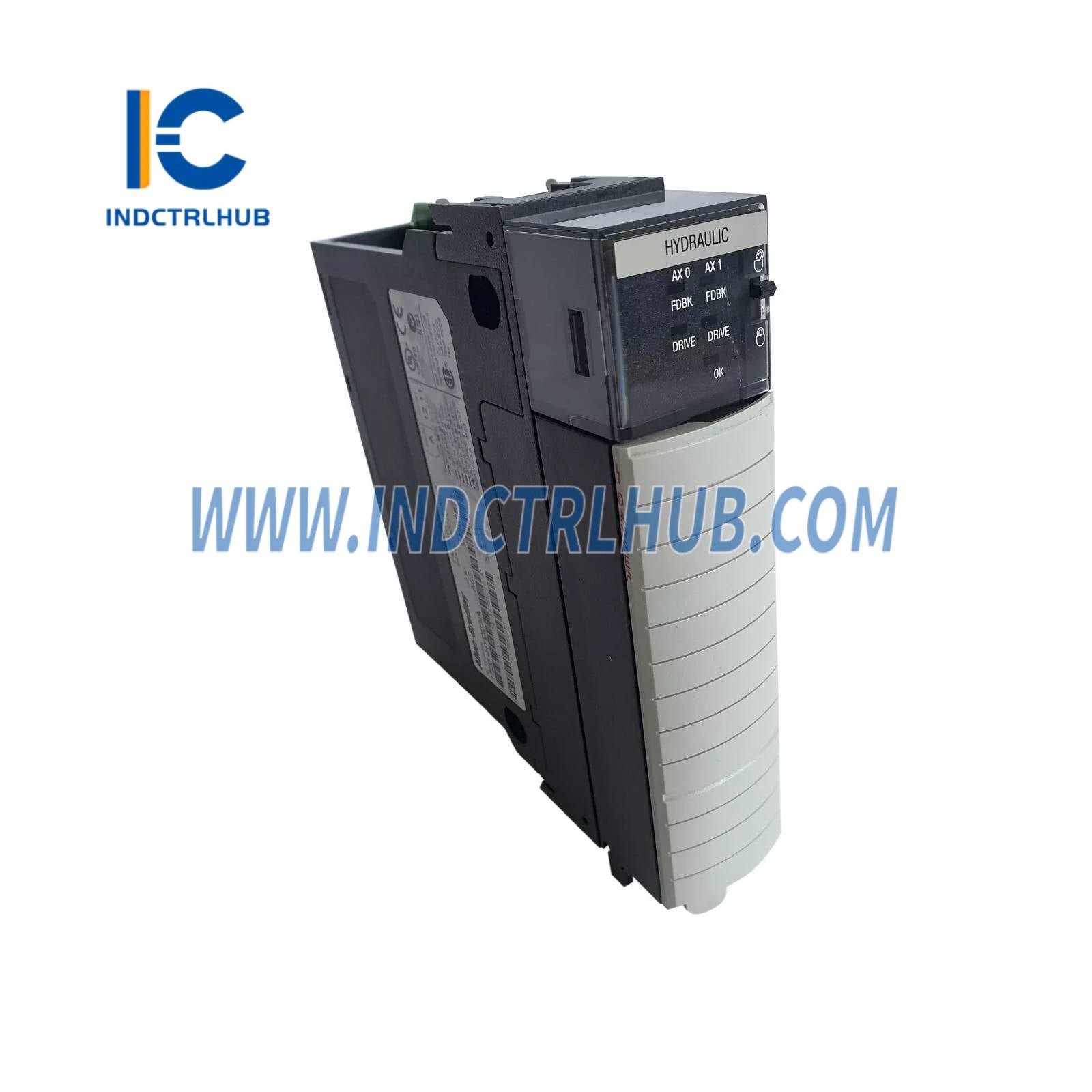

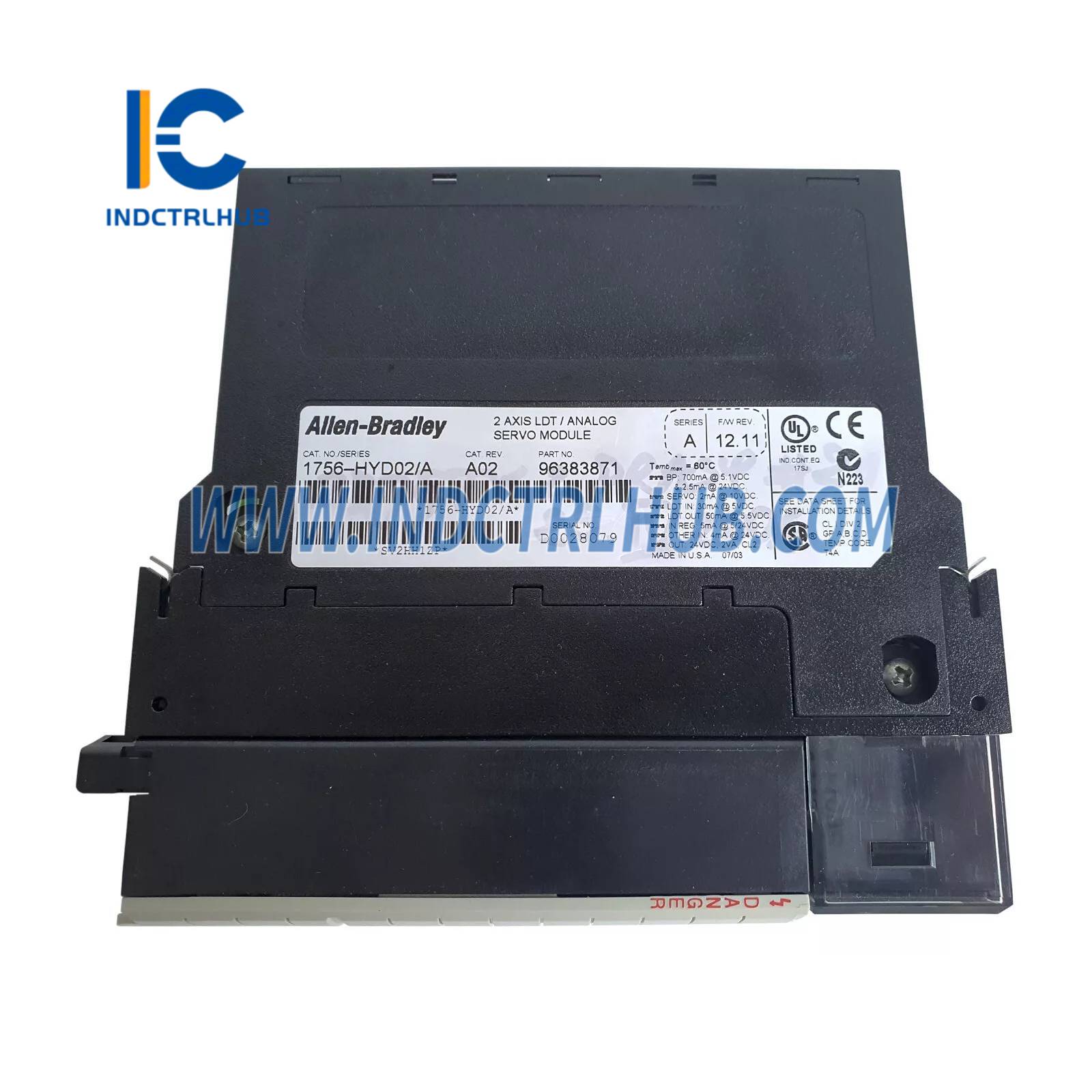

| Channels |
2 hydraulic servo channels |
| Output Type |
Analog, ±10 V DC or 4–20 mA |
| Output Resolution |
16 bits |
| Input Types |
Linear Displacement Transducer (LDT), 24 V DC or 5 V DC registration inputs, 24 V DC home limit switch |
| Input Resolution |
16 bits for LDT inputs |
| Backplane Current |
700 mA at 5.1 V DC, 2.5 mA at 24 V DC |
| Power Dissipation |
4.5 W maximum |
| Thermal Dissipation |
15.35 BTU/hr |
| Isolation |
125 V (continuous), basic insulation type |
| Removable Terminal Block (RTB) |
1756-TBNH or 1756-TBSH (20-pin, screw or spring clamp) |
| Wire Size |
0.33–2.1 mm² (22–14 AWG) |
| Slot Width |
1 slot |
| Operating Temperature |
0°C to 60°C (32°F to 140°F) |
| Storage Temperature |
-40°C to 85°C (-40°F to 185°F) |
| Humidity |
5% to 95% (non-condensing) |
| Vibration |
2 G at 10–500 Hz |
| Shock (Operating) |
30 G |
| Environmental Rating |
IP20 |
| Standards Compliance |
CE, UL, CSA, FM, ATEX, IECEx |
