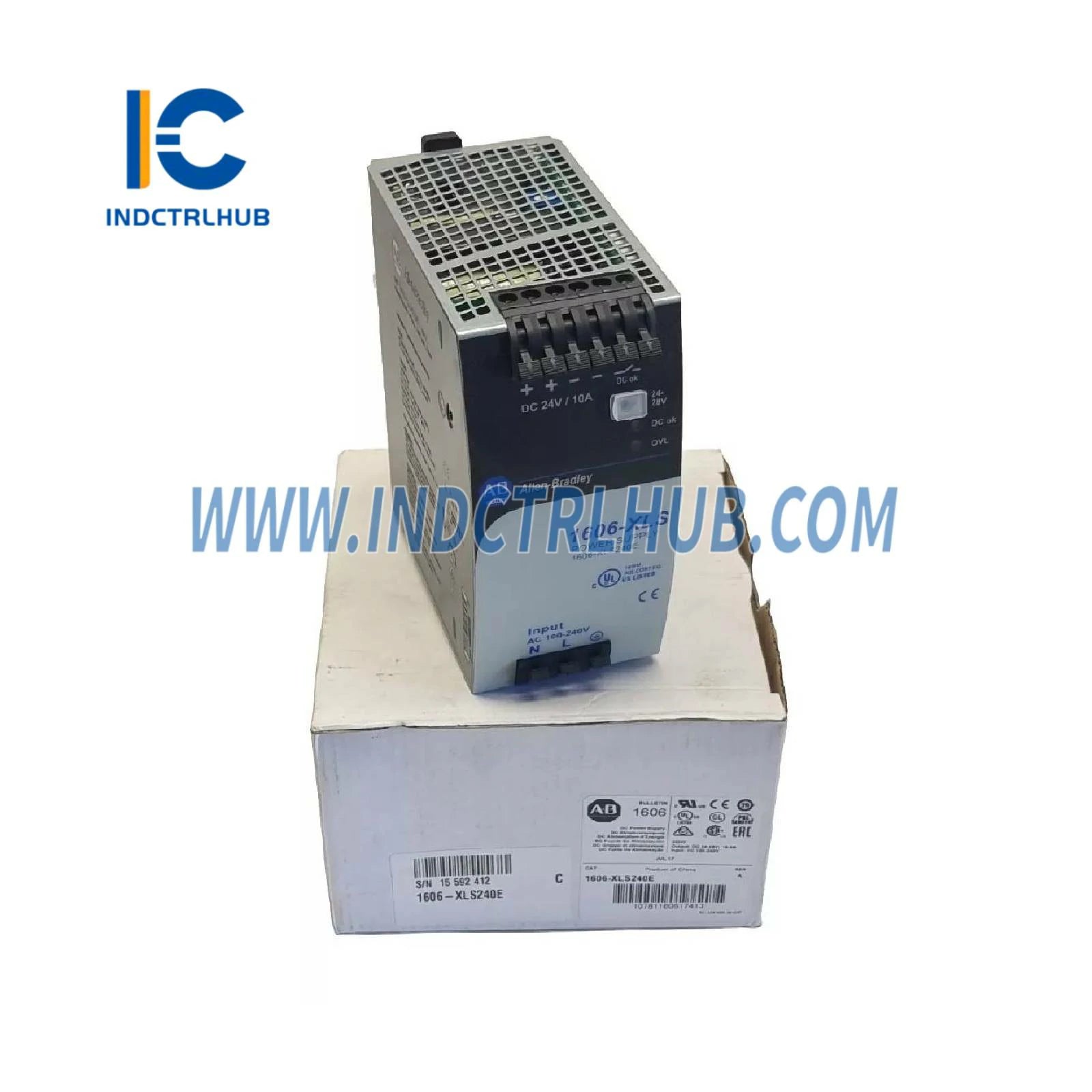

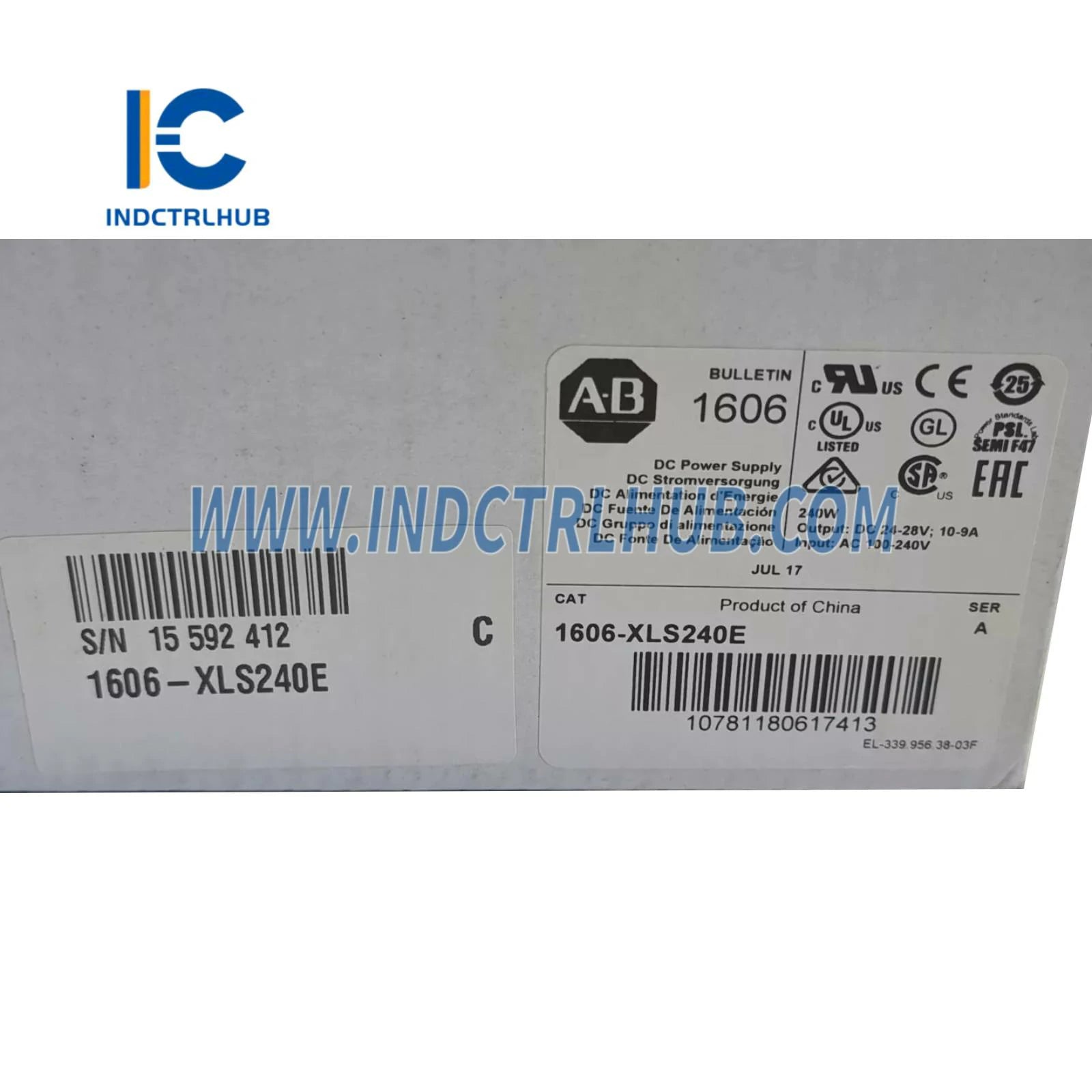

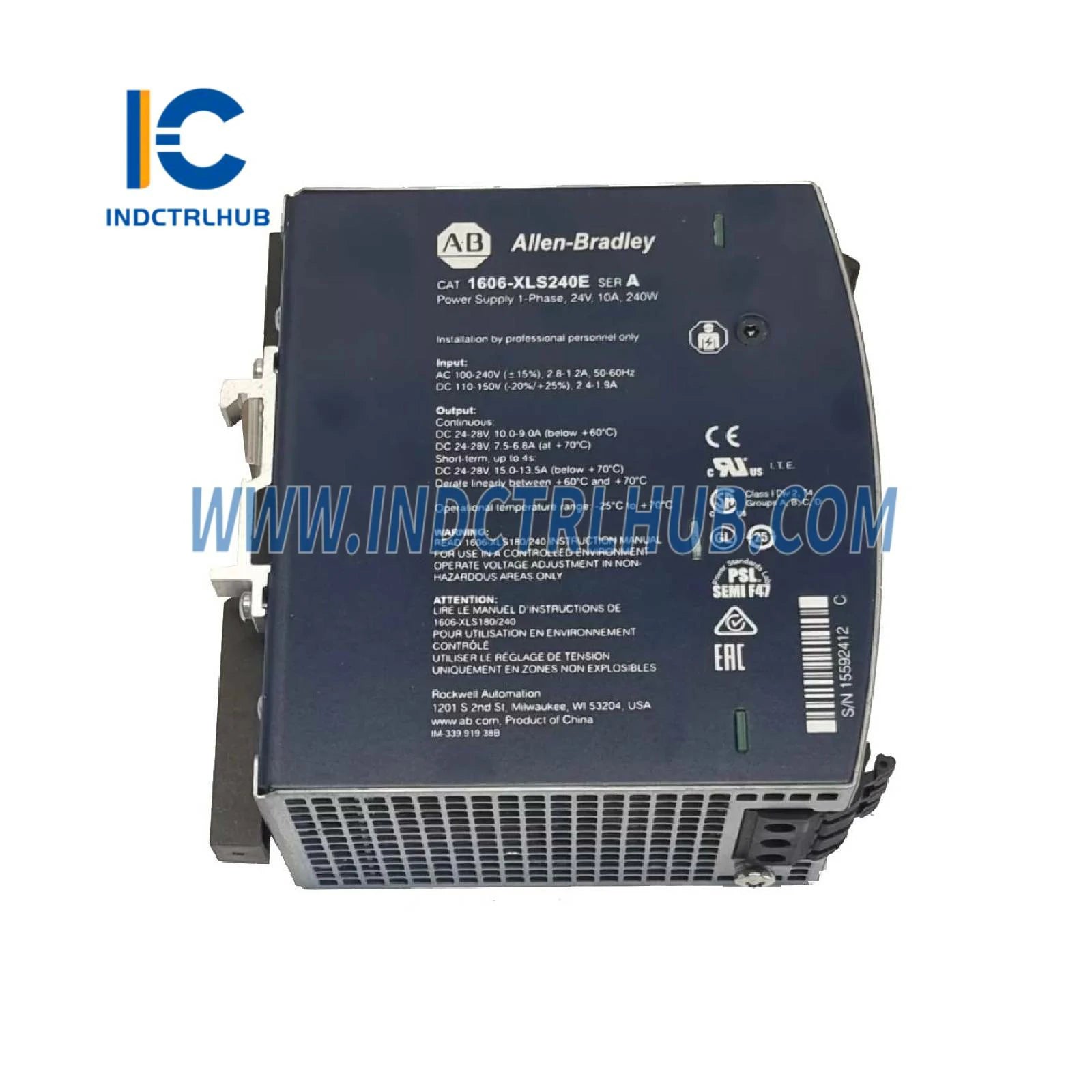

Allen-Bradley 1606-XLS240E 240W DIN Rail Power Supply 24VDC 10A
Allen-Bradley 1606-XLS240E 240W DIN Rail Power Supply 24VDC 10A
Manufacturer: ALLEN BRADLEY
Product No.: 1606-XLS240E
Condition:1000 in stock
Product Type: Industrial Power Supply
Product Origin: 6063847291534
Payment: T/T, Western Union
Weight: 900g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
Allen-Bradley 1606-XLS240E Compact Switched-Mode Power Supply
The Allen-Bradley 1606-XLS240E is an industrial-grade 240-watt switched-mode power supply engineered for demanding automation environments. Delivering stable 24VDC output at 10 amperes, this compact DIN rail unit ensures consistent power delivery for PLCs, I/O modules, sensors, and control systems across manufacturing, process control, and infrastructure applications.
Technical Specifications
- Output Power: 240W continuous
- Output Voltage: 24VDC ±2%
- Output Current: 10A rated, 12A peak (5 seconds)
- Input Voltage Range: 100-240VAC, 50/60Hz (universal input)
- Efficiency: Up to 91% at full load
- Operating Temperature: -25°C to +70°C (-13°F to +158°F)
- Protection Features: Overload, overvoltage, short-circuit, thermal shutdown
- Mounting: 35mm DIN rail (EN 60715)
- Conformal Coating: Yes (enhanced environmental protection)
- Certifications: UL, cUL, CE, CB, EAC
Application Solutions
Factory Automation: Powers distributed I/O racks, motor starters, and HMI panels in assembly lines and packaging systems where space optimization is critical.
Process Control: Supports instrumentation networks, valve actuators, and field transmitters in chemical processing, water treatment, and HVAC systems requiring reliable 24VDC power.
Machine Building: Ideal for OEM equipment builders integrating compact control cabinets with mixed automation components from multiple vendors.
Why Choose the 1606-XLS240E?
This power supply combines Rockwell Automation's proven reliability with intelligent design features. The conformal-coated PCB resists moisture, dust, and corrosive atmospheres, extending service life in harsh industrial settings. Wide input voltage tolerance eliminates the need for voltage-specific models, simplifying inventory management. The compact 45mm width saves valuable panel space while maintaining 10A continuous output—sufficient for typical small-to-medium control systems.
Installation & Integration

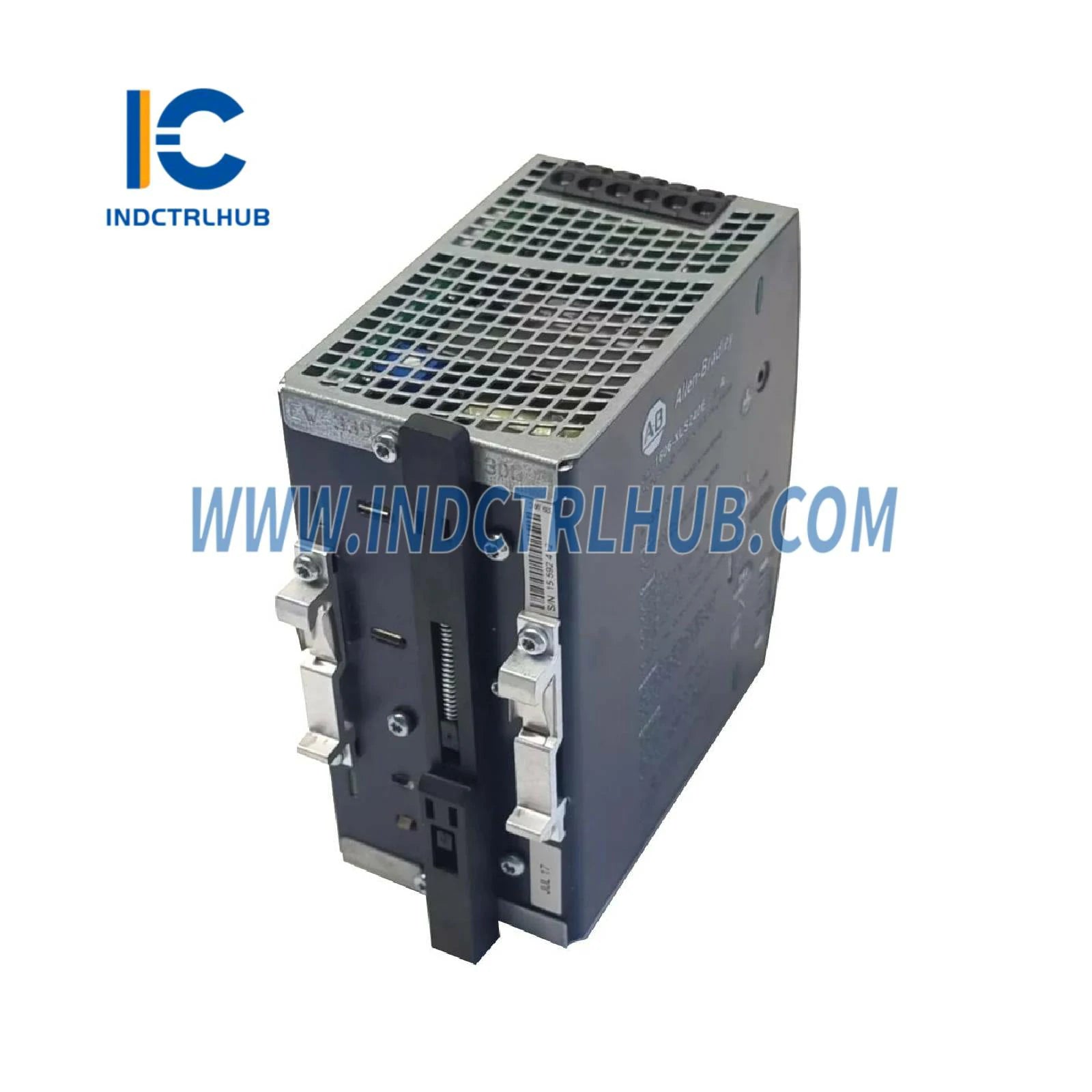

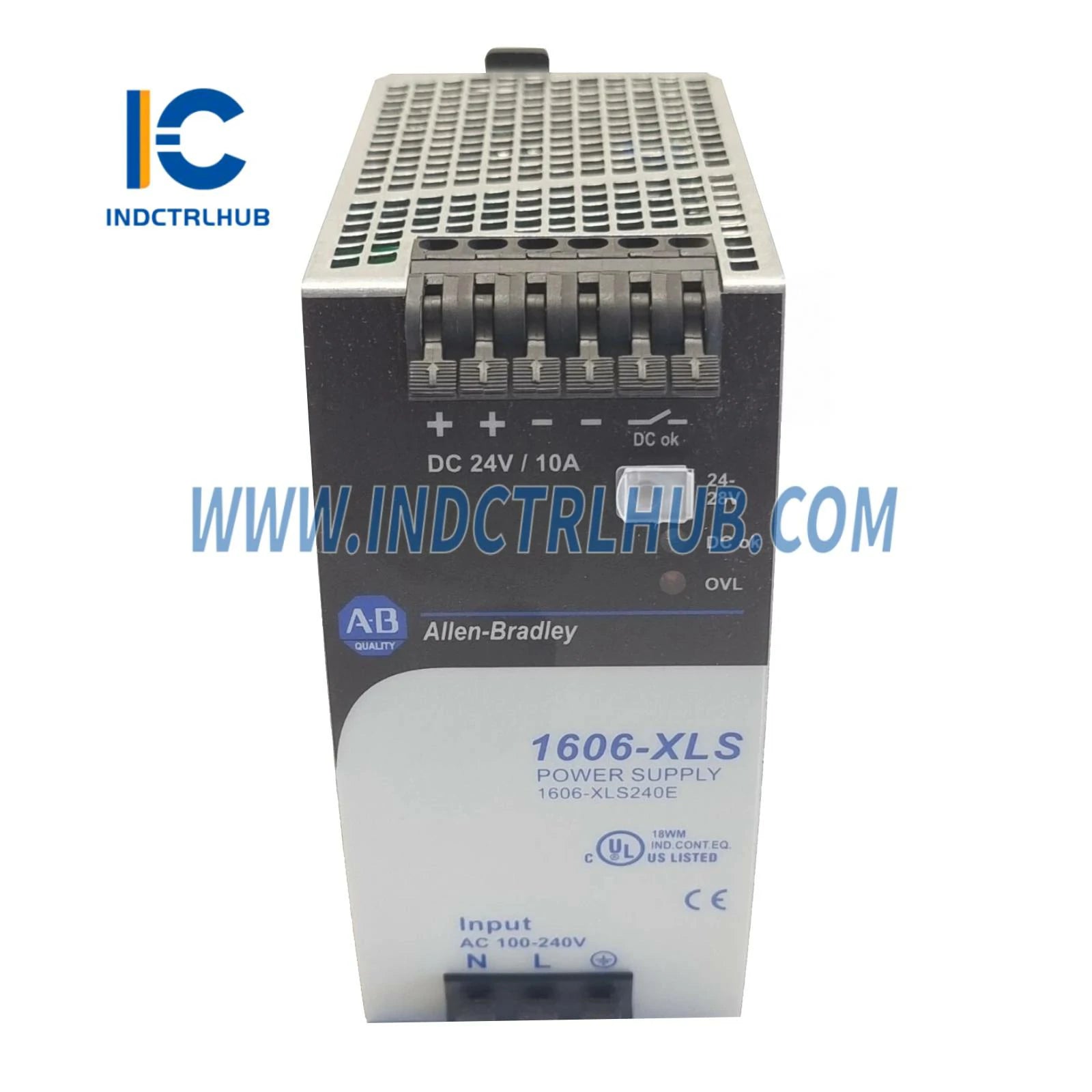

Snap-mount DIN rail installation takes seconds without tools. Front-accessible terminals accept 12-14 AWG wire for quick field wiring. LED status indicators provide instant diagnostics: green for normal operation, red for fault conditions. The unit integrates seamlessly with Allen-Bradley ControlLogix, CompactLogix, and MicroLogix platforms, as well as third-party PLCs and distributed control systems.
Common Questions
Q: Can this power supply operate in parallel for redundancy?
A: Yes, when paired with the 1606-XLSRED redundancy module, two units provide N+1 backup power with automatic load sharing and diode decoupling.
Q: What's the inrush current during startup?
A: Maximum 30A for 5ms at 230VAC input—well within typical circuit breaker tolerances for C-curve 10A breakers.
Q: Does it support DC input voltage?
A: No, the XLS series requires AC input. For DC input applications, consider the Allen-Bradley 1606-XLP series DC/DC converters.
Q: How do I calculate total load requirements?
A: Sum the current draw of all connected devices at 24VDC. Maintain 80% derating (8A continuous) for optimal thermal performance and longevity.
Related Products
| Product Model | Power Rating | Product Link |
|---|---|---|
| Allen-Bradley 1606-XLS480E | 480W / 20A | View 1606-XLS480E |
| Allen-Bradley 1606-XLS960E | 960W / 40A | View 1606-XLS960E |
| Allen-Bradley 1606-XLSRED80 | Redundancy Module | View Redundancy Module |
Warranty & Support
Every 1606-XLS240E includes a 12-month manufacturer warranty covering defects in materials and workmanship. Technical support and replacement units ship within 24-48 hours to minimize downtime.
