Product Description
Product Details

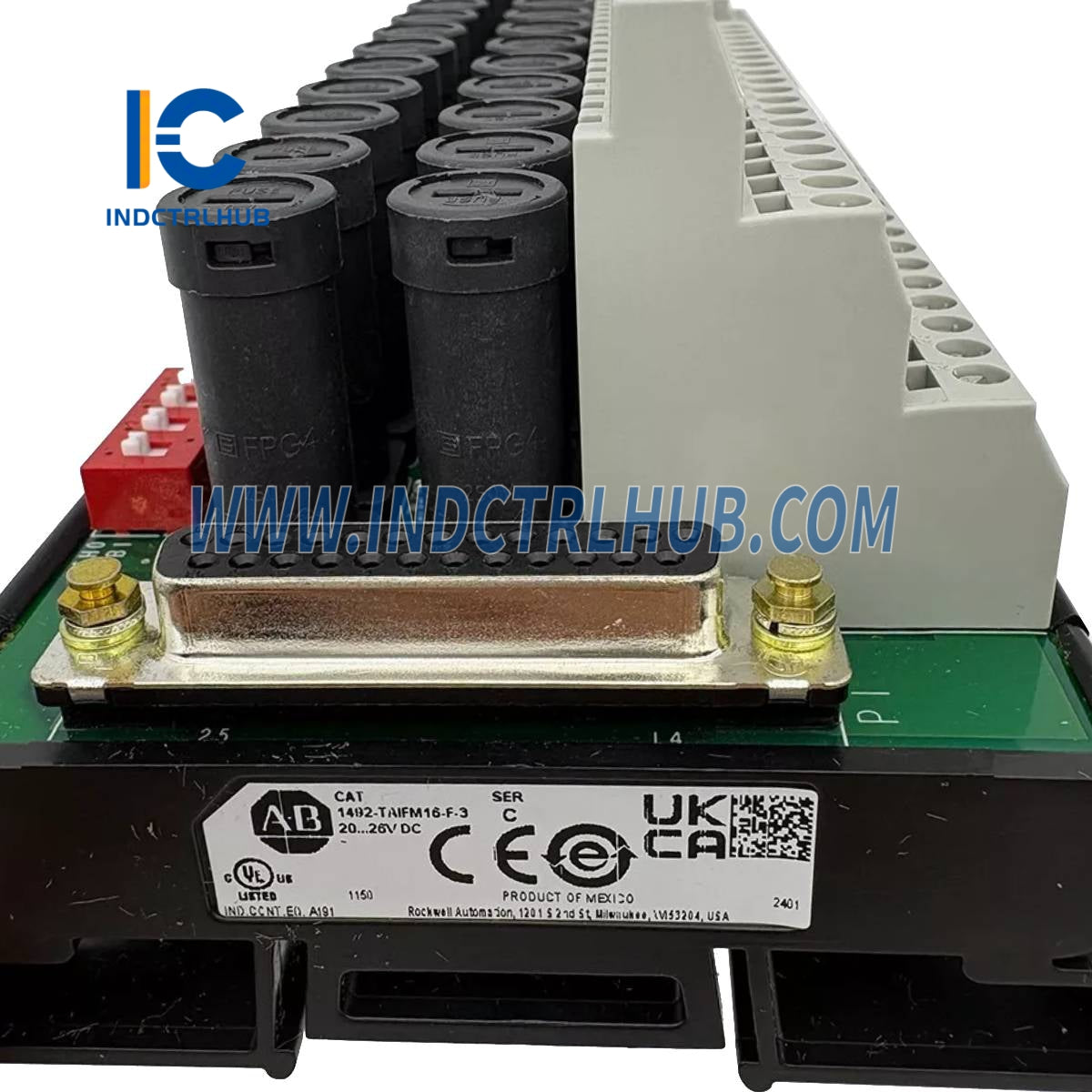

Manufacturer: Allen-Bradley
Model/Part Number: 1492-TAIFM16-F-3

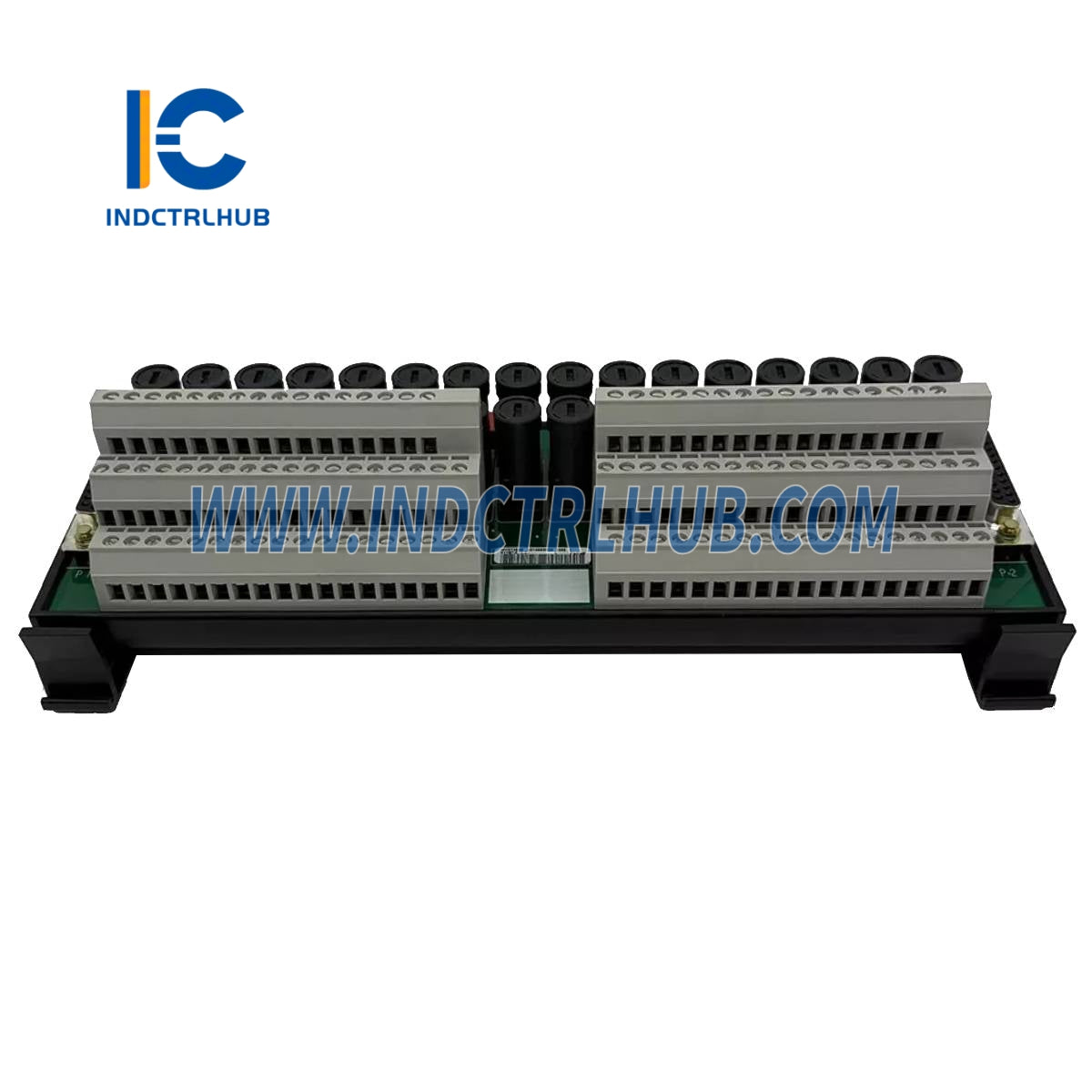

Description: Fused Terminal Module for use in SIL 2 Safety Shutdown Applications with Two 1756-IF16 Analog Input Modules
Technical Specifications
|
Parameter |
Specification |
|---|---|
|
Application |
Designed for ControlLogix SIL2 safety shutdown applications |
|
Compatible Modules |
Two 1756-OB16D DC output modules |
|
Cable Lengths Available |
0.5 m, 1.0 m, 2.5 m, 5.0 m (Custom lengths available) |
|
Fuse Status Indication |
LED indicator for blown fuse |
|
Terminal Configuration |
Row A (Shield terminals, common), Row B (Middle), Row C (Upper) |
|
Terminal Blocks |
TB1 (Left), TB2 (Right) |
|

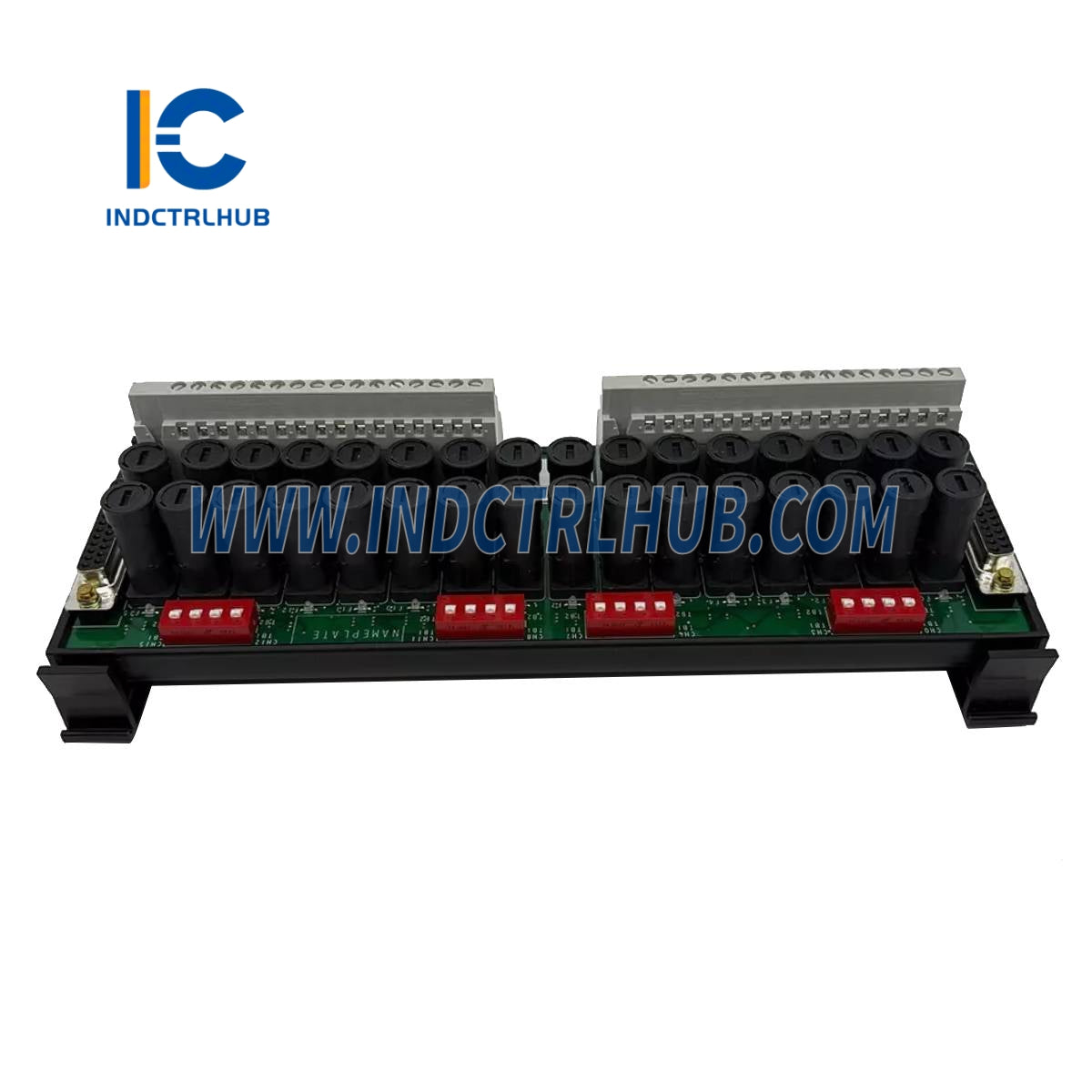

DIP Switch Configuration |
16 SIL2 sensors or 32 standard sensors (Factory Default: 16 SIL2 sensors) |
|
Sensor Compatibility |
16 SIL2 sensors: IN 0A - IN 15A and V0 FA - V15 FA |
|
Power Input |
+24V DC required for reference test terminals |
|
Transmitter Compatibility |
4-20mA or 0-5V output (0-10V output may cause premature IFM failure) |
Standards and Certifications
• cULus (File: E113724, Guide No. NRAQ2)
• CE (Compliant with all applicable directives)
