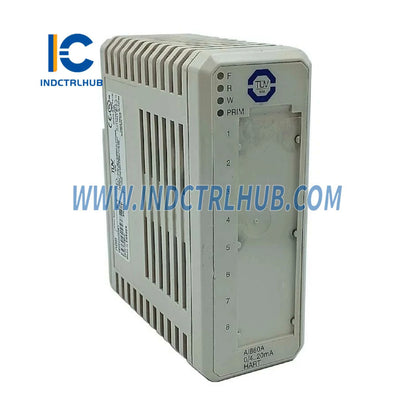

AI880A ABB Analog Input Module 8-Channel System 800xA S800 I/O
AI880A ABB Analog Input Module 8-Channel System 800xA S800 I/O
Manufacturer: ABB
Product No.: AI880A
Condition:1000 in stock
Product Type: Analog Input Module
Product Origin: 8506880001234
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
ABB AI880A Analog Input Module - Precision Signal Acquisition for System 800xA
The ABB AI880A is an advanced 8-channel analog input module engineered for seamless integration within ABB System 800xA distributed control systems. Designed to deliver high-precision signal acquisition, this module serves as a critical interface between field instrumentation and AC 800M controllers, enabling real-time process monitoring and control across diverse industrial environments.
Technical Specifications
- Channels: 8 differential analog inputs
- Input Signal Types: 0-20 mA, 4-20 mA, 0-10 V, ±10 V
- Resolution: 16-bit A/D conversion for superior accuracy
- Sampling Rate: Configurable per channel, up to 100 ms cycle time
- Isolation: Channel-to-channel and channel-to-bus galvanic isolation
- Operating Temperature: -40°C to +70°C (-40°F to +158°F)
- Power Consumption: Low power design, supplied via ModuleBus
- Mounting: DIN rail compatible with S800 I/O cluster architecture
Application Scenarios
The AI880A excels in process industries requiring dependable analog signal monitoring. Typical deployments include:
- Chemical Processing: Temperature, pressure, and flow measurement in reactor control loops
- Oil & Gas: Tank level monitoring, pipeline pressure sensing, and separator control
- Power Generation: Turbine vibration analysis, boiler temperature profiling, and emissions monitoring
- Water Treatment: pH, conductivity, and dissolved oxygen measurement for quality assurance
- Manufacturing: Machine condition monitoring, quality control sensors, and environmental parameter tracking
System Integration & Solutions
Engineered for plug-and-play deployment within ABB's S800 I/O ecosystem, the AI880A connects directly to TU810, TU830, or TU890 termination units, simplifying field wiring and reducing installation time. The module communicates via the high-speed ModuleBus, ensuring deterministic data transfer to AC 800M controllers or CI-series communication interfaces.
Configuration is streamlined through Control Builder M or System 800xA engineering tools, where users can assign input ranges, enable filtering, and configure alarm thresholds without manual DIP switch adjustments. This software-centric approach accelerates commissioning and supports remote diagnostics.
Reliability & Diagnostics
Built-in self-diagnostics continuously monitor module health, detecting open circuits, short circuits, and out-of-range conditions. Status LEDs provide at-a-glance operational feedback, while detailed fault logs are accessible via the control system HMI. Redundant power supply options and hot-swappable design ensure maximum uptime in mission-critical applications.
Why Choose the ABB AI880A?
- Proven reliability in harsh industrial environments with extended temperature ratings
- Flexible input configuration supports multiple sensor types without hardware changes
- Seamless integration with System 800xA for unified process visualization and control
- Comprehensive diagnostics reduce troubleshooting time and maintenance costs
- Scalable architecture allows easy expansion as process requirements evolve
Related Products
| Product | Description | Link |
|---|---|---|
| IMASI23 | ABB Analog Input Module - Alternative I/O solution | View Product |
| AO845A | ABB Analog Output Module 8-Ch HART S800 I/O | View Product |
| DI810 | ABB Digital Input Module S800 I/O System | View Product |
