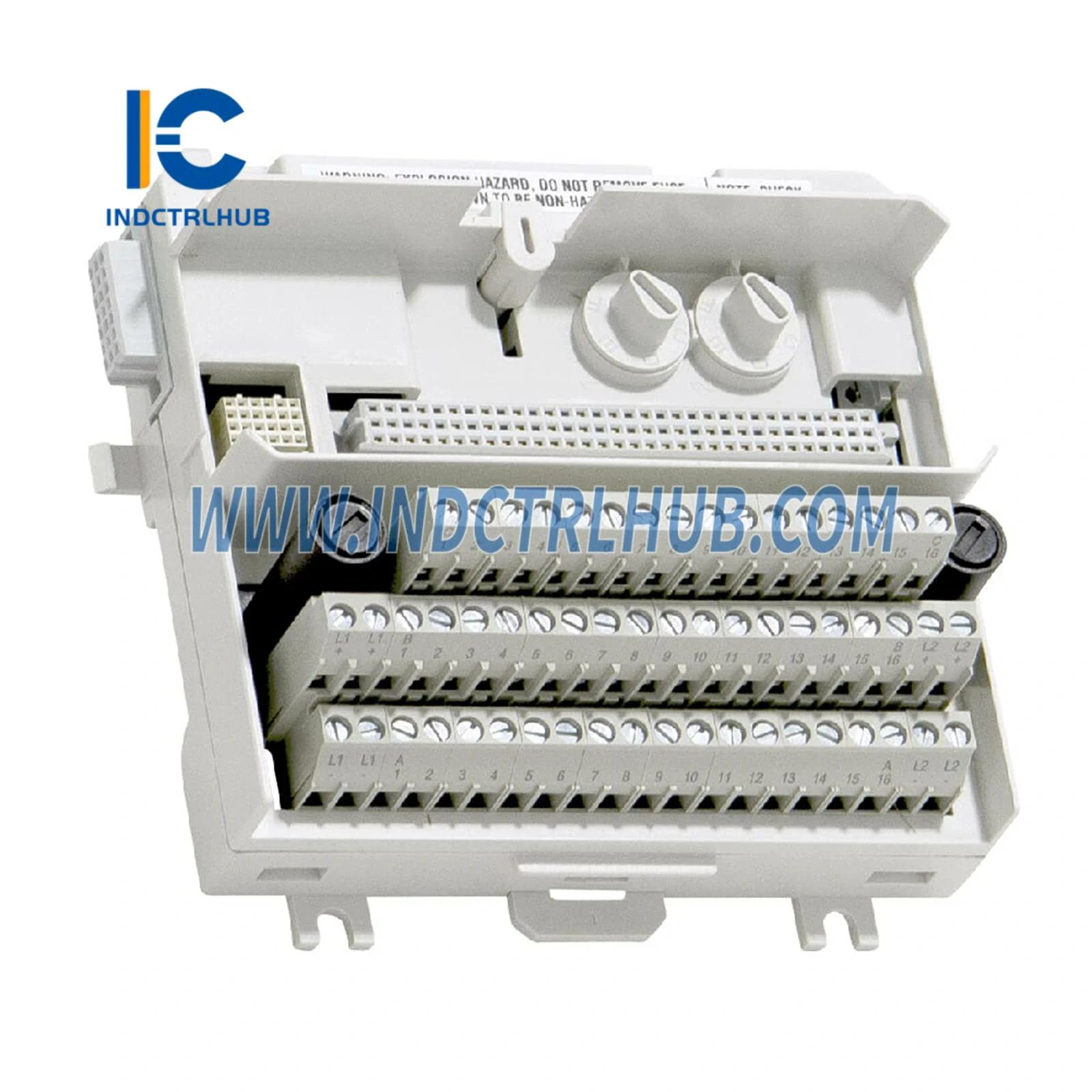

🔧 ABB TU830V1 Extended Module Termination Unit for S800 I/O Systems

The ABB TU830V1 (3BSE013234R1) is a robust extended module termination unit engineered for the S800 I/O series, supporting up to 16 I/O channels with 50V process voltage capability. This DIN rail-mounted MTU provides complete field wiring infrastructure including 3-wire connections, integrated fusing (6.3A per group), and ModuleBus signal distribution, enabling rapid installation and reliable operation in 800xA DCS, AC800M PLC, and industrial automation systems across process, manufacturing, and marine applications.

⚡ Technical Specifications

🏭 System Integration Applications

800xA DCS Distributed I/O: Terminates S800 I/O modules (AI810, DI840, DO820, AO815) in power plants, refineries, and chemical facilities where 500-5000 I/O points require organized field wiring with integrated fusing, reducing panel space by 40% versus traditional terminal blocks and eliminating external fuse holders.

AC800M PLC Systems: Provides field connection infrastructure for AC800M controllers in manufacturing automation, packaging lines, and material handling where modular I/O expansion from 32 to 2048 points demands standardized termination units enabling 30-minute module replacement without rewiring.

Marine & Offshore Platforms: Certified by ABS, BV, DNV-GL, and LR for shipboard automation, offshore drilling rigs, and FPSO vessels where vibration-resistant screw terminals and corrosion protection (ISA-S71.04 G3) ensure reliable operation in harsh marine environments with salt spray and temperature cycling.

Hazardous Area Control: ATEX Zone 2 and C1 Div 2/Zone 2 cULus approved for installation in classified locations (oil & gas, chemical processing) where intrinsically safe and non-incendive circuits require certified termination infrastructure preventing ignition sources in explosive atmospheres.

⚙️ Design Advantages

Mechanical Keying System: Physical coding prevents insertion of incompatible I/O modules, eliminating 90% of commissioning errors caused by incorrect module placement and ensuring fail-safe configuration in systems with 50+ mixed analog/digital I/O cards across multiple cabinets.

Integrated Fusing & Power Distribution: Built-in 6.3A fuses per isolated group protect field circuits from short circuits and overloads without external fuse blocks, reducing BOM costs by $15-30 per I/O point and simplifying troubleshooting through visual fuse status indication.

ModuleBus Signal Distribution: Automatic addressing and bus signal routing eliminate manual jumper configuration, reducing installation time from 45 minutes to 10 minutes per termination unit and preventing addressing conflicts in large distributed I/O networks spanning 100+ meters.

Hot-Swappable I/O Modules: Field-replaceable modules without power-down enable online maintenance and upgrades, maintaining 99.9% system availability in continuous processes where unplanned shutdowns cost $50K-500K per hour in lost production and equipment damage.

🌍 Environmental & Certifications

• Operating Temp: 0°C to +55°C (up to +55°C both mounting directions)
• Storage Temp: -40°C to +70°C
• Humidity: 5-95% RH non-condensing
• Certifications: CE, cULus, ATEX Zone 2, C1 Div 2, Marine (ABS/BV/DNV-GL/LR)
• Standards: EN 61010-1, UL 61010-1, IEC 60664-1, EN 50178

🔌 Compatible S800 I/O Modules

AI810, AI815, AI820, AI830, AI830A, AI835, AI835A, AI843, AI845, AO810, AO810V2, AO815, AO820, AO845, AO845A, DI810, DI811, DI814, DI818, DI830, DI831, DI840, DI880, DI885, DO810, DO814, DO815, DO818, DO840, DO880, DP820, DP840

📦 Unit Package

• 1× ABB TU830V1 Extended Module Termination Unit
• Integrated fuses (6.3A per group)
• DIN rail mounting clip with grounding latch
• Installation manual and wiring diagram

Genuine ABB product with global service support. Essential for DCS/PLC engineers, panel builders, and instrumentation technicians managing S800 I/O infrastructure in 800xA, AC800M, and industrial control systems. Compatible with all S800 I/O modules and certified for marine, hazardous area, and industrial automation applications.
