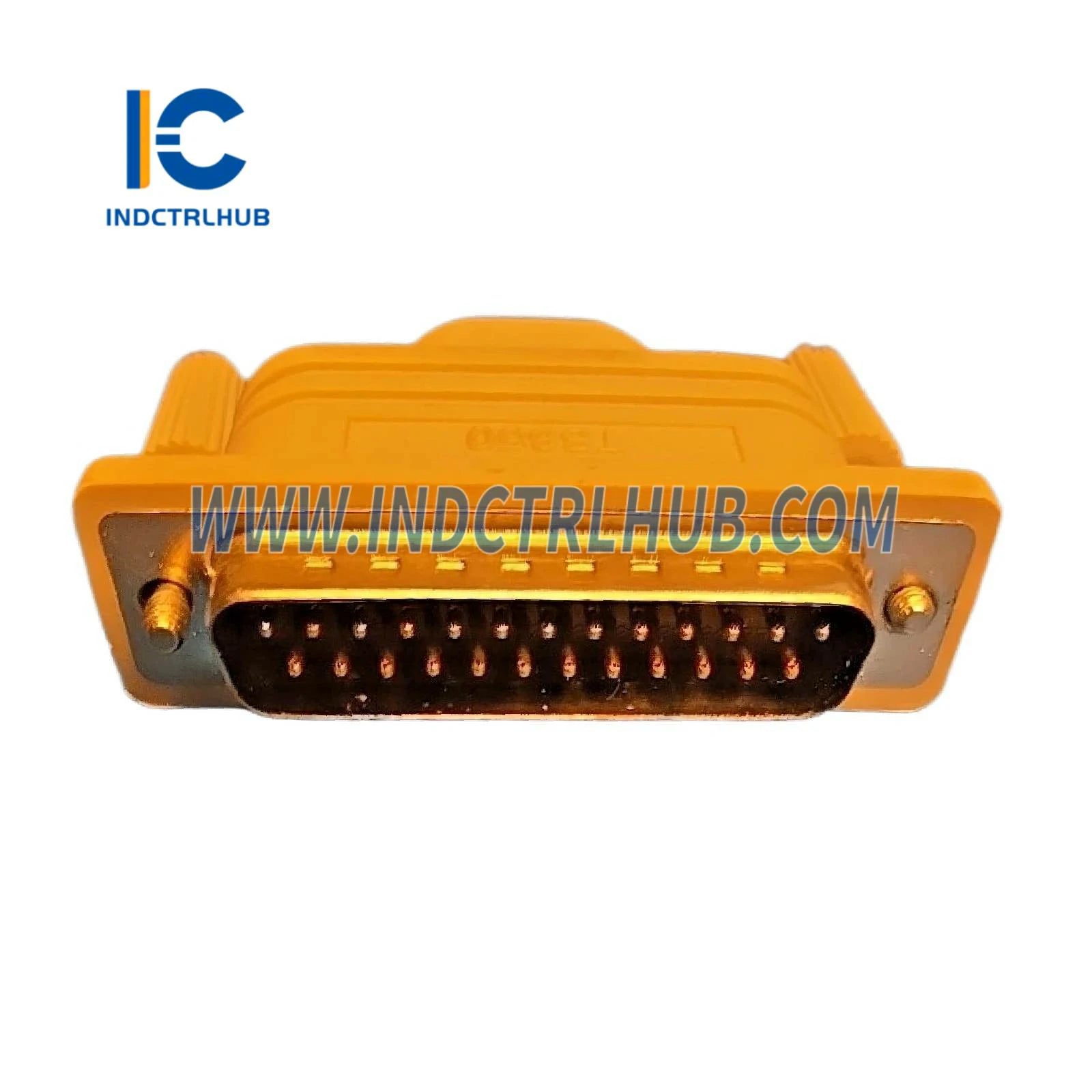

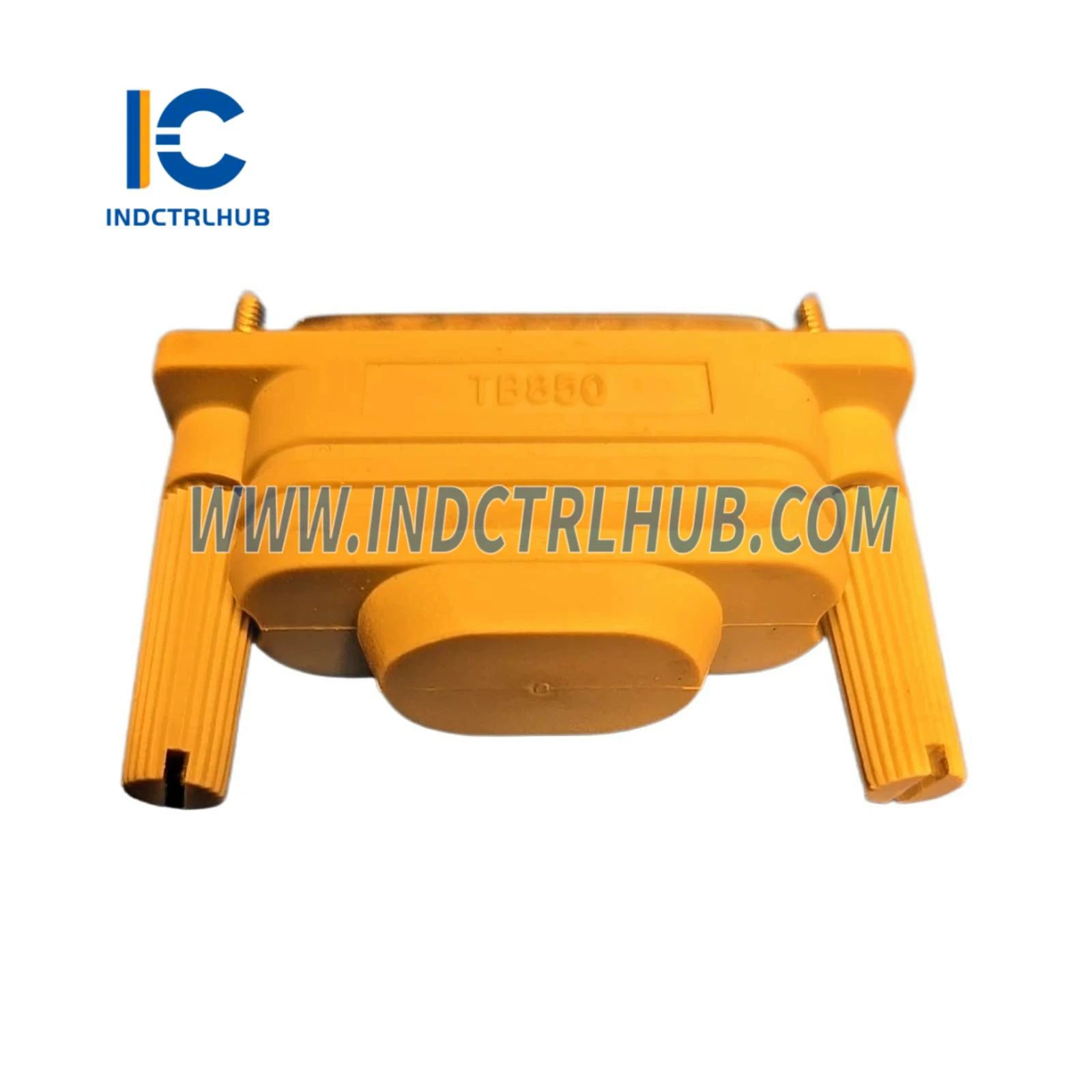

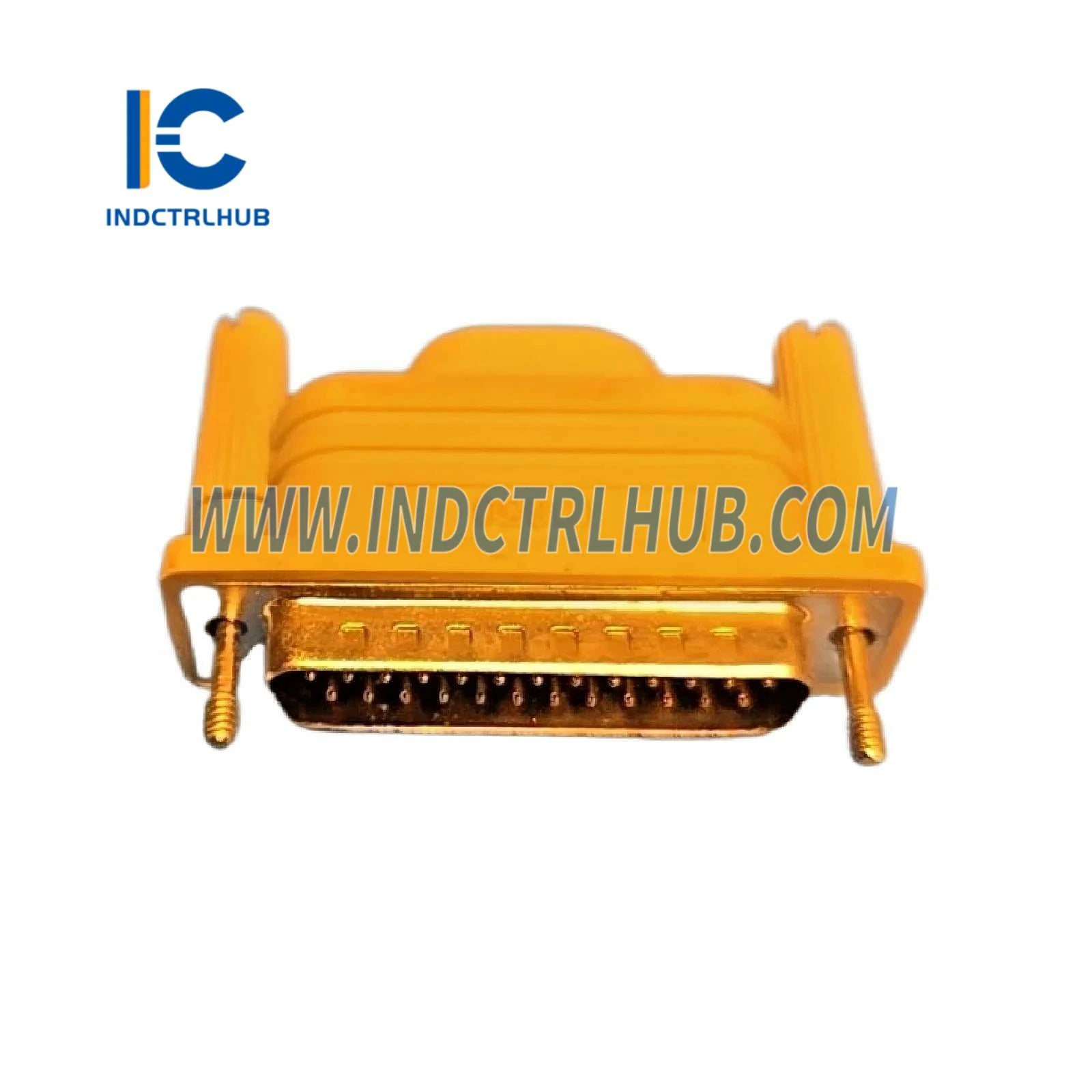

ABB TB850 CEX-Bus Terminator 3BSC950193R1
ABB TB850 CEX-Bus Terminator 3BSC950193R1
Manufacturer: ABB
Product No.: 3BSC950193R1
Condition:1000 in stock
Product Type: Bus Terminator
Product Origin: 8506950193001
Payment: T/T, Western Union
Weight: 1000g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
ABB TB850 CEX-Bus Terminator - High-Availability Control System Component
The ABB TB850 (3BSC950193R1) is a precision-engineered CEX-Bus terminator designed for AC 800M high-integrity control architectures. This termination module ensures signal integrity and electromagnetic compatibility across redundant controller configurations, preventing reflections and maintaining data fidelity in mission-critical process environments.
Technical Specifications
- Model Number: 3BSC950193R1
- Product Series: ABB AC 800M Controller Family
- Function: CEX-Bus Signal Termination
- Application: High-Availability Controller Networks
- Compatibility: AC 800M PM8xx Controllers
- Installation: DIN Rail Mountable
- Operating Temperature: 0°C to 60°C
Application Scenarios
Deploy the TB850 terminator in redundant AC 800M configurations where dual-controller setups require proper bus termination. Ideal for pharmaceutical batch control, petrochemical safety systems, power generation turbine control, and water treatment SCADA networks. The terminator maintains signal quality across extended CEX-bus cable runs up to 100 meters between controller pairs.
Solution Benefits
Eliminates signal reflection artifacts that can cause communication errors in high-speed controller exchanges. Ensures deterministic scan times and failover reliability in redundant architectures. Reduces electromagnetic interference susceptibility, critical for installations near VFDs or high-power switching equipment. Simplifies commissioning with plug-and-play installation requiring no configuration.
Integration & Compatibility
Works seamlessly with PM8xx series controllers including PM891, PM891K01, PM893, and PM893F. Compatible with Control Builder M engineering environment for system diagnostics. Supports both simplex and redundant controller topologies without firmware dependencies.
