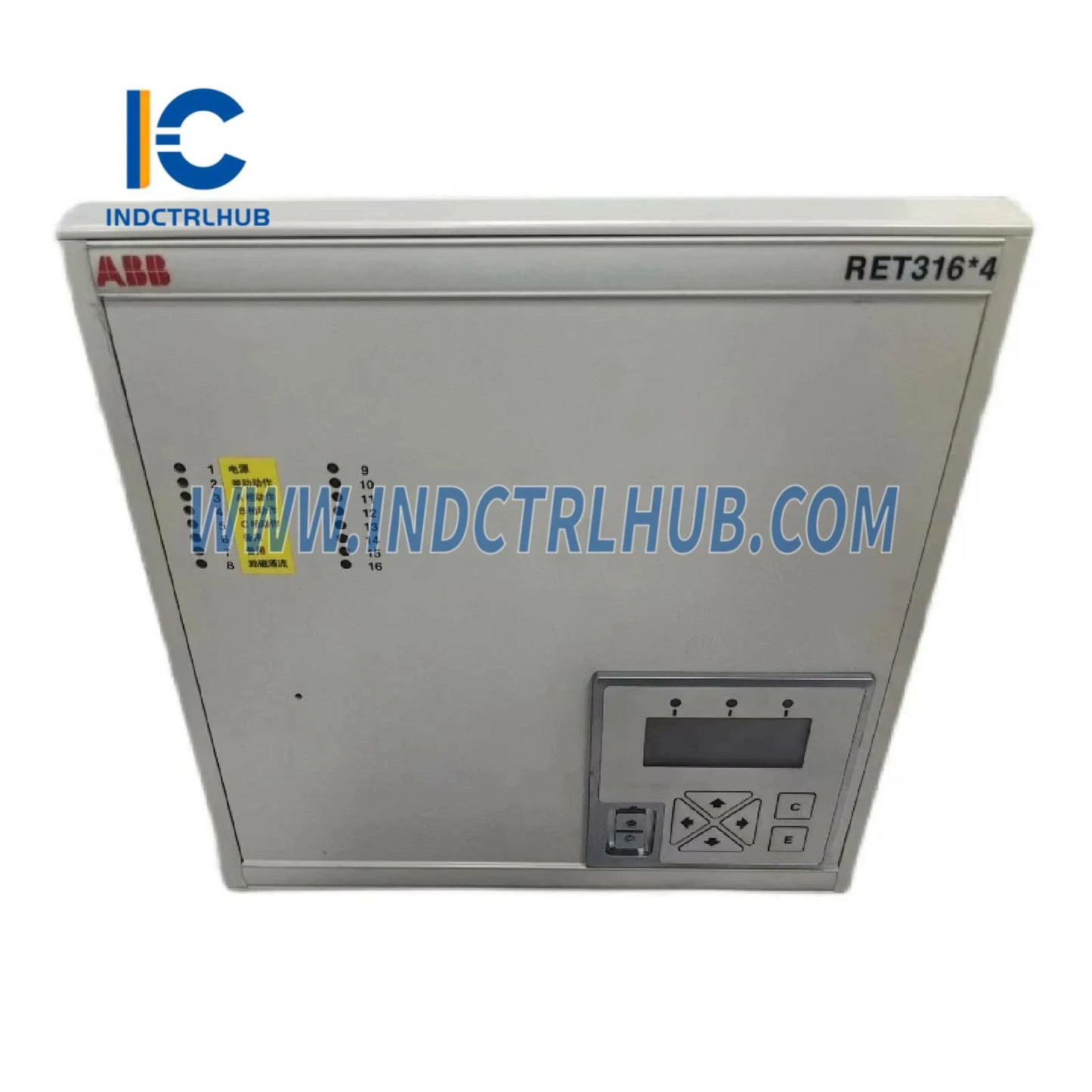

ABB RET316*4 Numerical Transformer Protection Relay - Advanced Differential Protection Solution

The ABB RET316*4 (HESG448750M2) represents state-of-the-art numerical protection technology engineered for comprehensive transformer fault detection and isolation. This microprocessor-based relay provides fast, selective differential protection for two- and three-winding power transformers, auto-transformers, and block generator-transformer units across utility substations, industrial power distribution, and renewable energy installations requiring IEC 60255-compliant protection schemes.

Technical Specifications

Differential Protection Technology

Percentage Differential Algorithm: The RET316*4 implements sophisticated percentage differential protection (87T) that compares current magnitudes and phase angles between transformer windings. The relay calculates differential current (operating quantity) and restraint current (stabilizing quantity) to distinguish between internal faults requiring immediate tripping and external faults or inrush conditions that should be ignored.

Harmonic Restraint: Advanced second-harmonic restraint algorithms prevent false tripping during transformer energization when magnetizing inrush current can reach 8-10 times rated current. The relay analyzes harmonic content in real-time, blocking trip signals when second-harmonic components exceed configurable thresholds (typically 15-20% of fundamental).

CT Saturation Detection: Built-in algorithms detect current transformer (CT) saturation during heavy through-fault conditions, preventing sympathetic tripping due to CT errors. This feature maintains protection security during external faults while ensuring dependability for internal faults.

Protection Functions & Capabilities

Restricted Earth Fault (REF): Provides sensitive ground fault detection for wye-connected transformer windings by comparing neutral current with sum of phase currents. This zero-sequence differential scheme detects low-magnitude ground faults within the protected zone that might not operate main differential protection.

Overcurrent Protection (50/51): Time-delayed and instantaneous overcurrent elements provide backup protection for transformer and downstream faults. Configurable ANSI/IEC curves (normal inverse, very inverse, extremely inverse) coordinate with upstream and downstream protective devices.

Thermal Overload Protection (49): Thermal replica algorithm models transformer winding temperature based on load current and ambient conditions. Pre-alarm and trip stages prevent insulation degradation from sustained overload conditions.

Voltage Protection (27/59): Overvoltage and undervoltage elements protect against abnormal system conditions including loss of load, ferroresonance, and voltage regulator failures. Three-phase and single-phase monitoring with adjustable time delays.

Industrial Applications

Utility Substations: Protects distribution and transmission transformers from 10 MVA to 500 MVA in utility networks. The relay's high availability design (mean time in service approaching 1.0) ensures continuous protection for critical grid infrastructure.

Industrial Power Distribution: Safeguards plant transformers in chemical facilities, steel mills, mining operations, and manufacturing plants where transformer failures result in production losses exceeding millions of dollars. Fast fault clearing minimizes equipment damage and arc flash hazards.

Renewable Energy Installations: Protects step-up transformers in wind farms and solar power plants, coordinating with generator protection and grid interconnection requirements. Supports low-voltage ride-through (LVRT) and frequency ride-through (FRT) compliance.

Generator-Transformer Units: Provides unit protection for block generator-transformer configurations in combined-cycle power plants, cogeneration facilities, and independent power producers. Integrated protection eliminates need for separate generator and transformer relays.

Auto-Transformer Applications: Handles complex protection requirements for auto-transformers including tertiary winding protection, neutral current compensation, and zero-sequence current filtering.

System Integration & Configuration

The RET316*4 features modular software architecture enabling customized protection schemes through parameter configuration rather than hardware changes. Engineering software (typically ABB's PCM600 or legacy tools) provides graphical interface for setting adjustments, logic customization, and event analysis.

CT Ratio Compensation: Software-based CT ratio matching eliminates need for interposing transformers when primary and secondary CT ratios differ. The relay performs digital scaling to normalize currents before differential calculation.

Vector Group Compensation: Automatic phase angle compensation for transformer vector groups (Dyn11, Yy0, Yd1, etc.) ensures proper differential current calculation regardless of winding connections. Configurable settings accommodate all standard and non-standard transformer configurations.

Communication Integration: Serial communication ports enable integration with SCADA systems, substation automation platforms, and remote monitoring applications. Event records, fault reports, and oscillography data accessible via communication links.

Diagnostic & Monitoring Features

• Continuous Self-Supervision: Microprocessor watchdog timers, memory checks, and I/O monitoring detect internal relay failures, initiating alarm outputs and fail-safe trip logic when configured
• Event Recording: Time-stamped event logs capture protection operations, alarm conditions, and setting changes with 1ms resolution for post-fault analysis
• Oscillography: Digital fault recorder captures voltage and current waveforms during disturbances, providing data for fault location and system analysis
• Metering Functions: Real-time display of phase currents, voltages, power, and energy for operational monitoring and load management
• LED Indicators: Front-panel LEDs display relay status, protection element operations, and alarm conditions for local troubleshooting
• Test Mode: Built-in test functions enable commissioning verification and periodic functional testing without removing relay from service

Installation & Commissioning

The RET316*4 mounts in standard 19" relay panels using 4U rack-mount hardware. Rear-mounted terminal blocks accept CT secondary circuits (1A or 5A nominal), VT inputs, binary inputs, and trip/alarm outputs. Removable terminal blocks facilitate pre-wiring and hot-swap replacement during maintenance.

CT Connection Requirements: Supports wye or delta CT connections with software-selectable polarity. CT burden typically <0.5 VA per phase at rated current. Minimum CT accuracy class: 5P20 for differential protection, 10P20 for overcurrent backup.

Commissioning Procedure: Includes CT polarity verification, ratio checks, differential slope testing, and harmonic restraint validation. Secondary injection testing confirms protection element settings and trip logic before energization.

Quality & Compliance

Manufactured to ISO 9001 quality standards, each RET316*4 relay undergoes factory testing including:

• Differential element accuracy verification across operating range
• Harmonic restraint characteristic validation
• Timing accuracy checks for all protection elements
• Environmental stress screening (temperature cycling, vibration)
• EMC immunity testing per IEC 61000-4 series

Type Testing: Complies with IEC 60255 series standards for measuring relays and protection equipment, including dielectric withstand, impulse voltage, and electromagnetic compatibility requirements.

Related Products

Maintenance & Service Life

The RET316*4 features solid-state design with no moving parts except output relay contacts, minimizing maintenance requirements. Recommended inspection intervals include annual visual checks, biennial functional testing, and 5-year comprehensive commissioning verification.

Mean Time Between Failures (MTBF): Exceeds 50 years based on component reliability data and field experience. High availability design ensures protection system dependability approaches 100%.

Firmware Updates: Software upgrades available through ABB service channels to enhance functionality, add features, or address field-identified issues. Backward compatibility maintained for existing installations.

Why Choose Industrial Control Hub?

We specialize in ABB protection relay systems with comprehensive inventory of legacy and current-generation products. Every RET316*4 relay ships with installation documentation, setting calculation guides, and technical support access. Our engineering team provides application assistance for protection coordination studies, relay setting calculations, and commissioning support.

Emergency Availability: Expedited shipping available for critical substation failures requiring immediate replacement. 24/7 technical hotline staffed by protection engineers familiar with ABB relay platforms and utility protection standards.

Quality Assurance: All relays undergo incoming inspection and functional testing before shipment. We maintain inventory across multiple distribution centers for rapid delivery supporting emergency replacements and planned projects.
