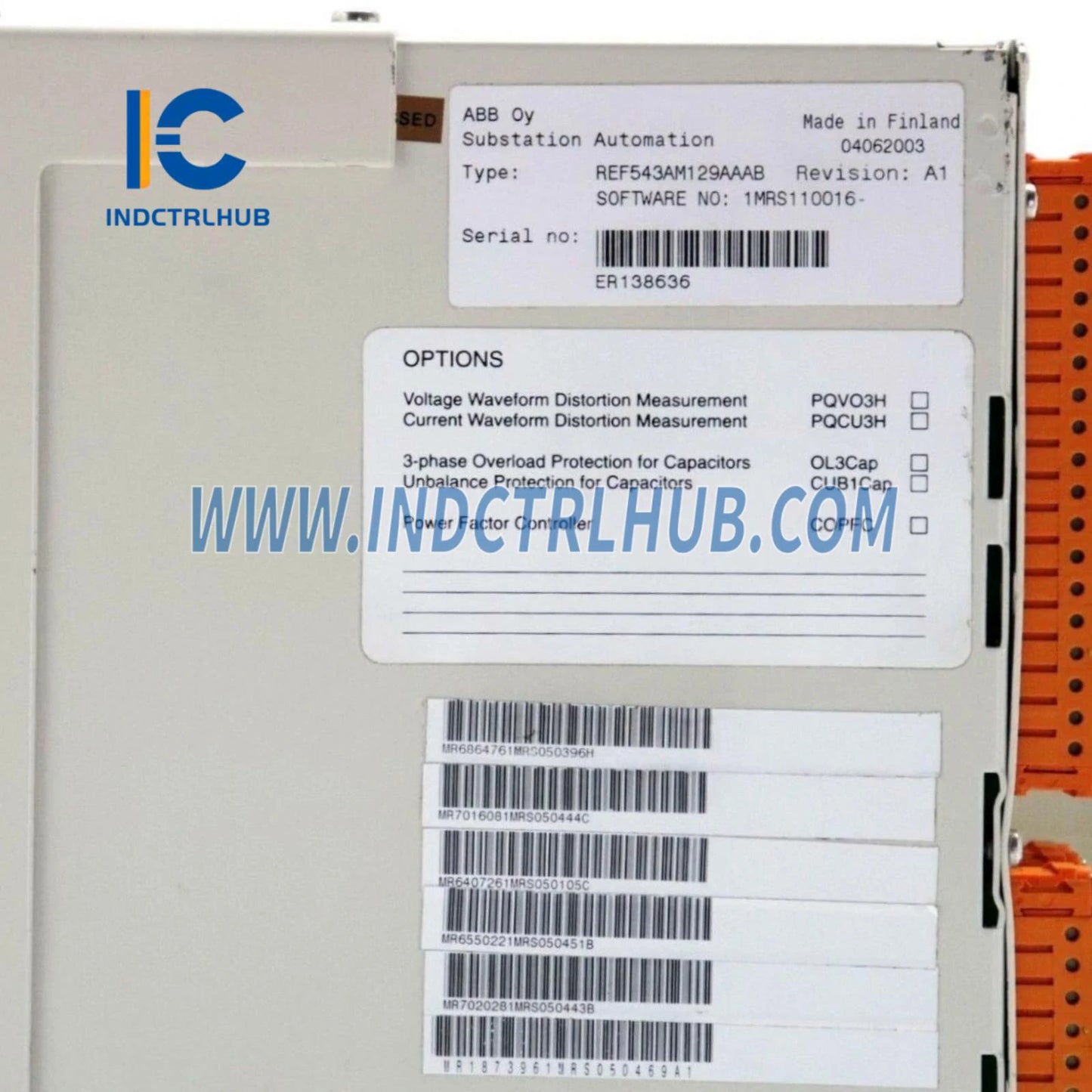

ABB REF543 Feeder Protection & Control Relay

ABB REF543 Feeder Protection and Control Relay – Intelligent Distribution Network Protection

The ABB REF543 is a versatile numerical protection relay engineered for comprehensive feeder protection, control, and monitoring in medium-voltage distribution networks. As part of ABB's proven Relion® protection relay family, the REF543 combines multi-functional overcurrent and earth fault protection with advanced communication capabilities, delivering reliable grid protection for utilities, industrial facilities, and renewable energy installations.

Protection Functions & Capabilities

• Non-Directional Overcurrent (50/51): Instantaneous and time-delayed phase overcurrent protection with definite-time and inverse-time characteristics
• Directional Overcurrent (67): Forward/reverse power flow detection for selective coordination in looped distribution systems
• Earth Fault Protection (50N/51N/67N): Sensitive ground fault detection with directional capability for high-resistance grounded systems
• Voltage Protection (27/59): Under-voltage and over-voltage monitoring with adjustable time delays
• Sequence Component Protection: Negative and zero-sequence detection for unbalanced load and fault conditions
• Thermal Overload (49): Thermal replica modeling prevents conductor and equipment damage from sustained overloads
• Frequency Protection (81O/U): Over/under frequency monitoring for grid stability applications
• Circuit Breaker Failure (50BF): Backup protection initiates remote tripping when local breaker fails to clear faults

Technical Specifications

• Current Inputs: 3-phase + neutral current measurement (1A or 5A nominal)
• Voltage Inputs: 3-phase voltage measurement (phase-to-phase or phase-to-neutral)
• Binary Inputs: 16 configurable digital inputs for status monitoring and interlocking
• Output Contacts: 10 relay outputs (Form-A or Form-C) rated for breaker control and alarm signaling
• Communication Ports: Dual Ethernet (IEC 61850 Ed2, DNP3, Modbus TCP), dual serial (SPA, IEC 60870-5-103)
• Power Supply: 24-265 VAC/VDC or 48-265 VDC universal input
• Operating Temperature: -25°C to +55°C (industrial-grade reliability)
• Mounting: 4U 19" rack mount or panel mount (177 mm × 177 mm × 144 mm)
• Front Panel: IP54 protection rating with LCD display and keypad interface
• Standards Compliance: IEC 60255, ANSI/IEEE C37.2, CE, UL, CSA certified

Measurement & Monitoring Features

• Real-Time Metering: Continuous measurement of RMS current, voltage, active/reactive power, power factor, and frequency
• Energy Metering: Accumulated energy (kWh/kVARh) for billing and load profiling applications
• Demand Metering: Peak demand tracking with programmable integration periods
• Harmonic Analysis: THD measurement up to 31st harmonic for power quality assessment
• Event Recording: Time-stamped event logs with 1 ms resolution for fault analysis
• Disturbance Recording: Waveform capture with pre-fault and post-fault data for detailed forensics

Application Scenarios & Solutions

Utility Distribution Networks: Deploy in primary and secondary distribution substations to protect radial and ring-main feeders serving residential, commercial, and industrial loads. The REF543's directional overcurrent functions enable selective fault isolation in meshed networks, minimizing outage scope and accelerating service restoration. Utilities benefit from IEC 61850 integration with SCADA systems for centralized monitoring and automated fault location.

Industrial Power Systems: Protect medium-voltage feeders supplying critical manufacturing processes, data centers, and mining operations. The relay's thermal overload protection prevents motor and transformer damage from sustained overloads, while circuit breaker failure protection provides backup tripping to upstream devices. Configurable logic schemes support complex interlocking requirements for safe equipment operation.

Renewable Energy Installations: Safeguard collector feeders in solar farms and wind parks where distributed generation creates bidirectional power flows. Directional protection elements distinguish between grid faults and inverter faults, preventing nuisance tripping during normal operation. The REF543's voltage and frequency protection functions support grid code compliance for interconnection standards.

Infrastructure & Transportation: Ensure reliable power delivery in railway electrification systems, airport terminals, and seaport facilities. The relay's wide operating temperature range and IP54 front panel withstand harsh environmental conditions, while dual communication interfaces enable integration with legacy and modern automation architectures.

IEC 61850 Substation Automation Integration

• GOOSE Messaging: Peer-to-peer communication for high-speed interlocking and distributed protection schemes
• MMS Reporting: Client-server data exchange for SCADA integration and remote configuration
• Sampled Values (SV): Process bus compatibility for non-conventional instrument transformer applications
• ICD/CID Files: Standardized configuration files accelerate engineering and commissioning workflows
• Time Synchronization: SNTP/PTP support ensures accurate event time-stamping across substation IEDs

Related Feeder Protection & Control Products

Engineering & Commissioning Tools

PCM600 Software: ABB's Protection and Control IED Manager provides a unified engineering environment for relay configuration, testing, and documentation. The software supports offline parameter editing, IEC 61850 system configuration, and disturbance record analysis.

Test Mode Functions: Built-in test modes enable safe commissioning without affecting live operations. Technicians can inject test signals, verify protection settings, and validate communication links before energizing equipment.

Self-Supervision: Continuous internal diagnostics monitor relay health, power supply status, and communication integrity. Automatic alarm generation alerts operators to potential issues before they impact protection performance.

Cybersecurity & Access Control

• Role-Based Authentication: Multi-level password protection restricts configuration access to authorized personnel
• Encrypted Communications: TLS/SSL support secures data transmission over Ethernet networks
• Audit Trail Logging: Comprehensive event logs track all configuration changes and access attempts
• IEC 62351 Compliance: Meets international cybersecurity standards for power system communication

Maintenance & Lifecycle Support

• Firmware Updates: Field-upgradable firmware via Ethernet or USB interface adds new features and security patches
• Spare Parts Availability: ABB maintains global inventory of replacement modules and accessories
• Calibration: Factory-calibrated to IEC 60255 accuracy class; no field calibration required
• Warranty: Standard 24-month manufacturer warranty with optional extended service agreements
• Technical Support: 24/7 global support hotline and regional application engineering assistance

Why Choose Industrial Control Hub?

• ✓ Genuine ABB Products: Factory-sealed relays with full manufacturer traceability and warranty
• ✓ Global Shipping: Express delivery to worldwide destinations with comprehensive tracking
• ✓ Expert Support: Application engineering assistance for protection coordination and system integration
• ✓ Competitive Pricing: Direct sourcing ensures optimal value for substation modernization projects
• ✓ Quality Assurance: All products tested and certified to international standards

Order Information

• Part Number: REF543 (multiple configuration variants available)
• Availability: In stock – ready for immediate shipment
• Lead Time: 3-5 business days (standard shipping)
• Package Contents: Protection relay, mounting hardware, quick installation guide, PCM600 software license
• Minimum Order Quantity: 1 unit
• Documentation: Complete technical manuals, application notes, and IEC 61850 ICD files provided
