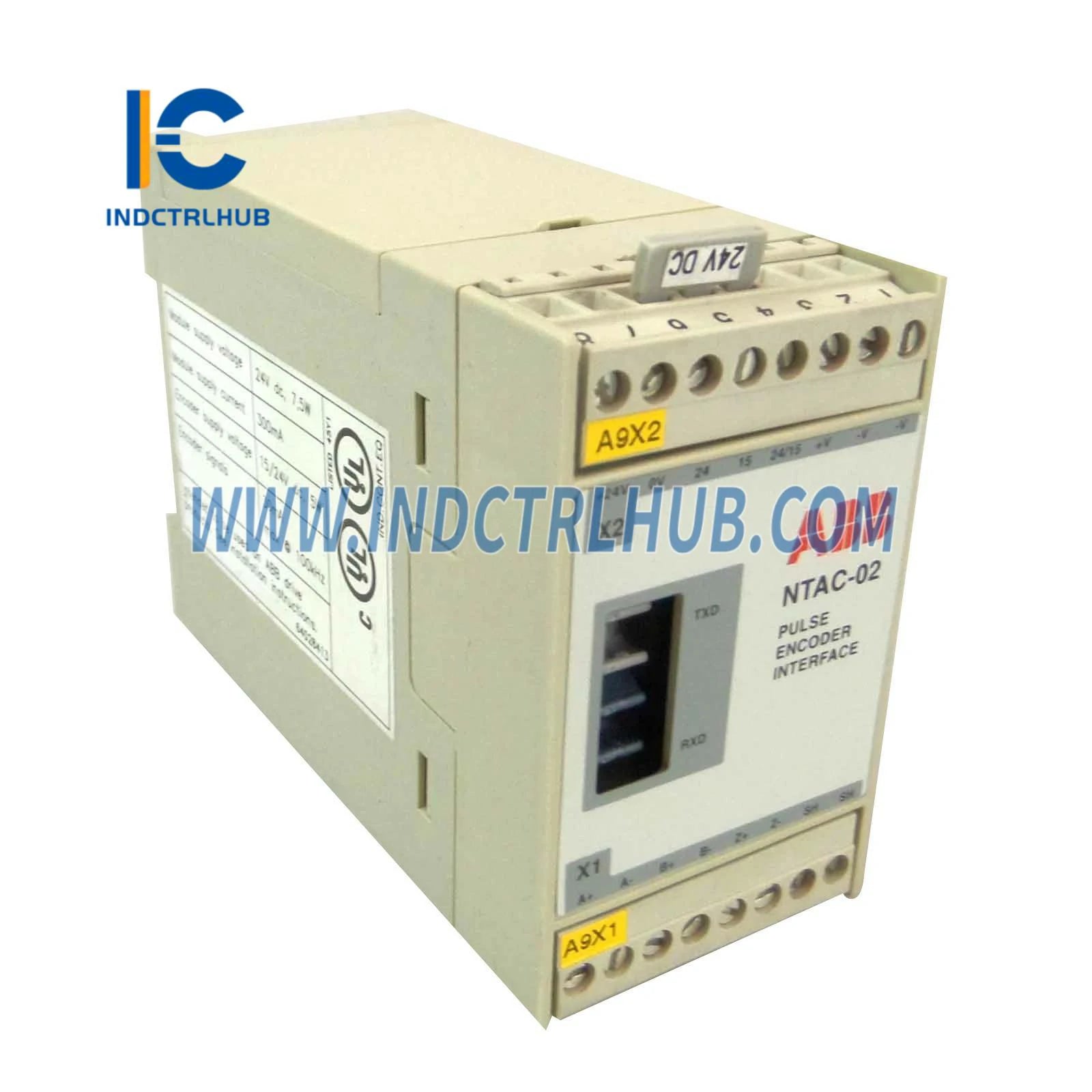

ABB NTAC-02 Pulse Encoder Interface Module

ABB NTAC-02 Pulse Encoder Interface Module for ACS Drive Systems

The ABB NTAC-02 Pulse Encoder Interface Module provides critical motor feedback integration for ABB ACS600 and ACS800 series variable frequency drives. Engineered to process incremental encoder signals with high precision, this interface module enables closed-loop speed and position control essential for demanding industrial applications including cranes, elevators, extruders, and precision machinery requiring accurate motor control across manufacturing, material handling, and process automation environments.

Core Technical Specifications

• Encoder Compatibility: Incremental pulse encoders (A, B, Z channels)
• Drive Compatibility: ABB ACS600, ACS800 series variable frequency drives
• Input Frequency: Up to 300 kHz maximum pulse rate
• Signal Types: Differential (RS-422) and single-ended (TTL) inputs
• Resolution: Supports encoders from 100 to 10,000 pulses per revolution
• Supply Voltage: 24 VDC encoder power output
• Isolation: Galvanic isolation between encoder and drive circuits
• Diagnostic Features: Encoder fault detection, signal quality monitoring
• Operating Temperature: -10°C to +50°C ambient
• Mounting: Plug-in module for ACS drive control board
• LED Indicators: Power, signal status, fault indication
• Protection Rating: IP20 for panel mounting applications

Advanced Encoder Signal Processing

The NTAC-02 incorporates sophisticated signal conditioning and processing capabilities essential for reliable motor feedback in demanding industrial applications:

• High-Frequency Signal Processing: 300 kHz maximum input frequency enables use of high-resolution encoders delivering precise speed and position feedback for applications requiring sub-RPM accuracy and smooth low-speed operation
• Differential Input Architecture: RS-422 differential signaling provides superior noise immunity in electrically harsh environments with VFD switching noise, enabling reliable encoder signal transmission over extended cable runs up to 100 meters
• Galvanic Isolation: Complete electrical isolation between encoder circuits and drive power electronics prevents ground loops and protects sensitive encoder electronics from voltage transients and fault conditions
• Automatic Signal Validation: Continuous monitoring of encoder signal quality including phase relationship, pulse symmetry, and signal amplitude with automatic fault detection and drive trip on encoder failure
• Flexible Encoder Support: Configurable for various encoder types and resolutions from 100 to 10,000 PPR through drive parameter settings without hardware modifications
• Index Pulse Processing: Z-channel (index) pulse detection enables absolute position referencing for applications requiring homing sequences and position synchronization

Industrial Motion Control Applications

This encoder interface module addresses critical feedback requirements across diverse industrial applications where precise motor control directly impacts product quality, process efficiency, and operational safety:

• Crane & Hoist Systems: Provides accurate speed feedback for load positioning and anti-sway control in overhead cranes, gantry cranes, and material handling hoists requiring smooth acceleration and precise load placement
• Elevator & Escalator Drives: Enables precise speed regulation and floor leveling in passenger and freight elevators with closed-loop control maintaining ride comfort and positioning accuracy within ±5mm
• Extruder Speed Control: Delivers stable speed feedback for plastic and rubber extruders maintaining consistent material throughput and product dimensions through precise screw speed regulation
• Winder & Unwinder Applications: Supports tension control and speed synchronization in web processing equipment including paper machines, textile winders, and film production lines
• Conveyor Synchronization: Enables coordinated speed control across multiple conveyor sections in packaging lines, sortation systems, and automated warehouses requiring precise material flow
• Machine Tool Spindles: Provides speed feedback for CNC machine tool spindle drives requiring constant surface speed control and thread cutting synchronization
• Test Stand Dynamometers: Supports precise speed control in motor and engine test stands requiring accurate torque-speed curve mapping and performance validation

ACS Drive System Integration

The NTAC-02 integrates seamlessly within ABB ACS600 and ACS800 drive architectures, mounting directly on the drive control board and connecting to motor-mounted encoders via shielded twisted-pair cables. The module communicates encoder feedback to the drive's vector control algorithms, enabling closed-loop speed regulation, torque control, and position management. Configuration through DriveWindow or DriveStudio software enables encoder parameter setup, scaling, and diagnostic threshold configuration.

Engineering Design Excellence

• Hot-Swappable Design: Module replacement during drive operation in redundant configurations without motor shutdown through automatic encoder signal switchover
• Comprehensive Diagnostics: Real-time encoder health monitoring including signal loss detection, phase error identification, and cable fault indication for proactive maintenance
• Flexible Configuration: Software-based encoder type selection, resolution setting, and direction reversal without hardware jumpers or DIP switches
• EMC Compliance: Robust electromagnetic immunity design withstands industrial noise from welders, contactors, and adjacent VFDs per IEC 61800-3 drive standards
• Compact Form Factor: Space-efficient plug-in design minimizes control cabinet footprint while providing full encoder interface functionality
• Extended Service Life: Industrial-grade components and conservative design ensure >10-year operational life matching typical drive system lifecycles

Installation & Commissioning

The module installs by plugging into designated slot on ACS drive control board with keyed connector preventing incorrect insertion. Encoder wiring connects via removable terminal block accepting 18-24 AWG shielded cable with proper grounding for noise immunity. Configuration involves selecting encoder type, setting pulses per revolution, and configuring speed/position scaling through drive parameters—typically completed in 15-20 minutes. Commissioning includes encoder direction verification, signal quality check, and closed-loop tuning for optimal motor control performance.

Quality Standards & Compliance

Manufactured under ISO 9001:2015 quality management systems with complete component traceability and environmental testing. Complies with CE electromagnetic compatibility directives (EN 61800-3), UL 508C power conversion equipment standards, and IEC 61800-5-1 safety requirements for adjustable speed drives. Suitable for installation in industrial environments meeting IEC 60664-1 pollution degree 2 specifications. RoHS compliant with lead-free manufacturing processes.
