Product Description
General Information
-
Extended Product Type: DX531
-

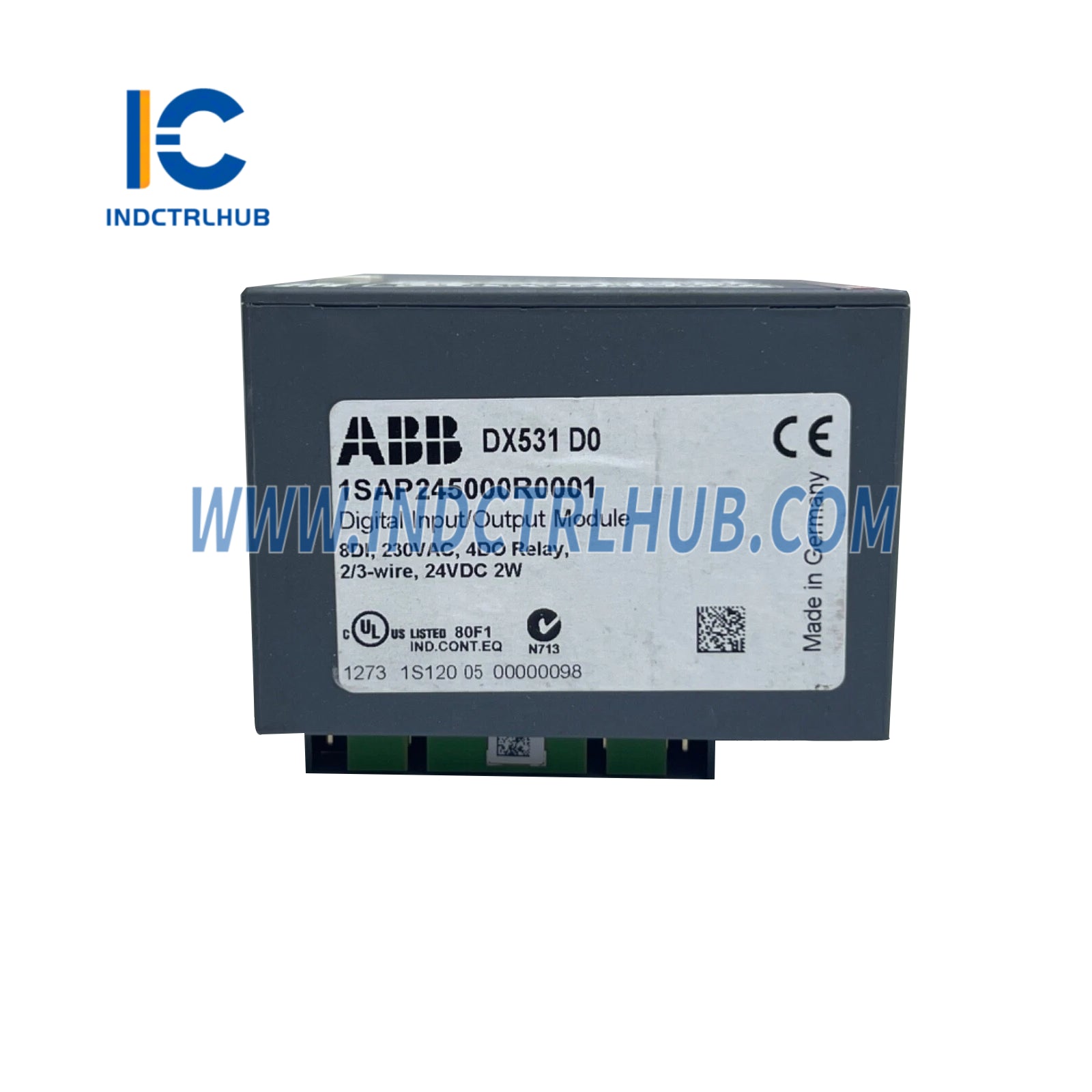

Product ID: 1SAP245000R0001
-
ABB Type Designation: DX531
-
EAN: 4016779650960
-

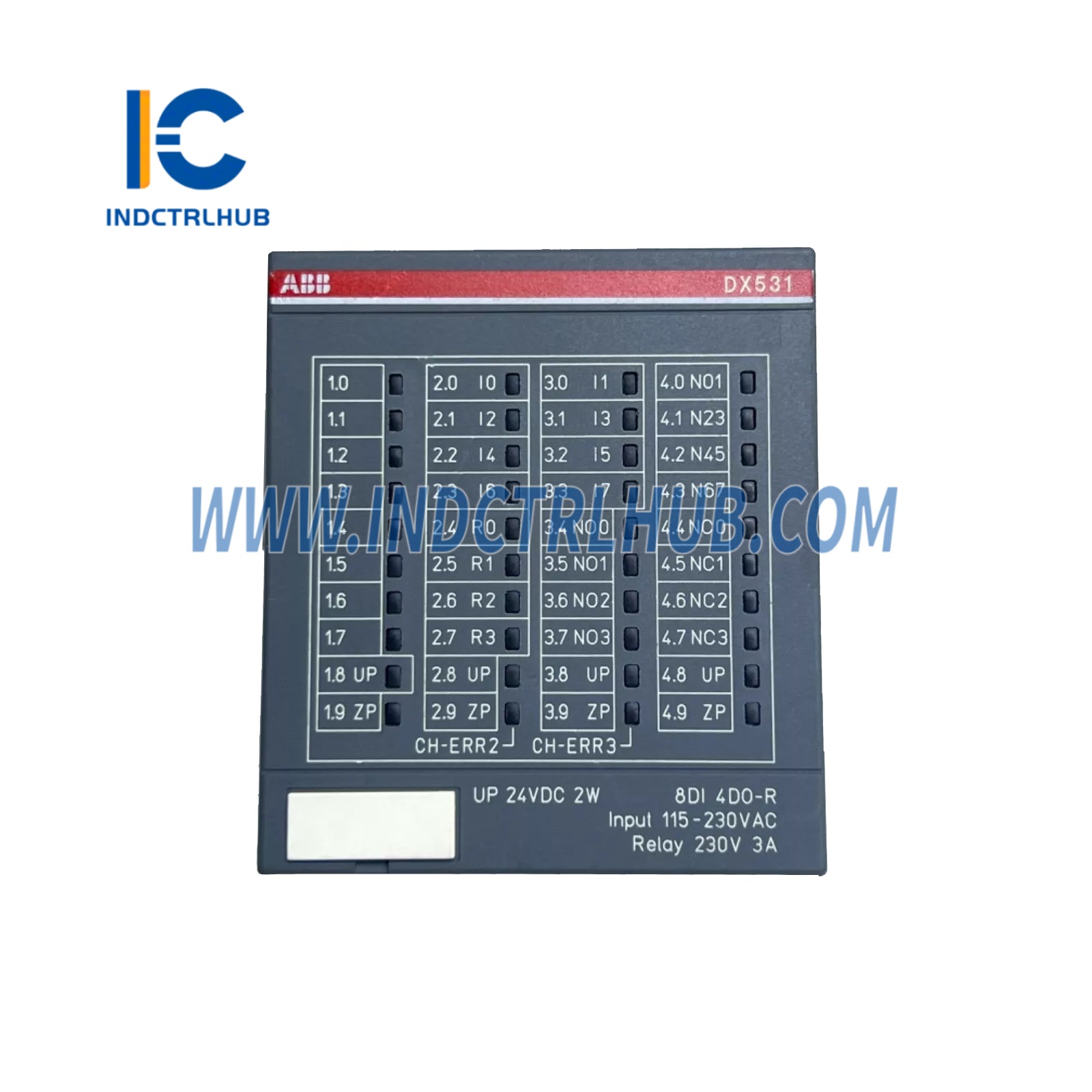

Catalog Description: Digital input/output module with 8 digital inputs and 4 relay digital outputs.
-
Long Description: The DX531 is an S500 series digital input/output module. It features 8 digital inputs compatible with 115-230V AC and 4 relay digital outputs rated for 230V AC and 3A. It uses a 2-wire connection.
Dimensions and Weight
| Characteristic | Value |
|---|---|
| Product Net Weight | 0.151 kg |
| Product Net Depth / Length | 62 mm |
| Product Net Height | 76 mm |
| Product Net Width | 67.5 mm |
| Gross Weight | 0.175 kg |
| Package Level 1 Depth / Length | 84 mm |
| Package Level 1 Height | 72 mm |
| Package Level 1 Width | 71 mm |
| Package Level 1 Units | 1 carton |
