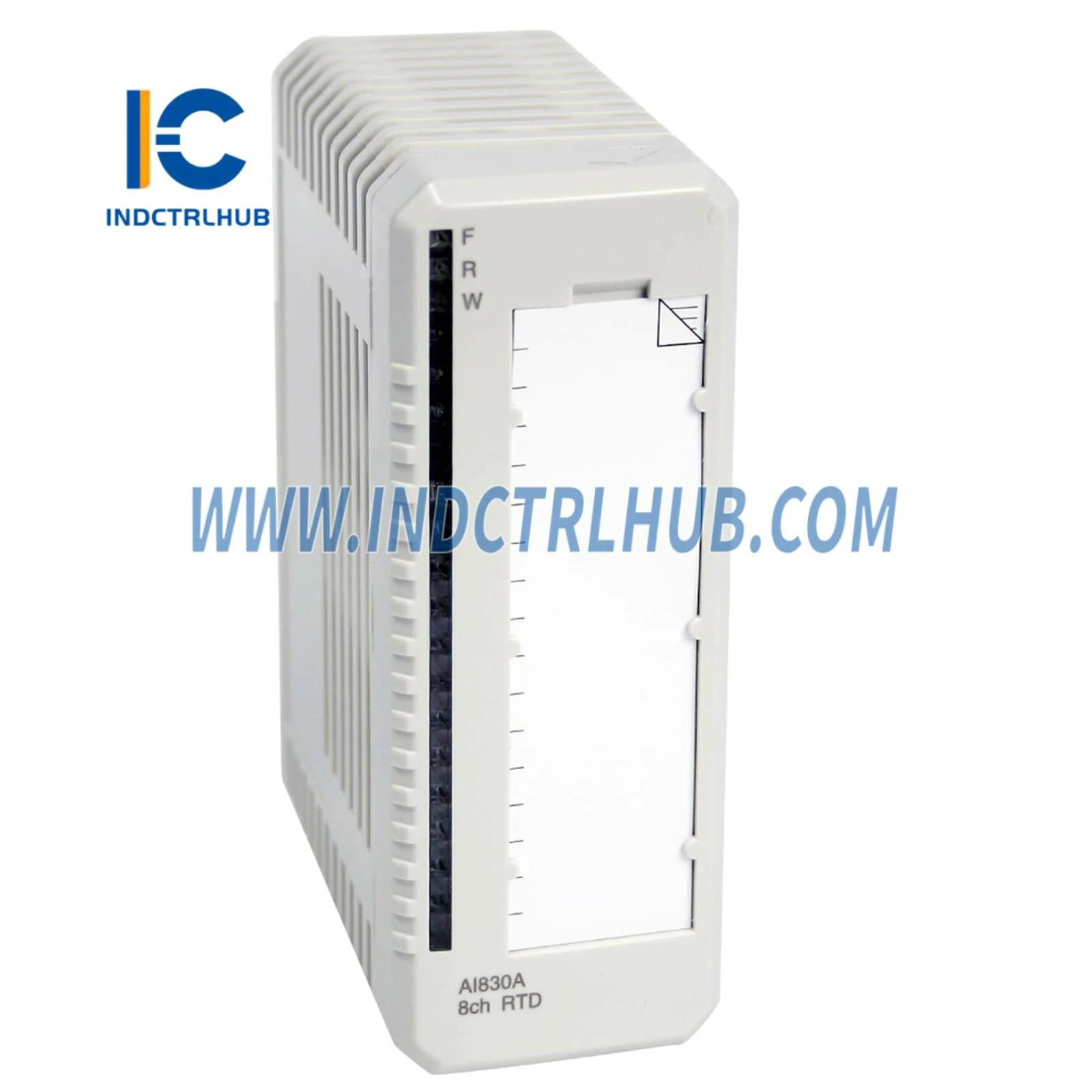

🌡️ ABB AI830A 8-Channel RTD Analog Input Module for Precision Temperature Measurement

The ABB AI830A (3BSE040662R1) is a high-precision 8-channel analog input module engineered for resistance temperature detector (RTD) signal acquisition in industrial process control and automation systems. Supporting Pt100, Ni100/120, and Cu10 RTD types, this module delivers accurate temperature measurements with excellent noise immunity and long-term stability, making it ideal for critical temperature monitoring in chemical processing, power generation, pharmaceutical manufacturing, and HVAC applications.

🔧 Module Specifications

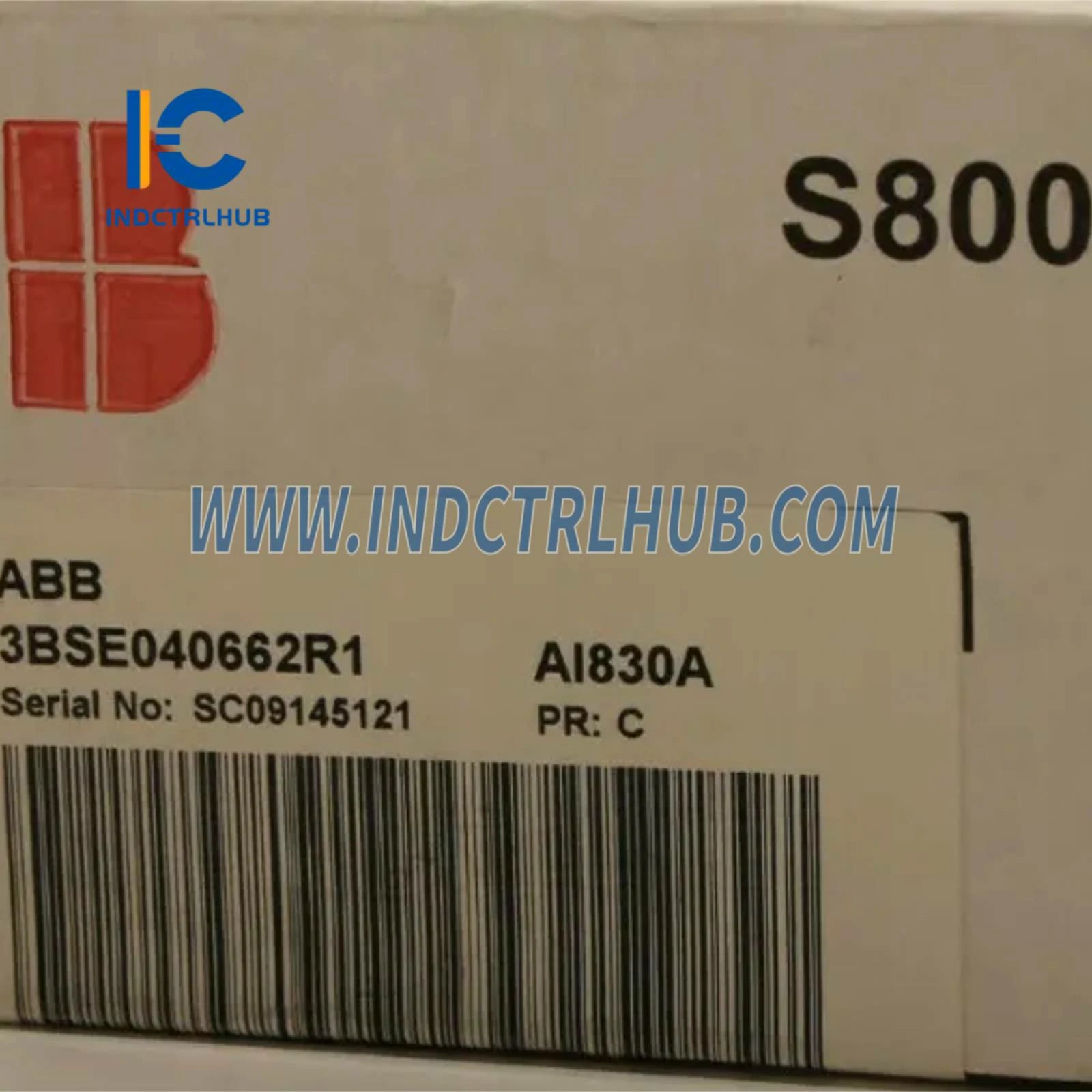

🔹 Part Number: 3BSE040662R1

🔹 Model: AI830A

🔹 Module Type: Analog Input (RTD)

🔹 Input Channels: 8× RTD inputs (individually configurable)

🔹 RTD Types: Pt100, Ni100, Ni120, Cu10

🔹 Connection: 2-wire, 3-wire, 4-wire RTD

🔹 Resolution: 16-bit A/D conversion

🔹 Accuracy: ±0.1°C typical (Pt100)

🔹 Isolation: Channel-to-channel and channel-to-bus

🔹 Compatible MTUs: TU810, TU812, TU814, TU830, TU833

🔹 System: ABB 800xA DCS, AC800M controllers

🔹 Dimensions: 45mm (W) × 119mm (H) × 102mm (D)

🔹 Weight: 0.3 kg

🔹 HS Code: 85389099

🏭 Temperature Monitoring Applications

Chemical Reactor Control: Monitors reaction temperatures in batch reactors, continuous stirred-tank reactors (CSTR), and polymerization vessels where ±0.5°C accuracy is critical for yield optimization, product quality, and exothermic reaction safety—preventing runaway conditions that could cause explosions or toxic releases in pharmaceutical and specialty chemical manufacturing.

Power Plant Thermal Management: Tracks steam temperatures, bearing temperatures, and turbine metal temperatures in coal-fired, gas-fired, and combined-cycle power plants (50-1000 MW) where Pt100 RTDs provide reliable measurements from -50°C to +600°C, enabling predictive maintenance and preventing catastrophic equipment failures costing $5M-20M in repairs and lost generation.

HVAC & Building Automation: Acquires zone temperatures, supply air temperatures, and chilled water temperatures in commercial buildings, data centers, and hospitals where 8-channel modules reduce panel space by 60% versus single-channel transmitters, lowering installation costs and simplifying system architecture in 100-500 zone control applications.

Food & Beverage Processing: Measures pasteurization temperatures, fermentation temperatures, and cold storage temperatures in dairy plants, breweries, and food processing facilities where FDA 21 CFR Part 11 compliance requires accurate, traceable temperature records for HACCP validation and regulatory audits.

⚙️ Technical Advantages

Multi-RTD Type Support: Software-configurable input types (Pt100, Ni100/120, Cu10) eliminate need for separate modules for different sensor types, reducing spare parts inventory by 70% and enabling standardization on single module platform across diverse temperature measurement applications with -200°C to +850°C range coverage.

3-Wire & 4-Wire Compensation: Advanced lead resistance compensation in 3-wire and 4-wire configurations maintains ±0.1°C accuracy over 100-meter cable runs, eliminating errors from cable resistance that cause ±2-5°C measurement drift in 2-wire systems—critical for remote sensor installations in large process plants.

Modular Termination Units: Hot-swappable MTU design (TU810/812/814/830/833) allows field wiring to remain connected during module replacement, reducing mean time to repair (MTTR) from 2 hours to 10 minutes and enabling online calibration without process shutdown in 24/7 continuous manufacturing operations.

800xA DCS Integration: Seamless configuration via Control Builder software with automatic sensor type detection, built-in diagnostics (open circuit, short circuit, out-of-range), and unified asset management reduces commissioning time by 50% versus third-party I/O requiring custom driver development and manual configuration.

📦 Module Package

• 1× ABB AI830A Analog Input RTD Module
• Installation guide and wiring diagram
• Factory calibration certificate
• RoHS compliance documentation (EU 2011/65/EU)

Genuine ABB product with global service support. Essential for process engineers, instrumentation technicians, and control system integrators managing temperature measurement in chemical, pharmaceutical, power, food & beverage, and HVAC applications. Compatible with ABB 800xA DCS, AC800M controllers, and all S800 I/O termination units.
