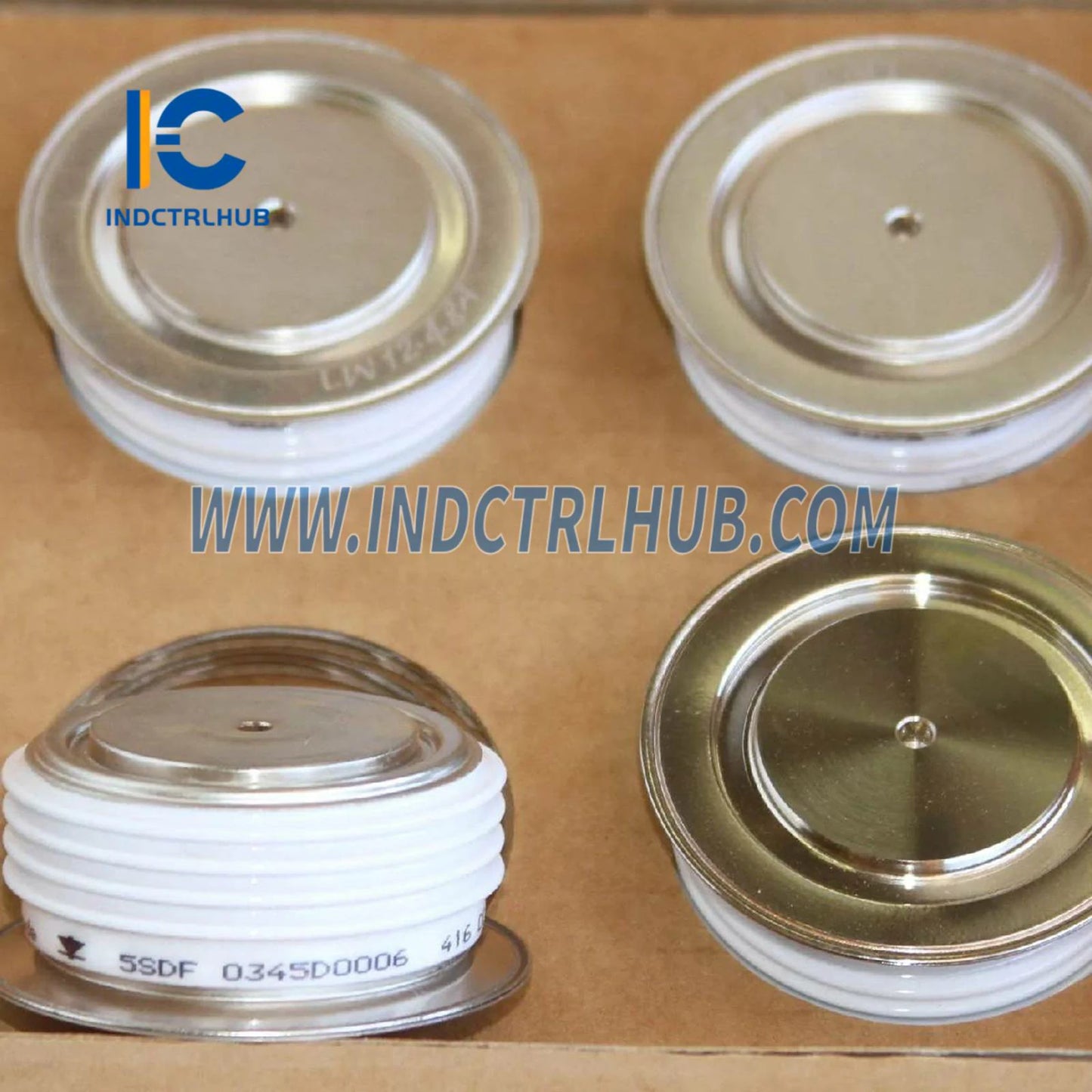

ABB 3BHL000200P0001 5SDF0345D0006 4.5KV Fast Recovery Diode Press-Pack
ABB 3BHL000200P0001 5SDF0345D0006 4.5KV Fast Recovery Diode Press-Pack
Manufacturer: ABB
Product No.: 3BHL000200P0001
Condition:1000 in stock
Product Type: Fast Recovery Diode
Product Origin: 8541100000345
Payment: T/T, Western Union
Weight: 510g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
ABB 3BHL000200P0001 | 5SDF0345D0006 Fast Recovery Diode Press-Pack Module
The ABB 3BHL000200P0001 (model 5SDF0345D0006) is a high-performance 4.5KV fast recovery press-pack diode engineered for demanding industrial power conversion and rectification applications. This robust semiconductor device delivers exceptional switching characteristics, thermal stability, and long-term reliability in high-voltage, high-current environments.
Technical Specifications
- Voltage Rating: 4.5KV blocking voltage
- Device Type: Fast recovery press-pack diode
- Package: Press-pack (disc-type) construction for superior thermal management
- Recovery Time: Optimized for fast switching applications
- Thermal Performance: Enhanced heat dissipation through double-sided cooling
- Mounting: Compression-mount design for industrial power stacks
Application Scenarios
This ABB diode module excels in critical power electronics systems including:
- HVDC Transmission: High-voltage direct current converter stations and rectifier bridges
- Motor Drive Systems: Variable frequency drives (VFDs) and servo motor controllers requiring fast recovery characteristics
- Industrial Rectifiers: Three-phase bridge rectifiers for electrochemical processing, metal smelting, and traction systems
- Power Supply Units: High-power switched-mode power supplies (SMPS) and uninterruptible power systems (UPS)
- Renewable Energy: Wind turbine converters and solar inverter protection circuits
Engineering Solutions & Benefits
The press-pack construction provides superior thermal cycling capability compared to conventional module packages, making it ideal for applications with frequent load variations. The fast recovery characteristic minimizes switching losses and electromagnetic interference, improving overall system efficiency. Double-sided cooling architecture enables compact power stack designs while maintaining safe junction temperatures under continuous operation.
ABB's proven semiconductor technology ensures consistent forward voltage drop characteristics and low reverse recovery charge, critical for parallel operation in multi-device configurations. The rugged mechanical design withstands high clamping forces and thermal stress cycles typical in industrial environments.
Related Products
Explore complementary ABB power semiconductor solutions:
- ABB 3BHL000396P0001 5SDF0460F0001 Diode - Alternative voltage rating for similar applications
- ABB 5SDF1045H0002 Fast Recovery Diode - Higher current capacity option
- ABB 3BHL000397P0001 5SDF0860H0003 Fast Recovery Diode - Enhanced recovery performance variant
All products ship with manufacturer traceability and quality certification documentation.
