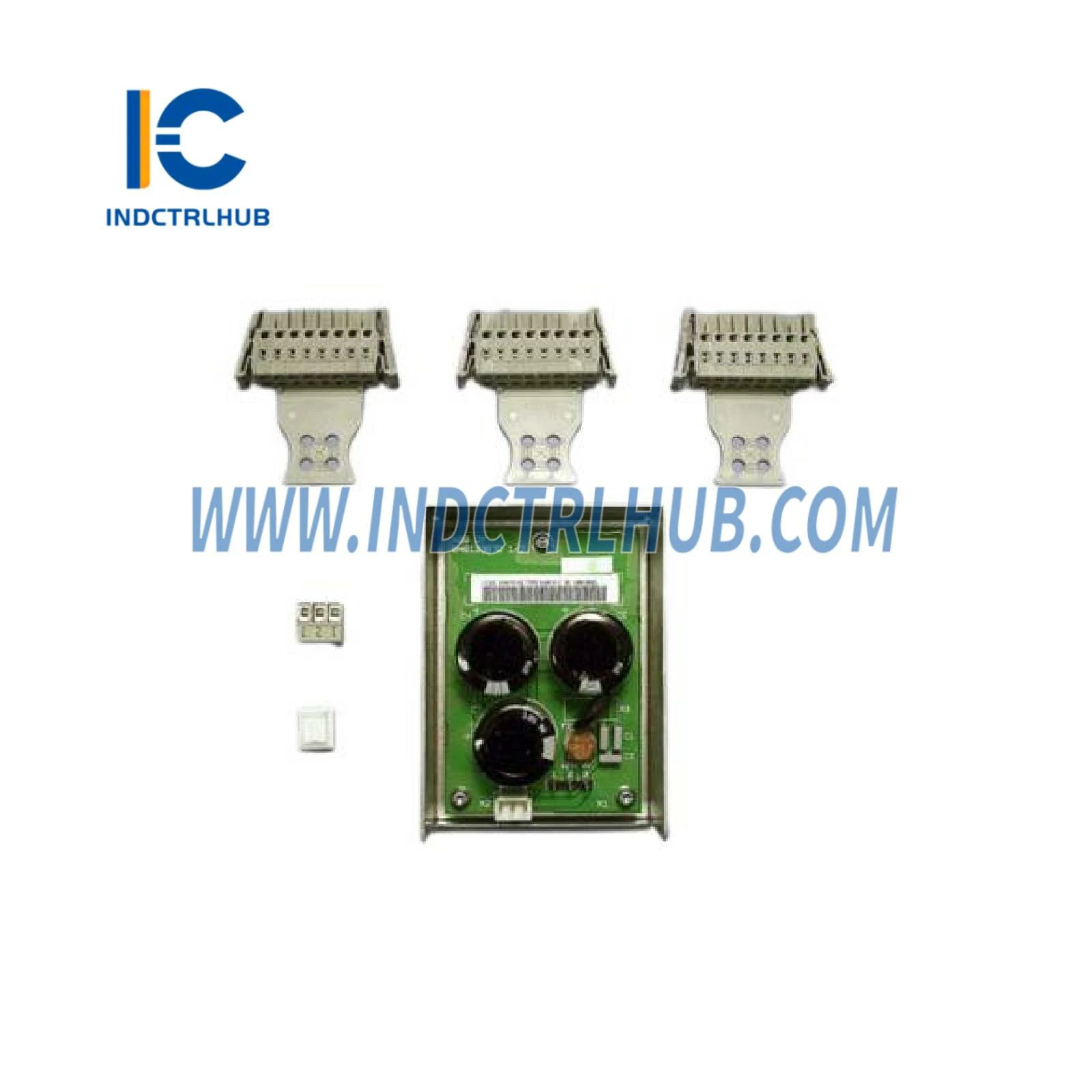

ABB 3AUA0000036340 RAPI-01C Adapter Board

ABB 3AUA0000036340 RAPI-01C Adapter Board for External 24V Power Supply

The ABB 3AUA0000036340 RAPI-01C Adapter Board provides critical power interface functionality for ABB ACS800 series variable frequency drives requiring external 24 VDC control power. Engineered with galvanic isolation and robust signal conditioning, this adapter board enables reliable integration of external power sources for drive control circuits, I/O modules, and communication interfaces across industrial motor control applications in manufacturing, HVAC, water treatment, and material handling systems.

Technical Specifications

• Input Voltage: 24 VDC nominal external power supply
• Voltage Range: 18-30 VDC operating tolerance
• Power Output: Regulated 24 VDC for drive control circuits
• Current Capacity: Sufficient for control electronics and I/O modules
• Isolation: Galvanic isolation between external supply and drive circuits
• Protection: Reverse polarity, overvoltage, and overcurrent protection
• Compatibility: ACS800 series variable frequency drives
• Mounting: PCB mounting within drive control section
• Connection: Screw terminal blocks for field wiring
• Operating Temperature: -10°C to +50°C ambient
• Diagnostic Features: Power good indication, fault detection
• Compliance: CE, UL, CSA industrial equipment standards

Power Interface Capabilities

The RAPI-01C adapter board incorporates sophisticated power management features specifically designed for industrial drive control applications:

• External Power Flexibility: Enables use of separate 24 VDC power supply independent from drive main power, allowing control circuit operation during drive power-down for programming, diagnostics, and maintenance without energizing motor circuits
• Galvanic Isolation Design: Complete electrical isolation between external power source and drive internal circuits prevents ground loops, enhances noise immunity, and protects sensitive control electronics from power supply transients
• Reverse Polarity Protection: Integrated protection circuitry prevents damage from incorrect power supply connection during installation or maintenance, eliminating costly board replacement from wiring errors
• Voltage Regulation: Precision voltage conditioning maintains stable 24 VDC output across wide input variations and load transients, ensuring consistent operation of control circuits, I/O modules, and communication interfaces
• Overcurrent Protection: Automatic current limiting protects adapter board and connected circuits from short-circuit conditions, with automatic recovery when fault clears
• Power Good Signaling: Status indication provides visual confirmation of proper power supply operation, simplifying commissioning and troubleshooting procedures

Industrial Drive Applications

This adapter board addresses specific power architecture requirements across diverse motor control applications where external control power provides operational advantages:

• Pump Control Systems: Maintains drive control power during pump motor shutdown, enabling continuous monitoring, remote programming, and alarm reporting without energizing pump motor in water treatment and distribution applications
• HVAC Fan Control: Provides independent control power for building automation integration, allowing BMS communication and setpoint adjustment while fan motors remain de-energized during maintenance or seasonal shutdown
• Conveyor Systems: Enables drive programming and diagnostic access without energizing conveyor motors, improving safety during maintenance and commissioning in material handling and packaging operations
• Crane & Hoist Applications: Supplies control power from separate safety-rated source, maintaining drive monitoring and fault detection capabilities independent of main motor power circuits
• Machine Tool Drives: Allows CNC system integration with drive control circuits powered from machine control panel, enabling coordinated startup sequences and centralized power management
• Process Equipment: Facilitates integration with distributed control systems where drive control power derives from DCS power distribution rather than drive internal supply

ACS800 Drive Integration

The RAPI-01C mounts within ACS800 drive control section, connecting to drive control board via dedicated interface connector. External 24 VDC power connects through screw terminals with clear polarity marking. The adapter board supplies power to drive control processor, I/O modules, communication cards, and auxiliary circuits, enabling full drive functionality independent of main power status. Integration supports drive programming via DriveWindow software, fieldbus communication, and I/O operation without motor power connection.

Engineering Design Advantages

• Simplified Commissioning: External control power enables drive programming, parameter configuration, and communication setup before connecting main motor power, reducing commissioning time and improving safety
• Enhanced Diagnostics: Maintains drive monitoring and fault logging capabilities during motor power outages, preserving critical diagnostic information for troubleshooting and predictive maintenance
• Flexible Power Architecture: Accommodates diverse installation requirements including centralized control power distribution, UPS-backed control circuits, and safety-rated power sources
• Compact Form Factor: Space-efficient PCB design fits within standard ACS800 control section without requiring additional enclosure space or mounting hardware
• Robust Construction: Industrial-grade components and conformal coating provide resistance to moisture, dust, and temperature cycling in harsh industrial environments
• Long Service Life: Conservative design margins and quality components ensure >10-year operational life matching typical drive system lifecycles

Installation & Configuration

The adapter board installs in ACS800 drive control section via PCB mounting with connection to drive control board through keyed connector. External 24 VDC power supply connects to screw terminals accepting 14-22 AWG wire with proper polarity observation. Installation involves mounting board in designated slot, connecting interface cable, and wiring external power source—typically completed in 15-20 minutes. Configuration requires drive parameter setting to enable external control power mode via DriveWindow software or control panel.

Quality Standards & Compliance

Manufactured under ISO 9001:2015 quality management systems with complete component traceability. Complies with CE electromagnetic compatibility directives (EN 61800-3), UL 508C power conversion equipment standards, and CSA C22.2 electrical safety specifications. Suitable for installation in industrial environments meeting IEC 61800-5-1 drive system safety requirements. RoHS compliant with lead-free manufacturing processes.
