ABB 07KT94F Analog Output Module | GJR5252100R0161

ABB 07KT94F Analog Output Module - GJR5252100R0161

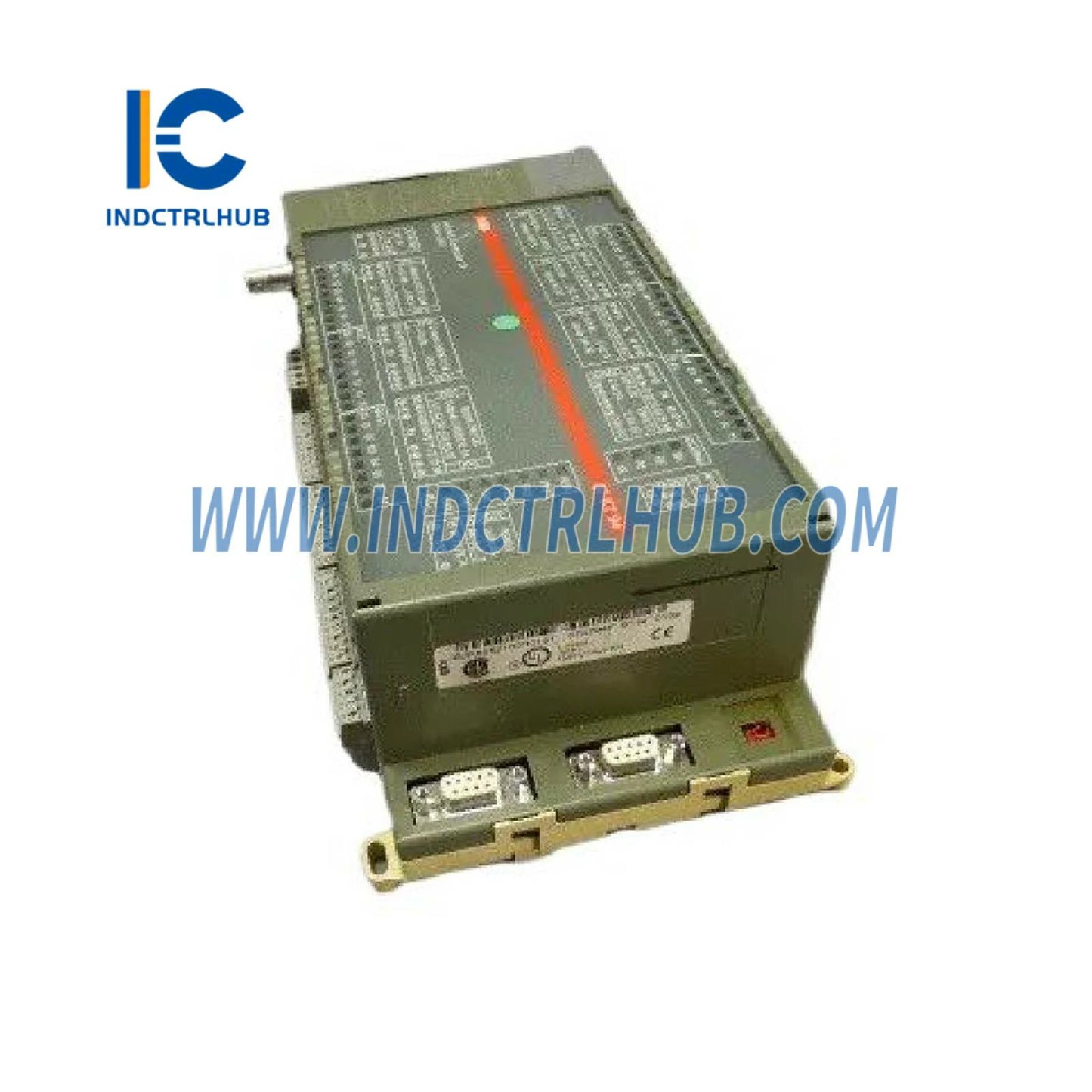

The ABB 07KT94F (part number GJR5252100R0161) is a high-performance analog output module engineered for precision control in industrial automation systems. This module delivers reliable 4-20mA signal generation for actuators, control valves, variable frequency drives, and other field devices requiring accurate analog command signals.

Key Technical Parameters

• Part Number: GJR5252100R0161
• Model Designation: 07KT94F
• Module Type: Analog output interface
• Output Channels: Multi-channel analog signal generation
• Signal Range: 4-20mA current loop (industry standard)
• Resolution: 12-bit D/A conversion for precise control
• Accuracy: ±0.2% of full scale at 25°C
• Update Rate: Fast response time for dynamic process control
• Isolation: Channel-to-channel and channel-to-system isolation
• Operating Temperature: -20°C to +70°C (-4°F to +158°F)
• Power Consumption: Low power design for energy efficiency
• Diagnostic Features: Built-in self-test and fault detection

Where This Module Excels

Valve Positioning Systems: Drive pneumatic and electric control valves in chemical reactors, distillation columns, and pipeline flow control applications where precise throttling determines product quality and process efficiency.

Motor Speed Control: Interface with variable frequency drives (VFDs) to regulate pump speeds, fan operations, and conveyor systems in manufacturing plants, HVAC installations, and material handling facilities.

Temperature Regulation: Command heating elements and cooling systems in furnaces, ovens, environmental chambers, and thermal processing equipment requiring tight temperature control within ±1°C tolerances.

Pressure Management: Control compressors, vacuum pumps, and pressure regulators in pharmaceutical clean rooms, semiconductor fabrication, and food packaging lines where consistent pressure is critical.

Integrated Control Solutions

Seamless DCS Integration: The 07KT94F integrates directly with ABB's distributed control systems including AC 800M, System 800xA, and legacy Advant platforms. Standard backplane connectivity eliminates complex wiring while ensuring deterministic communication timing.

Redundancy Support: Deploy in redundant configurations for high-availability applications. Automatic failover mechanisms ensure continuous process control even during module replacement or maintenance activities, preventing costly production interruptions.

Advanced Diagnostics: Real-time monitoring detects open circuits, short circuits, and out-of-range conditions. Predictive maintenance alerts notify operators of degrading performance before failures occur, reducing unplanned downtime by up to 40%.

Installation Best Practices

Mount the module in standard ABB I/O racks with proper grounding to minimize electrical noise. Use shielded twisted-pair cables for field wiring, grounding shields at the module end only to prevent ground loops. Verify loop power supplies provide adequate current capacity for all connected devices. Commission using ABB's engineering tools for parameter configuration and loop testing.

Technical Support Questions

Q: What is the maximum loop resistance this module can drive?
A: The 07KT94F typically supports loop resistances up to 600 ohms at 24VDC supply voltage. For longer cable runs or multiple devices in series, verify total loop resistance remains within specifications.

Q: Can I use this module with non-ABB control systems?
A: While designed for ABB systems, the module may interface with third-party controllers supporting compatible backplane protocols. Contact technical support to verify compatibility with your specific platform.

Q: How do I calibrate the output channels?
A: Calibration is performed through the control system engineering software. Connect a precision milliamp meter to the output terminals and adjust zero and span values to match your process requirements.

Q: What happens if an output channel fails?
A: The module's diagnostic system detects channel failures and reports faults to the control system. Other channels continue operating normally. In redundant configurations, the backup module automatically assumes control.

Q: Is hot-swapping supported?
A: Yes, when installed in compatible ABB I/O systems with redundant power and communication. Follow proper hot-swap procedures to prevent process disturbances during module replacement.

Warranty Coverage

This ABB 07KT94F Analog Output Module includes a 12-month manufacturer warranty protecting against defects in materials and workmanship. Our technical team provides comprehensive support including installation guidance, configuration assistance, troubleshooting expertise, and expedited replacement services to keep your operations running smoothly.
