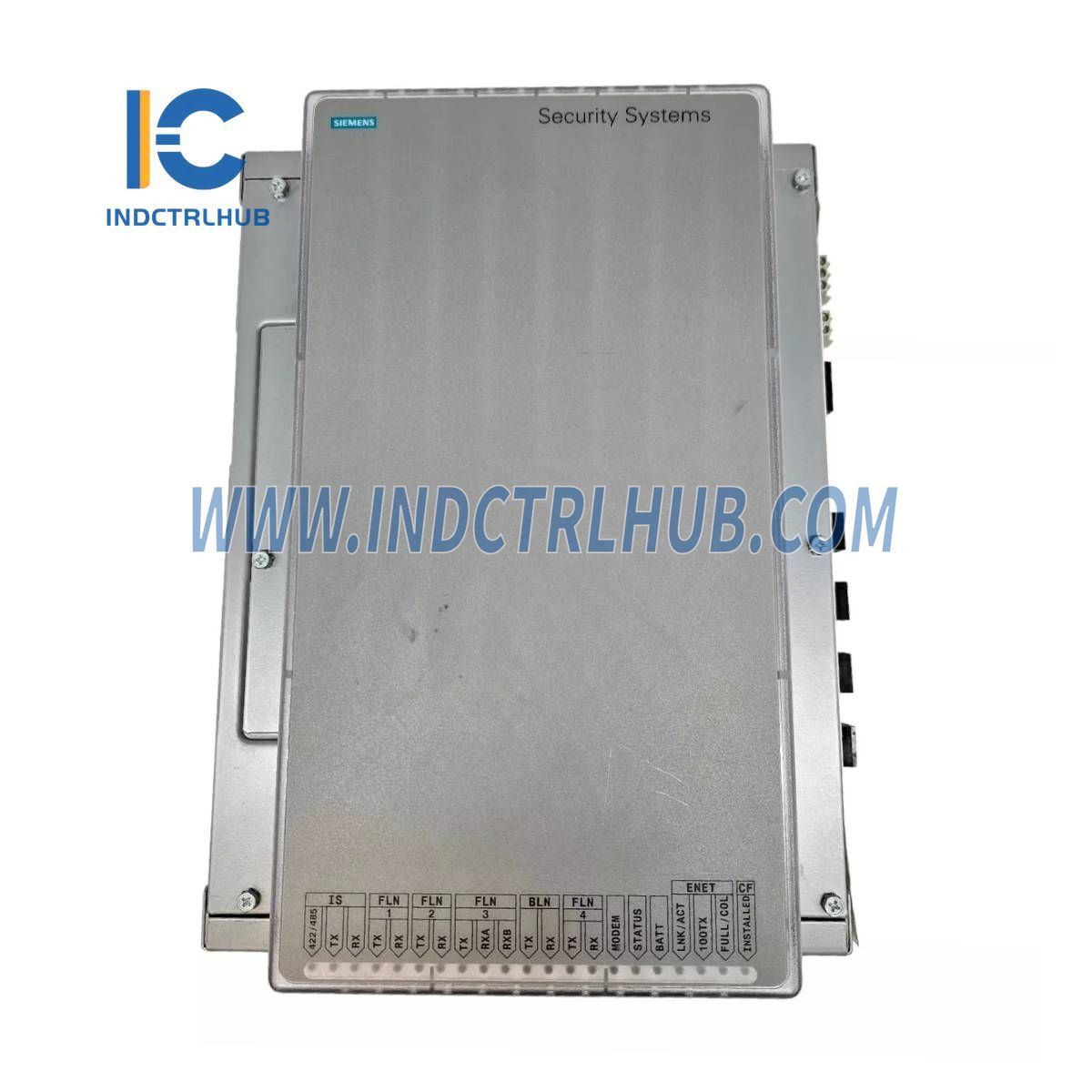

Product Description

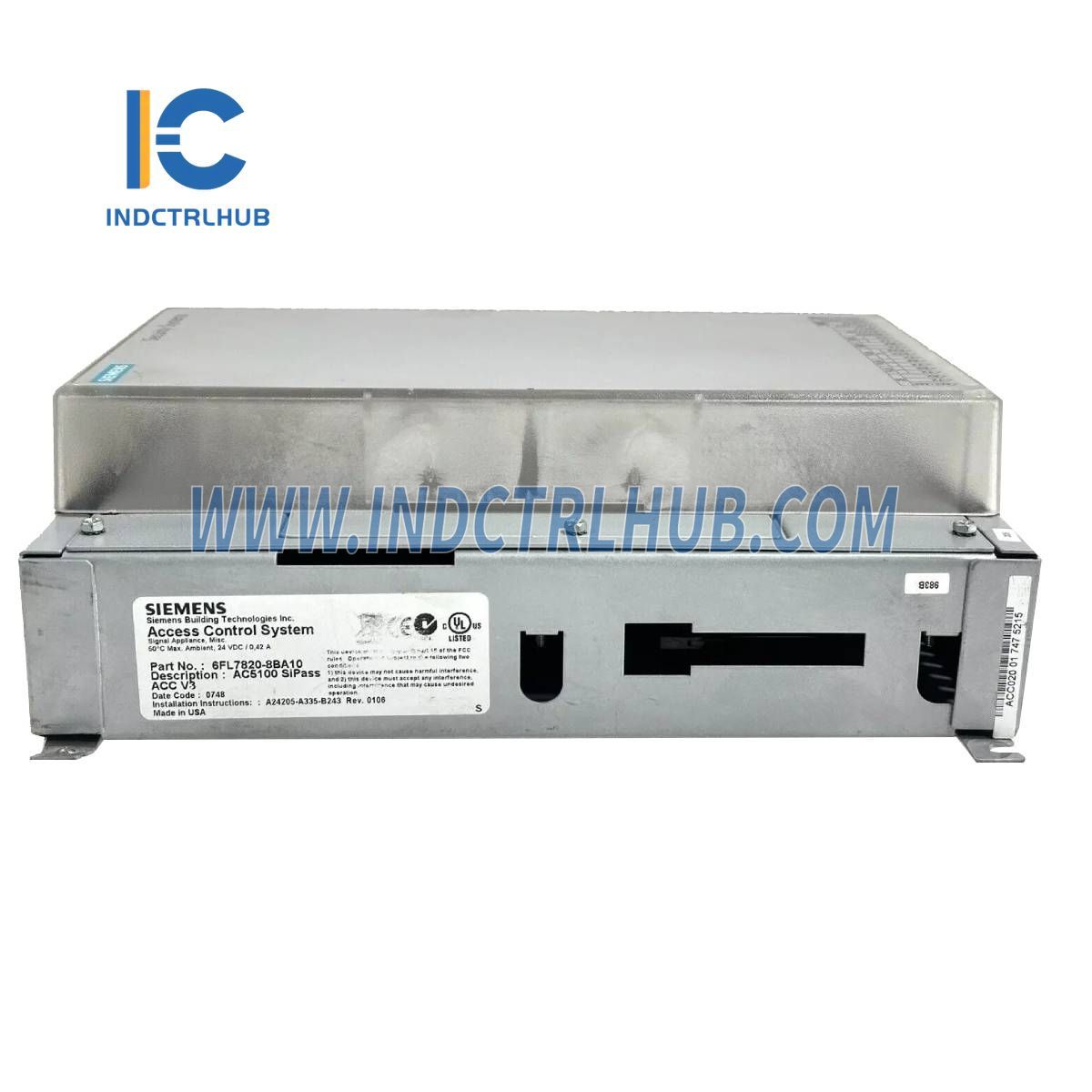

Product Information
- Manufacturer: SIEMENS
- Model/Part Number: 6FL7820-8BA10 AC5100
- Description: Advanced Central Controller
Power Supply
| Parameter | Specification |
|---|---|
| Operating Voltage | 24 VDC +20% / -10% |
| Power Consumption | Max. 10W fully loaded (with no battery charging) |
| RTC Battery | 3.0V type CR2032 |

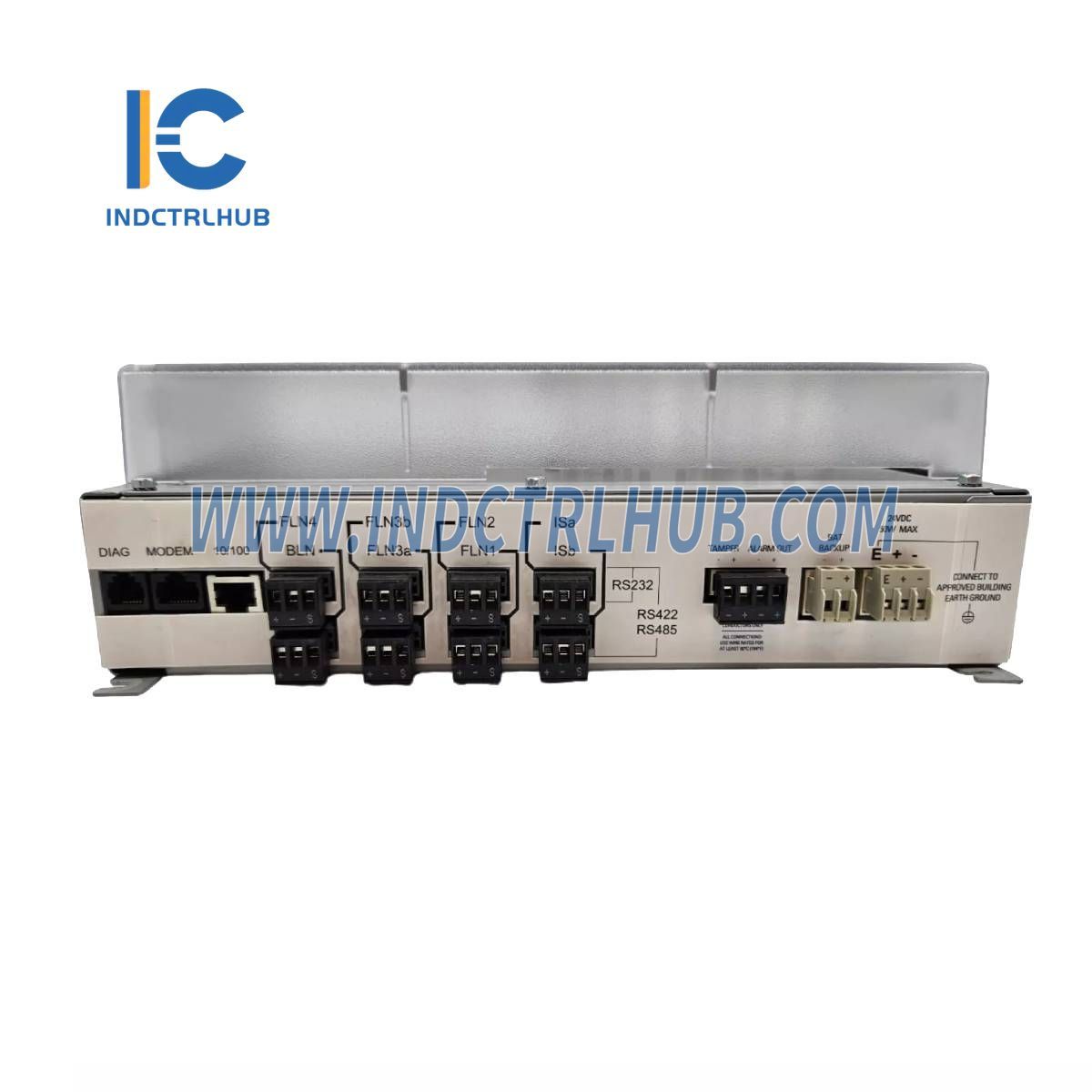

Communication Interfaces
| Interface | Specification |
|---|---|
| BLN (Building Level Network) | 10/100MB Ethernet (RJ-45) |
| BLN RS-485 | Not active |
| FLN (Field Level Network) | 4 x RS-485 (16 local devices max. on each FLN) |
| Diagnostic/Parameterization | RS-232 (RxD, TxD, GND, RJ-12) |
Inputs & Outputs
| Type | Specification |
|---|---|
| Tamper Input | Internally supplied, unsupervised |
| Backup Battery Input | 24 VDC |
| Alarm Output | Open-Collector, 12 VDC / 100 mA |
Mechanical & Environmental Conditions
| Parameter | Specification |
|---|---|
| Dimensions (H x W x D) | 291mm x 246mm x 98mm (11.46" x 9.69" x 3.86") |
| Operating Temperature | 0°C to 50°C (32°F to 122°F) |
| Storage Temperature | -10°C to 70°C (14°F to 158°F) |
| Humidity | 5-90% (non-condensing) |
Ordering Details
| Type | Part Number | Designation | Weight |
|---|---|---|---|
| AC51001 | 6FL7820-8BA10 | Advanced Central Controller, 24 VDC | 2.67 kg |
| CBL-010 | 6FL7820-8FB10 | Parameterization cable ACC (RJ45 – Sub-D female 9 Pin) | 0.2 kg |
| ACK5110 | 6FL7820-8FB11 | Connection cable Modem - ACC (RJ45 – Sub-D male 25 Pin) | 0.2 kg |
