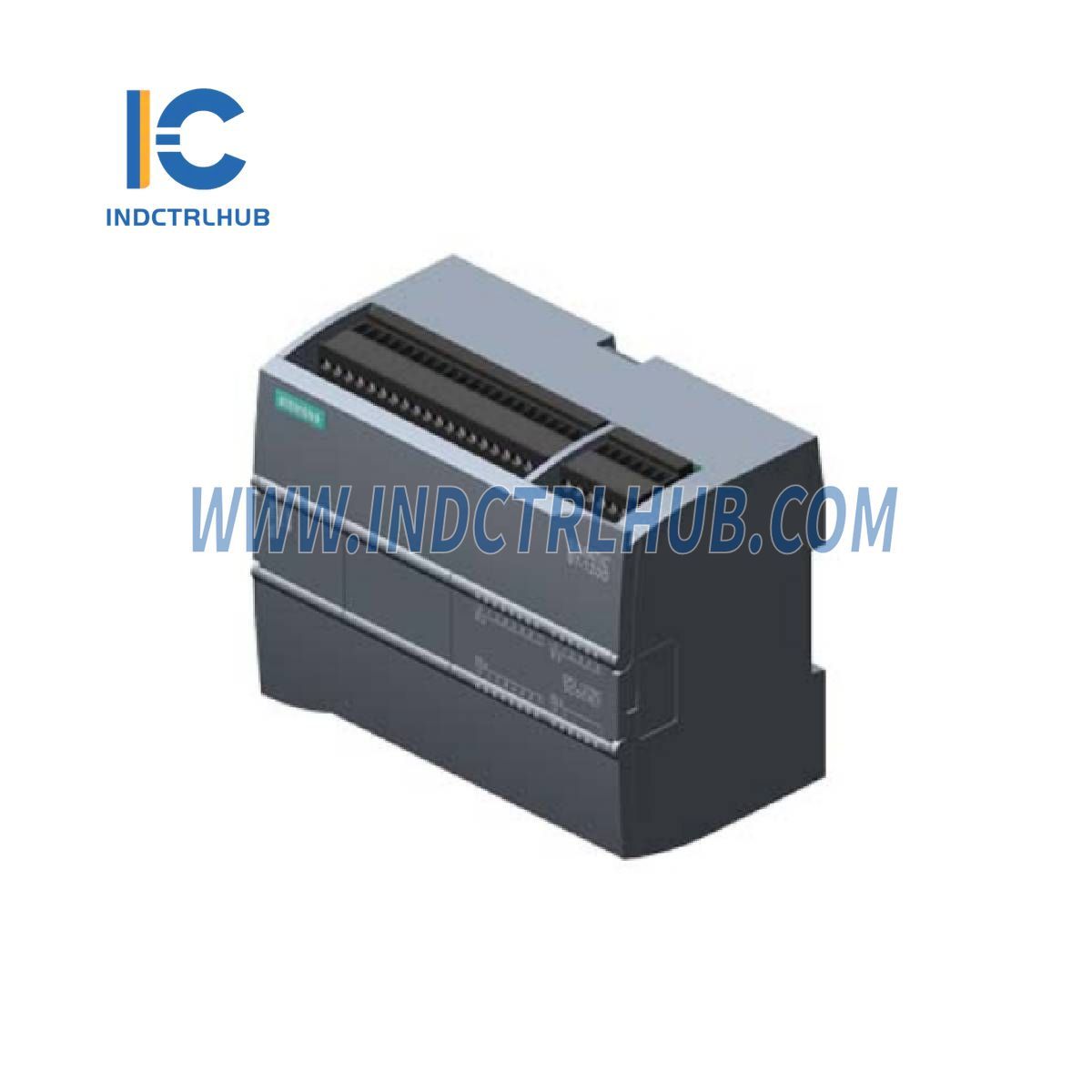

6ES7 215-1HG40-0XB0 SIEMENS CPU 1215C DC/DC/Relay Module

SIEMENS 6ES7 215-1HG40-0XB0 CPU 1215C DC/DC/Relay Module

The SIEMENS 6ES7 215-1HG40-0XB0 represents a powerful compact controller within the S7-1200 family, engineered to deliver reliable automation performance for small to medium-scale industrial applications. This CPU 1215C module combines robust processing capabilities with flexible I/O configuration, making it an optimal choice for machine control, process automation, and distributed control architectures.

Technical Specifications

• Model Number: 6ES7 215-1HG40-0XB0
• Product Line: SIMATIC S7-1200
• CPU Type: CPU 1215C DC/DC/Relay
• Power Supply: 24V DC
• Digital Inputs: 14 x 24V DC
• Digital Outputs: 10 x Relay (2A per point)
• Analog Inputs: 2 channels (0-10V)
• Work Memory: 125 KB
• Load Memory: 4 MB (integrated)
• Firmware Version: V4.6
• Communication: PROFINET interface (2-port switch)
• Expansion Capability: Up to 8 signal modules
• Operating Temperature: 0°C to 60°C
• Dimensions: 130 x 100 x 75 mm
• Weight: 585g

Key Features & Benefits

This controller module delivers exceptional versatility through its integrated relay outputs, perfect for switching inductive loads, contactors, and valves without requiring external relays. The dual analog inputs enable direct sensor integration for temperature, pressure, or flow monitoring applications. With its compact footprint and DIN-rail mounting design, installation is streamlined even in space-constrained control cabinets.

The integrated PROFINET interface supports seamless network integration and enables distributed I/O expansion, HMI connectivity, and remote diagnostics. Advanced motion control functions, PID regulation, and high-speed counters are built into the firmware, eliminating the need for specialized function modules in many applications.

Application Scenarios

Manufacturing Automation: Deploy this CPU module for conveyor control systems, packaging machinery, and assembly line coordination where relay outputs provide reliable switching for pneumatic actuators and motor starters.

Building Automation: Implement HVAC control, lighting management, and access control systems leveraging the analog inputs for temperature sensing and relay outputs for damper and valve actuation.

Water Treatment: Control pump stations, filtration systems, and chemical dosing equipment with integrated analog monitoring of flow rates and pressure levels combined with relay-based pump control.

Energy Management: Monitor and control power distribution systems, generator synchronization, and load management applications requiring robust relay switching capabilities.

Solution Advantages

The S7-1200 platform offers seamless integration with TIA Portal engineering software, providing unified programming, configuration, and diagnostics in a single environment. This reduces engineering time by up to 30% compared to legacy systems. The controller supports multiple programming languages including LAD, FBD, STL, and SCL, accommodating diverse engineering preferences and application requirements.

Built-in web server functionality enables remote monitoring and diagnostics without additional hardware, reducing maintenance costs and system downtime. The controller's modular architecture allows for future expansion as your automation needs grow, protecting your initial investment.

Common Questions & Answers

Q: Can this CPU module be used in safety-critical applications?
A: This is a standard CPU module. For safety applications requiring SIL certification, consider the S7-1200 F-series failsafe controllers. However, this module can work alongside safety controllers in hybrid architectures.

Q: What is the maximum switching capacity of the relay outputs?
A: Each relay output is rated for 2A at 24V DC or 230V AC resistive load. For inductive loads, appropriate suppression circuits should be implemented according to SIEMENS guidelines.

Q: Is this module compatible with existing S7-300 programs?
A: While the S7-1200 uses similar programming concepts, direct program migration requires conversion through TIA Portal. The conversion tool handles most standard functions automatically, though custom FCs may require manual adaptation.

Q: What communication protocols are supported?
A: The module supports PROFINET, TCP/IP, ISO-on-TCP, S7 communication, and Modbus TCP through the integrated Ethernet interface. Additional protocols can be implemented via communication modules.

Q: Can I expand the I/O capacity beyond the integrated points?
A: Yes, you can add up to 8 signal modules (SM) and 3 communication modules (CM) to expand digital I/O, analog I/O, or communication capabilities based on your application requirements.

Warranty & Support

Every SIEMENS 6ES7 215-1HG40-0XB0 CPU module comes with a comprehensive 12-month warranty covering manufacturing defects and component failures. Our technical support team provides assistance with configuration, troubleshooting, and application engineering to ensure successful project implementation.
