6AG1124-0MC01-4AX0 SIEMENS SIPLUS HMI TP1200 Comfort Touchscreen Panel

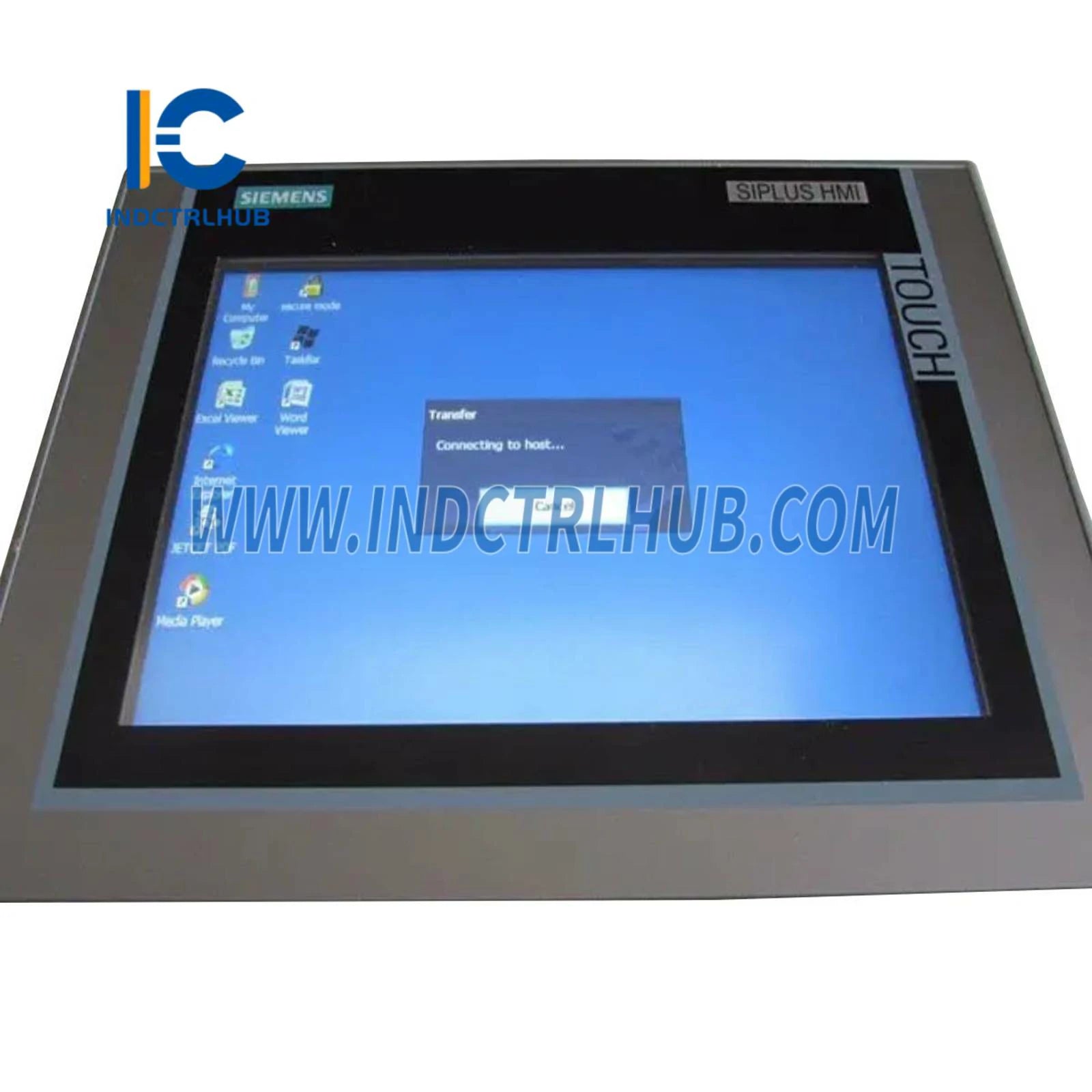

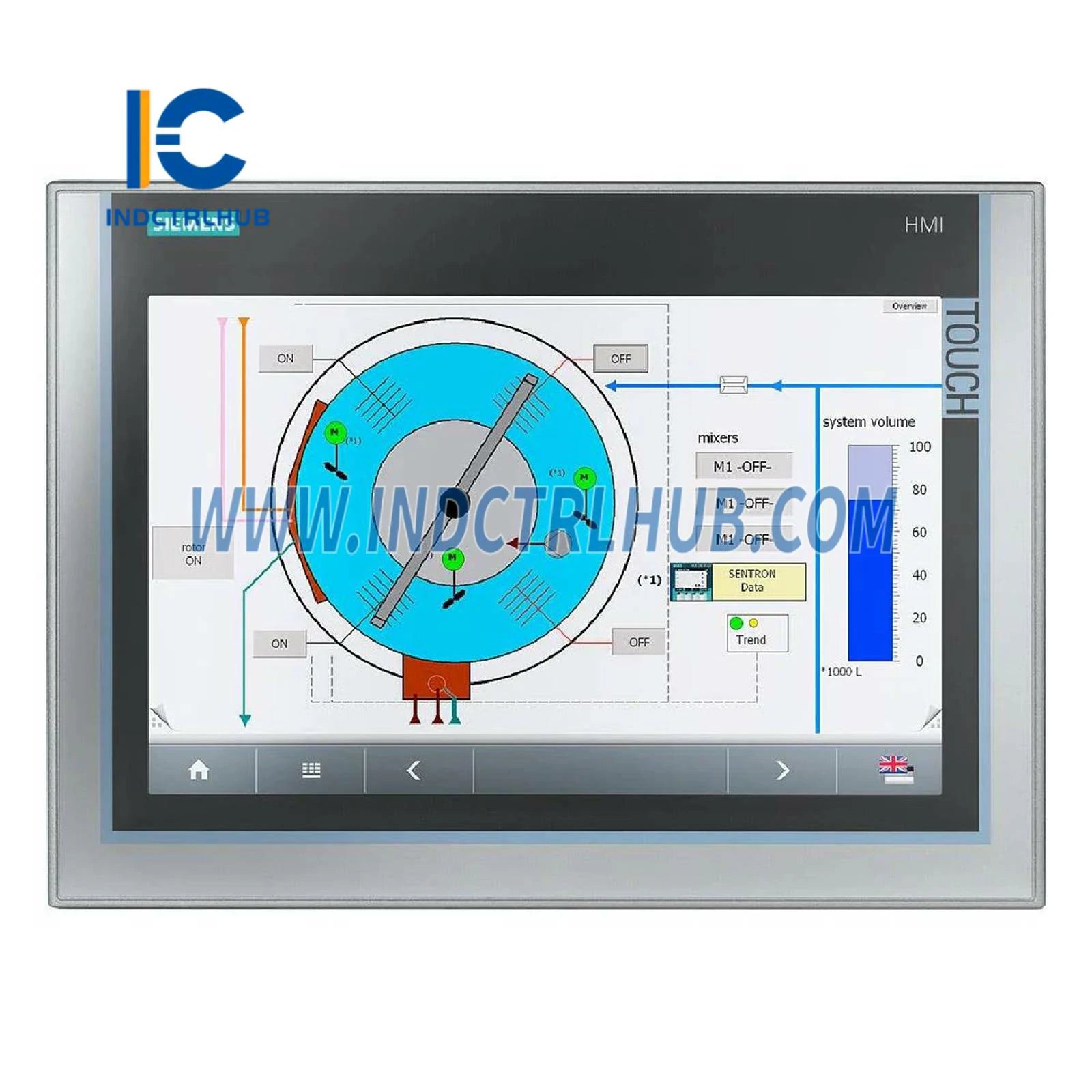

SIEMENS 6AG1124-0MC01-4AX0 SIPLUS HMI TP1200 Comfort Touchscreen Panel

The SIEMENS 6AG1124-0MC01-4AX0 represents the pinnacle of industrial human-machine interface technology, specifically engineered for demanding automation environments. This SIPLUS HMI TP1200 Comfort panel delivers exceptional visualization capabilities combined with robust construction designed to withstand extreme operating conditions.

Technical Specifications

• Display Technology: 12.1-inch TFT LCD with LED backlight
• Resolution: 1280 × 800 pixels (WXGA)
• Color Depth: 65,536 colors for vivid visualization
• Touch Interface: Analog resistive touchscreen with multi-touch support
• Dimensions: 261.1mm (W) × 163mm (H) × 58mm (D)
• Communication: PROFINET interface, Ethernet TCP/IP, USB 2.0
• Memory: 24 MB configuration memory, 12 MB user memory
• Operating Temperature: -20°C to +60°C (SIPLUS extended range)
• Protection Rating: IP65 front panel (when properly mounted)
• Certification: CE, UL, cULus, RCM compliant

Application Scenarios

This advanced HMI panel excels in diverse industrial automation applications including process control systems, manufacturing execution systems (MES), SCADA visualization, machine control interfaces, and production line monitoring. The SIPLUS variant is specifically designed for harsh environments such as chemical processing plants, offshore platforms, mining operations, and extreme temperature facilities where standard equipment may fail.

Integrated Solutions

Seamlessly integrates with SIMATIC S7-1200, S7-1500, and S7-300/400 PLCs through PROFINET communication. Compatible with WinCC Comfort engineering software for intuitive configuration and advanced visualization development. Supports OPC UA for Industry 4.0 connectivity and third-party system integration. The panel enables real-time data acquisition, alarm management, recipe handling, and trend visualization for comprehensive process oversight.

Frequently Asked Questions

Q: What makes the SIPLUS version different from standard TP1200 panels?
A: SIPLUS components undergo enhanced testing and feature conformal coating for protection against humidity, condensation, corrosive gases, and extreme temperatures (-20°C to +60°C vs. 0°C to +50°C standard range).

Q: Can this panel communicate with non-SIEMENS controllers?
A: Yes, through OPC UA and standard Ethernet protocols, the TP1200 Comfort can interface with third-party PLCs and SCADA systems, though SIMATIC integration offers optimal performance.

Q: What software is required for programming this HMI?
A: SIEMENS WinCC Comfort V19 or later is required for configuration, screen design, and project deployment to the TP1200 Comfort panel.

Q: Does the touchscreen work with gloves?
A: Yes, the analog resistive touchscreen technology responds to pressure and works reliably with most industrial gloves, unlike capacitive screens.

Warranty & Support

Every unit includes a comprehensive 12-month manufacturer warranty covering defects in materials and workmanship. Our technical support team provides expert assistance for installation, configuration, and troubleshooting throughout the product lifecycle.
