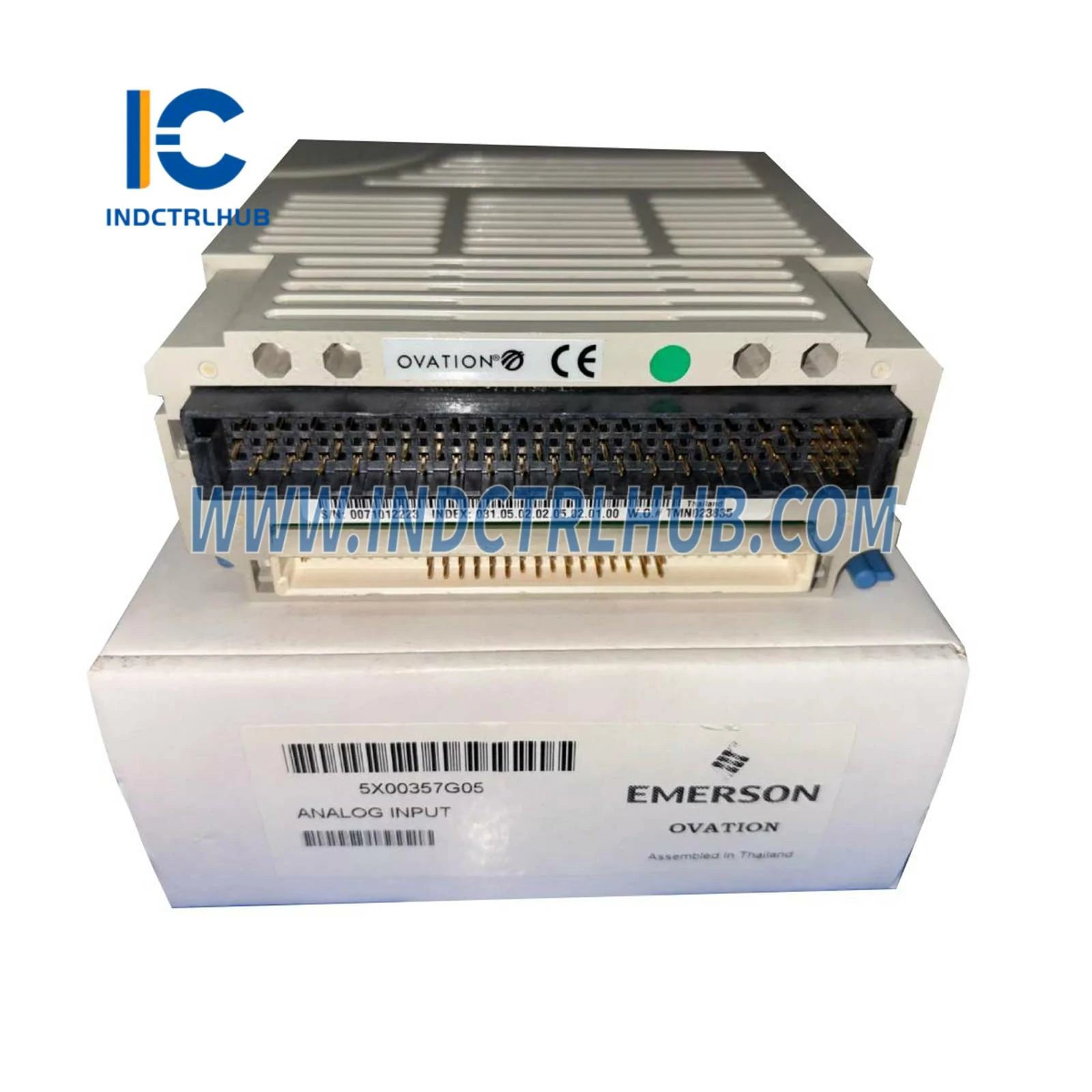

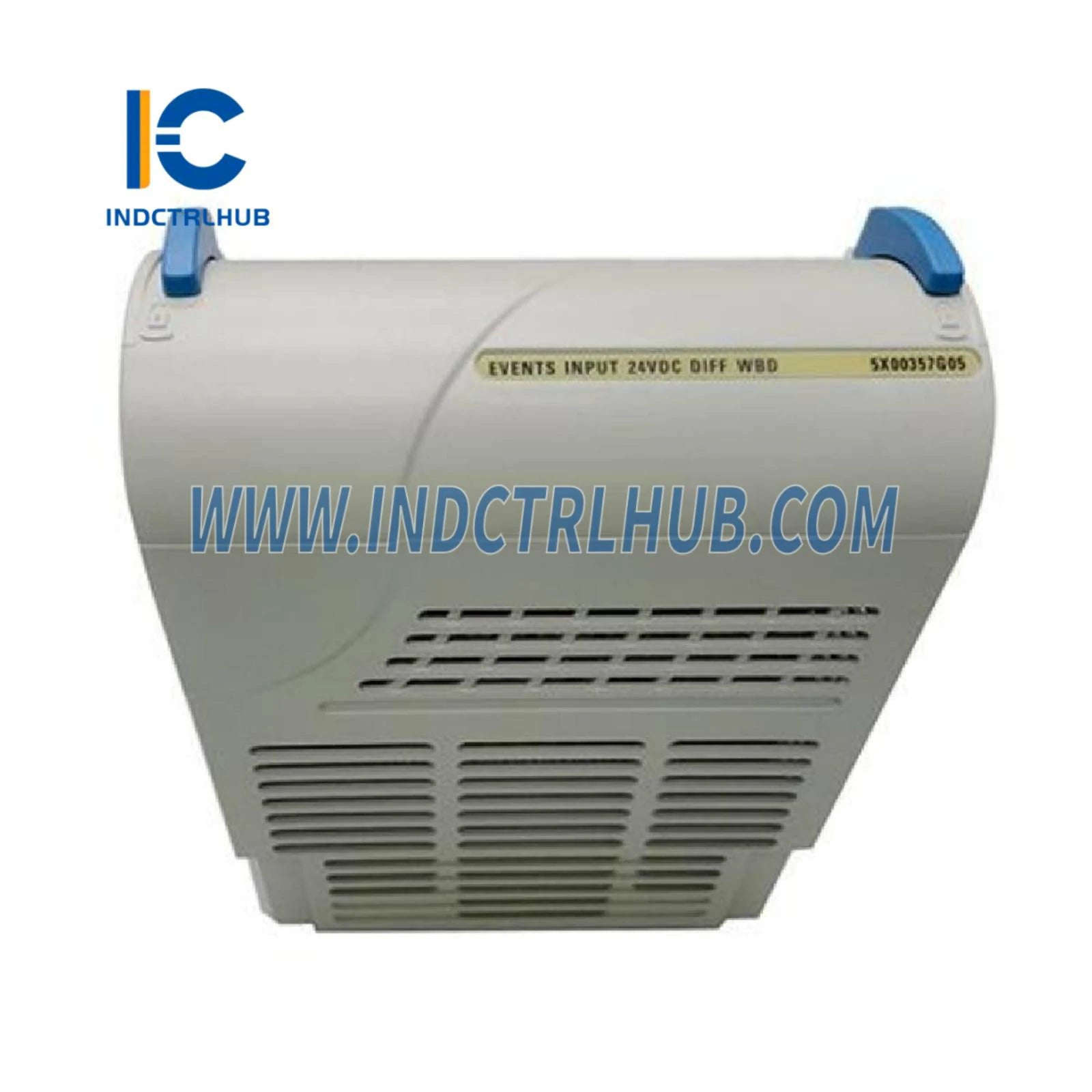

5X00357G05 Emerson Ovation Enhanced Events Input Module

⚡ Advanced Event Monitoring with Enhanced SOE Capabilities

The 5X00357G05 represents Emerson's next-generation Enhanced Events Input Module for Ovation DCS platforms, combining high-speed digital input monitoring with sophisticated Sequence of Events (SOE) recording and advanced diagnostic capabilities. Engineered for utility-scale power plants, critical infrastructure, and industrial facilities requiring comprehensive event capture with sub-millisecond precision for regulatory compliance, forensic analysis, and predictive maintenance programs.

🔍 Advanced Technical Specifications

• Input Channels: 32 enhanced digital inputs with individual SOE capability
• Timestamp Resolution: 0.5-millisecond precision with IEEE 1588 PTP synchronization
• Input Voltage Range: 24-250 VDC/VAC universal inputs with auto-ranging
• Event Buffer Depth: 20,000+ events with non-volatile storage retention
• Scan Rate: 2ms per channel with simultaneous sampling across all inputs
• Time Synchronization: GPS, IRIG-B, NTP, SNTP, IEEE 1588 PTP support
• Wire-Break Detection: Automatic open-circuit monitoring with alarm generation
• Input Filtering: Programmable debounce 0-500ms per channel
• Isolation: 3000V optical isolation channel-to-backplane
• Diagnostic LEDs: Per-channel status indication plus module health indicators
• Operating Environment: -40°C to +75°C extended temperature range
• Certifications: UL, CE, FM, CSA, ATEX Zone 2, IECEx, SIL 3 capable

⚡ Mission-Critical Applications

Combined-Cycle Power Plants: Monitor gas turbine protection systems, steam turbine trip circuits, generator breaker operations, and auxiliary equipment sequences across multi-unit facilities. The enhanced buffer capacity ensures no event loss during peak activity periods like startup, shutdown, or grid disturbances—critical for NERC CIP compliance and reliability investigations.

Nuclear Power Stations: Capture reactor protection system actuations, containment isolation valve operations, and emergency core cooling sequences with the precision and redundancy required for NRC regulatory reporting and probabilistic risk assessment (PRA) model validation.

Transmission Substations: Record protective relay operations, circuit breaker status changes, transformer tap changer movements, and automatic transfer switch sequences in high-voltage substations where millisecond-accurate event correlation enables rapid fault location and service restoration.

🚀 Innovative Diagnostic Solutions

Predictive Failure Detection: Advanced wire-break detection algorithms continuously monitor input circuit integrity, identifying degraded connections, corroded terminals, and intermittent faults weeks before they cause false trips or missed alarms—reducing unplanned outages by 45-60% compared to conventional input modules.

Event Pattern Analytics: Export SOE data to Emerson's AMS Machinery Manager or third-party analytics platforms for machine learning-based pattern recognition. Identify equipment degradation signatures—relay contact wear, contactor coil deterioration, auxiliary switch misalignment—enabling condition-based maintenance scheduling that extends asset life 20-30%.

Cybersecurity Compliance: Built-in firmware authentication, encrypted configuration downloads, and audit logging meet NERC CIP-007 and IEC 62443 industrial cybersecurity requirements. Role-based access control prevents unauthorized event log tampering, ensuring forensic data integrity for regulatory investigations.

🔧 System Integration Excellence

Seamless integration with Ovation Developer Studio enables graphical configuration of event triggers, alarm priorities, and COMTRADE export parameters without scripting. The module's hot-swap architecture supports online replacement during scheduled maintenance, while redundant time sync inputs ensure continuous timestamp accuracy even during GPS jamming or network outages.

📊 Regulatory Compliance Features

Automatic COMTRADE file generation per IEEE C37.111 standard enables direct import into fault analysis tools like ETAP, SKM PowerTools, or ASPEN OneLiner. Pre-configured report templates for NERC, FERC, ISO, and state PUC requirements reduce compliance documentation effort by 70-80% compared to manual event log review and formatting.

📦 Complete System Package

• 5X00357G05 Enhanced Events Input Module with GPS receiver
• Removable spring-clamp terminal block (32-position)
• Module extraction tool and retention hardware
• COMTRADE export utility and configuration software
• Factory calibration certificate with NIST traceability
• Comprehensive installation, commissioning, and troubleshooting manual

🛡️ Industrial-Grade Reliability

Each module undergoes 240-hour burn-in testing plus environmental stress screening (ESS) to ensure MTBF exceeding 200,000 hours in continuous operation. Conformal coating protects against humidity, dust, and chemical vapors in non-climate-controlled equipment rooms. Backed by Emerson's global support network with 24/7 technical assistance, guaranteed spare parts availability for 20+ years, and on-site commissioning services for critical installations requiring regulatory witness testing.
