Product Description
General Information
|
Field |
Details |
|---|---|
|
Product ID |
5STP38Q4200 |
|
ABB Type Designation |
4275A 4200V |
|
Catalog Description |

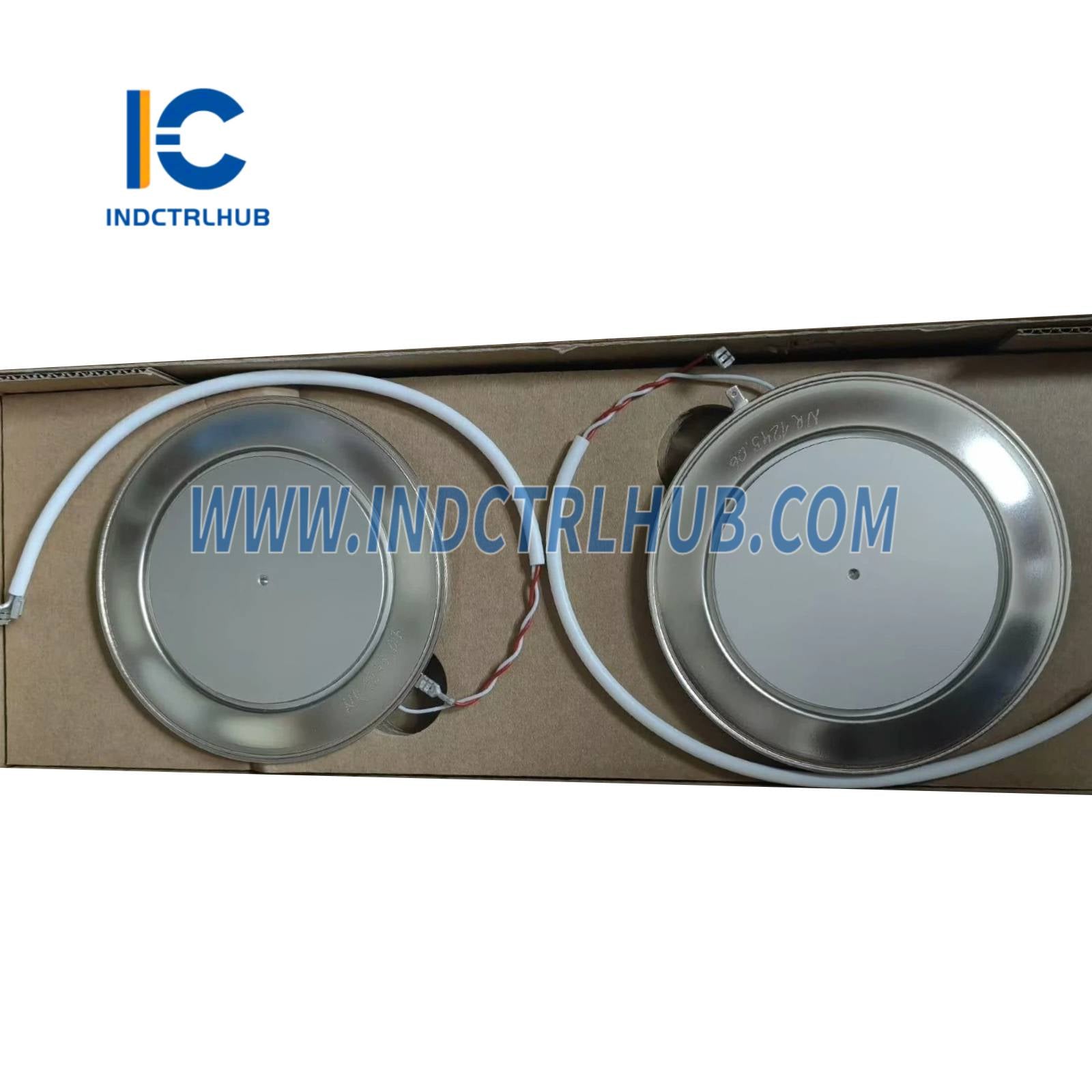

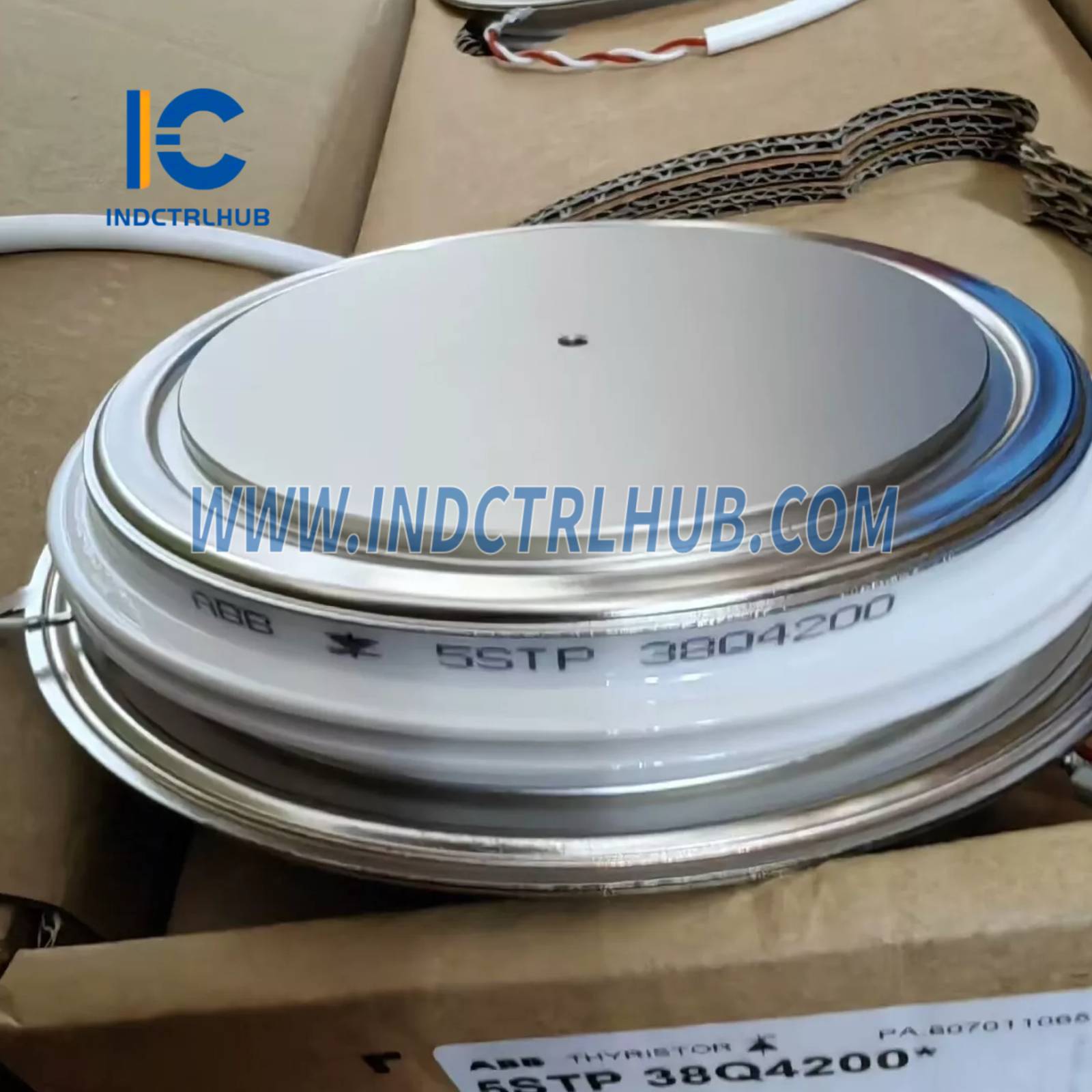

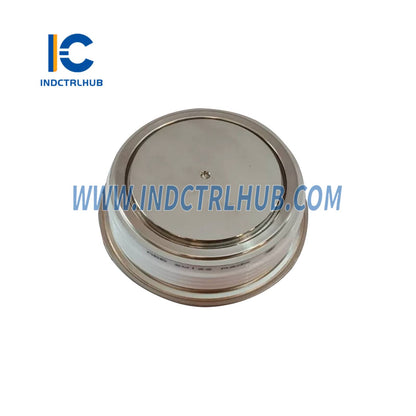

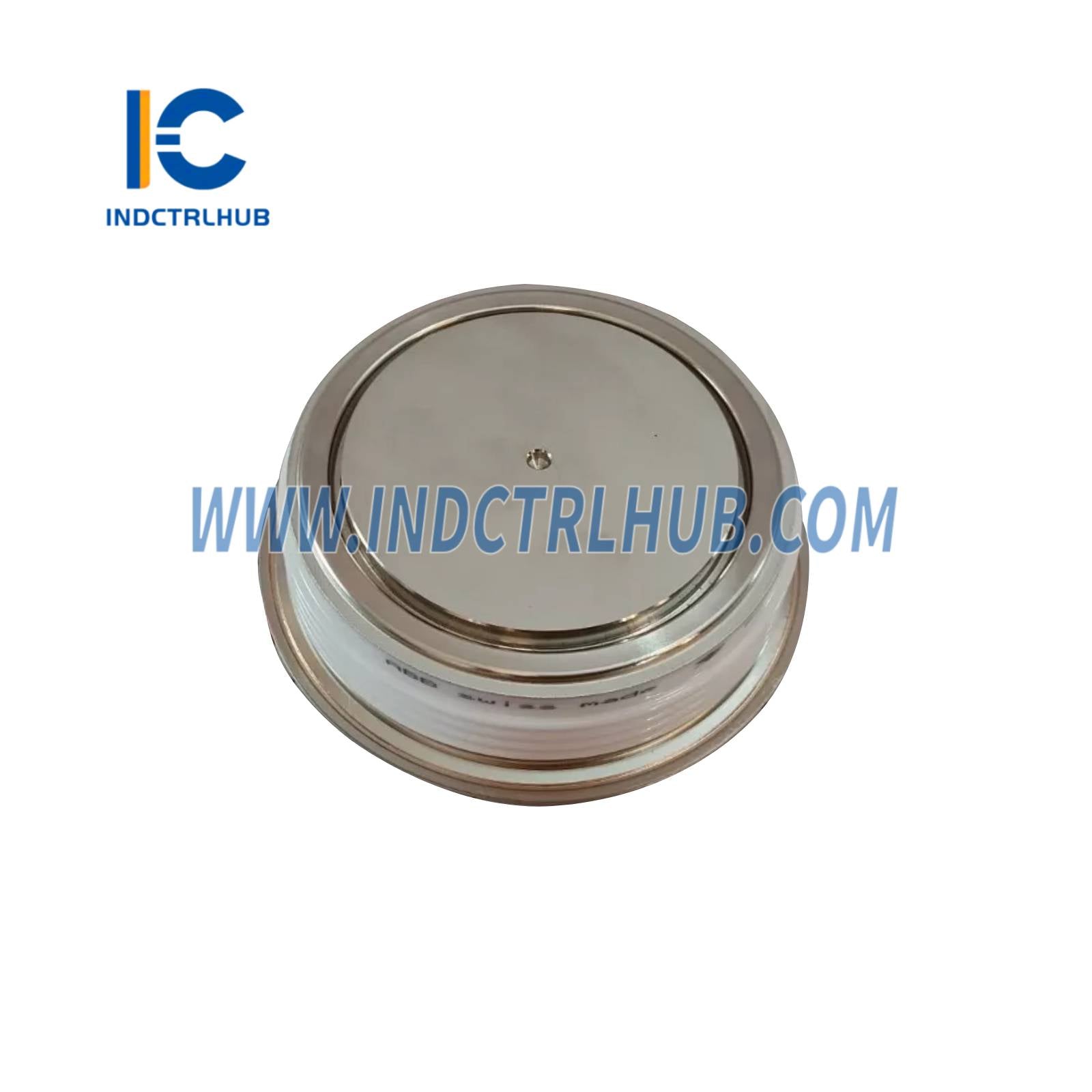

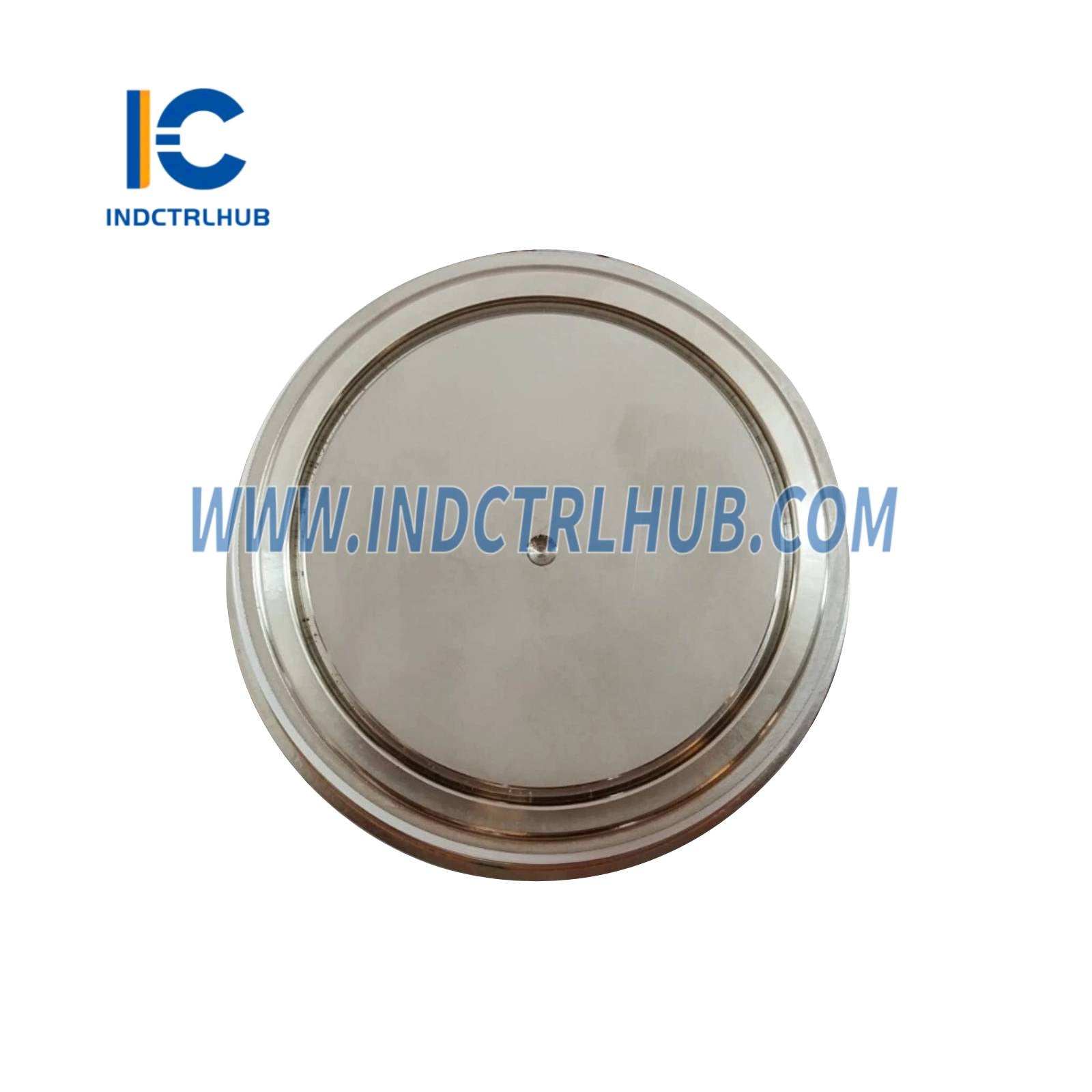

Phase Control Thyristor, PCT |
|
Product Name |
Control System Accessory |
|
Product Type |
Control_System_Accessory |
|
Part Type |
New |
|
Medium Description |
THYRISTOR |
|
Made To Order |
No |
|
Minimum Order Quantity |
1 piece |
|
Order Multiple |
1 piece |
|
Selling Unit of Measure |
piece |
|
Country or Territory of Origin |
Switzerland |
|
Stocked At (Warehouses) |
Malmö, Sweden; Singapore, Singapore |
Technical Information
|
Field |
Details |
|---|---|
|
IT(AV)M (Average On-State Current) |
4275 A |
|
VDRM (Repetitive Peak Off-State Voltage) |
4200 V |
|
Mounting Force |
90 kN |
|
Features |
- Patented free-floating silicon technology- Low on-state and switching losses- Designed for traction, energy, and industrial applications- Optimum power handling capability- Interdigitated amplifying gate |
Dimensions & Weight
|
Field |
Details |
|---|---|
|
Product Net Depth / Length |
151 mm |
|
Product Net Width |
151 mm |
|
Product Net Height |
26 mm |
|
Product Net Weight |
2.1 kg |
|
Package Level 1 Dimensions (L×W×H) |
151 × 151 × 26 mm |
|
Package Level 1 Gross Weight |
2.1 kg |
Ordering & Regulatory
|
Field |
Details |
|---|---|
|
Customs Tariff Number |
85413000 |
|
UNSPSC Code |
39120000 |
|
WEEE Category |
Product Not in WEEE Scope |
|
Invoice Description |
Phase Control Thyristor, PCT |
