Product Description
General Information
|
Field |
Details |
|---|---|
|
Product ID |
5STP24H2800 |
|
ABB Type Designation |
2780A 2800V |
|
Catalog Description |

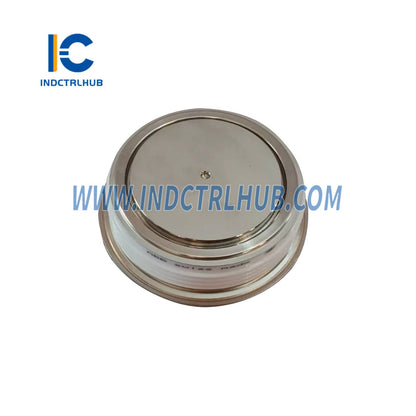

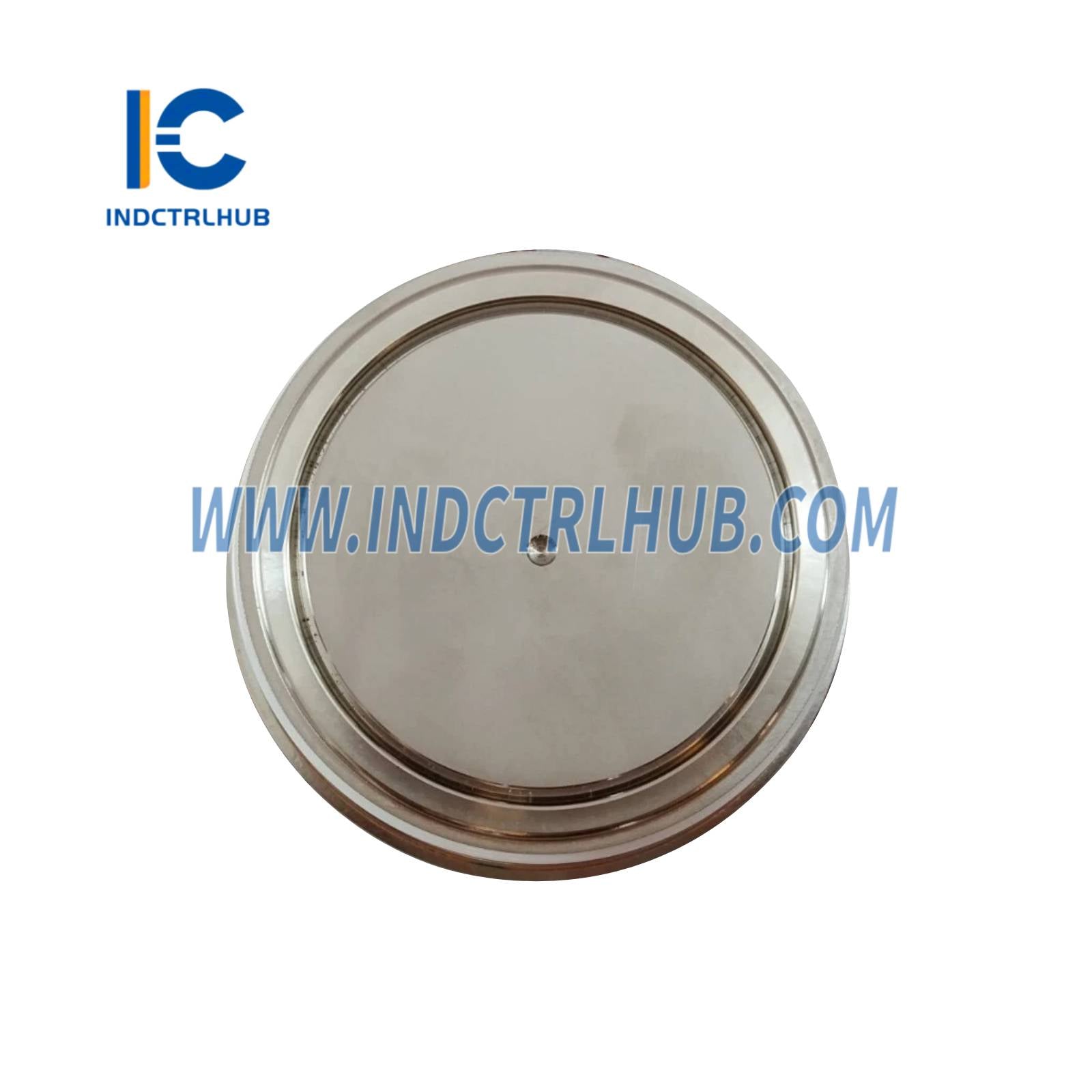

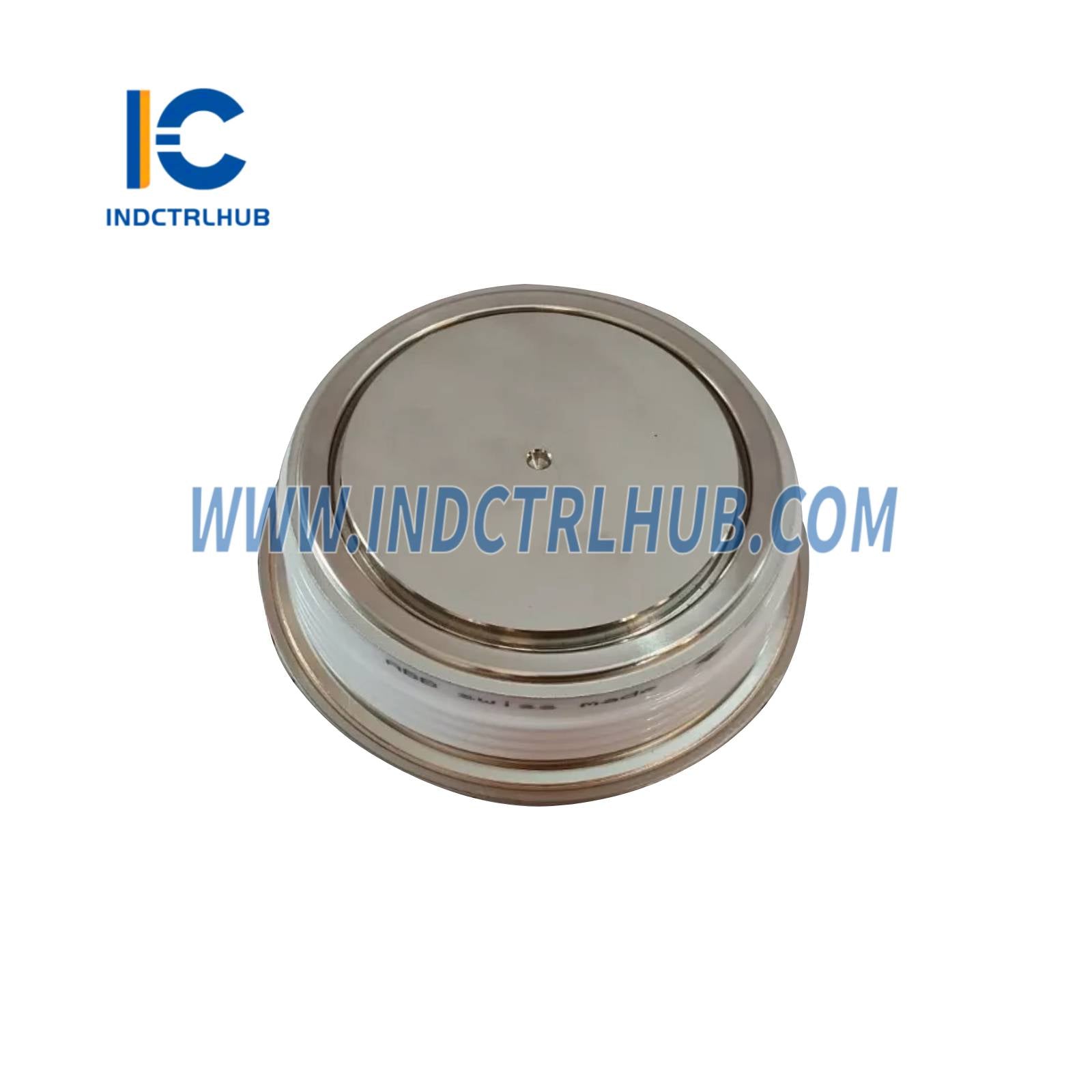

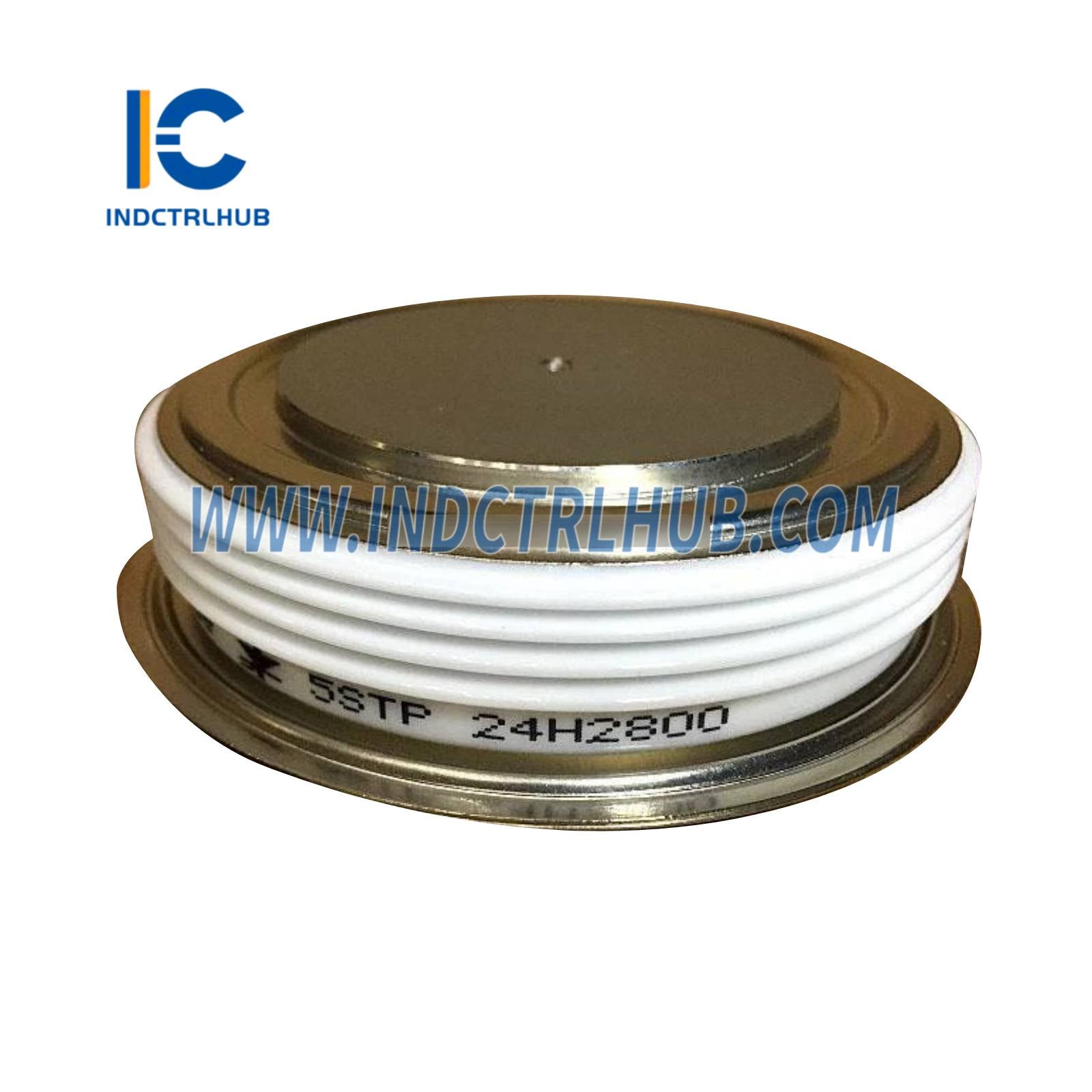

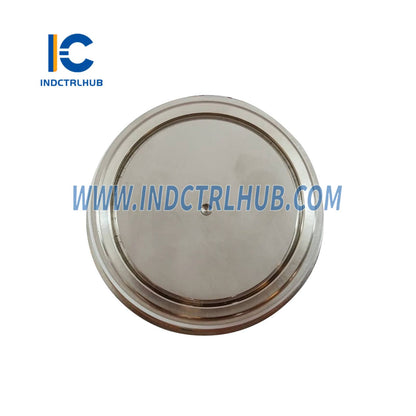

Phase Control Thyristor, PCT |
|
Long Description |
Phase Control ThyristorVDRM = 2800 V, IT(AV)M = 2780 AMounting force = 50 kN |
|
Product Name |
Control System Accessory |
|
Product Type |
Control_System_Accessory |
|
Part Type |
New |
|
Medium Description |
THYRISTOR, PCT |
|
Made To Order |
No |
|
Minimum Order Quantity |
1 piece |
|
Order Multiple |
1 piece |
|
Selling Unit of Measure |
piece |
|
Country or Territory of Origin |
Switzerland |
|
Stocked At (Warehouses) |
Malmö, Sweden; Singapore, Singapore |
Technical Information
|
Field |
Details |
|---|---|
|
VDRM |
2800 V |
|
IT(AV)M (Average On-State Current) |
2780 A |
|
Mounting Force |
50 kN |
|
Features |
- Patented free-floating silicon technology- Low on-state and switching losses- Designed for traction, energy, and industrial applications- Optimum power handling capability- Interdigitated amplifying gate |
Dimensions & Weight
|
Field |
Details |
|---|---|
|
Product Net Depth / Length |
102 mm |
|
Product Net Width |
102 mm |
|
Product Net Height |
26 mm |
|
Product Net Weight |
0.9 kg |
|
Package Level 1 Dimensions (L×W×H) |
102 × 102 × 26 mm |
|
Package Level 1 Gross Weight |
0.9 kg |
Ordering & Regulatory
|
Field |
Details |
|---|---|
|
Customs Tariff Number |
85413000 |
|
UNSPSC Code |
32110000 |
|
WEEE Category |
Product Not in WEEE Scope |
|
Core Credit |
0.00 |
|
Invoice Description |
Phase Control Thyristor, PCT |
|
Quote Only |
No |
|
Replaced Product IDs (OLD) |
5STP24L2400, 5STP24H2600, 5STP24L2800, 5STP24H2200, 1SFA880018-E, 5STP24L2200, 1SFA880018-D, DCA0016169P0001, 5STP24L2600 |
