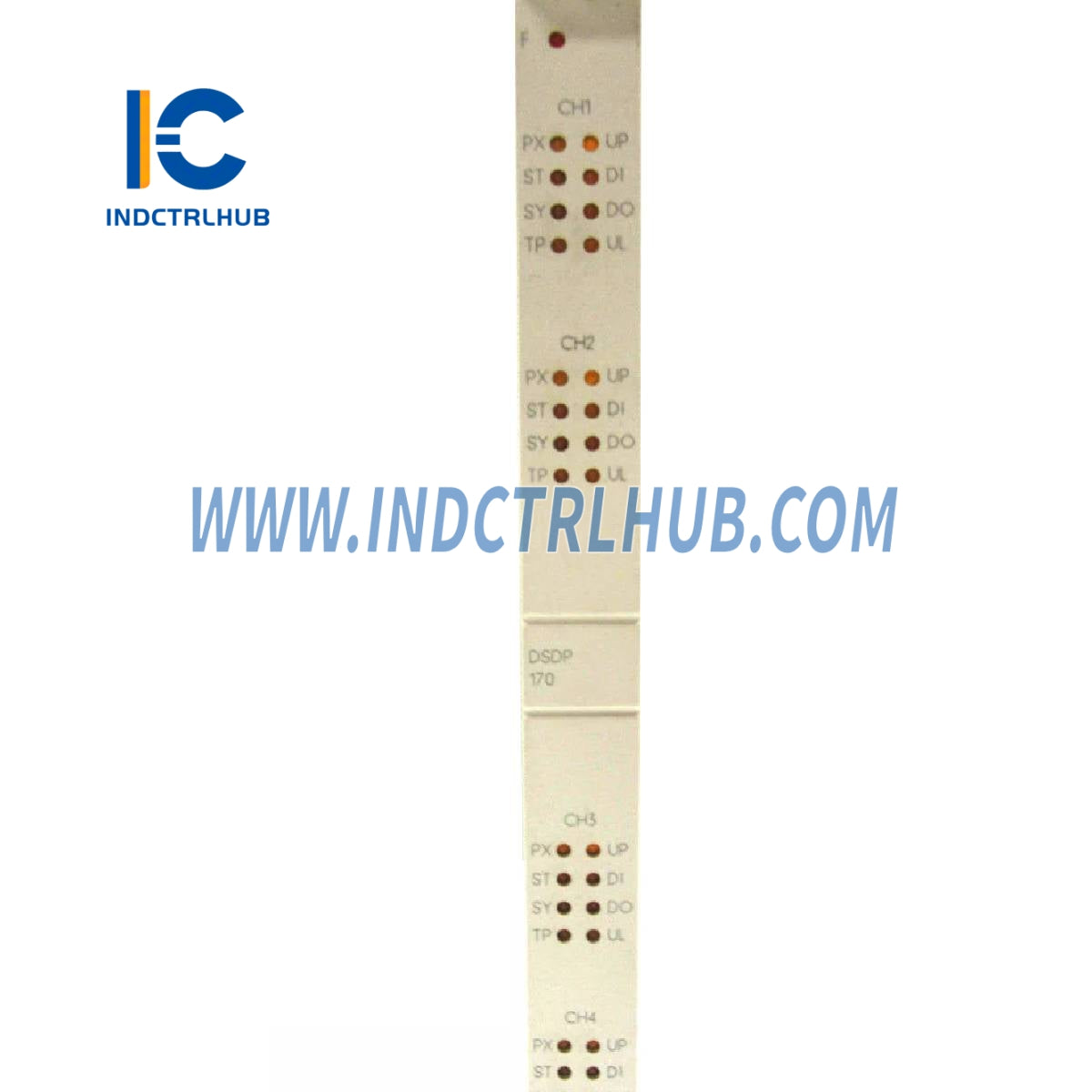

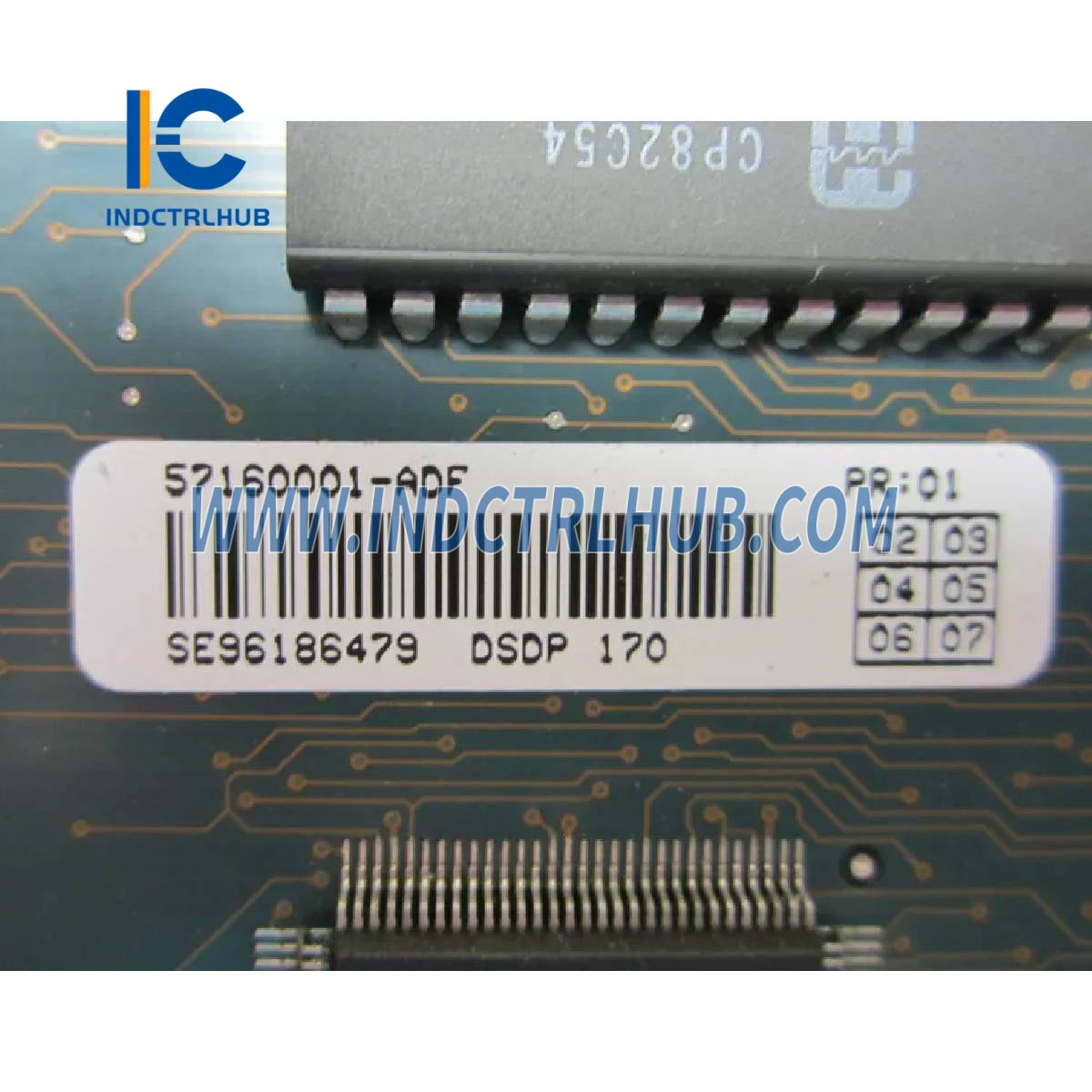

57160001-ADF | ABB DSDP 170 inc. Pos. and Speed meas.
57160001-ADF | ABB DSDP 170 inc. Pos. and Speed meas.
Manufacturer: ABB
Product No.: 57160001-ADF
Condition:1000 in stock
Product Type: inc. Pos. and Speed meas.
Product Origin: Switzerland
Payment: T/T, Western Union
Weight: 380g
Shipping port: Xiamen
Warranty: 12 months
- 24/7 Support
- 30-Day Returns
- Fast Shipping
General Information
|
Parameter |
Value |
|---|---|
|
Manufacturer |
ABB |
|
Model/Part Number |
DSDP 170 / 57160001-ADF |
|
Product ID |
57160001-ADF |
|
Catalog Description |

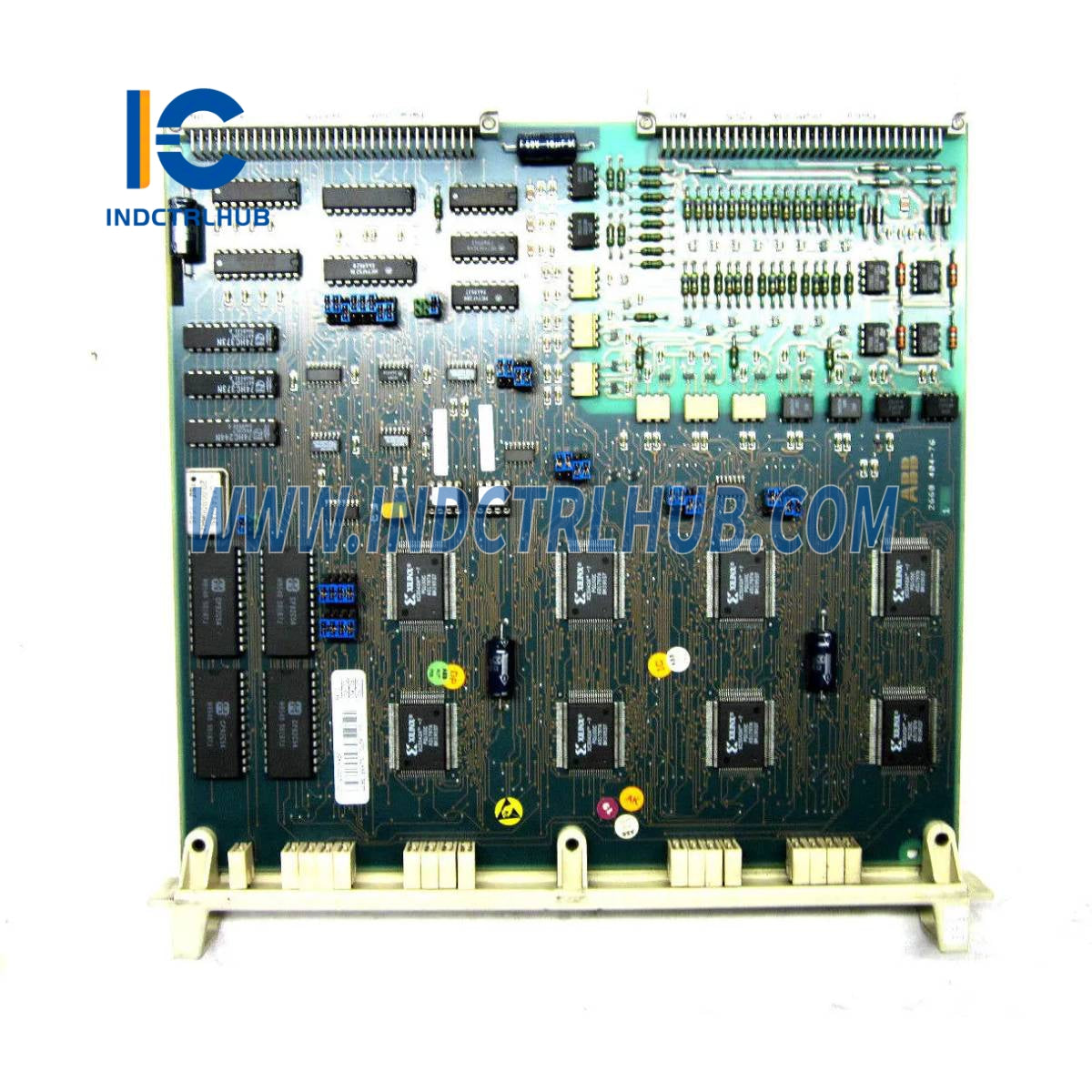

DSDP 170 Pulse Counting Board inc. Pos. and Speed Measurement |
|
Long Description |
Pulse Counting Board designed for positioning/length and speed/frequency measuring applications. Maximum pulse frequency: 2.5 MHz. |
|
Product Type |
I-O_Module |
_
Technical Information
|
Parameter |
Value |
|---|---|
|
Function |
Pulse Counting Board with Position and Speed Measurement |
|
Maximum Pulse Frequency |
2.5 MHz |
_
Ordering Information
|
Parameter |
Value |
|---|---|
|
HS Code |
853890 - Parts suitable for use solely or principally with the apparatus of heading 85.35, 85.36, or 85.37 |
|
Customs Tariff Number |
85389091 |
_
Dimensions & Weight
|
Parameter |
Value |
|---|---|
|
Product Net Depth / Length |
328.5 mm |
|
Product Net Height |
18 mm |
|
Product Net Width |
238.5 mm |
|
Product Net Weight |
0.38 kg |
_
Environmental Compliance
|
Parameter |
Value |
|---|---|
|
RoHS Status |
Following EU Directive 2011/65/EU |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
Number of Batteries |
0 |
|
SCIP Reference |
cbfb0250-ebbc-4494-b22e-ad36beae8e99 (Sweden) |
_
Product Categories & Compatibility
Products
__Control System Products___I/O Products___S100 I/O___S100 I/O - Modules___DSDP 170 Pulse Inputs
__Control Systems___Advant OCS with Master SW___Controllers___Advant Controller 450___Version 2.3___I/O Modules
Parts & Services
__800xA___I/Os___S100 I/O___I/O Modules
__Advant OCS with Master SW___Controllers___MasterPiece 200 and 200/1___I/O Modules
__Advant OCS with Master SW___I/Os___S100 I/O___I/O Modules
__Advant OCS with MOD 300 SW___I/Os___S100 I/O___I/O Modules
__Compact Product Suite___I/Os___S100 I/O___I/O Modules
