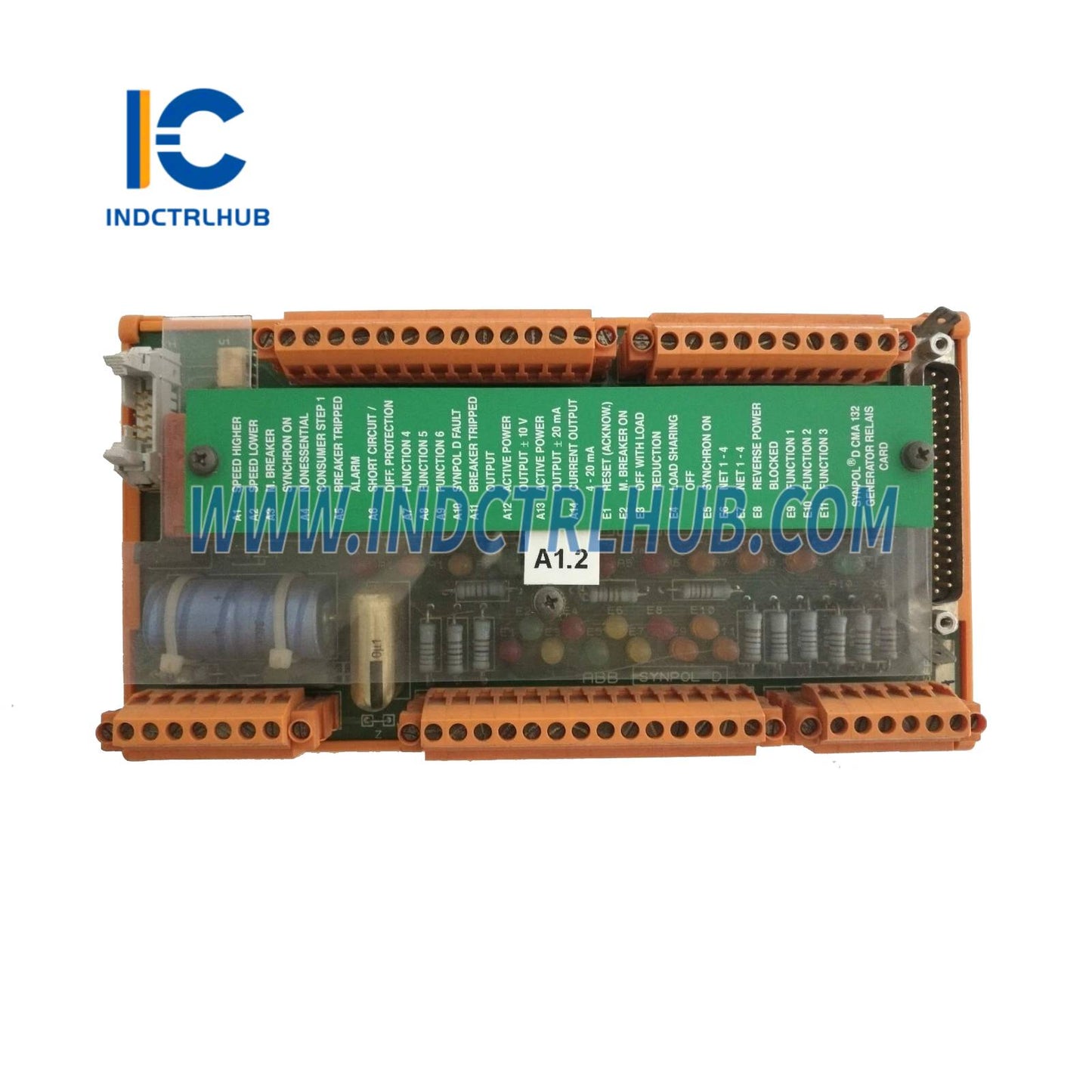

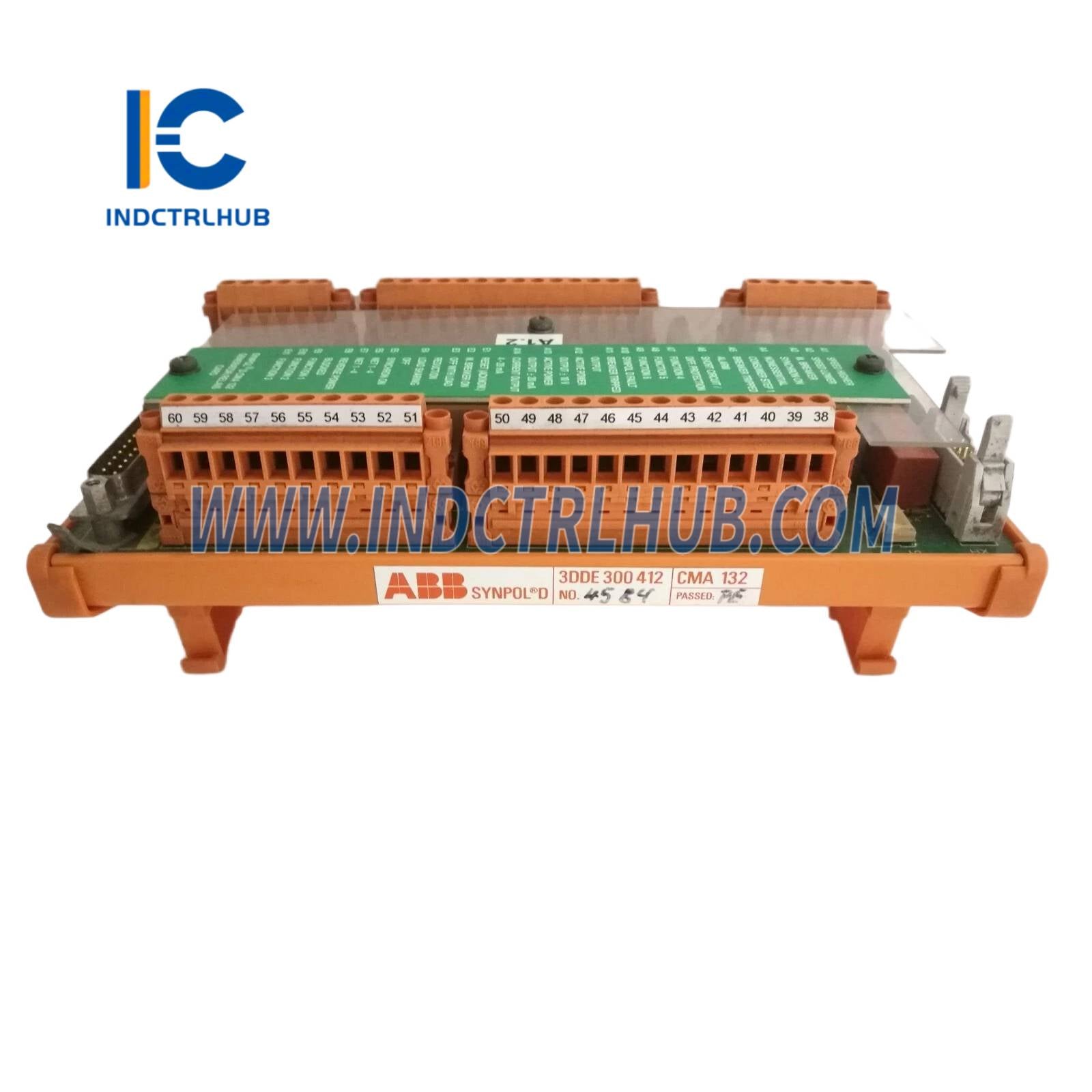

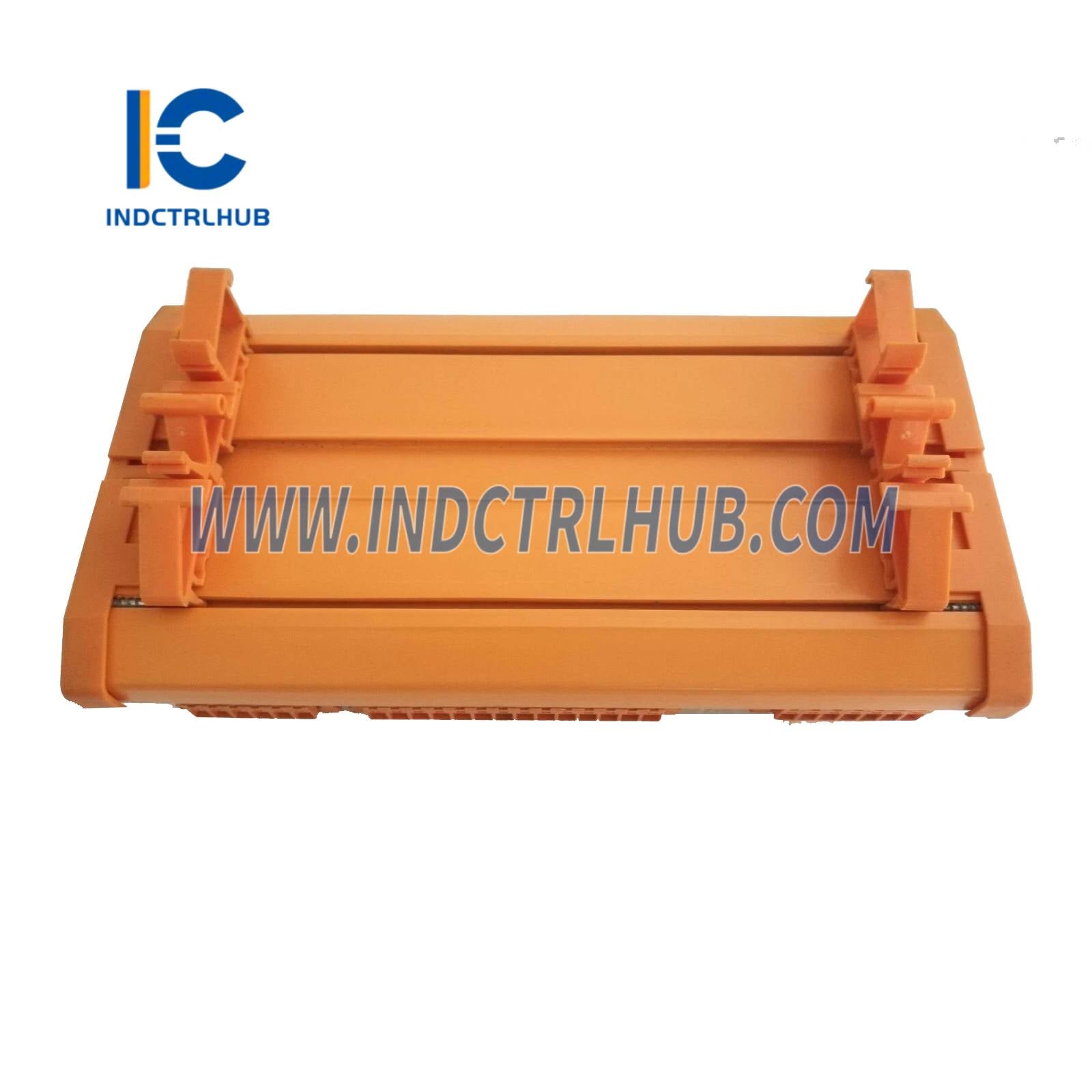

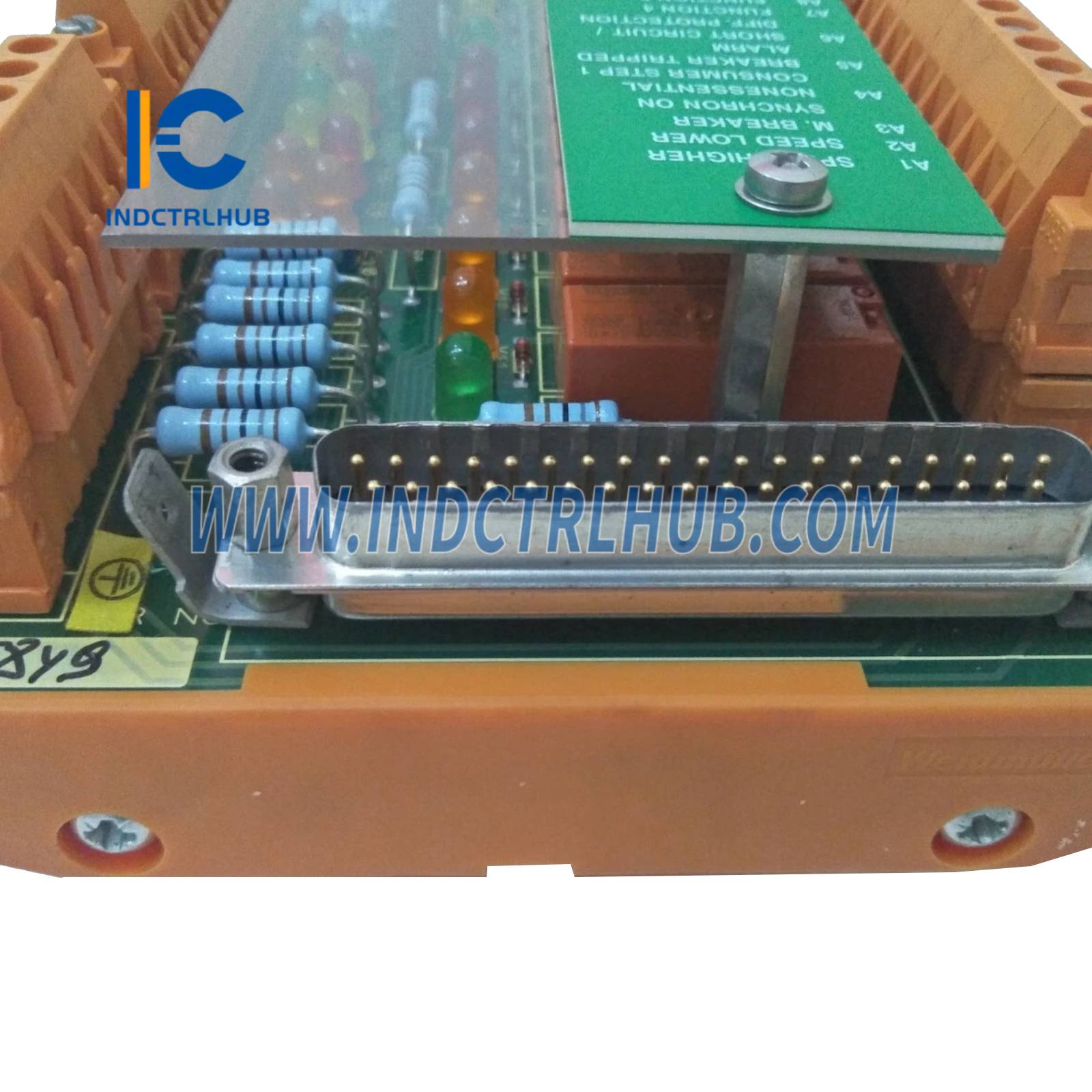

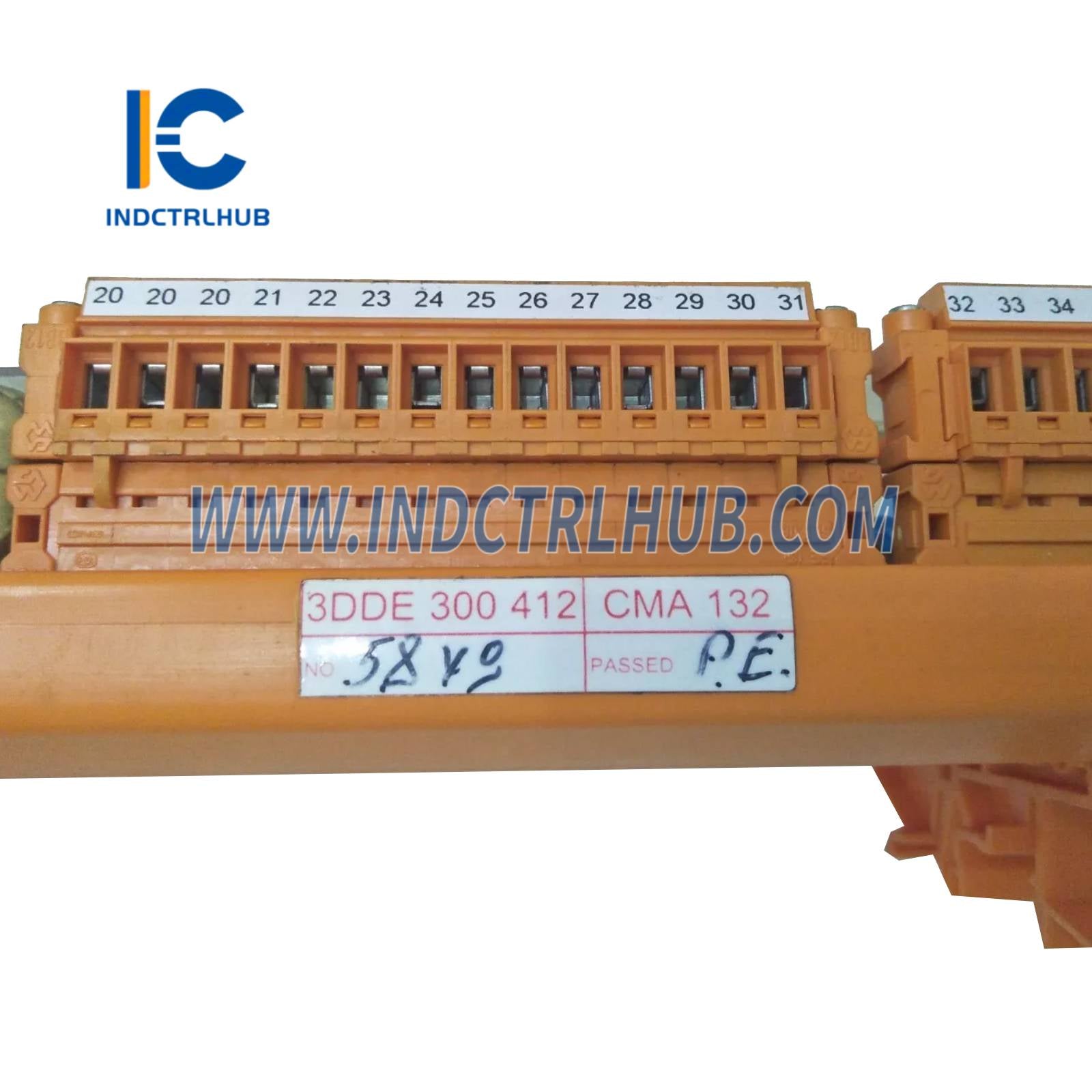

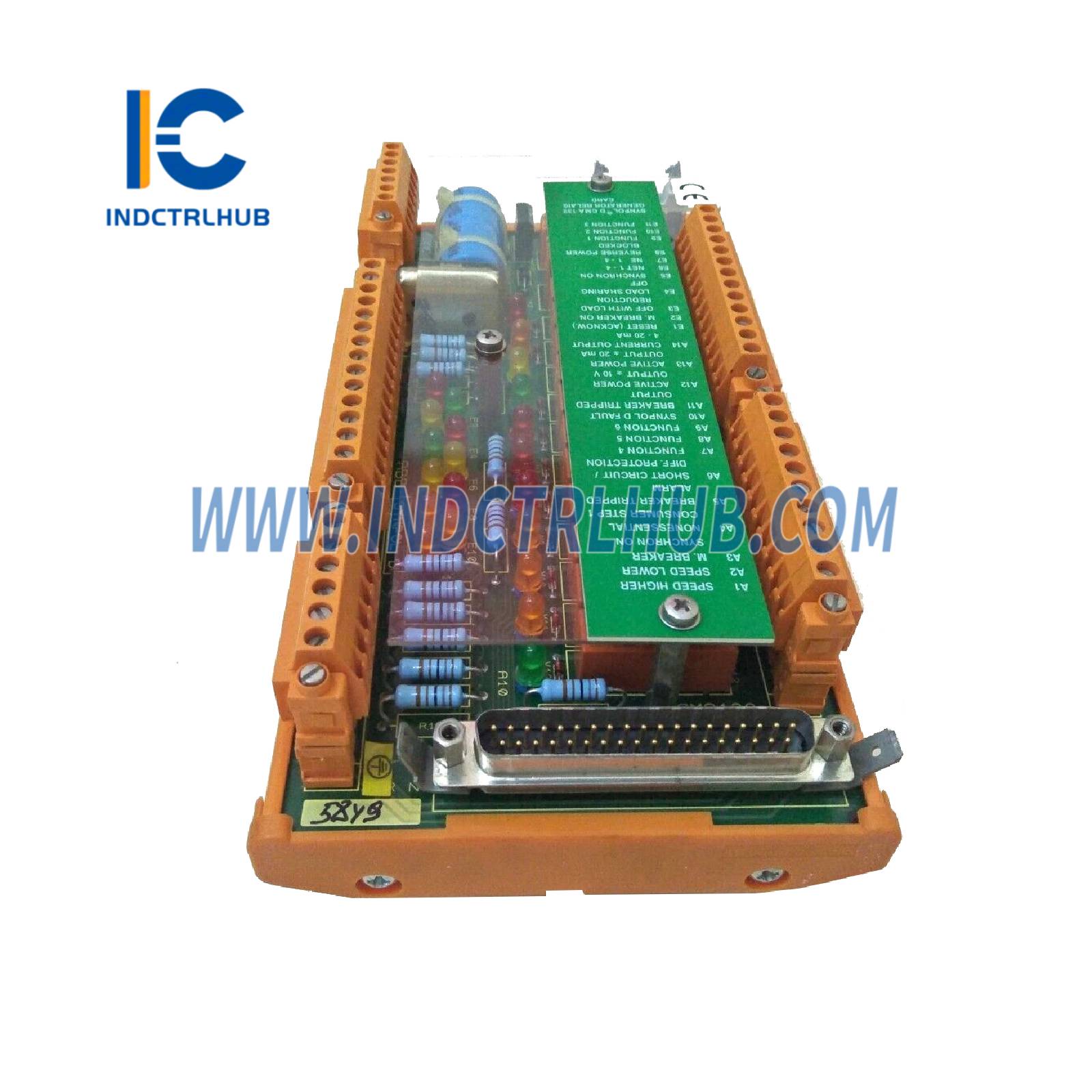

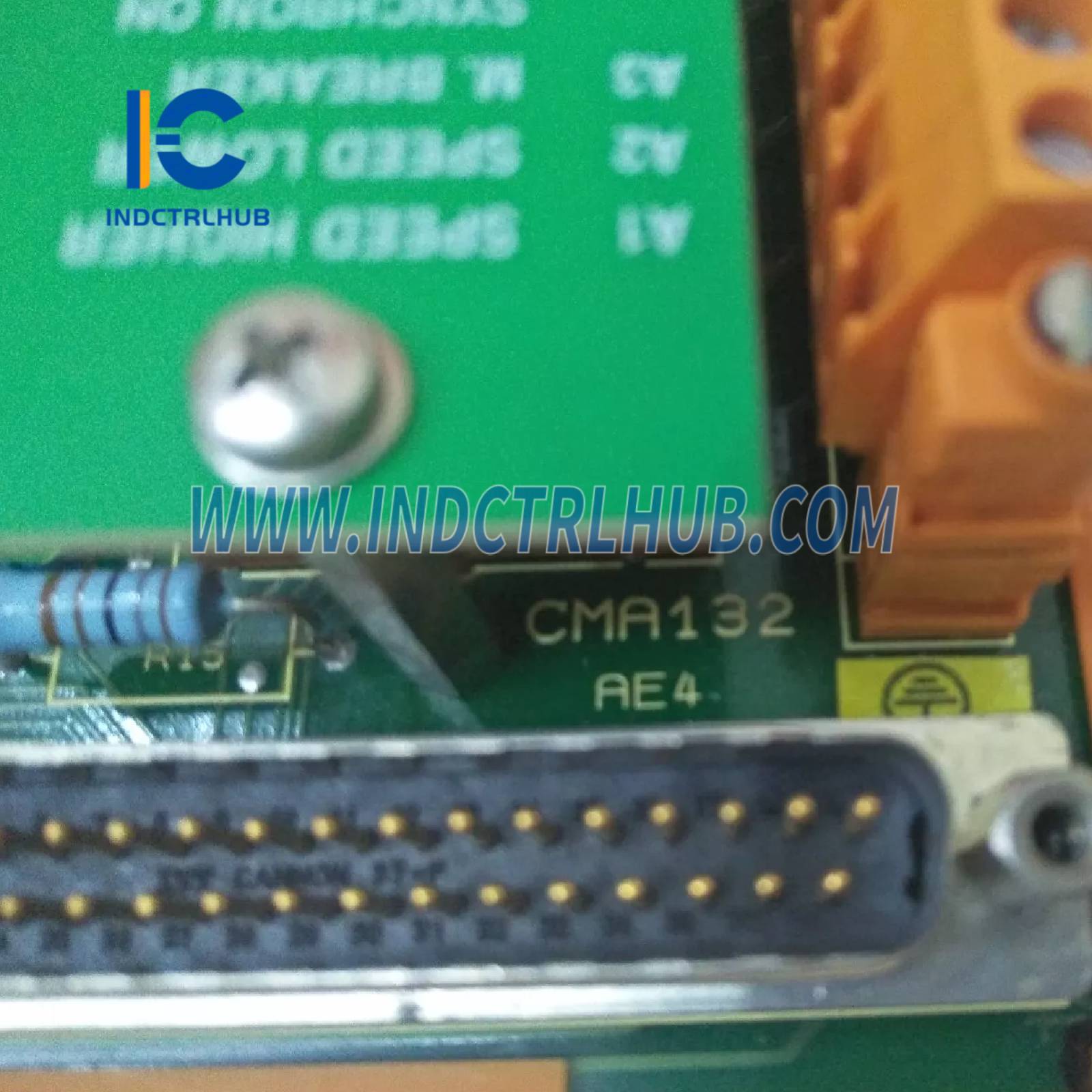

ABB CMA132 3DDE300412 Servo Drive Interface Module
Product Overview
- The ABB CMA132, with part number 3DDE300412, is a Servo Drive Interface Module designed for use in ABB’s Advant OCS (Open Control System) and related distributed control systems (DCS). This module facilitates communication and control between the DCS and servo drives, enabling precise motion control for servo motors in industrial automation applications. It is an enhanced or variant model compared to the CMA131, offering additional features or compatibility for specific servo drive configurations. The CMA132 is commonly used in industries such as manufacturing, robotics, pulp and paper, and metals processing, where accurate positioning and dynamic motion control are critical. It is known for its reliability, seamless integration with ABB’s control systems, and support for high-performance servo applications.
Technical Specifications
- The 3DDE300412 (CMA132) has the following specifications based on industry sources and ABB documentation:
| Specification | Details |
|---|---|
| Model/Part Number | 3DDE300412 |
| Designation | CMA132 |
| Manufacturer | ABB |
| Description | Servo Drive Interface Module for Advant OCS |
| Series | Advant OCS, Master |
| Function | Interfaces servo drives with DCS for motion control |
| Communication Interfaces | Advant Fieldbus, MasterBus, or proprietary ABB servo protocols |
| Input Signals | Digital inputs for control signals Analog inputs for position/speed feedback |
| Output Signals | Digital outputs for drive commands Analog outputs for setpoint signals |
| Supported Drives | ABB servo drives (e.g., ACSM1, ACS800 with servo firmware, ACS880) |
| Control Capabilities | Position, speed, and torque control for servo motors |
| Compatibility | ABB Advant OCS, MasterPiece controllers, Advant Controller 450, potentially newer ABB DCS systems |
| Power Supply | 24 VDC (via system backplane) |
| Power Consumption | Approx. 5–10 W |
| Diagnostics | Fault detection, drive status monitoring, communication errors |
| Environmental Specifications | Operating Temperature: 0°C to +55°C (32°F to +131°F) Storage Temperature: -25°C to +70°C (-13°F to +158°F) Relative Humidity: 5% to 95% non-condensing Vibration: IEC 60068-2-6 compliant |
| Enclosure | IP20 (installed in control cabinet) |
| Dimensions | Approx. 150 mm (H) x 50 mm (W) x 120 mm (D) |
| Weight | Approx. 0.4–0.6 kg |
| Mounting | Plugs into Advant OCS/Master system rack |
| Certifications | CE, UL, CSA, complies with IEC 61131 standards |
