Product Description
General Information
|
Field |
Details |
|---|---|
|

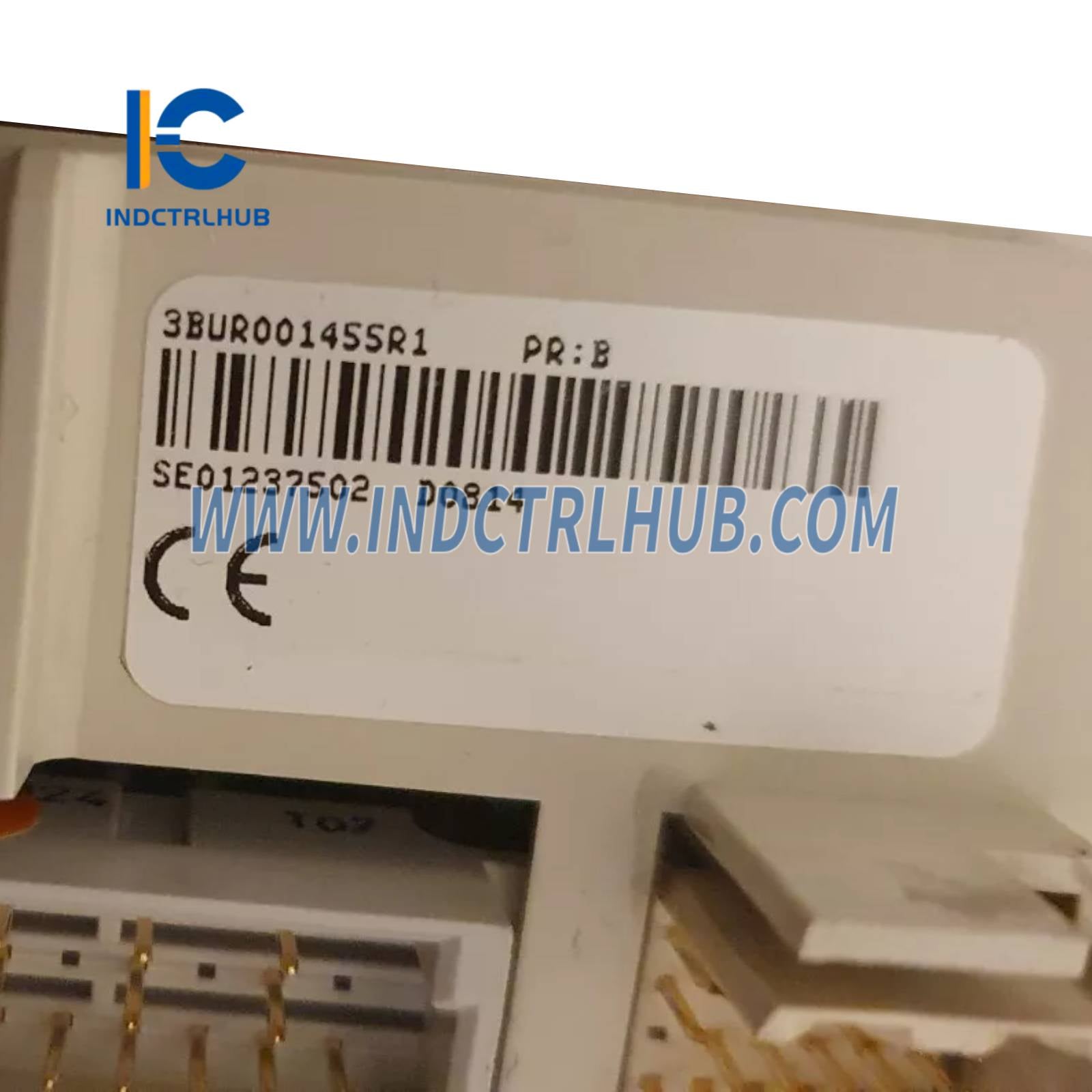

Product ID |
3BUR001455R1 |
|
ABB Type Designation |
DO814 |
|
Catalog Description |

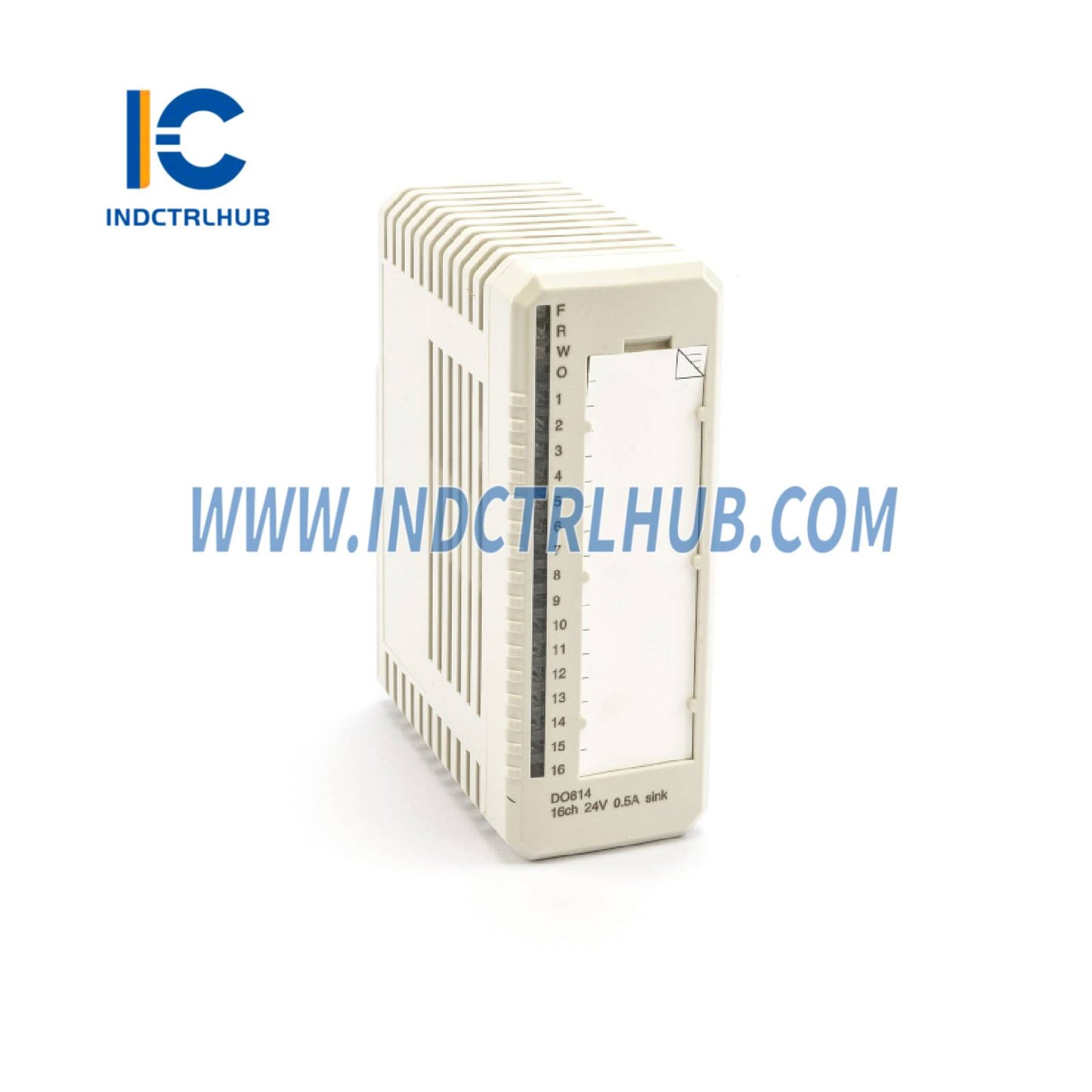

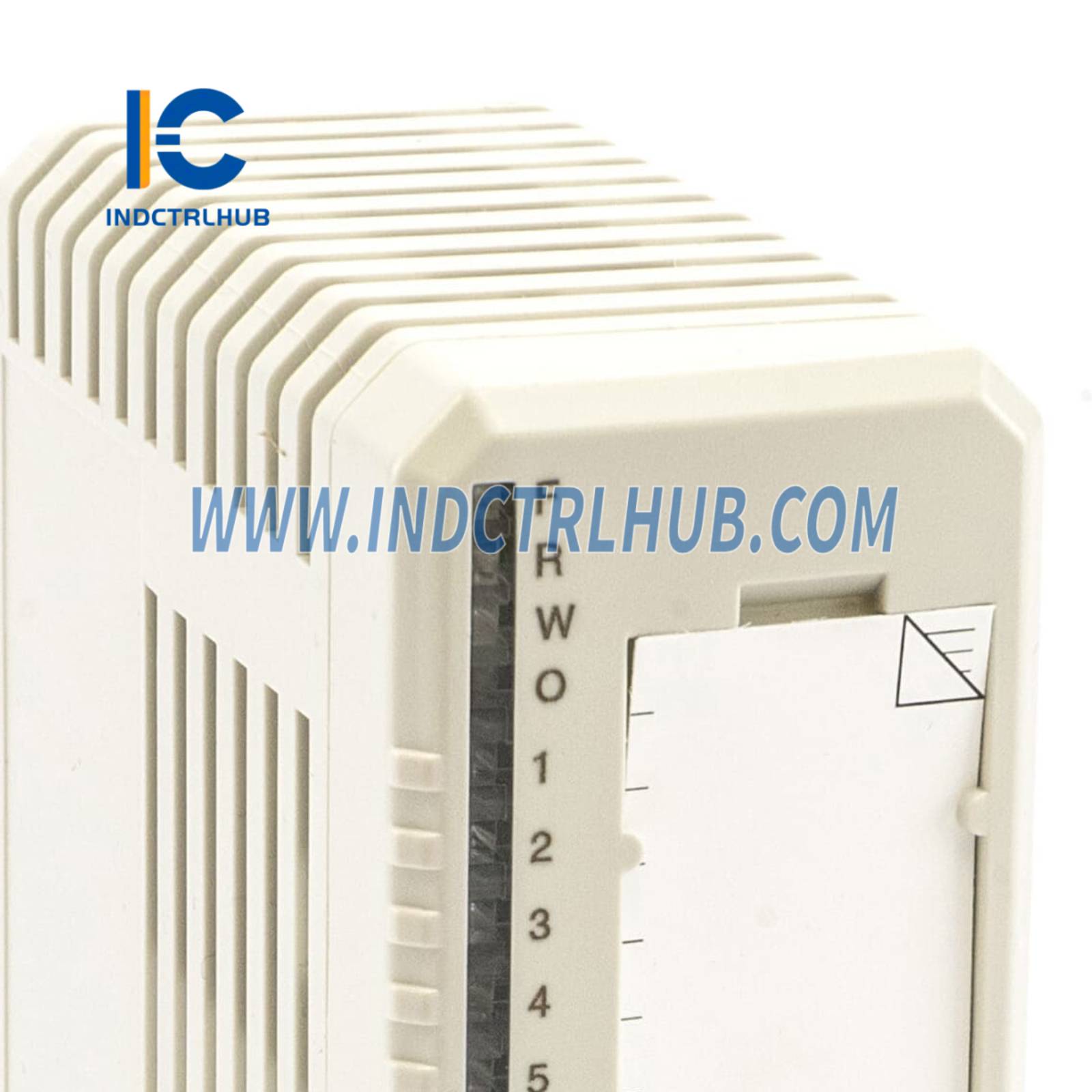

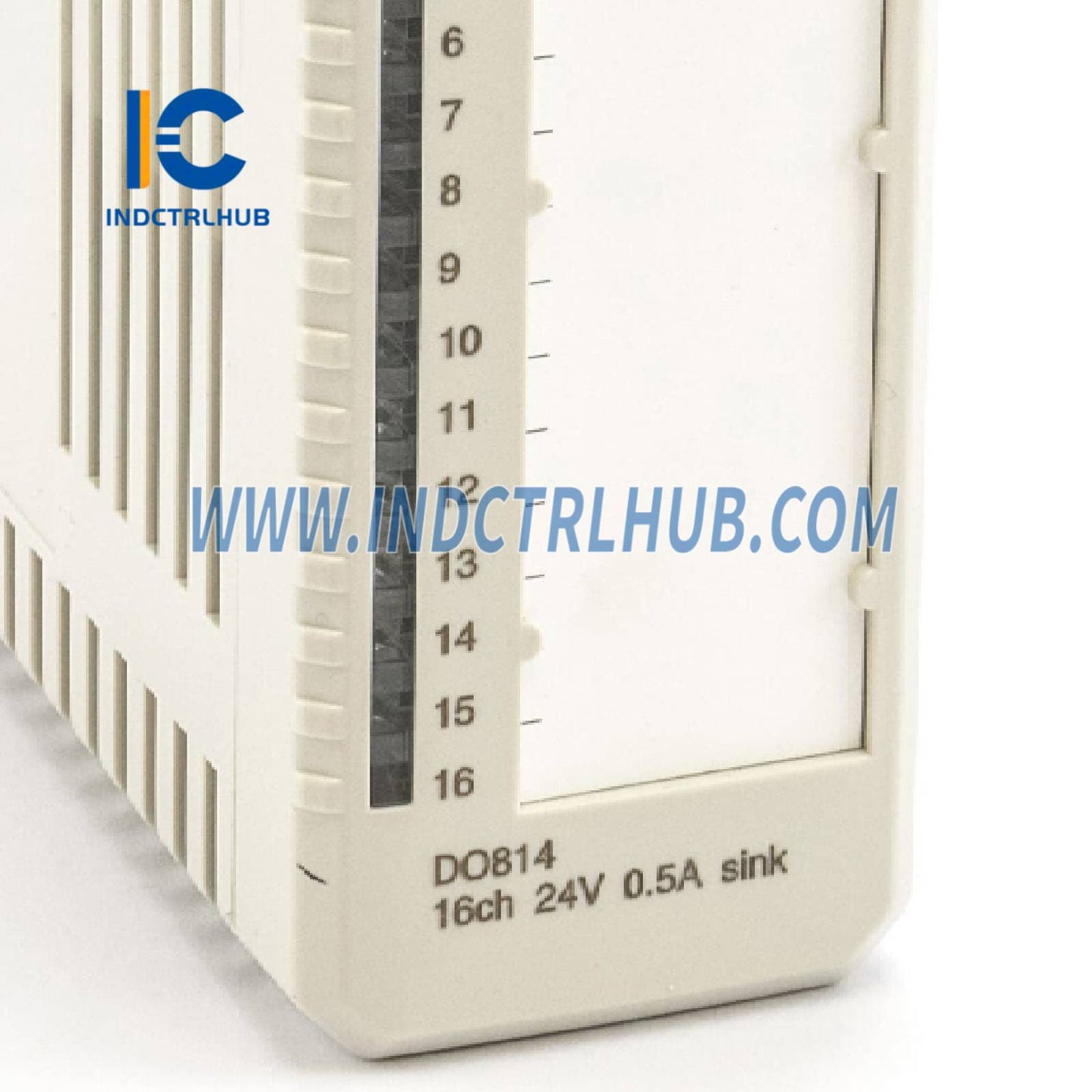

DO814 Digital Output Current 16 ch |
|
Long Description |
Isolated in two groups of 8 channels. 0.5A, short circuit proof. Current sinking. Use Module Termination Units TU810, TU812, TU814, TU830, TU833, TU838. |
|
Medium Description |
Isolated in two groups of 8 channels. 0.5A, short circuit proof. Current sinking. Use Module Termination Units TU810, TU812, TU814, TU830, TU833, TU838. |
|
Product Type |
I-O_Module |
Ordering
|
Field |
Details |
|---|---|
|
HS Code |
853890 - Electrical machinery and equipment and parts thereof |
|
Customs Tariff Number |
85389099 |
Dimensions
|
Dimension |
Size |
|---|---|
|
Product Net Depth / Length |
102 mm |
|
Product Net Height |
119 mm |
|
Product Net Width |
45 mm |
|
Product Net Weight |
0.2 kg |
Technical Details
|
Field |
Details |
|---|---|
|
Channel Type |
DO (Digital Output) |
|
Number of Output Channels |
16 |
Environmental
|
Field |
Details |
|---|---|
|
RoHS Status |
Following EU Directive 2011/65/EU |
|
WEEE Category |
5. Small Equipment (No External Dimension More Than 50 cm) |
|
Number of Batteries |
0 |
|
SCIP |
586cb47c-11bd-42fb-ad74-65d849891995 (Sweden) |
Product Associations
|
Categories |
Details |
|---|---|
|
Products |
Control System Products > I/O Products > S800 I/O > S800 I/O Modules > DO814 Digital Outputs > DO814 Digital Output Current |
|
Systems |
Control Systems > 800xA > I/Os > S800 I/O 4.0/4.1/5.0/5.1 Modules; 800xA System 6.0 System > I/O Modules; Advant OCS with Master SW > I/Os and Systems; Compact Product Suite I/Os |
