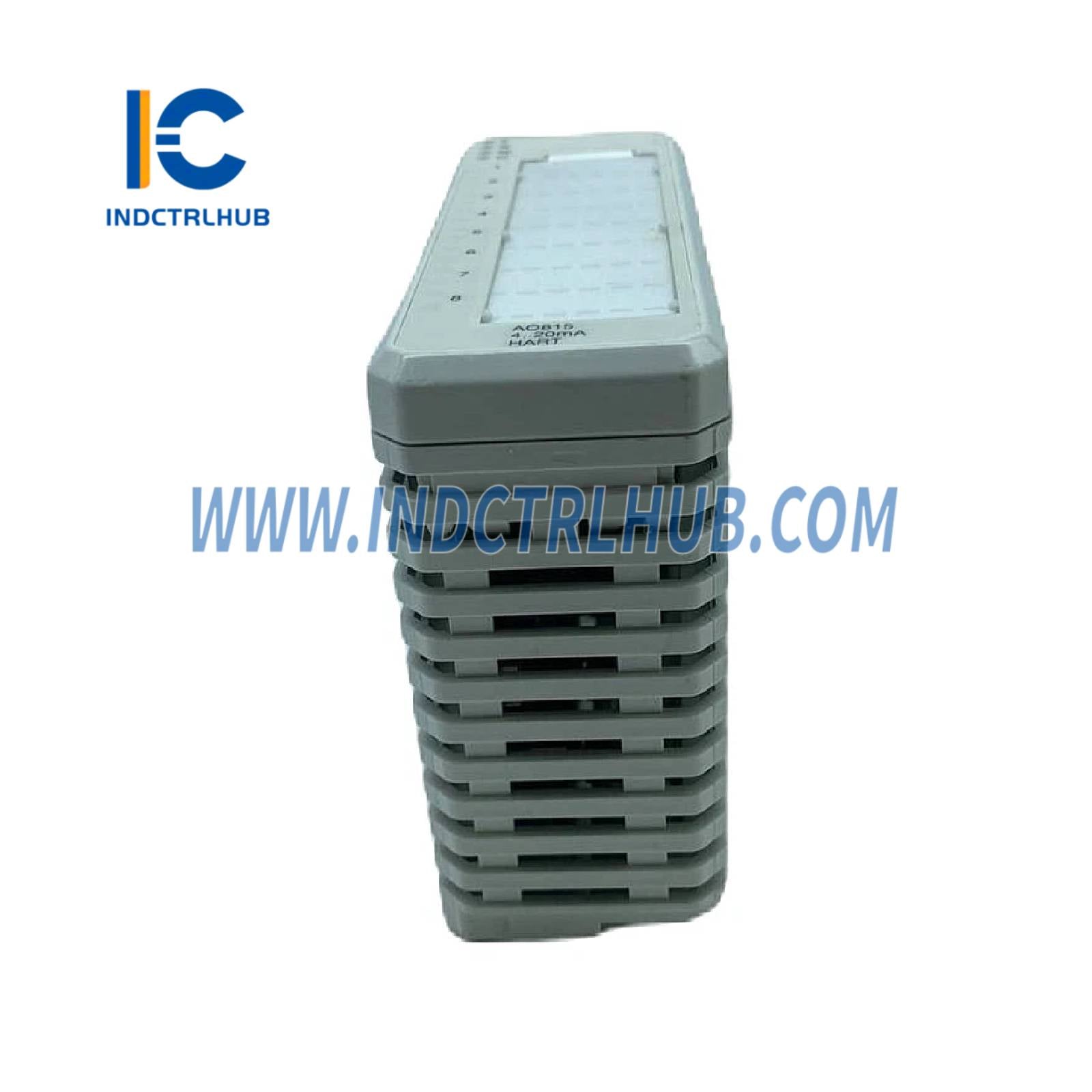

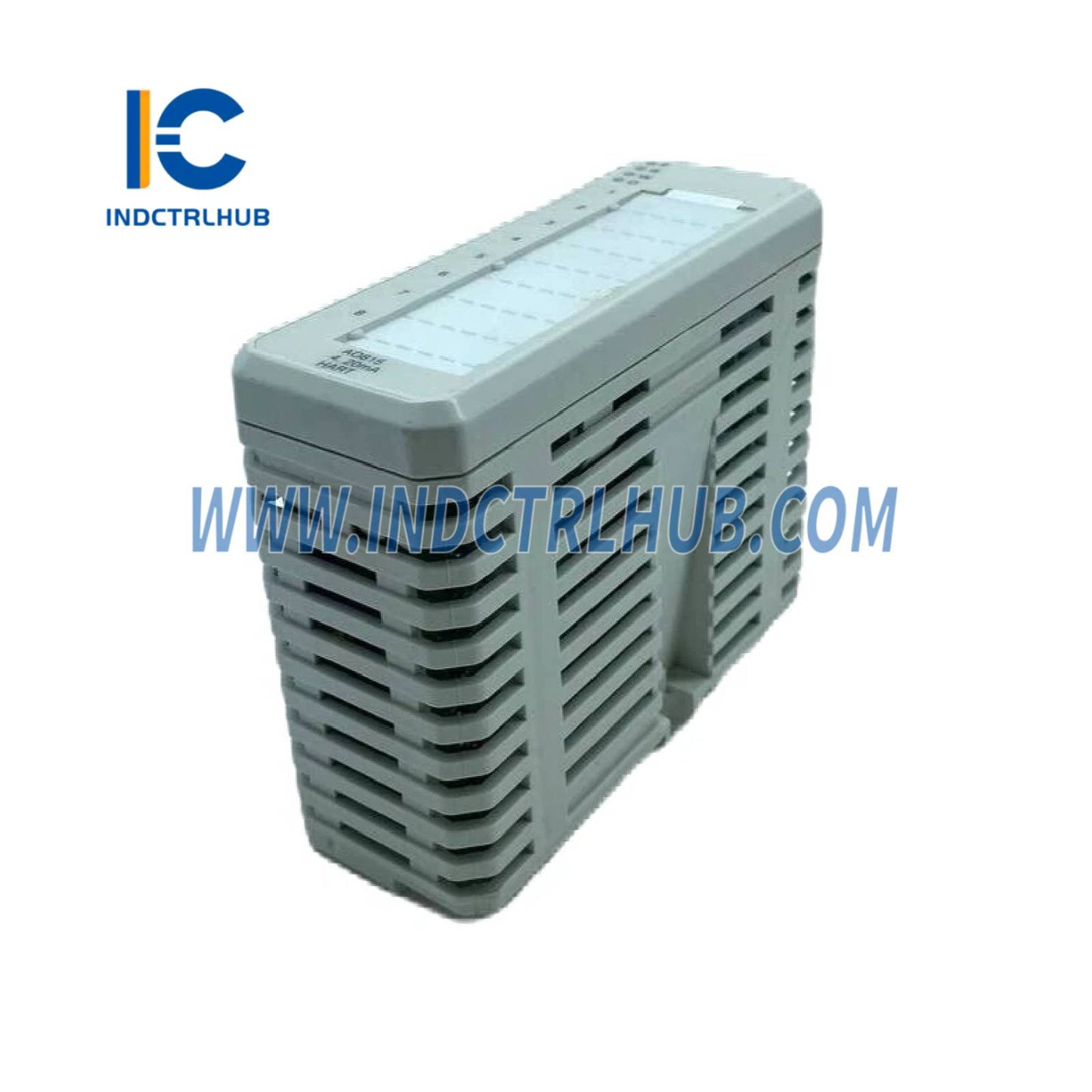

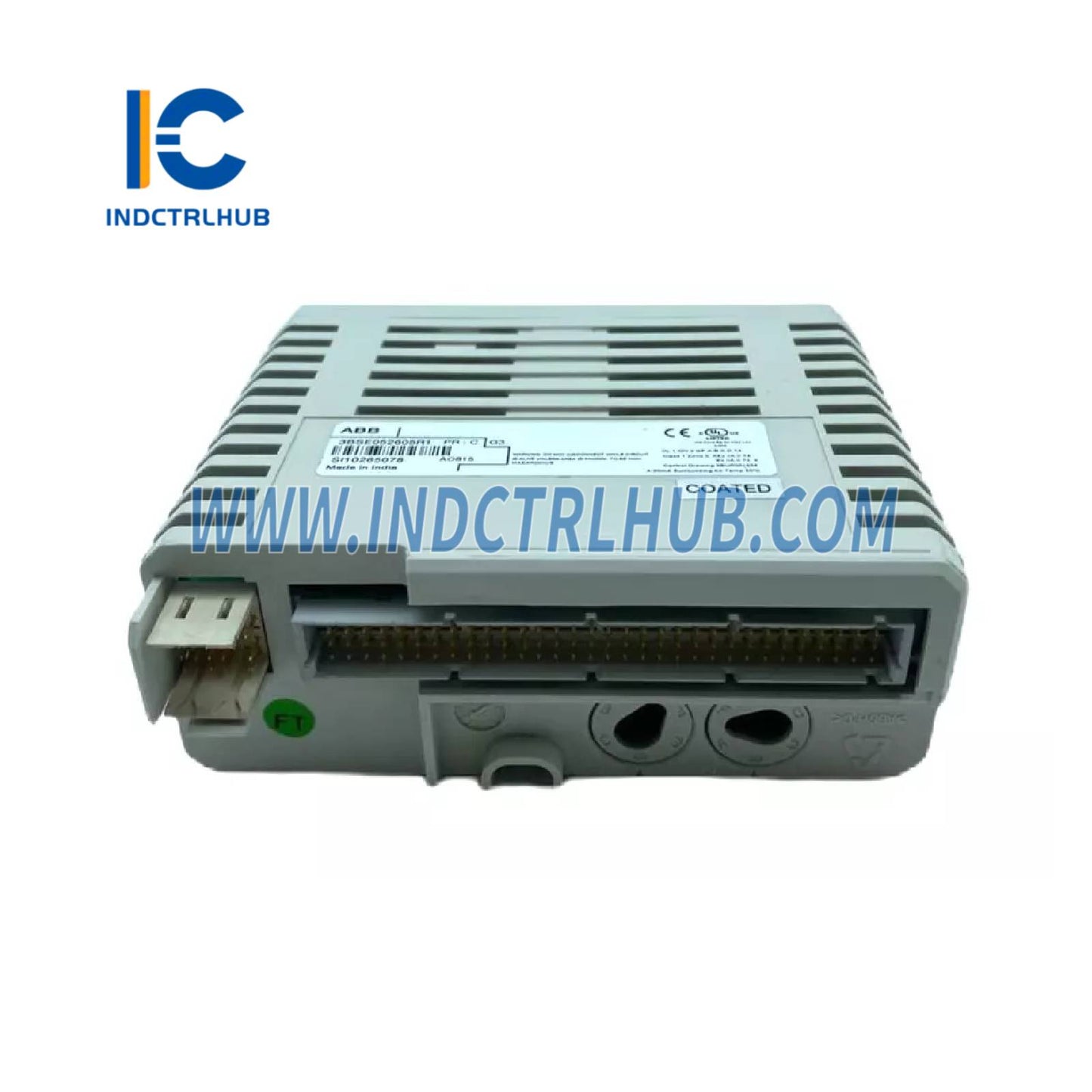

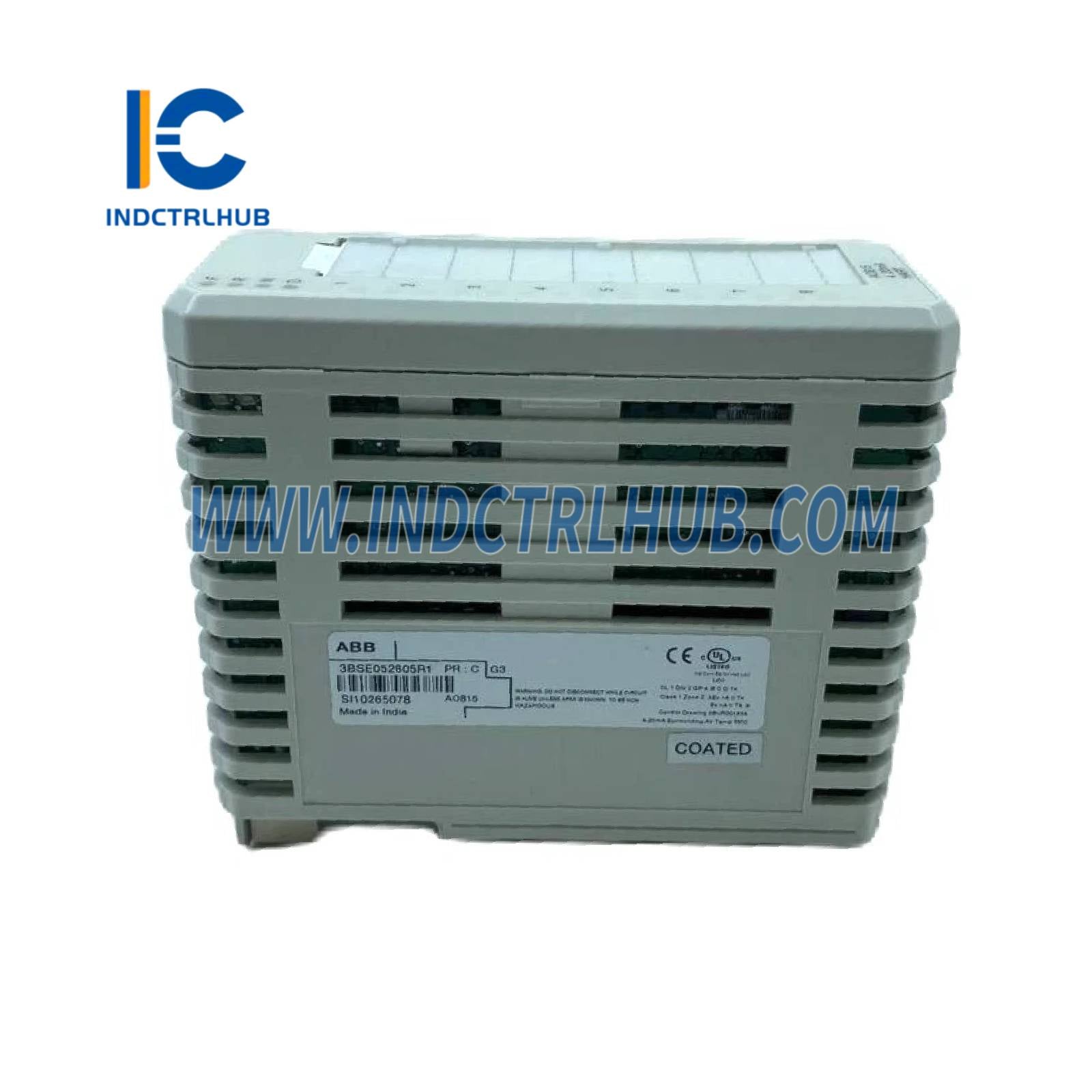

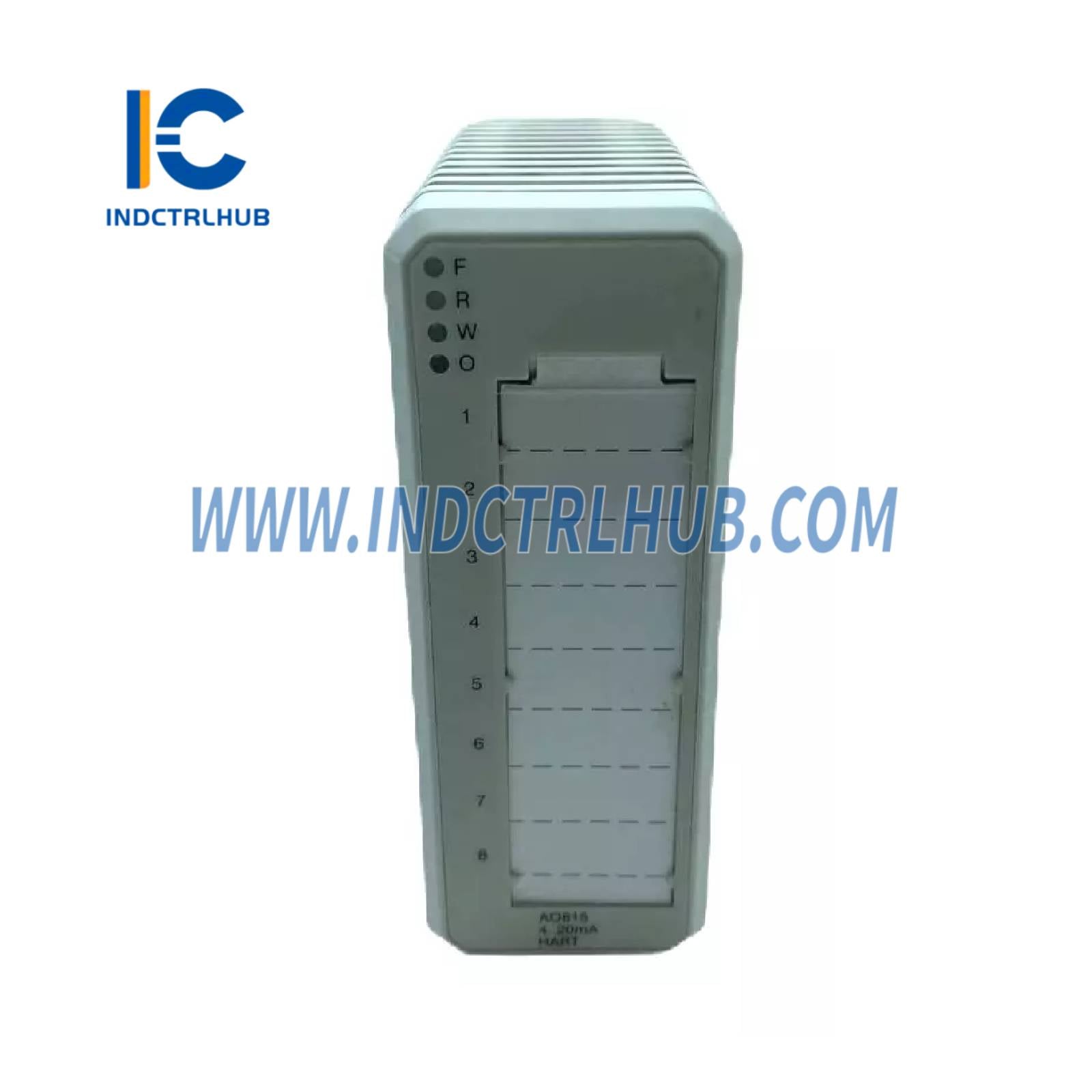

Product Description
🔹
General Information
|
Field |
Details |
|---|---|
|
Product ID |
3BSE052605R1 |
|
ABB Type Designation |
AO815 |
|
Catalog Description |
AO815 Analog Output HART 8 ch |
|
Long Description |
1×8 channels, 4–20 mA, 12-bit, RLmax 750 Ω. Compatible with TU810, TU812, TU814, TU830, TU833 |
|
Medium Description |
1×8 ch, 4–20 mA, 12-bit, RLmax 750 Ω |
|
Product Type |
I-O_Module |
🔹
Technical Specifications
|
Parameter |
Details |
|---|---|
|
Channel Type |
AO (Analog Output) |
|
Number of Input Channels |
0 |
|
Number of Output Channels |
8 |
|
Output Signal |
4–20 mA |
|
Resolution |
12-bit |
|
Load Resistance |
Max 750 Ω |
|
Module Type |
HART-enabled |
|
Compatible Termination Units |
TU810, TU812, TU814, TU830, TU833 |
🔹
Dimensions & Weight
|
Field |
Details |
|---|---|
|
Depth / Length |
102 mm |
|
Height |
119 mm |
|
Width |
45 mm |
|
Net Weight |
0.2 kg |
🔹
Environmental Compliance
|
Field |
Details |
|---|---|
|
RoHS Status |
Compliant with EU Directive 2011/65/EU |
|
WEEE Category |
5. Small Equipment (no external dimension >50 cm) |
|
SCIP Number |
b4fefd01-2c08-458b-a394-de95757d18e0 (China) |
|
Number of Batteries |
0 |
🔹
Ordering Information
|
Field |
Details |
|---|---|
|
HS Code |
853890 |
|
Customs Tariff Number |
85389099 |
🔹
Applicable Systems / Product Lines
|
Control Systems |
S800 I/O Compatibility |
|---|---|
|
800xA / Compact Product Suite |
S800 I/O 4.1, 5.0, 5.1 |
|
800xA System 6.0 |
