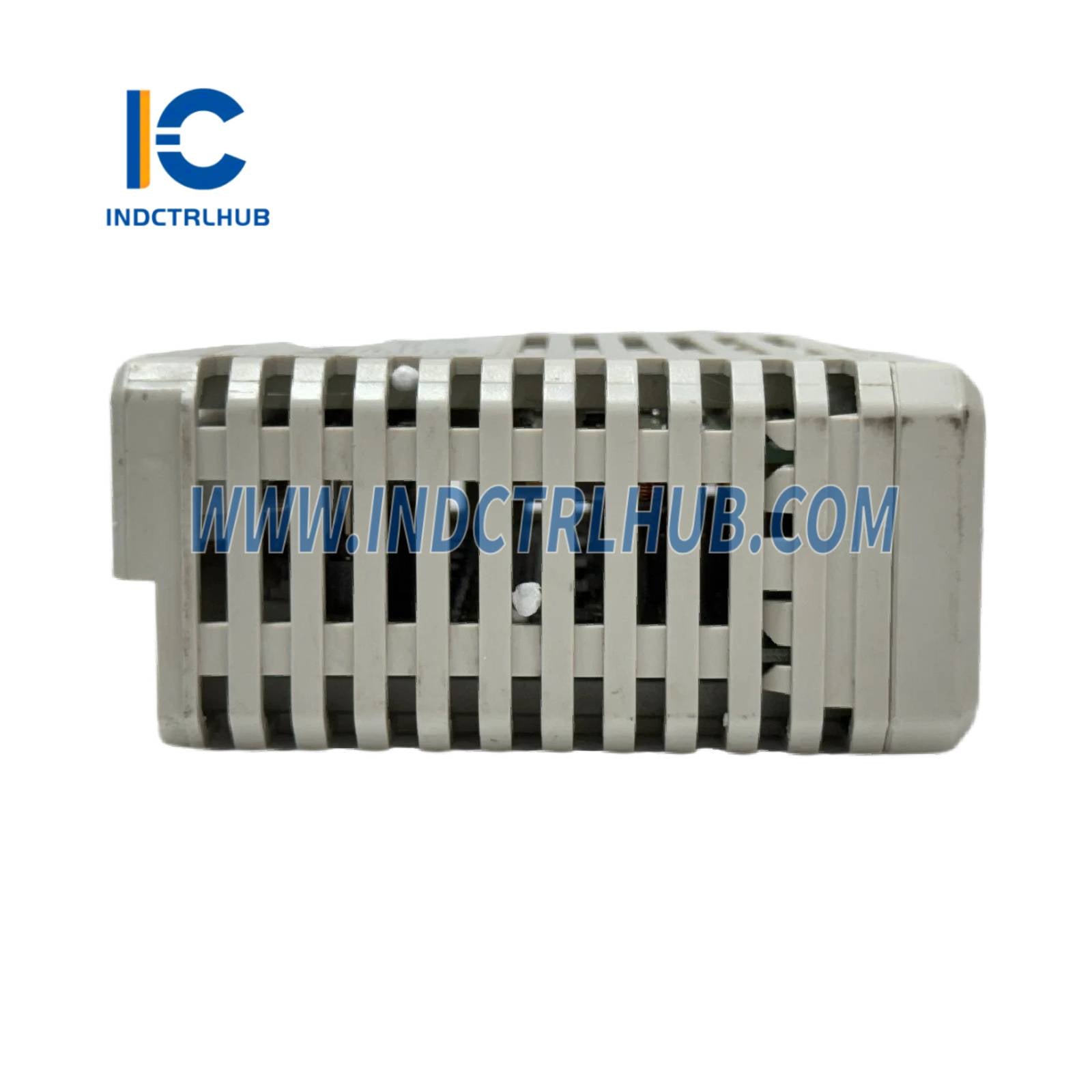

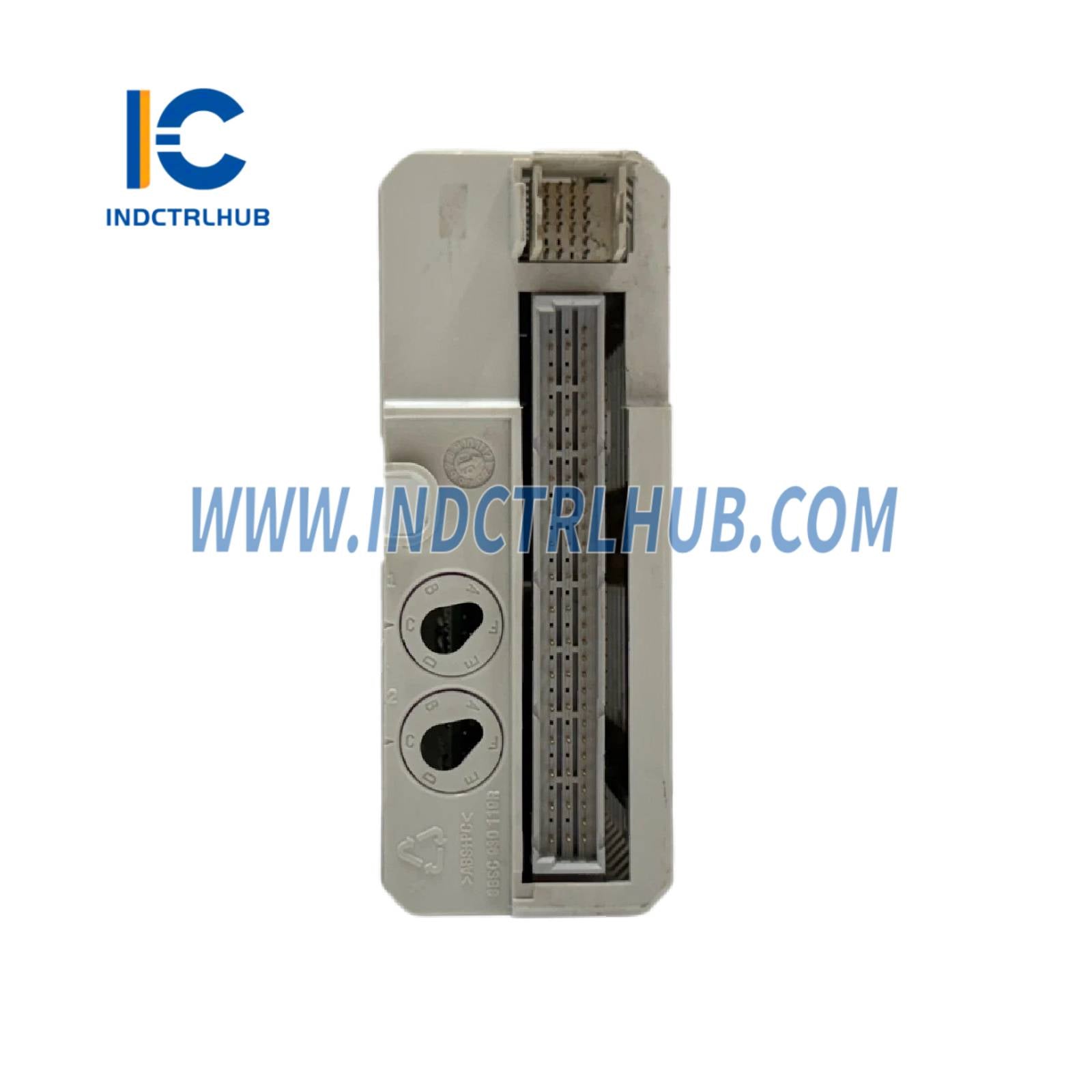

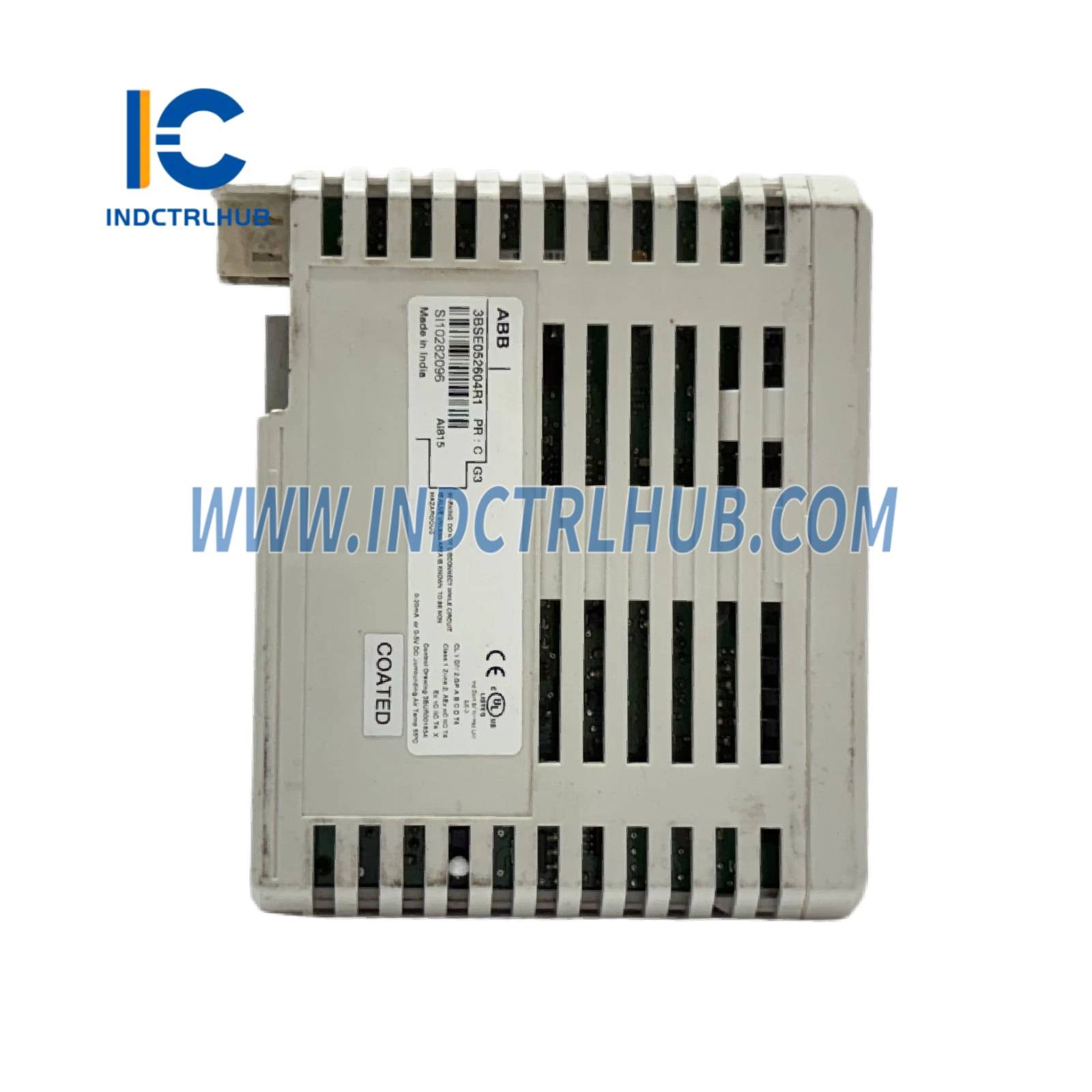

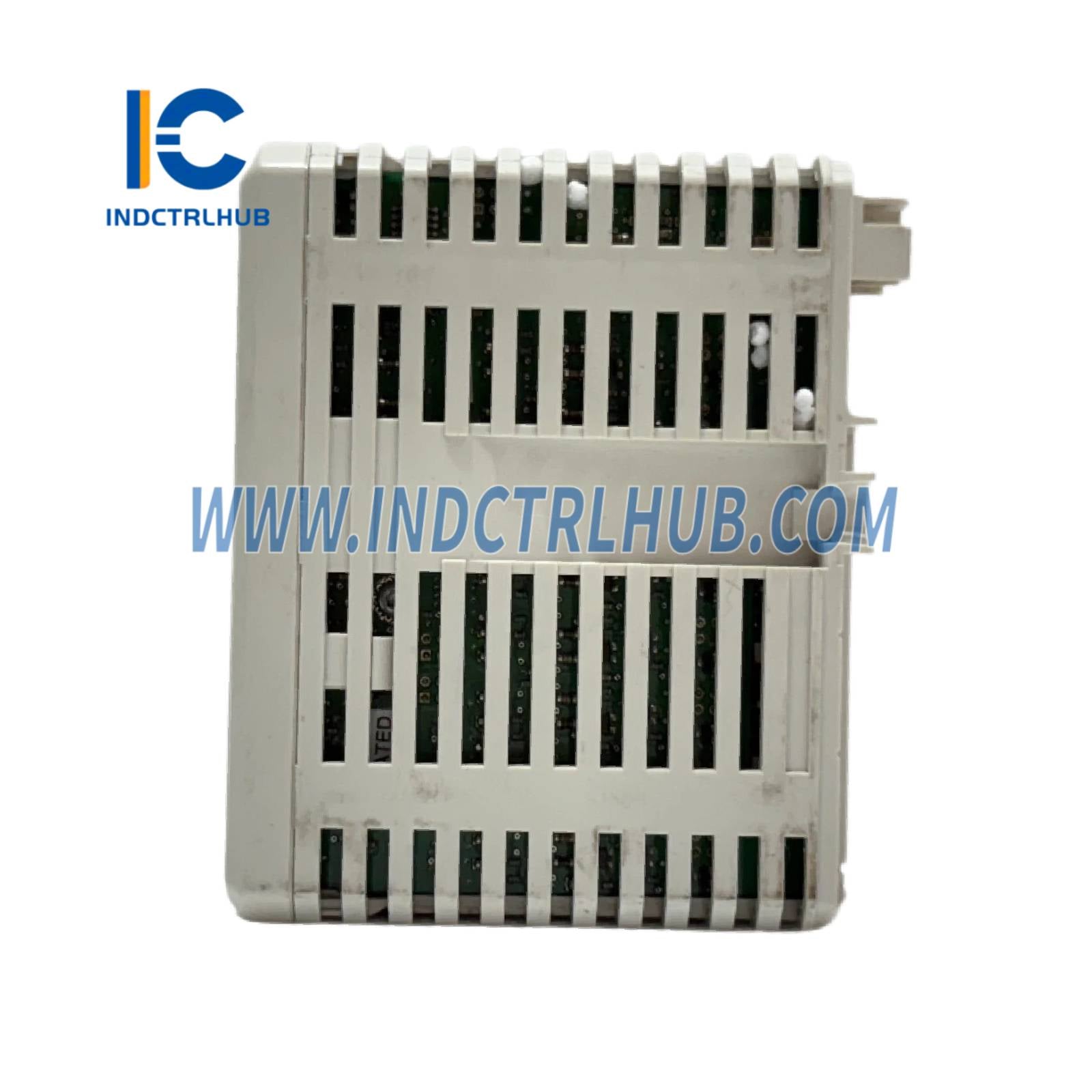

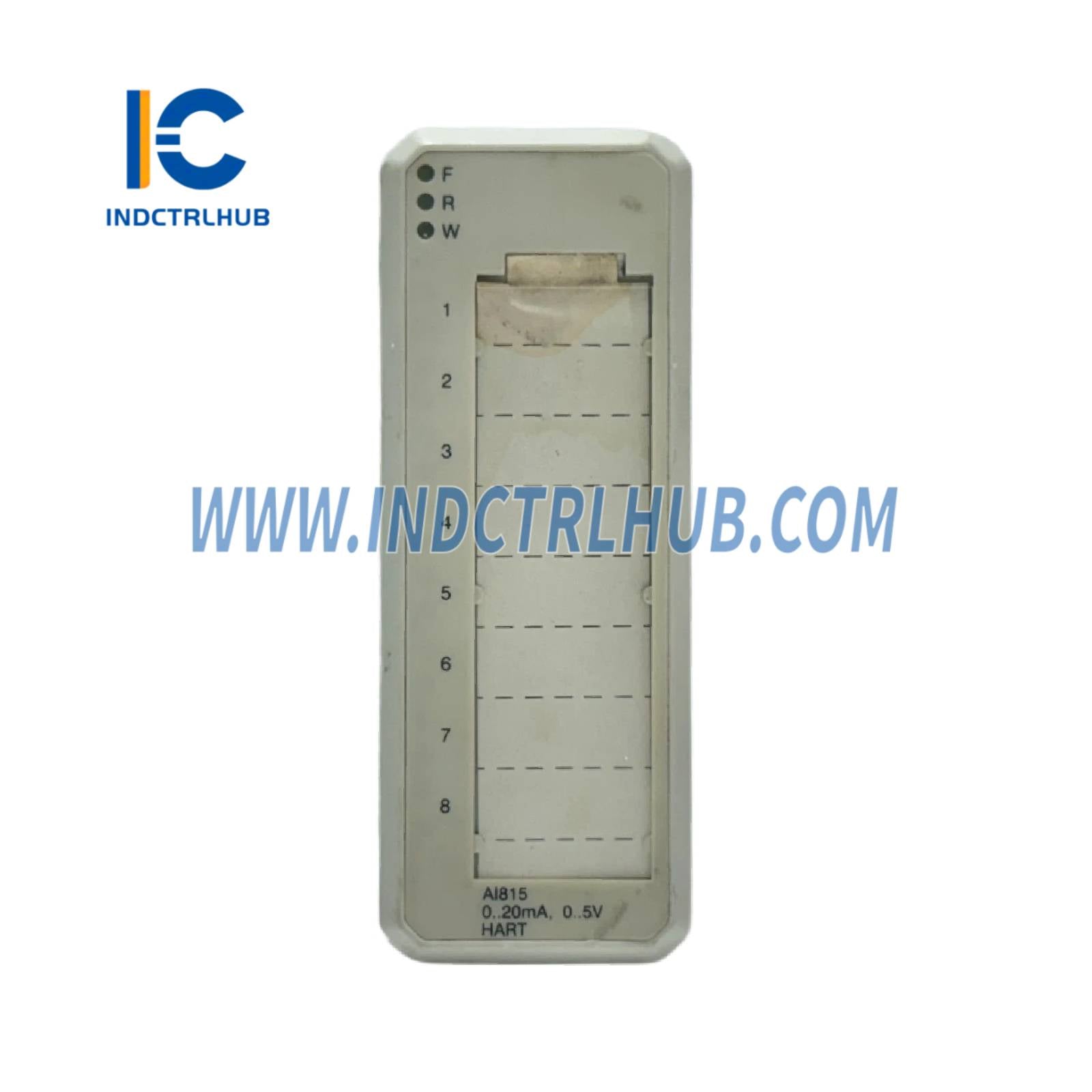

Product Description
General Information
|
Field |
Details |
|---|---|
|
Product ID |
3BSE052604R1 |
|
ABB Type Designation |
AI815 |
|
Catalog Description |
AI815 Analog Input HART 8 ch |
|
Long Description |
0(4)..20mA, 0(1)..5V, 12bit, single ended. Current limited transmitter power distribution. Use Module Termination Unit TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838. |
|
Product Type |
I-O_Module |
|
Channel Type |
AI |
|
Number of Input Channels |
8 |
|
Number of Output Channels |
0 |
Technical Specifications
|
Specification |
Value |
|---|---|
|
Input Signal Types |
0(4)..20 mA, 0(1)..5 V |
|
Resolution |
12-bit |
|
Input Type |
Single-ended |
|
Transmitter Power |
Current-limited transmitter power distribution supported |
|
Compatible MTUs |
TU810, TU812, TU814, TU818, TU830, TU833, TU835, TU838 |
Environmental
|
Field |
Details |
|---|---|
|
RoHS Status |
Compliant with EU Directive 2011/65/EU |
|
WEEE Category |
5. Small Equipment (No External Dimension > 50 cm) |
|
Number of Batteries |
0 |
|
SCIP |
05dce3bd-cb58-4a3f-b424-554593fb0f89 (China) |
Physical Dimensions
|
Dimension |
Value |
|---|---|
|
Depth / Length |
102 mm |
|
Height |
119 mm |
|
Width |
45 mm |
|
Net Weight |
0.2 kg |
Ordering Information
|
Field |
Details |
|---|---|
|
HS Code |
853890 |
|
Customs Tariff Number |
85389099 |
Applicable Systems / Compatibility
|
System Versions |
|---|
|
S800 I/O Modules |
|
800xA (versions 5.0, 5.1, 6.0) |
|
Compact Product Suite (versions 5.0, 5.1) |
|
Advant OCS with Master or MOD 300 SW |
