Product Description
Product Overview

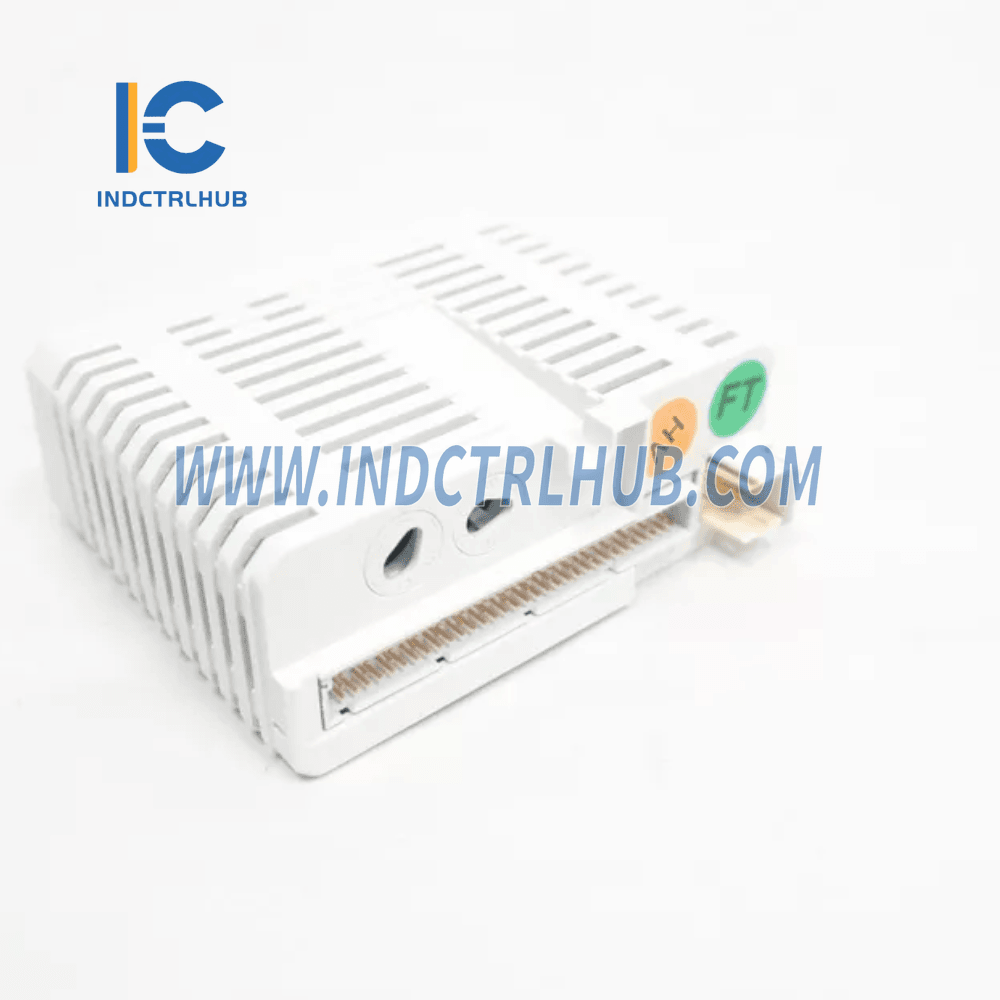

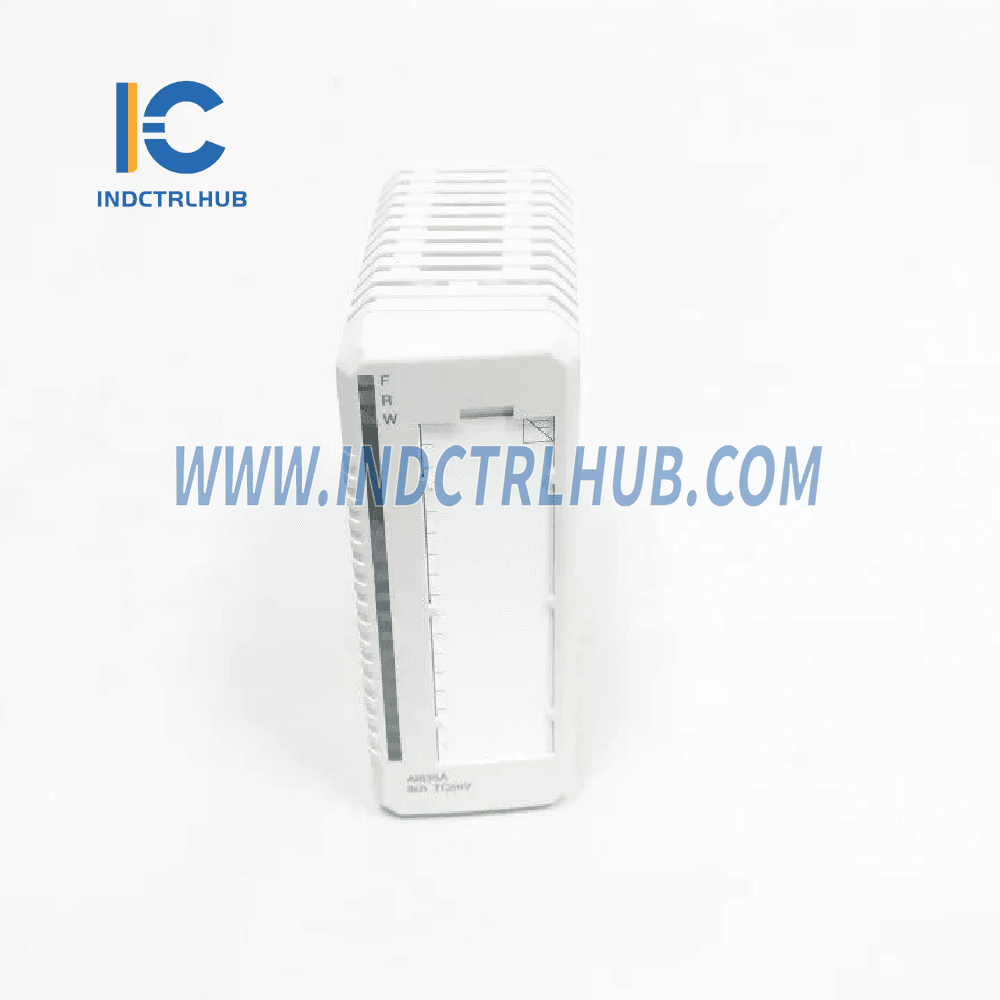

The ABB AI835A is an analog input module designed for industrial control systems, enabling accurate signal processing from thermocouples and millivolt sources. This high-performance module is part of the S800 I/O series, ensuring compatibility with ABB's 800xA and other control systems.
Key Features
- 8 Input Channels: Supports thermocouple and millivolt input signals for diverse applications.
- High Resolution: Equipped with a 15-bit analog-to-digital converter for precise measurements.
- Modular Design: Compatible with Module Termination Units (MTU) such as TU810, TU812, TU814, TU818, TU830, and TU833.
Technical Specifications
| Specification | Details |
|---|---|
| Product ID | 3BSE051306R1 |
| Channel Type | Analog Input (AI) |
| Number of Input Channels | 8 |
| Resolution | 15-bit |
| Intrinsic Safety | Not specified |
| Power Requirements | Not applicable (Voltage/Current not specified) |
| Weight | 0.2 kg |
Environmental Compliance
- Country of Origin: Estonia
- Customs Tariff Number: 85389091
Compatibility
The AI835A module is designed for use with:
- ABB 800xA System Versions 4.1 to 6.0
- S800 I/O Series
- Advant OCS Systems with Master or MOD 300 Software
Applications
This module is ideal for industries requiring high-precision temperature or millivolt measurements, such as:
- Process Automation
- Energy Systems
- Industrial Manufacturing
Ordering Information
| Attribute | Value |
|---|---|
| Part Number | AI835A Analog Input Module |
| Article Number | 3BSE051306R1 |
| Weight | 0.2 kg |
| Gross Volume | 1.69 dm³ |
| Certifications | EU RoHS, CE, and WEEE compliant |
Keywords
ABB AI835A, Thermocouple Input Module, Analog Input Module, S800 I/O Series, ABB 800xA, Industrial Automation Accessories.
